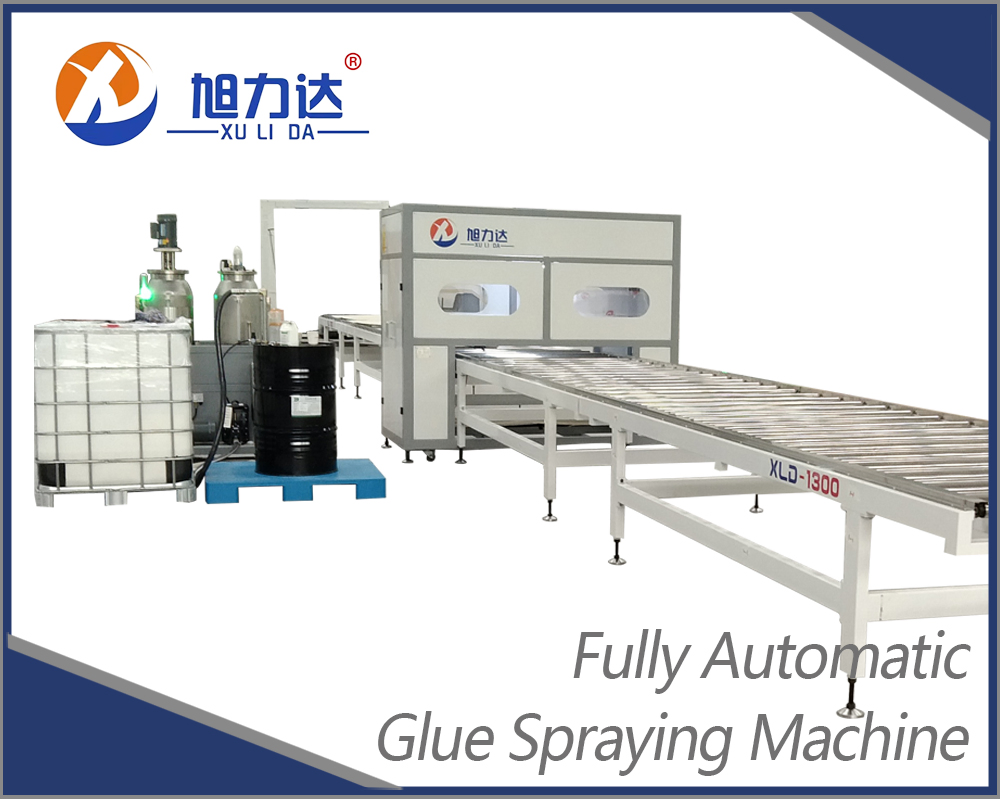

Automatically Controls The Conveyor Speed Epoxy Glue Dispensing System for FRP Honeycomb Panel

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.XLD-GSM001
Glue TypeSolvent-based, Water-based
Machine TypeAutomatic
Voltage380V 3phase 50Hz
Key Selling PointsTop Quality & Competitive Price
Power10kw
Coating Amount0-6000g/Min
Working Speed12m/Min
Air Source0.6-0.8MPa
CertificationISO
Product Description

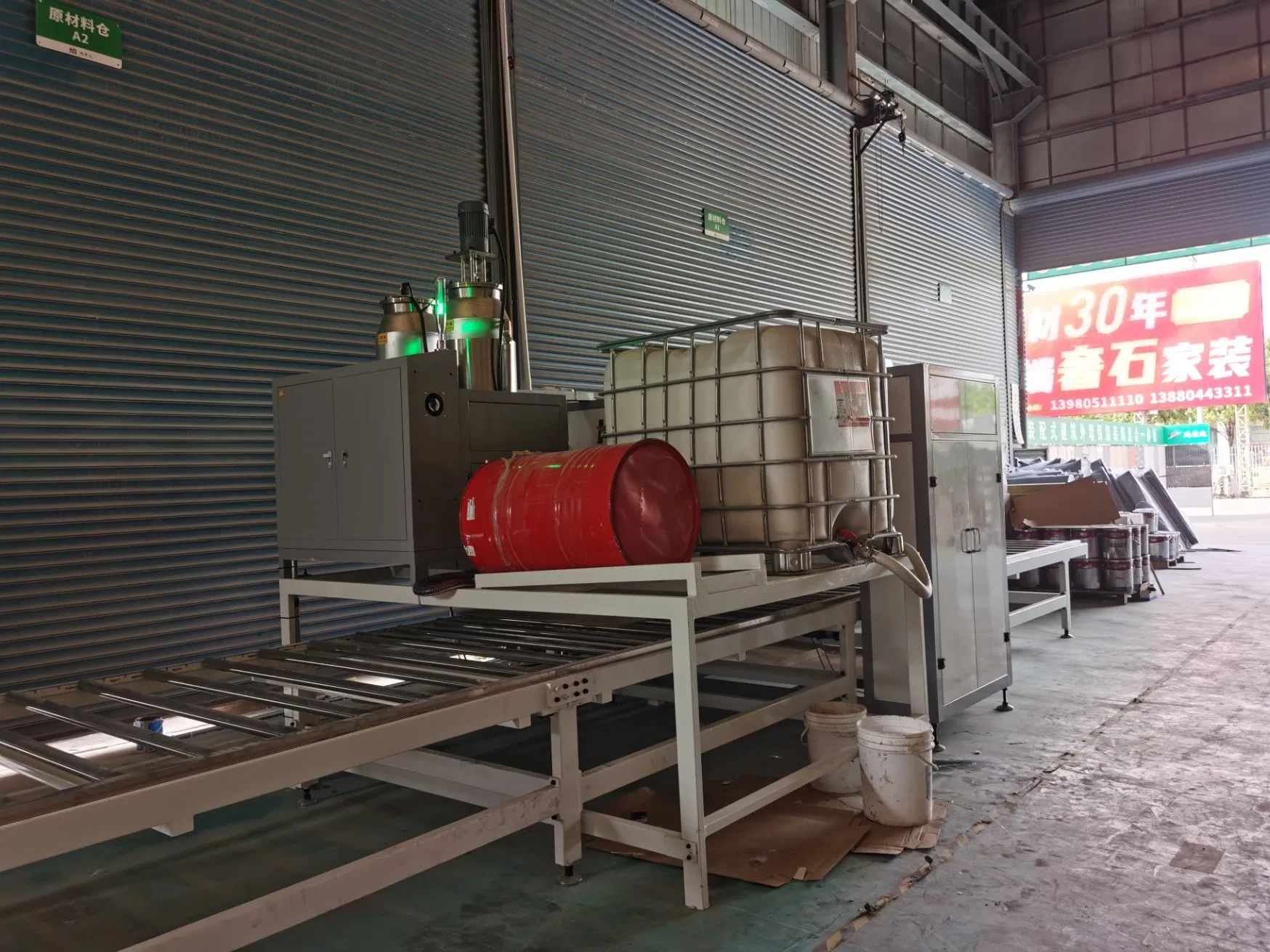

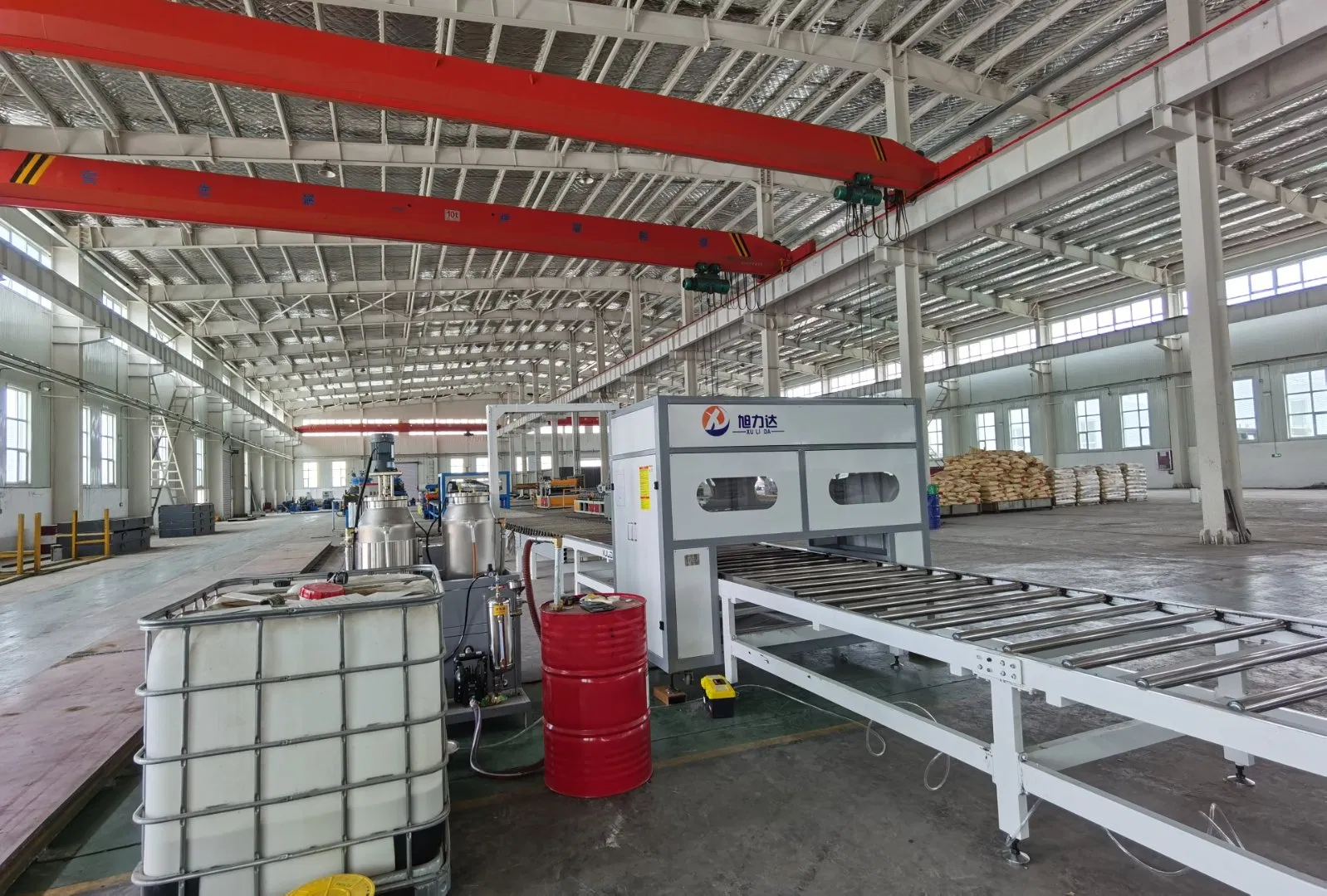

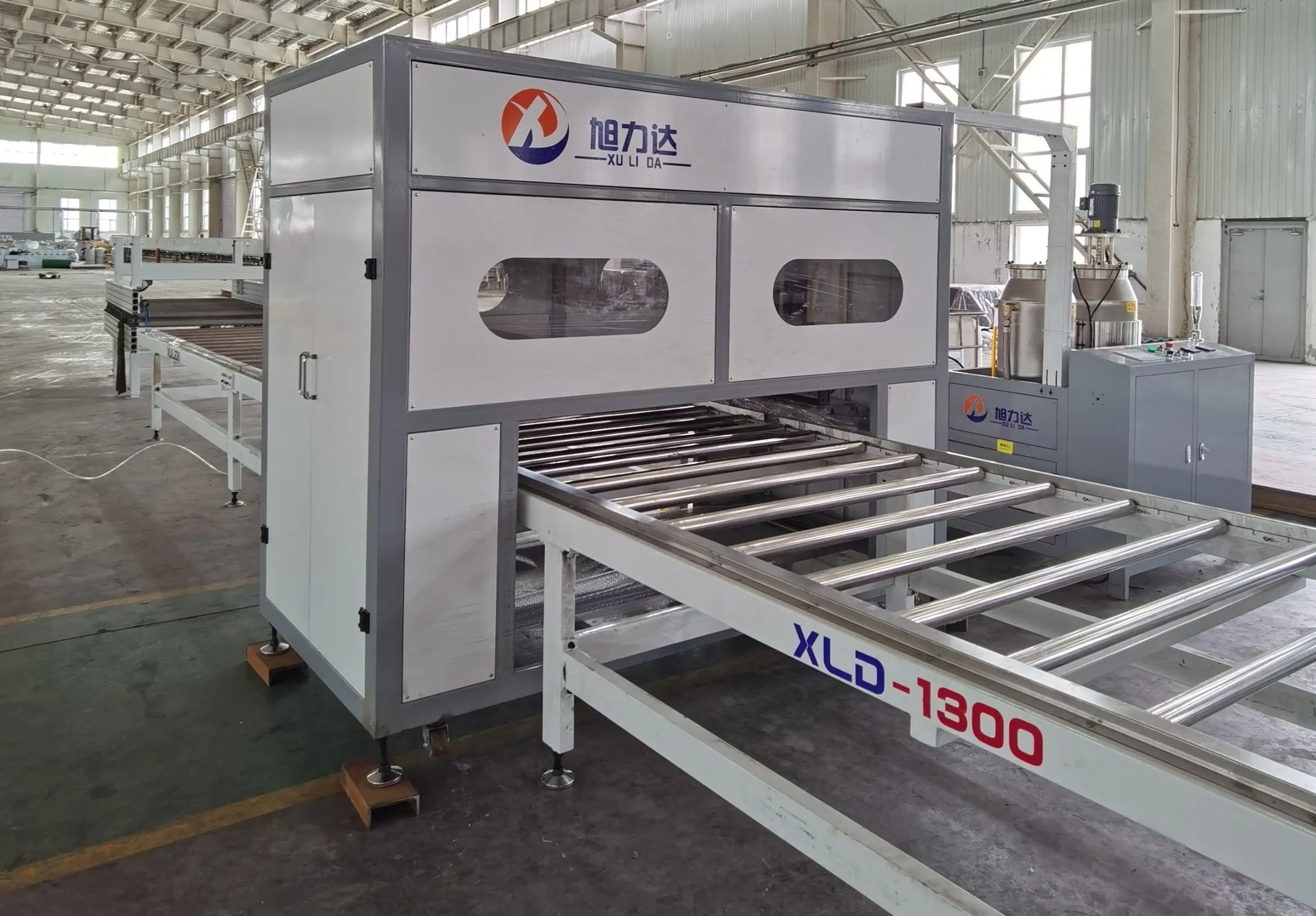

Automatically Controls the Conveyor Speed Epoxy Glue Dispensing System for FRP Honeycomb Panel

Glue Dispensing System
Applicable Compound Products
Integrated CeilingWallboardStainless Steel CabinetsExterior Honeycomb Panel
FRP Honeycomb PanelRock Wool Sandwich PanelFire-proof DoorAluminium Foam Core Panel
Thermal Insulation PanelMedical DoorCopper Honeycomb PanelCement Board

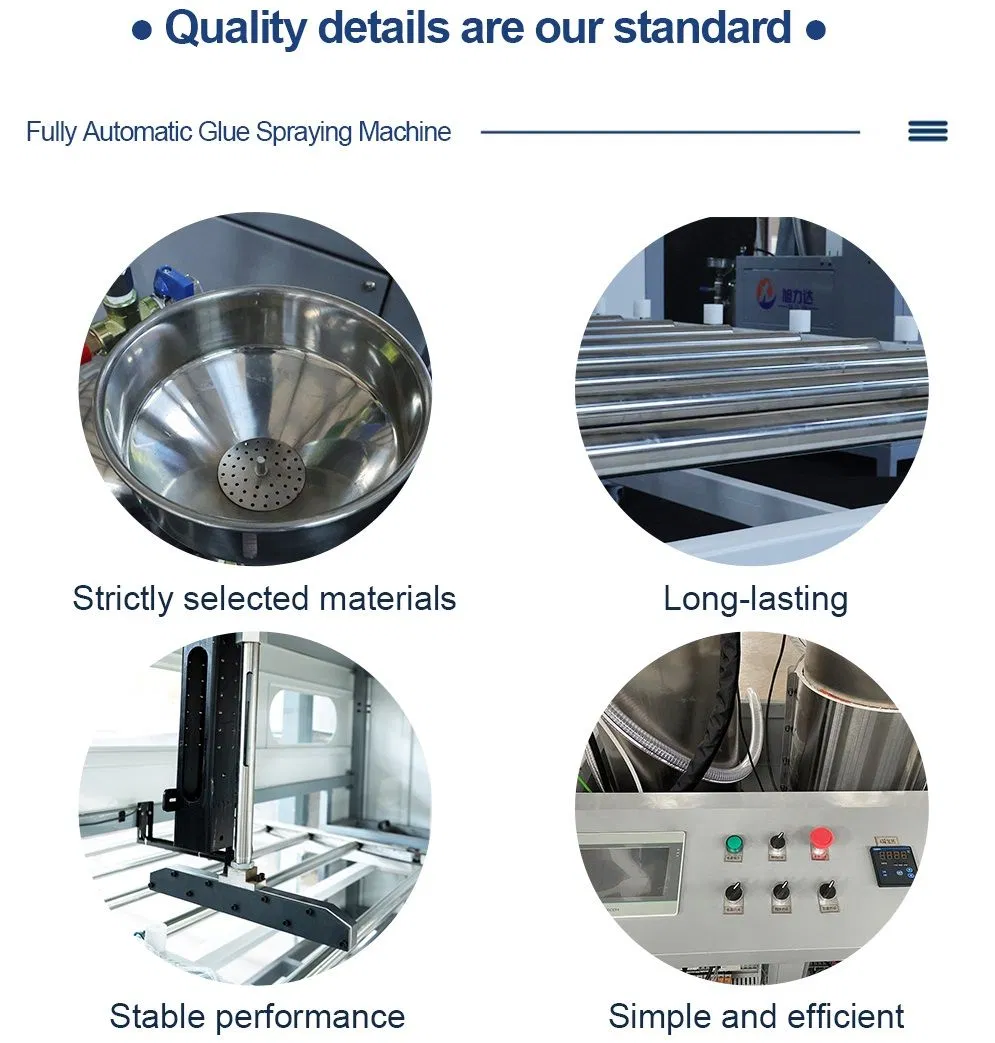

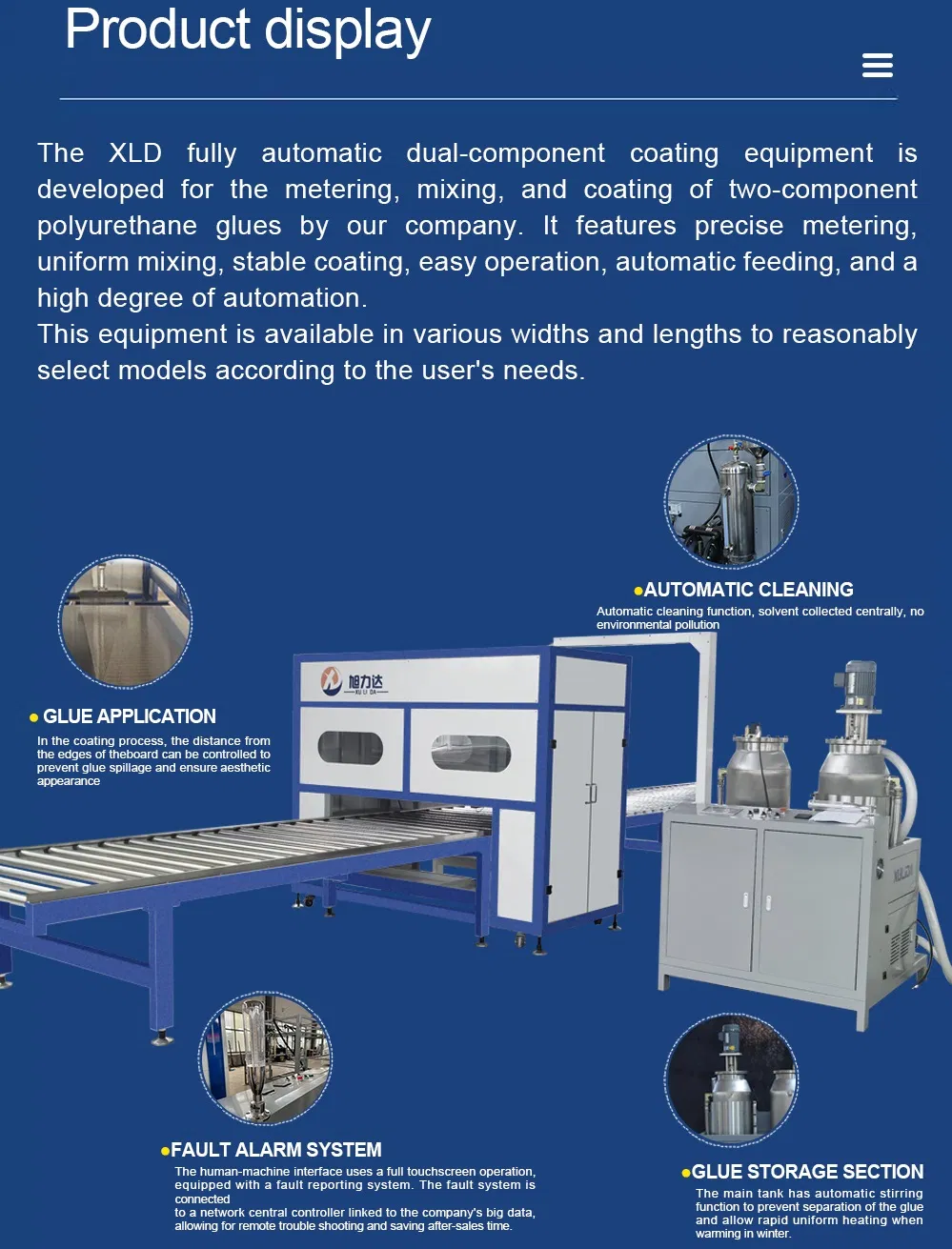

Equipment Detail 1 Equipment Detail 2

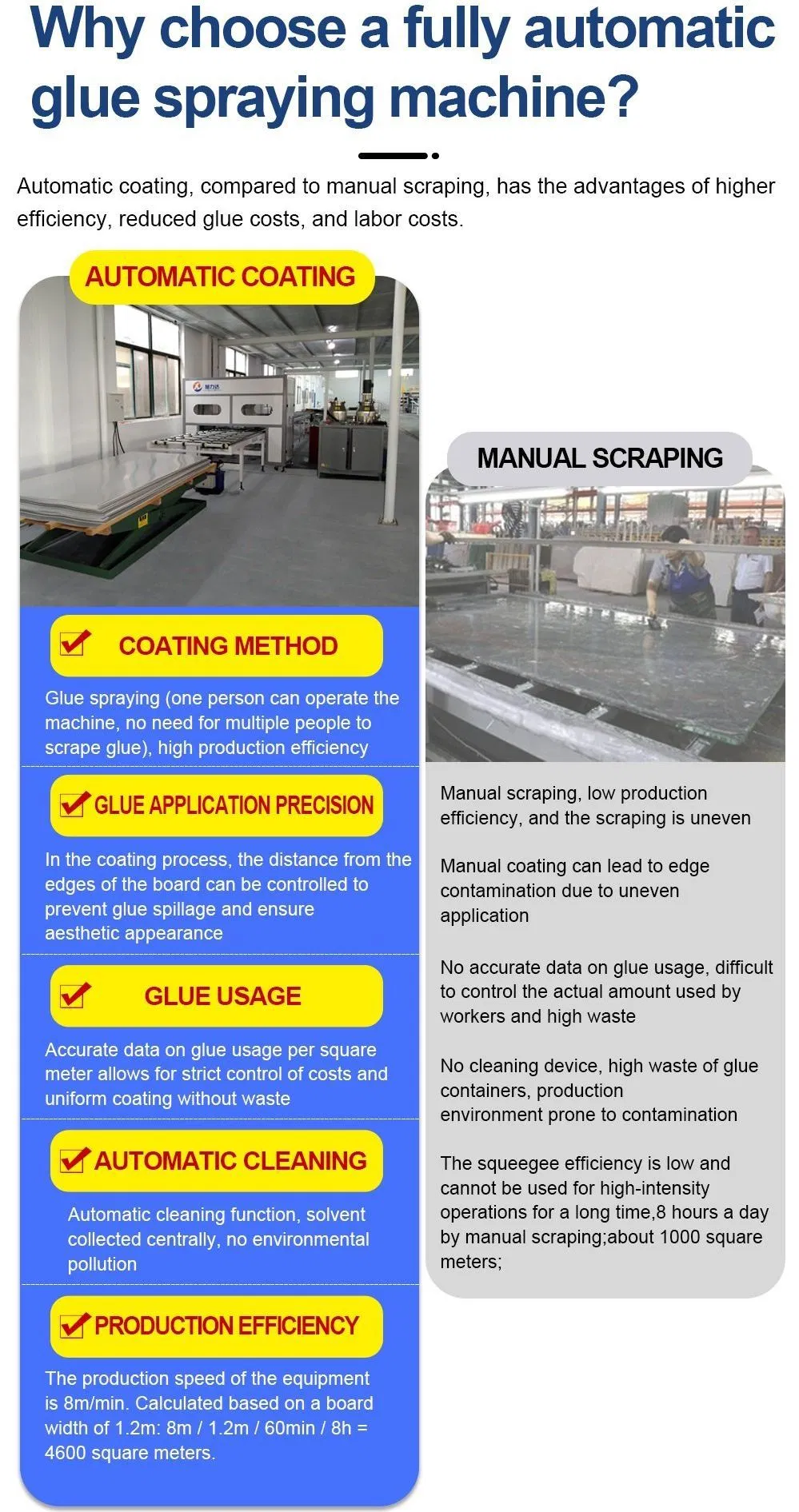

Automatic Coating vs. Manual Scraping Analysis
Category Automatic Coating Manual Scraping
Coating Method Single operator, automatic proportioning and mixing. Requires 3-4 people, scraping is often uneven.
Precision Edges controlled to prevent spillage; high aesthetic quality. Prone to edge contamination and uneven application.
Glue Usage Accurate data per sqm; strict cost control, no waste. Difficult to control; high waste and incorrect ratios.
Efficiency 4600 square meters per 8 hours (8m/min). Approx. 1000 square meters per 8 hours.
Process Comparison 1 Process Comparison 2
Technical Parameters
Equipment Model Model 1300 / 1600 / 2000 Power Supply 380v 50Hz
Glue Output 0-6000g/min Flow Accuracy ≤ ± 3%
Proportioning Ratio Adjustable 1:1 to 5:1 Ratio Precision ≤ ± 2%
Conveying Speed Adjustable up to 12m/min Glue Viscosity ≤ 30000mpa.s

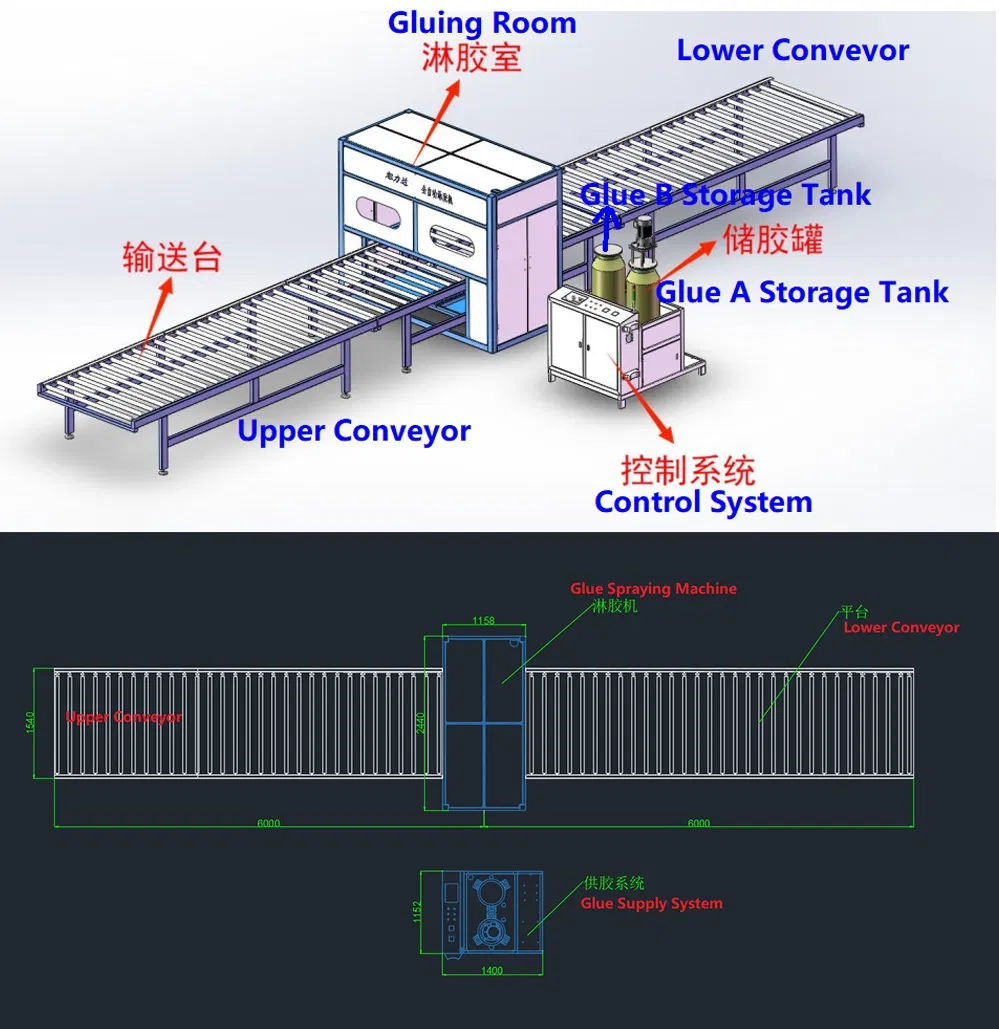

Technical Layout

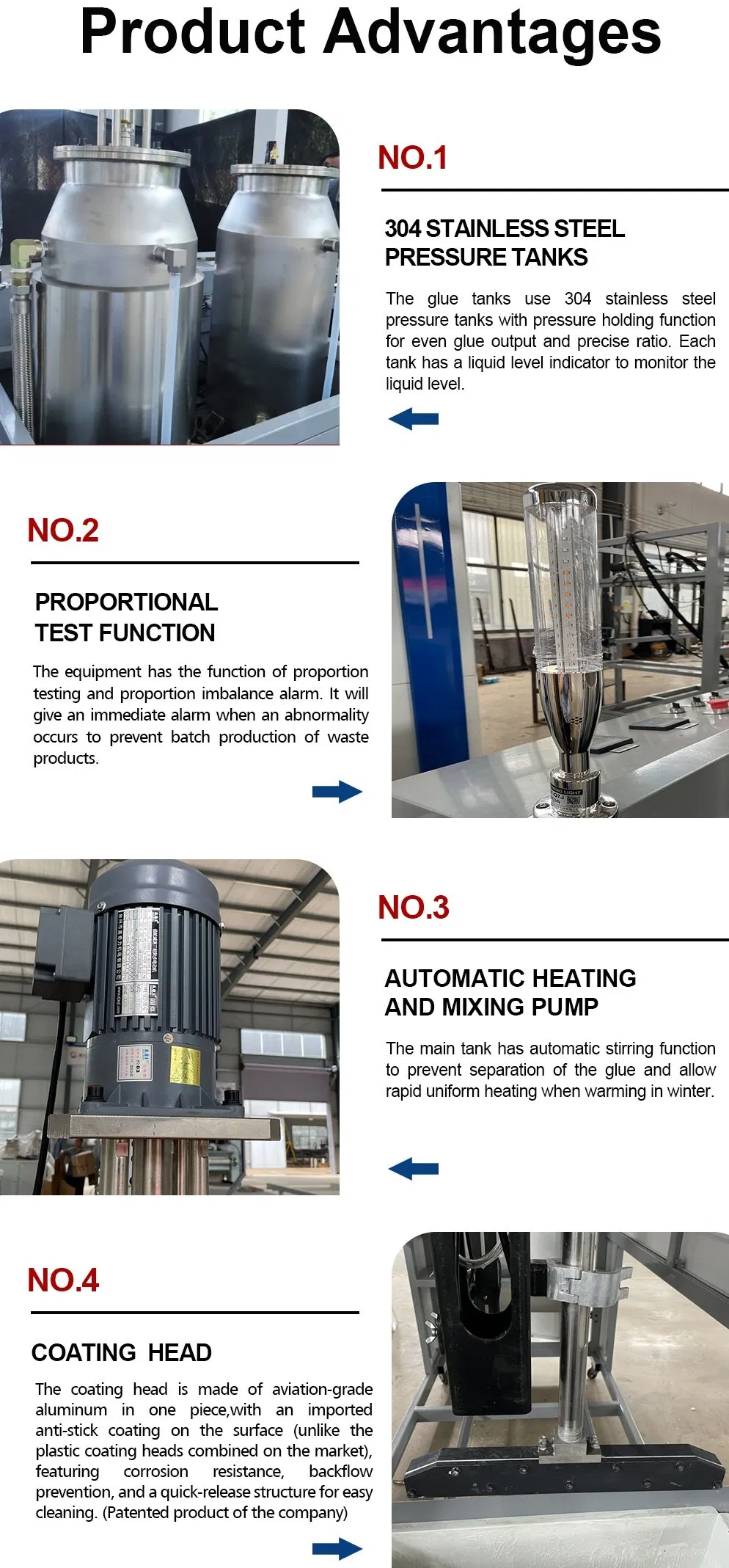

Equipment Key Functions
✔️
Automatic Edge-Seeking: Identifies non-standard boards and coats only the effective area.
✔️
Automatic Variable Speed: Controls conveyor speed based on board width for uniform coating.
✔️
Proportion Alarm: Immediate alarm for proportion imbalance to prevent waste.
✔️
Pulse Air Mist Cleaning: Automatic cleaning function using sealed containers for waste collection.
✔️
Precision Metering: Driven by high-end servo motors for stable and accurate glue output.
✔️
Digital Interface: Full touchscreen operation with remote troubleshooting capability.
Packaging & Delivery
Package Size240cm * 120cm * 210cm
Package Weight1000kg
Package TypeStandard Export Plywood Box
Delivery 1 Delivery 2 Delivery 3
Our Advantages
Professional spraying machine production solutions.
24-hour professional online service support.
Quality-first manufacturing philosophy.
OEM & ODM customization availability.
Factory-direct competitive pricing without middlemen.
Advanced equipment with strict quality control.

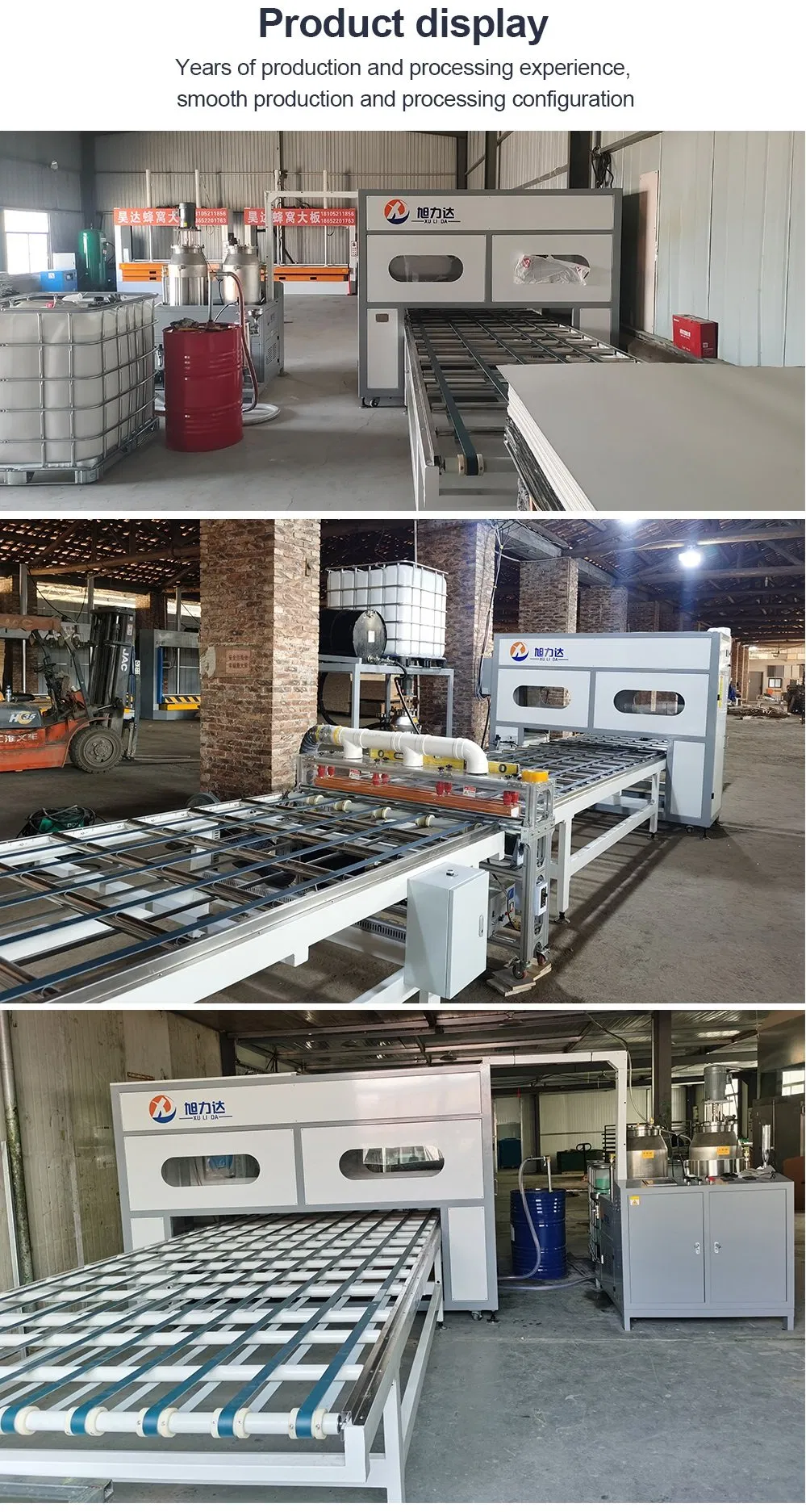

Advantage 1 Advantage 2
Frequently Asked Questions
Q1. What are your terms of packing?
Generally, we pack goods in containers using Standard Export Package (Plywood boxes). Special requirements can be accommodated.
Q2. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We provide photos of products and packages before final payment.
Q3. How long is the delivery time?
Generally, it takes 30 to 45 days after receiving your advance payment, depending on the items and order quantity.
Q4. Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings, including building necessary molds and fixtures.
Q5. Do you test goods before delivery?
Yes, we perform 100% testing on all equipment before it is dispatched to ensure performance and quality.
Q6. What is your sample policy?
Since these are high-value products, we can provide samples at a discount. Refund options may be available for large subsequent orders.
