Expandable Design Best Mini Solar Power System for Small House

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Specifications

Model NO.
SMSH-2KW
Certification
CE, ISO, RoHS
Power Capacity
2kw
Connector Type
Mc4
Junction Box
TUV Standard
Grid Voltage
3/N/P, 220/380V, 230/400V
Mounting Type
Flat Roof, Pitch Roof, or Ground
Cable Length
100m
Display
LCD Display
Waterproof Degree
IP67
Working Temp
-30°C to +60°C
Charge Method
Utility Grid or Solar Panel

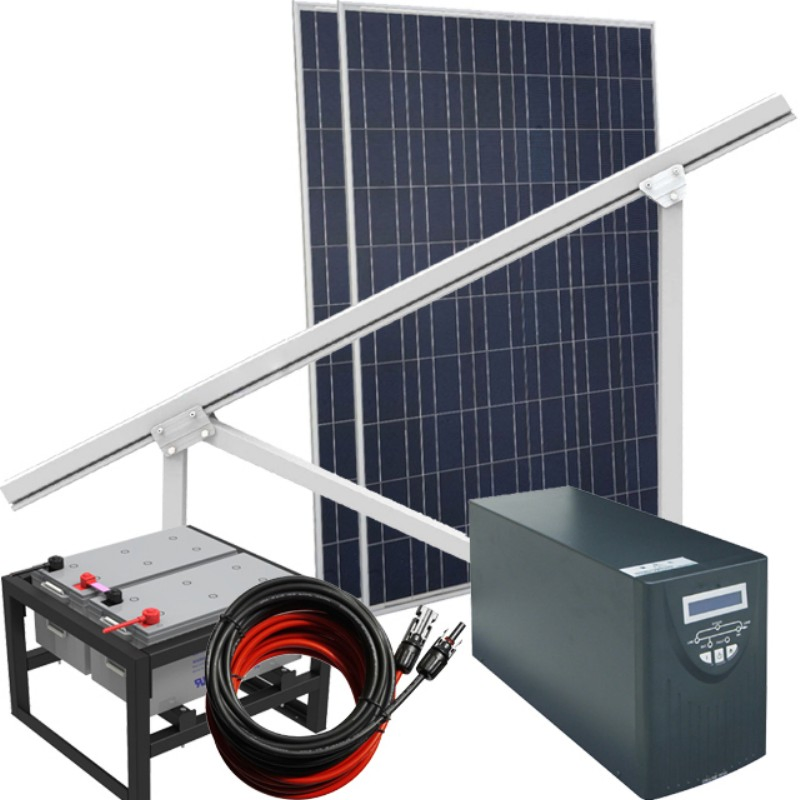

Solar Power System
⚙️

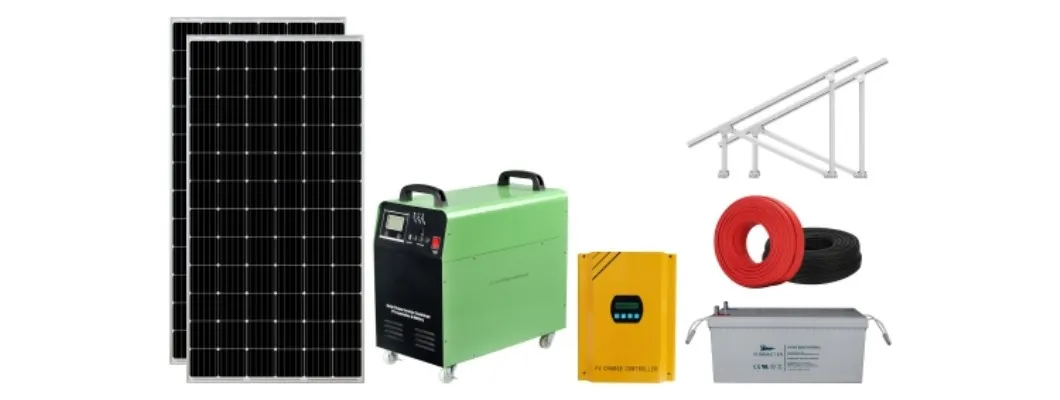

System Configuration

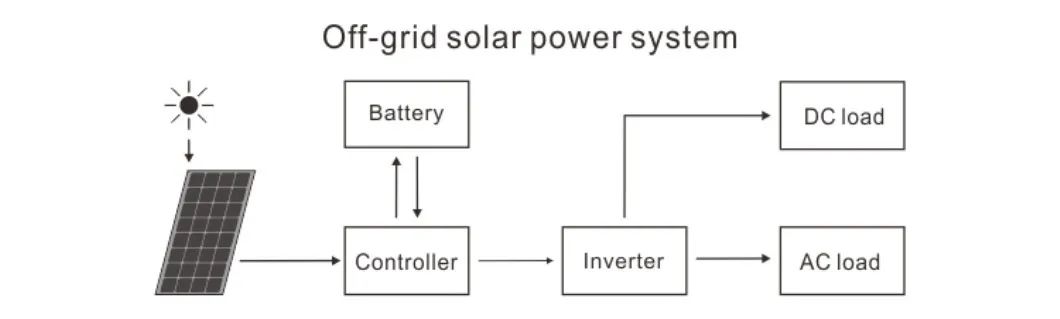

Connecting Diagram
Item Certification Description Quantity Warranty
Solar Panel TUV / IEC / EC Mono or Poly 2 pcs 20 years
Inverter CGC / CQC / VDE MPPT tracking, 1500W 1 set 5 years

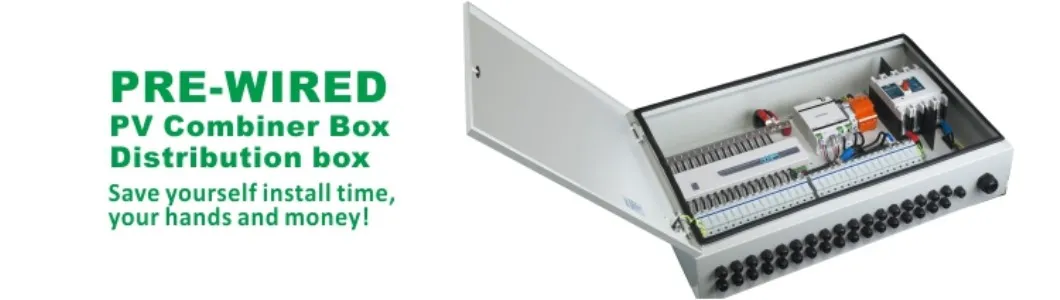

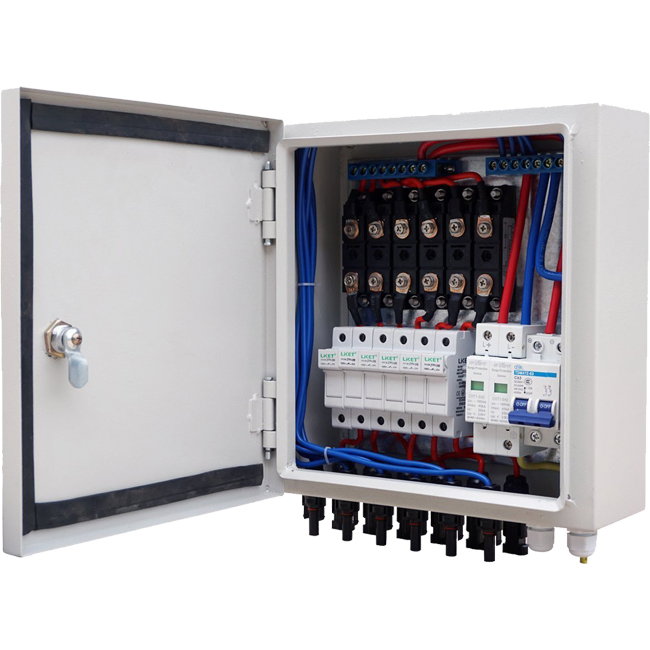

Distribution Box CE Lightning Protection, Air Switch 1 set 5 years
Mounting System CE Slant/Cement/Soil Bracket 1 set 10 years

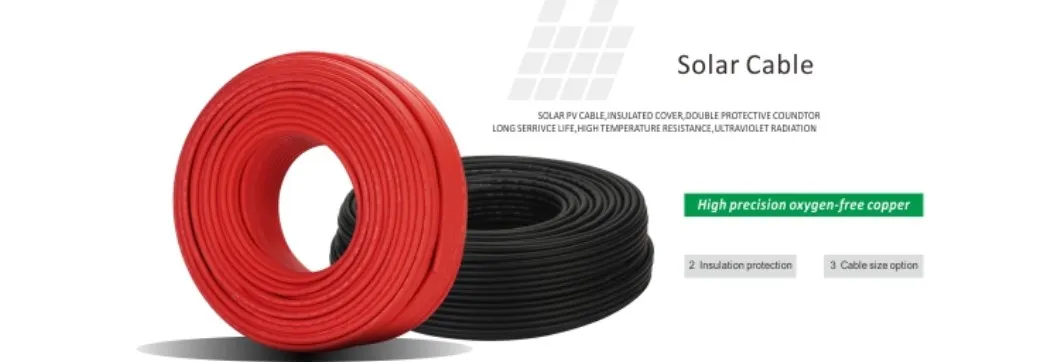

PV Cable TUV / UL 4mm² DC / 6mm² AC 20m / 10m 10 years
☀️

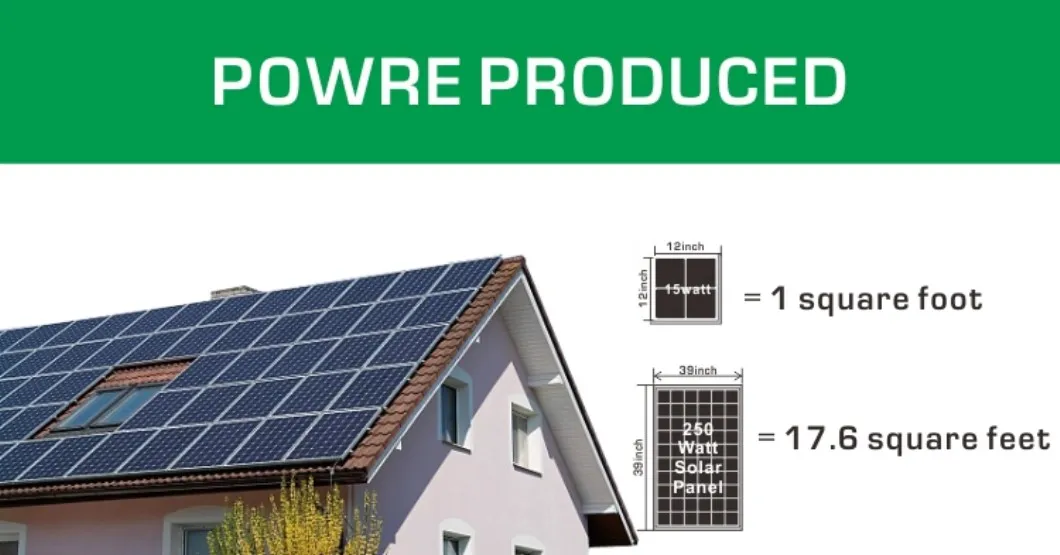

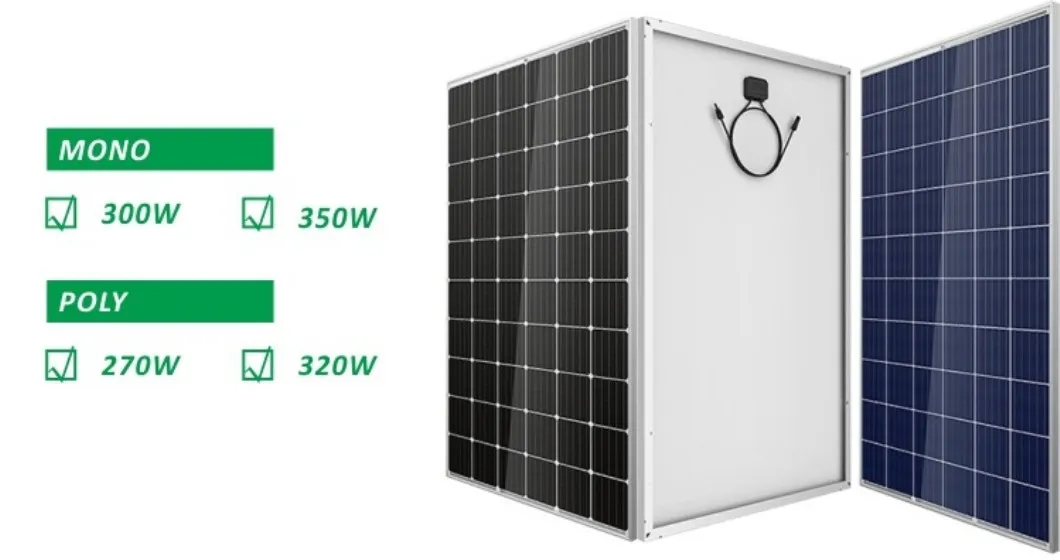

Solar Panel & Inverter Details

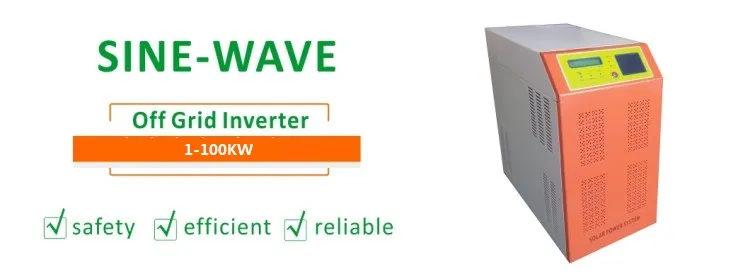

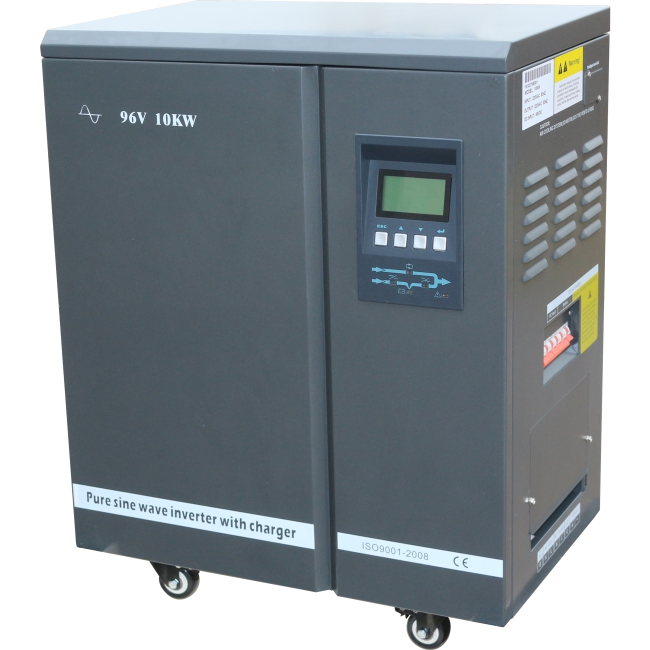

Inverter Technical Parameters
Ambient Temperature-25~+60ºC (>45ºC deloading)
Protection DegreeIP65
TopologyTransformerless
Cooling MethodNatural Convection
Noise Emission<25 dB
🔋

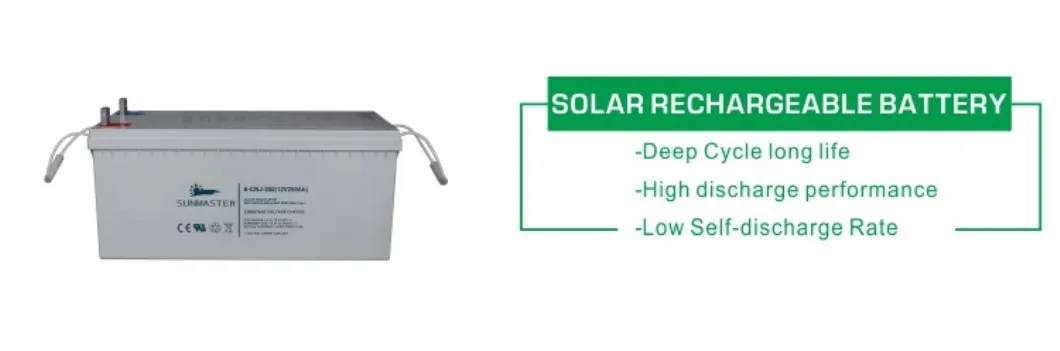

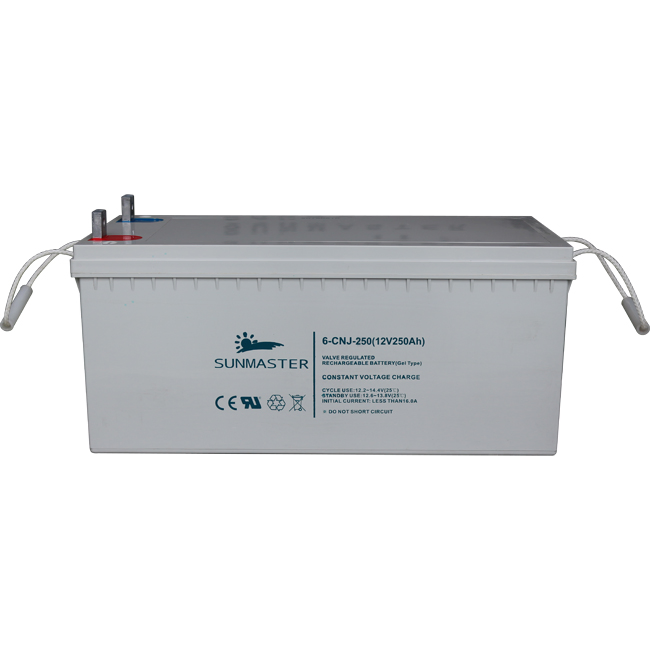

Energy Management & Storage

Battery Feature Specification
Nominal Voltage12V
Nominal Capacity100Ah(10hr, 1.80V/cell, 25ºC)
Approximate Weight27.5 kg
Case MaterialABS
Max Charge Current25 A
🔧

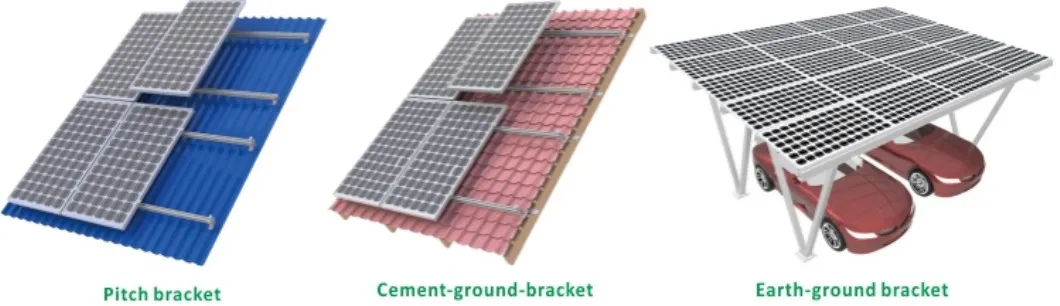

Safety & Mounting Accessories

Mounting System Performance:

  • Wind Capacity: Up to 40m/s (Level 13)
  • Snow Load Capacity: Up to 70kg/sq. meters
  • Versatile Design: Suitable for slope roofs, flat ground, and soil ground.
Detailed System View

Frequently Asked Questions

What is the expected lifespan of the solar panels?
The solar panels come with a 20-year warranty and are designed for long-term outdoor durability.
Can this system withstand extreme weather conditions?
Yes, the mounting system can handle wind speeds up to 40m/s (Level 13 wind) and snow loads up to 70kg/sq.m. The components are rated IP65/IP67 for waterproof protection.
What type of roofs can the system be installed on?
The system is highly versatile and can be customized for flat roofs, pitched roofs, or even ground-level installations.
How much space is required for installation?
Generally, the system requires approximately 8-10 square meters of roof area per 1kw of power.
Does the system include safety protections?
Yes, the distribution box includes lightning protection, air switches, and fusegears to ensure the safety of the entire circuit.
What is the operating temperature range?
The system is designed to operate efficiently in temperatures ranging from -30°C to +60°C.
