Product Description

Basic Information
Model NO.
MY-CR-01
Feature
Environmental, Fireproof, Light Weight, Metal Panel, High Strength, Walkable
Fire Rating
1
Certification
ISO9001, CE GMP
Customized
Available
Metal Material
Galvanized Steel, Stainless Steel
Anti-Corrosion
Available
Type
Handmade
Transport Package
Wooden Case
Specification
50mm, 75mm, 100mm
Origin
China
Production Capacity
50000sqm/Year
Packaging & Delivery
Package Size
210.00cm * 90.00cm * 5.00cm
Gross Weight
40.000kg
Product Description
Cleanroom Modular Wall & Ceiling System is an advanced solution for creating controlled environments. It is widely used in manufacturing facilities within the pharmaceutical, food, beverage, cosmetic, and electronic industries. As Good Manufacturing Practice (GMP) standards require, production area environments must be precisely controlled for cleanliness and safety.

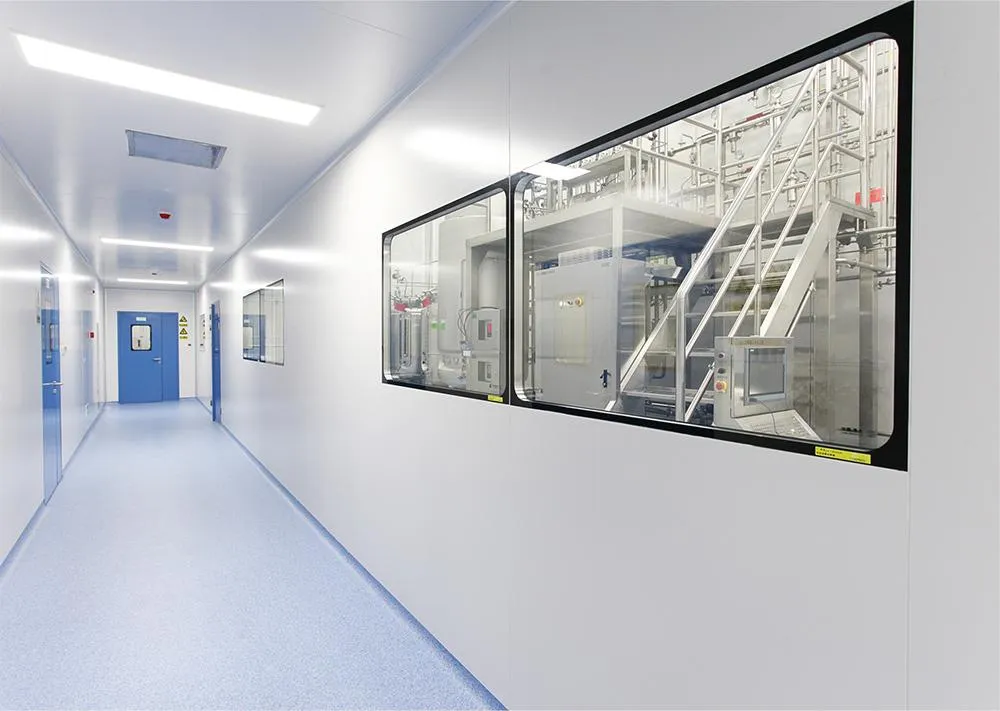

Cleanroom Modular Wall System

The cleanroom wall system utilizes various core materials to satisfy diverse functional requirements, including:

  • Excellent Fireproof performance
  • Superior Heat preservation
  • Effective Noise reduction
  • Reliable Moisture-proof capabilities

Our modular wall panels can be reinforced at hole locations, and line pipe boxes are assembled in the factory to effectively reduce secondary pollution during installation and use.

Wall and Ceiling Technical Drawing
Technical Specifications
No Name Specification
1Panel thickness50/75/100 mm
2Width980/1180mm or customized
3HeightCustomized
4Filling materialMineral wool/ PU/ EPS/ paper honeycomb/ aluminum honeycomb
5TypeHandmade
6FireproofGrade A
7Panel materialGalvanized steel/ Stainless steel
8Material thickness0.5-0.8mm
9CertificationISO9001, CE, SGS
10AccessoriesAluminum alloy
Key Features & Advantages
  • High-Quality Materials: Premium surface materials ensure excellent long-term performance and durability.
  • Leak-Proof Design: Thermal insulation materials are used with four edges sealed to avoid pollution from sandwich material leakage.
  • Pre-Embedded Components: Panels can be pre-embedded with conduits and boxes according to design needs, facilitating easy pipeline passage.
  • Handmade Craftsmanship: Handmade panels represent a high-grade fireproof building material with high strength, impact resistance, and seismic performance.
Product Detail Views

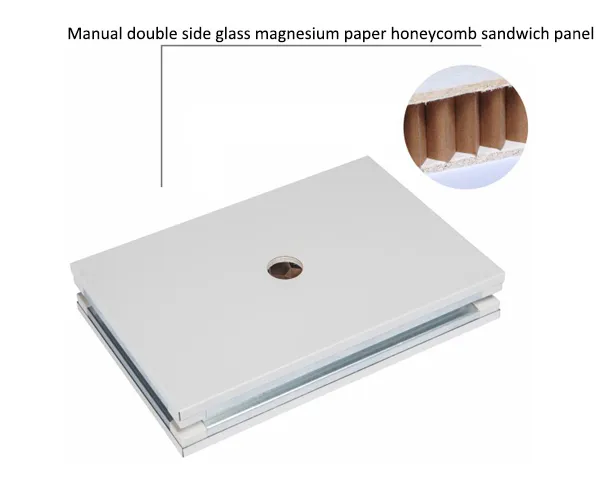

Detail 1

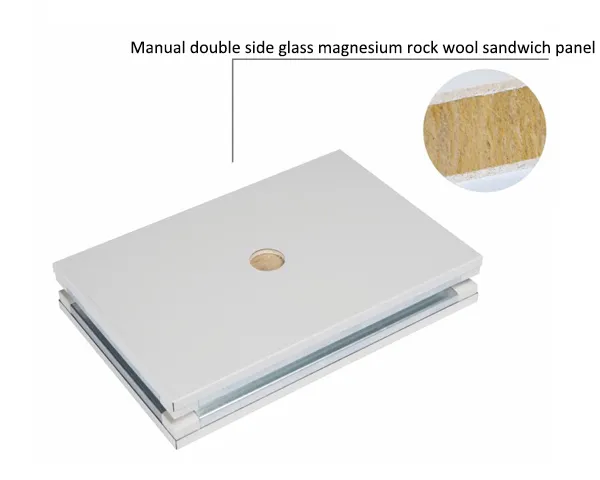

Detail 2

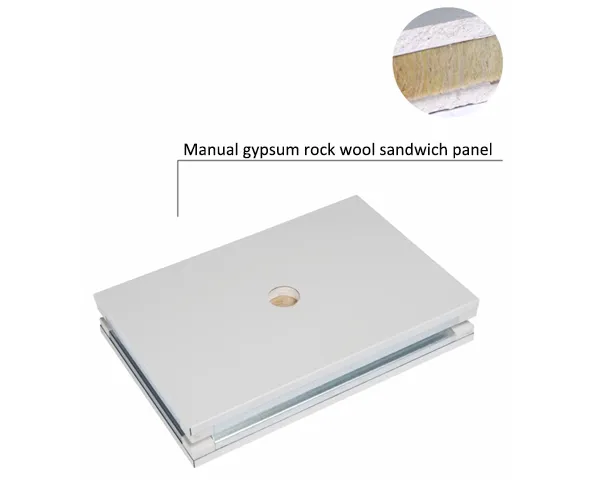

Detail 3

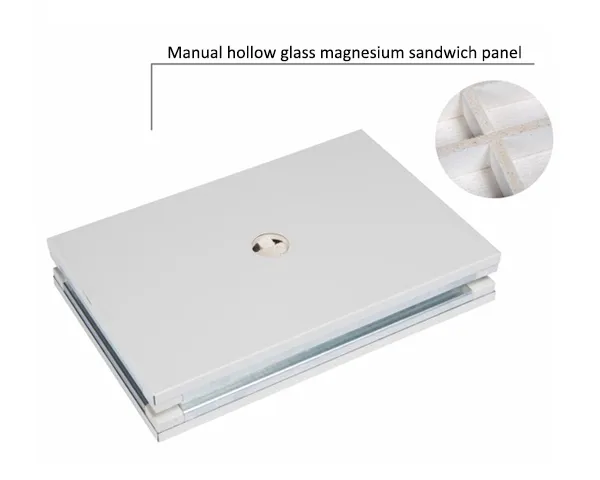

Detail 4

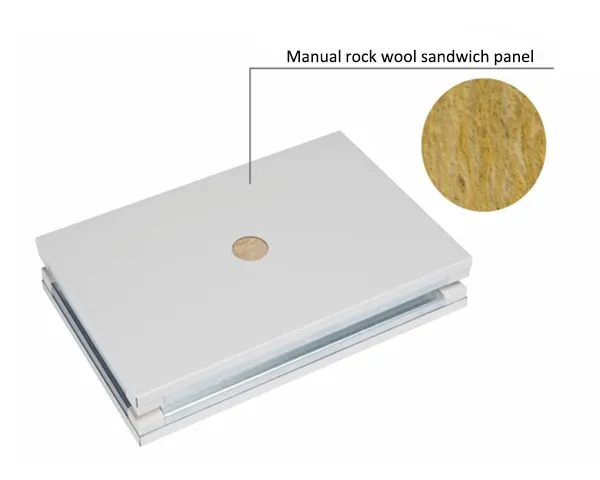

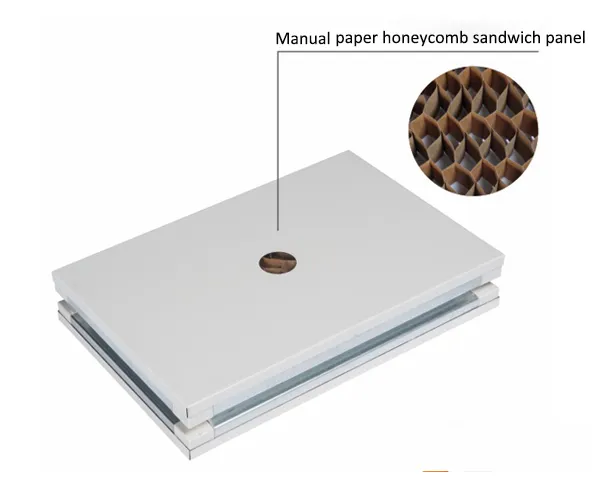

Detail 5
Detail 6
Integrated Cleanroom Systems
We provide Engineering Procurement Construction (EPC) services for full production units, including:
  • Cleanroom doors and windows
  • FFU / AHU / Chiller systems
  • Flooring systems
  • Lighting & Electricity systems
System Overview Process Flow Component Details Installation Example Project Case 1 Project Case 2 Project Case 3 Full Project Scope
Frequently Asked Questions
What industries are these modular cleanroom walls suitable for?
They are ideal for pharmaceutical, food, beverage, cosmetic, and electronic industries where controlled GMP environments are required.
What core materials are available for the panels?
Available filling materials include Mineral wool, PU, EPS, paper honeycomb, and aluminum honeycomb to meet different fireproof and insulation needs.
Do the panels support built-in utilities?
Yes, panels can be pre-embedded with line pipe boxes and reinforcements during factory assembly to facilitate easy passage of pipelines.
What are the fire safety ratings for these wall systems?
The handmade panels are high-grade fireproof building materials with a Grade A fire rating.
Are the dimensions of the panels customizable?
Yes, while standard widths are 980/1180mm and thicknesses range from 50-100mm, height and width can be customized to your specific facility requirements.
What metal materials are used for the panel surfaces?
The surfaces are typically made from galvanized steel or stainless steel with a thickness range of 0.5mm to 0.8mm.
