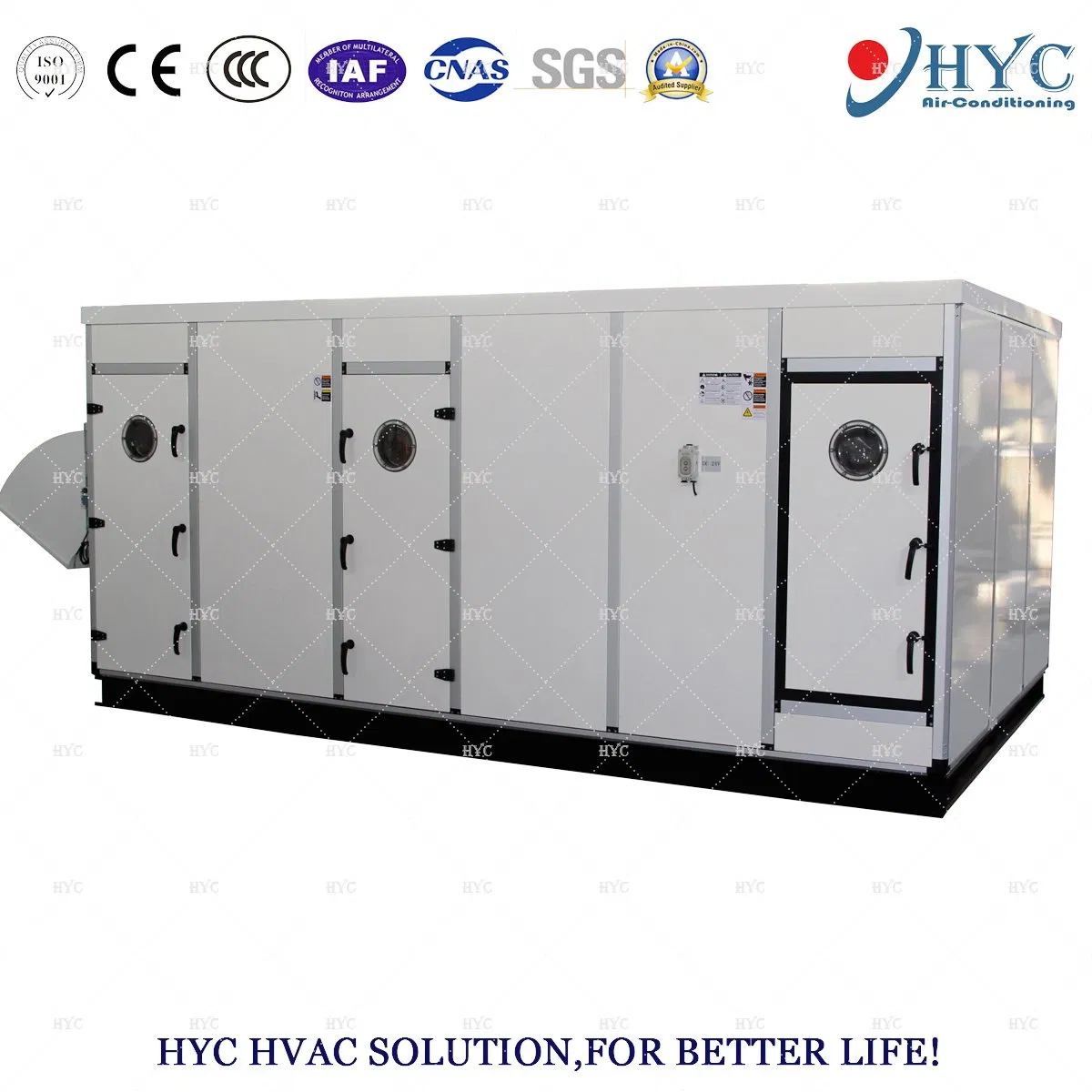

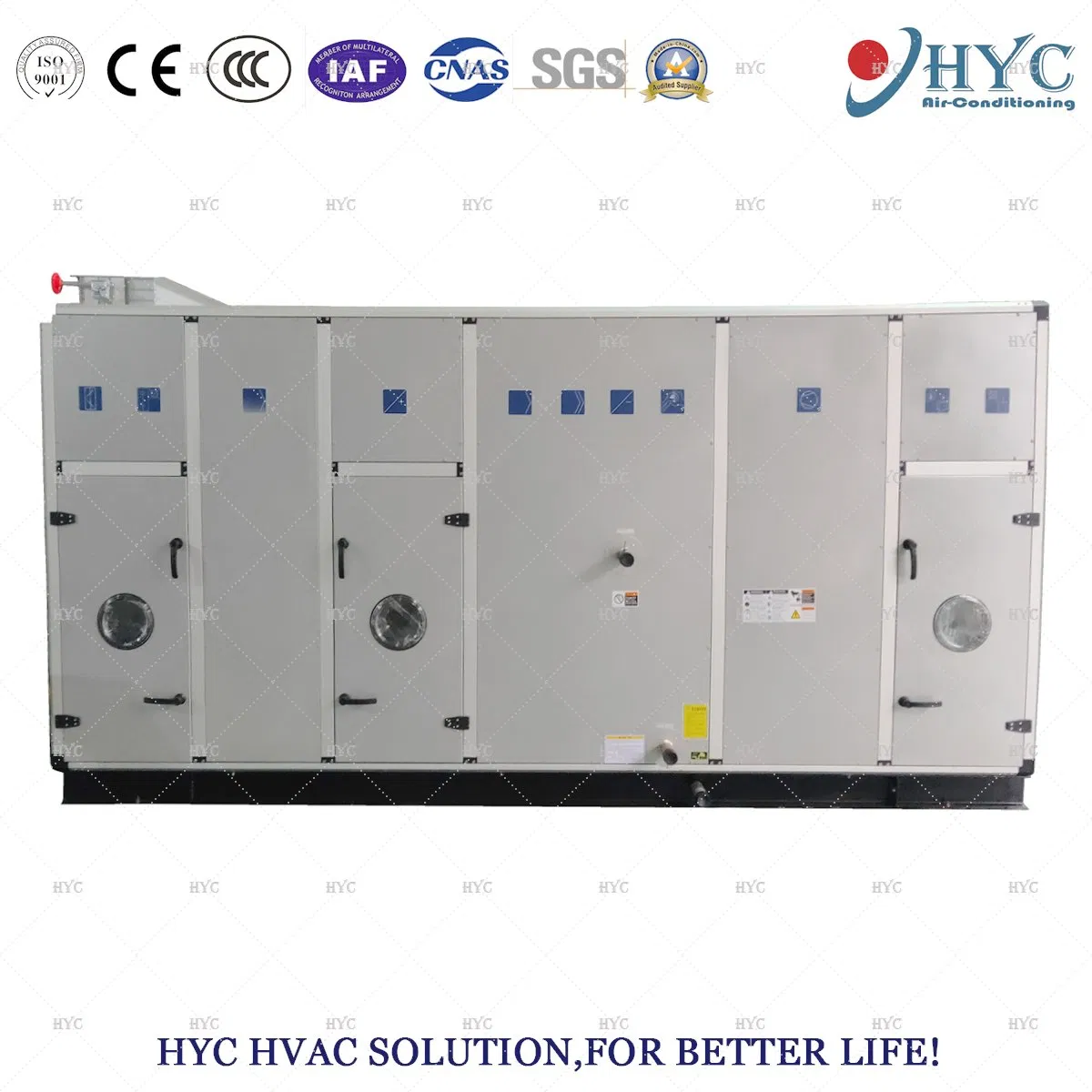

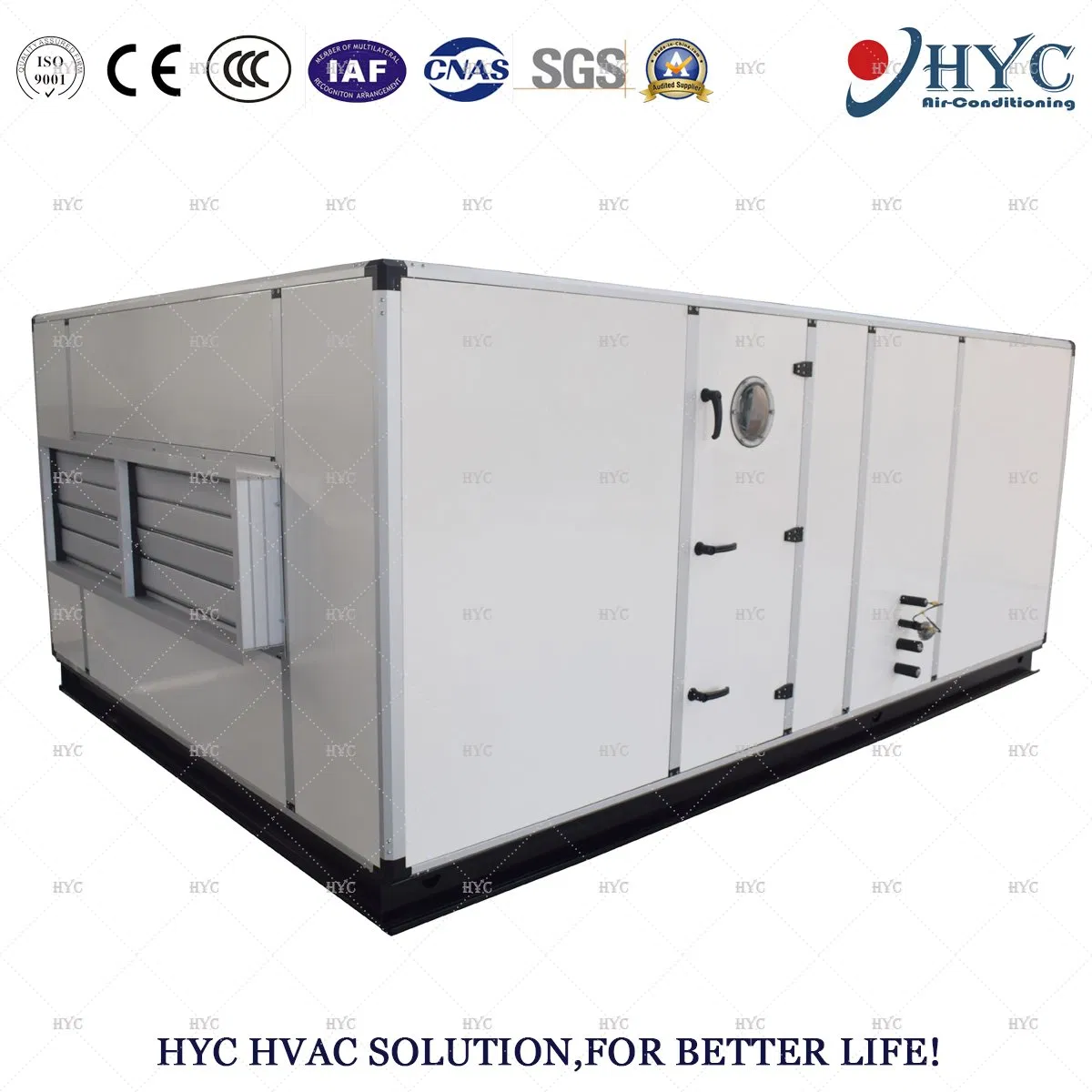

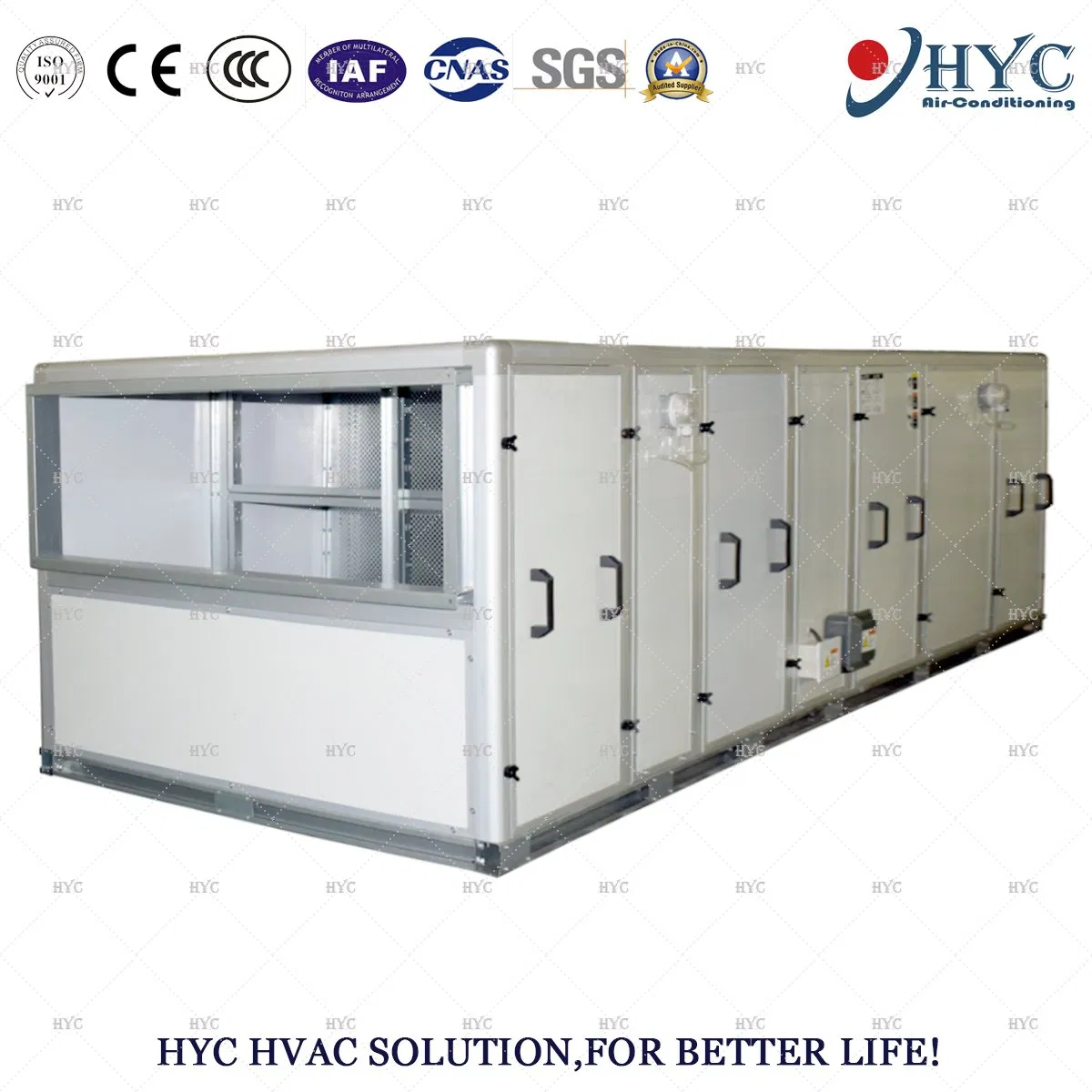

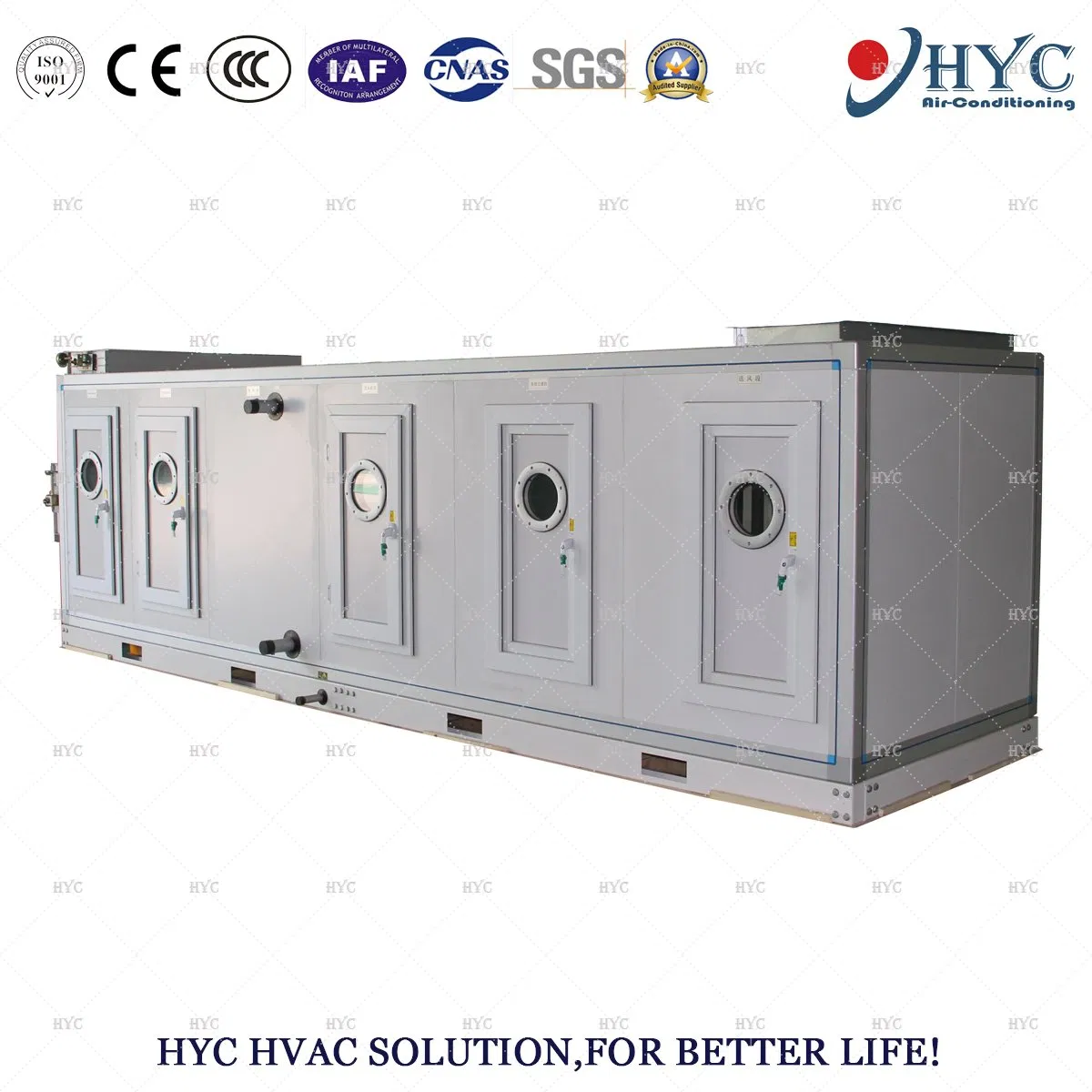

Commercial Modular Clean Room Air Handling Unit HVAC System

1 / 5

Commercial Modular Clean Room Air Handling Unit HVAC System

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet

Send Inquiry

Product Description

Basic Info

Model NO.

HAH

Corrosion Durability

Higher

Operating Voltage

220V, 380-415V, 50/60Hz

Noise Level

Low

Application Fields

Apartment, Office Building, Villa, Industrial

Mounting

Ceiling, Floor Standing

Lifetime

>20 years

Certification

ISO, CE, CCC

Condition

New

Coil Material

Blue Hydrophilic Aluminum Fin/Copper

Delivery Time

25 days

Tailor Made

Available

OEM/ODM

Available

Capacity

1500-60000 Cfm

Refrigerant

Water

Motor

Low Noise

Coil

4rows/6rows/8rows

Panel Material

Double Skin with Polyurethane Fitting

Transport Package

Film/Wooden Package

Origin

China

Product Description

Sincerely welcome to visit our factory at your convenience. Customers could witness their order production real conditions by online videos or photos at any time during production.

WIDE AIR FLOW RANGE

Standardly, ceiling concealed type AHU air flow ranges from 1500 to 15000m3/h; horizontal/vertical type AHU air flow ranges from 2000 to 40000m3/h, able to fulfill various application requirements. Meanwhile, bigger air flow is available by tailor-made as customer special requirement.

PANEL STRUCTURE DESIGN

Panel is made of powder coated double steel (outer and inner both) with high pressure polyurethane foam fitting in between, thus offering a rigid and robust panel. Frame is made of aluminum alloy which is fastened to the panel, as a result, the unit is strong and lightweight.

LOW AIR LEAKAGE

Thanks to the high pressure PU foam fitting, and special design insulation method to guarantee no low air leakage, to best minimize loss of energy.

LOW NOISE

Thanks to the rigidly bolted panel, dynamically and statically balanced fan assembly with spring isolator and closely integrated section, maximum to reduce the vibration and noise.

COIL DESIGN

All coils are designed by professional computer selection software, proved through the lab testing and real life application.

Model	Coil	Air flow	Excess pressure	Fresh air condition				Return air condition				Noise	Power input	Weight
		Air flow	Excess pressure	Cooling cap.	Heating cap.	Water flow	Water res.	Cooling cap.	Heating cap.	Water flow	Water res.	Noise	Power input	Weight
		m³/h	Pa	kW	kw	L/S	kPa	kW	kW	L/S	kPa	dB(A)	kW	kg
2V/H	4ROWS	2000	236	27.1	33.2	1.3	13.4	11.2	22.9	0.5	6.7	56	0.55	101
2V/H	6ROWS	2000	196	33.5	50.3	1.6	18.9	14.9	27.9	0.7	9.5	56	0.55	104
3V/H	4ROWS	3000	298	40.5	54.9	2.0	32.6	17.3	35.2	0.8	16.3	57	0.8	128
3V/H	6ROWS	3000	258	47.7	77.1	2.5	38.7	22.8	42.0	1.1	19.4	57	0.8	134

Factory & Production

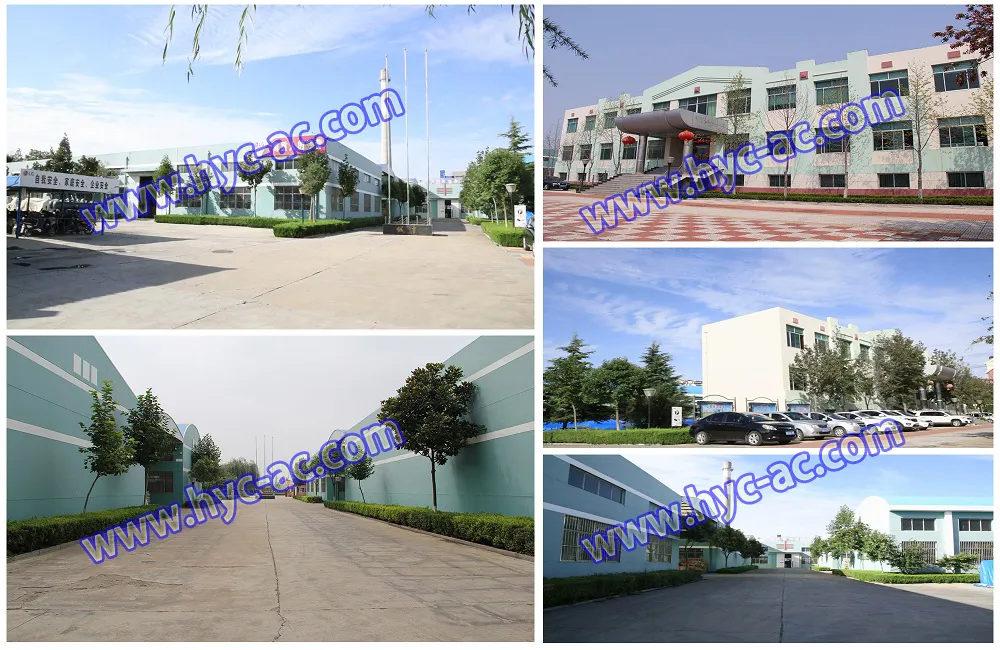

Factory View

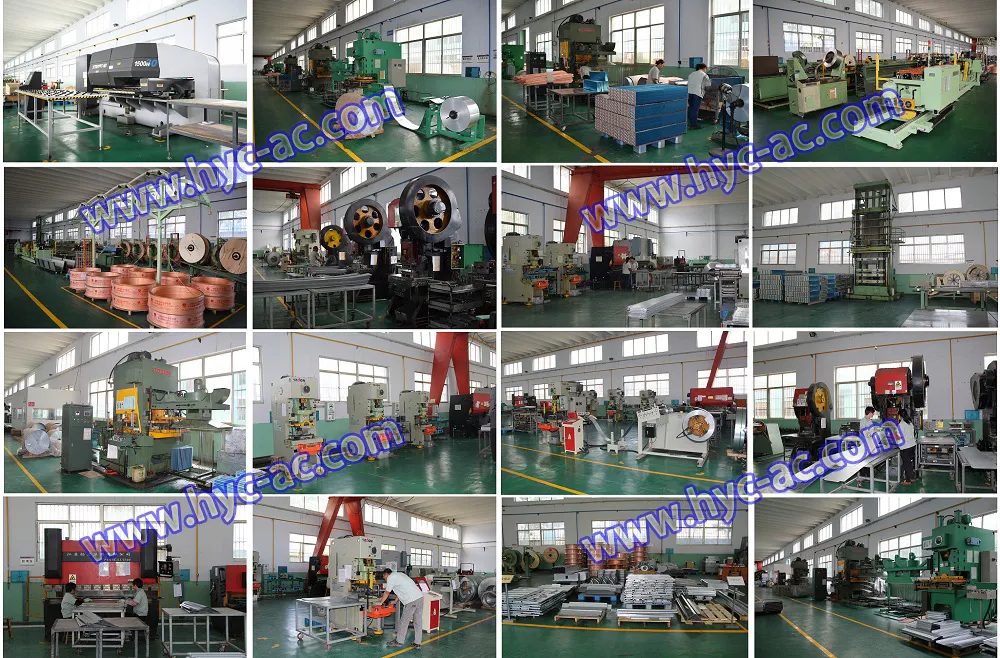

Production Machinery

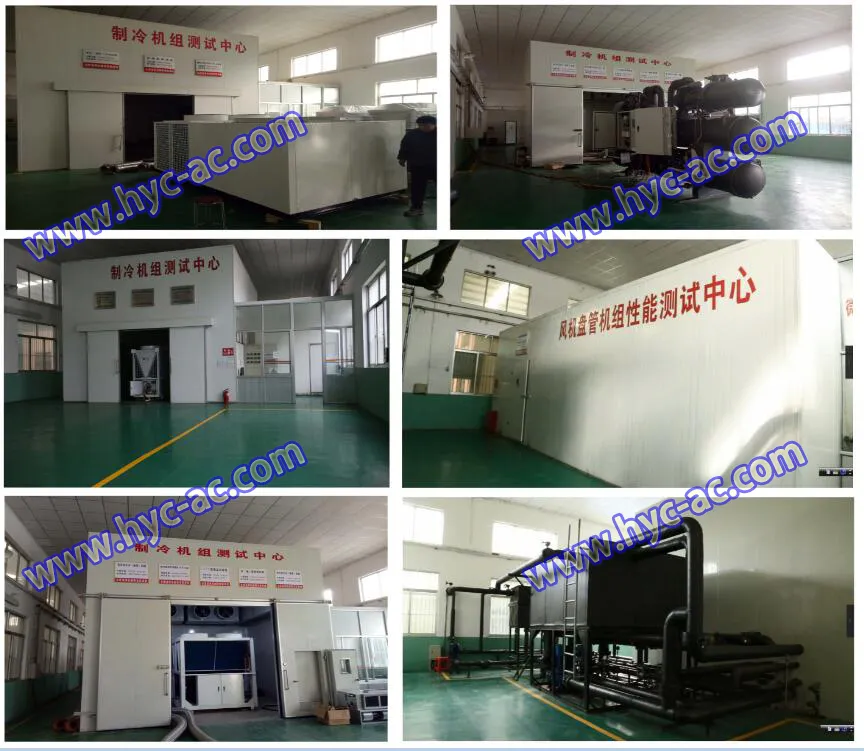

Test Lab

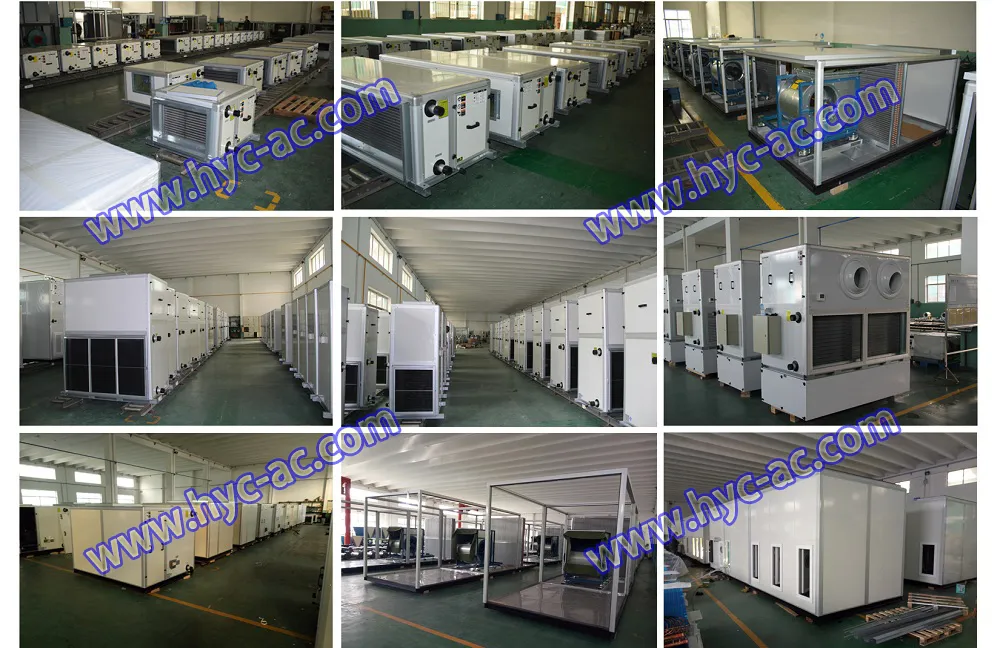

AHU Production Line

Frequently Asked Questions

1. What is the typical air flow range for these AHU units?

Standard ceiling concealed models range from 1,500 to 15,000 m³/h, while horizontal and vertical types can handle up to 40,000 m³/h. Larger capacities are available upon request.

2. How is the panel constructed for insulation and durability?

The panels use a double-skin structure made of powder-coated steel with high-pressure polyurethane (PU) foam injected in between, providing excellent rigidity and thermal insulation.

3. What features ensure the AHU operates with low noise?

The units feature rigidly bolted panels and dynamically balanced fan assemblies equipped with spring isolators to minimize vibration and operational noise.

4. Can the AHU be customized for specific project requirements?

Yes, tailor-made solutions for air flow, coil rows (4, 6, or 8 rows), and mounting configurations (ceiling or floor standing) are fully available to meet specific application needs.

5. What certifications do your Air Handling Units hold?

All units are manufactured following strict quality standards and hold ISO, CE, and CCC certifications, ensuring international compliance and safety.

6. What is the expected lifetime of the equipment?

Due to high-quality materials like hydrophilic aluminum fins, copper coils, and corrosion-resistant frames, the design lifetime of these units exceeds 20 years.
