| Model NO. | GSM001 |
|---|---|
| Glue Type | PUR Adhesive, Solvent-based Adhesive, Water-based Adhesive |
| Machine Type | Automatic |
| Voltage | 380V |
| Core Components | Motor, Pump |
| Applicable Industries | Composite Board, Sandwich Board, Honeycomb Panels |
| Power (Kw) | 10kw |
| Working Coating Amount | 0-6000g/Min |
| Spray Coating Width | 0-1300mm, 0-1600mm, 0-2000mm |
| Working Speed | 12m/Min |
| Flow Accuracy | ≤ ± 3% |
| Proportioning Ratio | Adjustable From 1:1 to 5:1 |
| Transport Package | Standard Export Package (Plywood Box) |
| Package Size | 240.00cm * 120.00cm * 210.00cm |
|---|---|
| Package Gross Weight | 1000.000kg |

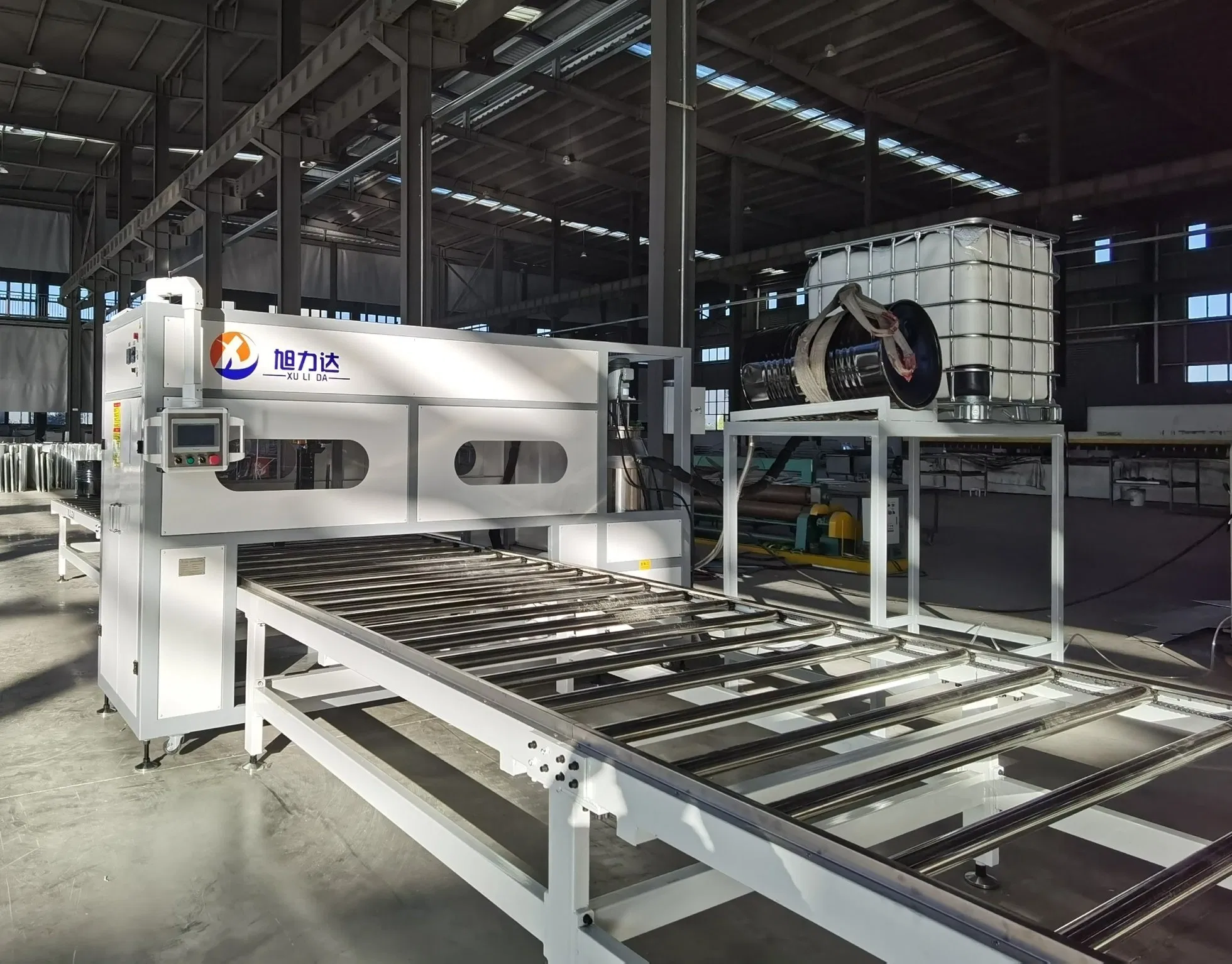

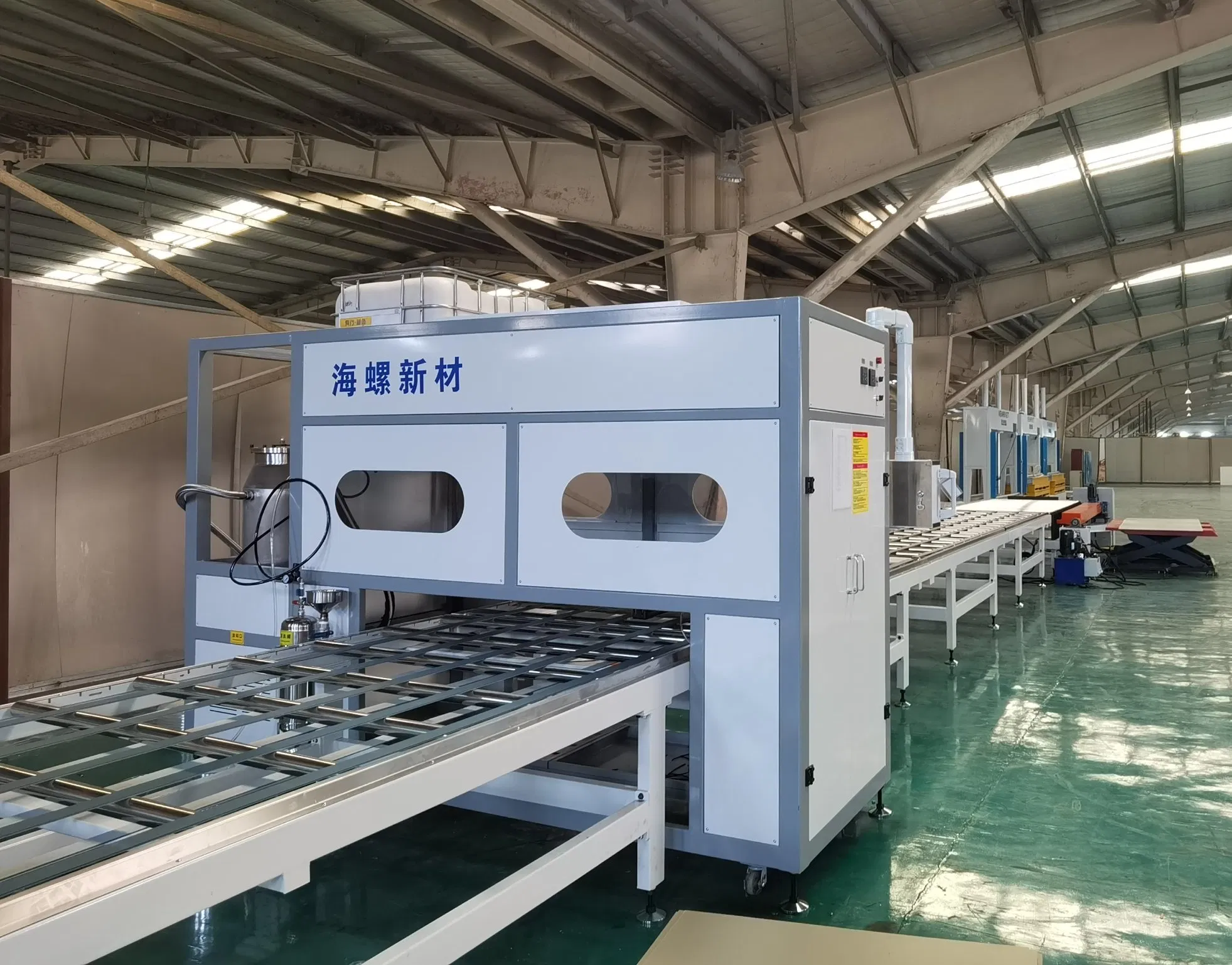

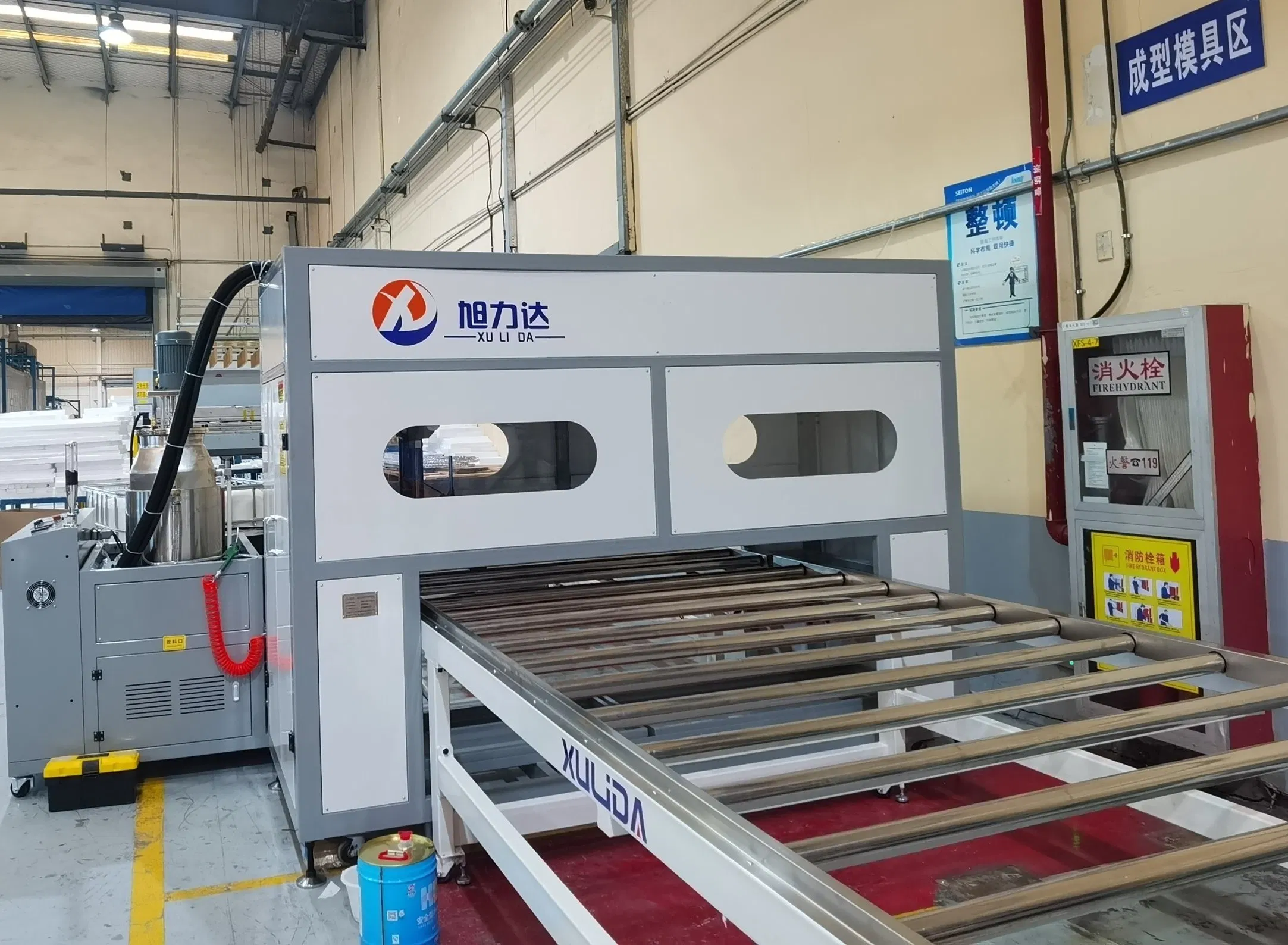

High-performance two- and three-component PUR systems for precise adhesive application
Our machines can compound the following products:
All machinery is equipped with a remote access module, providing 24/7 online internet support. Our team has extensive experience in adhesive technology to provide professional technical support.
| Category | Automatic Coating | Manual Scraping |
|---|---|---|
| Method | Single operator, automatic proportioning and spraying. | Requires 3-4 people, uneven application. |
| Precision | Controlled edges, no spillage, aesthetic finish. | Edge contamination due to uneven manual application. |
| Efficiency | Approx. 4600 sqm per 8 hours (8m/min). | Approx. 1000 sqm per 8 hours. |
| Cleaning | Automatic cleaning, solvent collected centrally. | No cleaning device, high container waste. |
| Equipment Models | Model 1300 | Model 1600 | Model 2000 |
|---|---|
| Dimensions (Model 2000) | 12m * 3.1m * 2.2m |
| Glue Output | 0-6000g/min |
| Conveying Speed | Adjustable up to 12m/min |
| A/B Ratio Precision | ≤ ± 2% |
