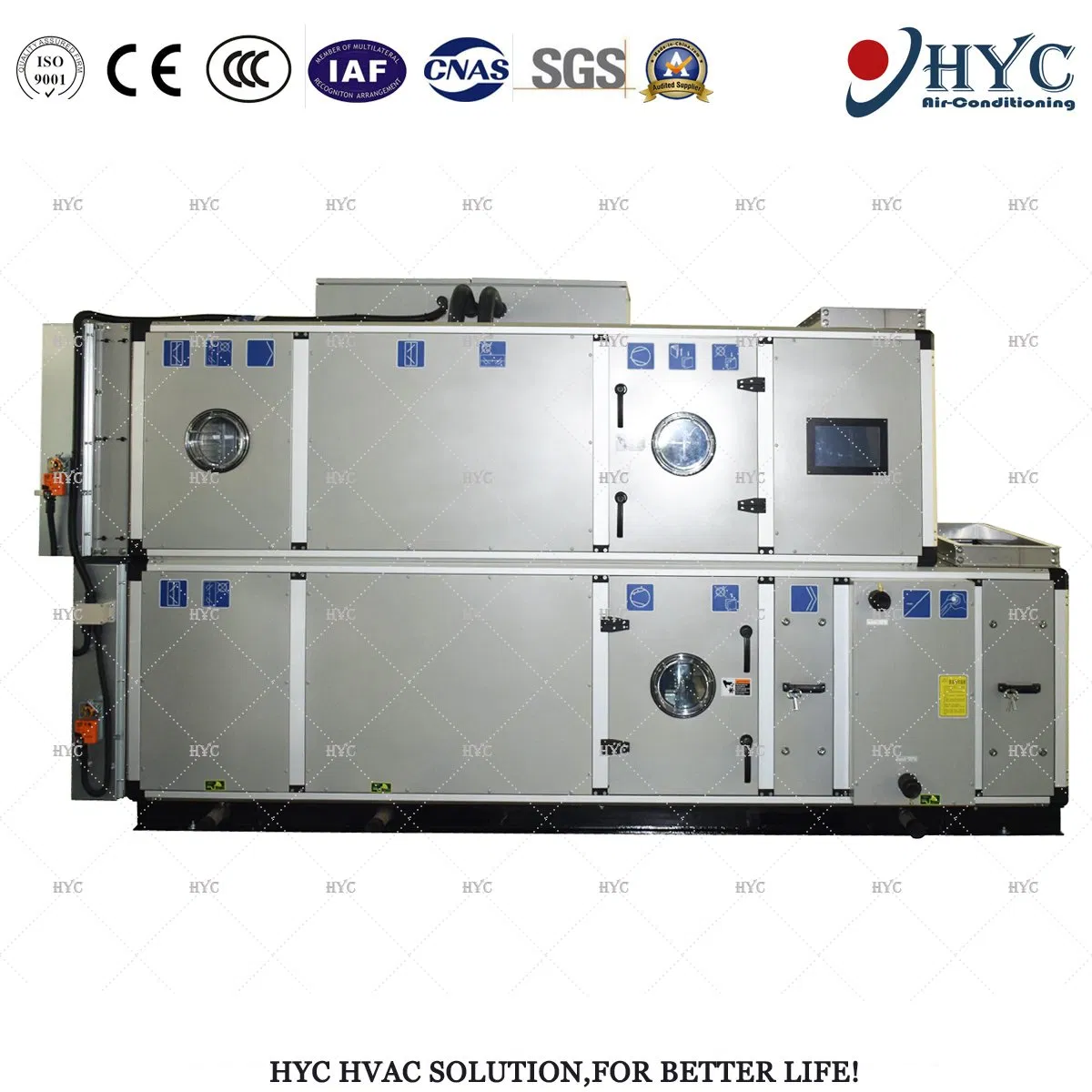

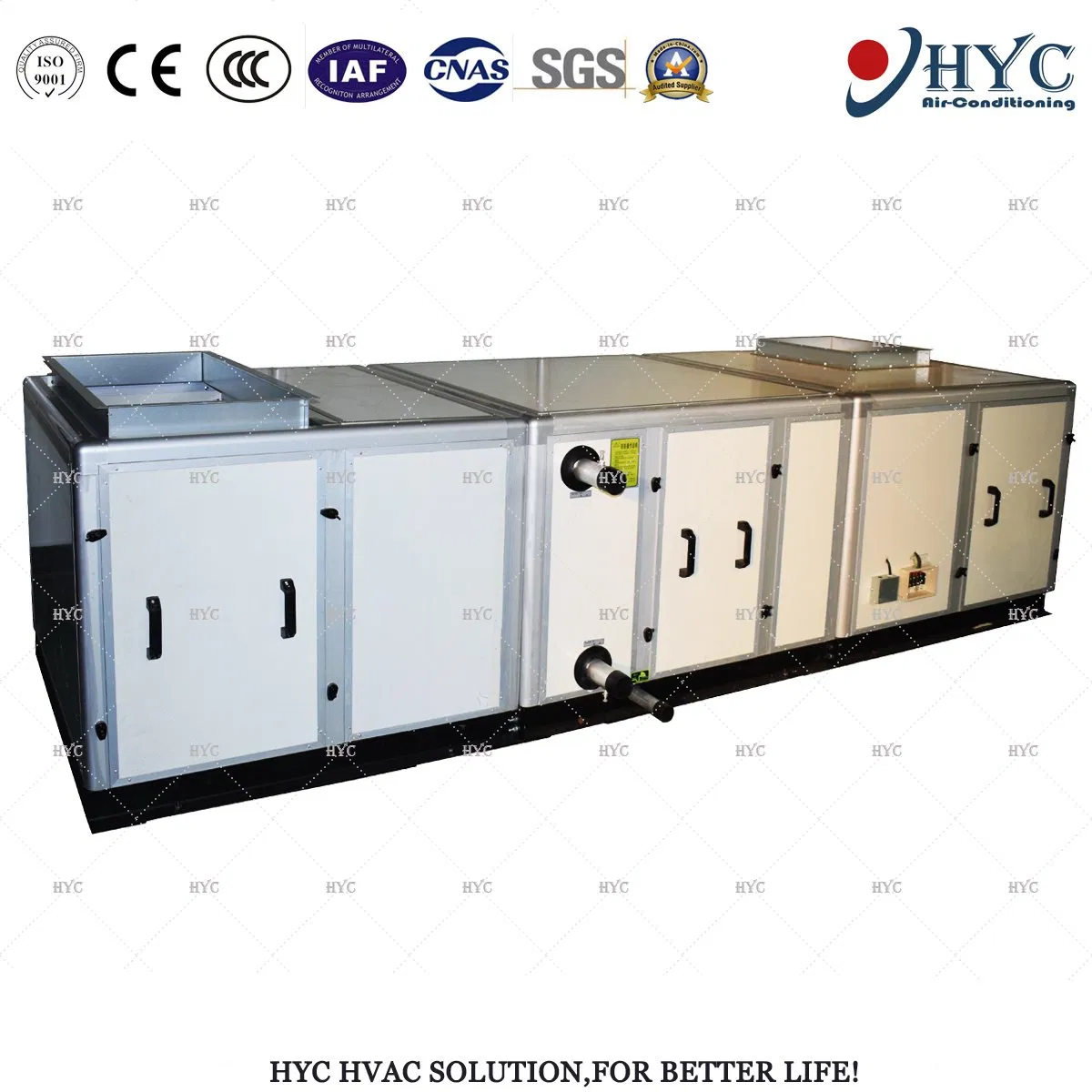

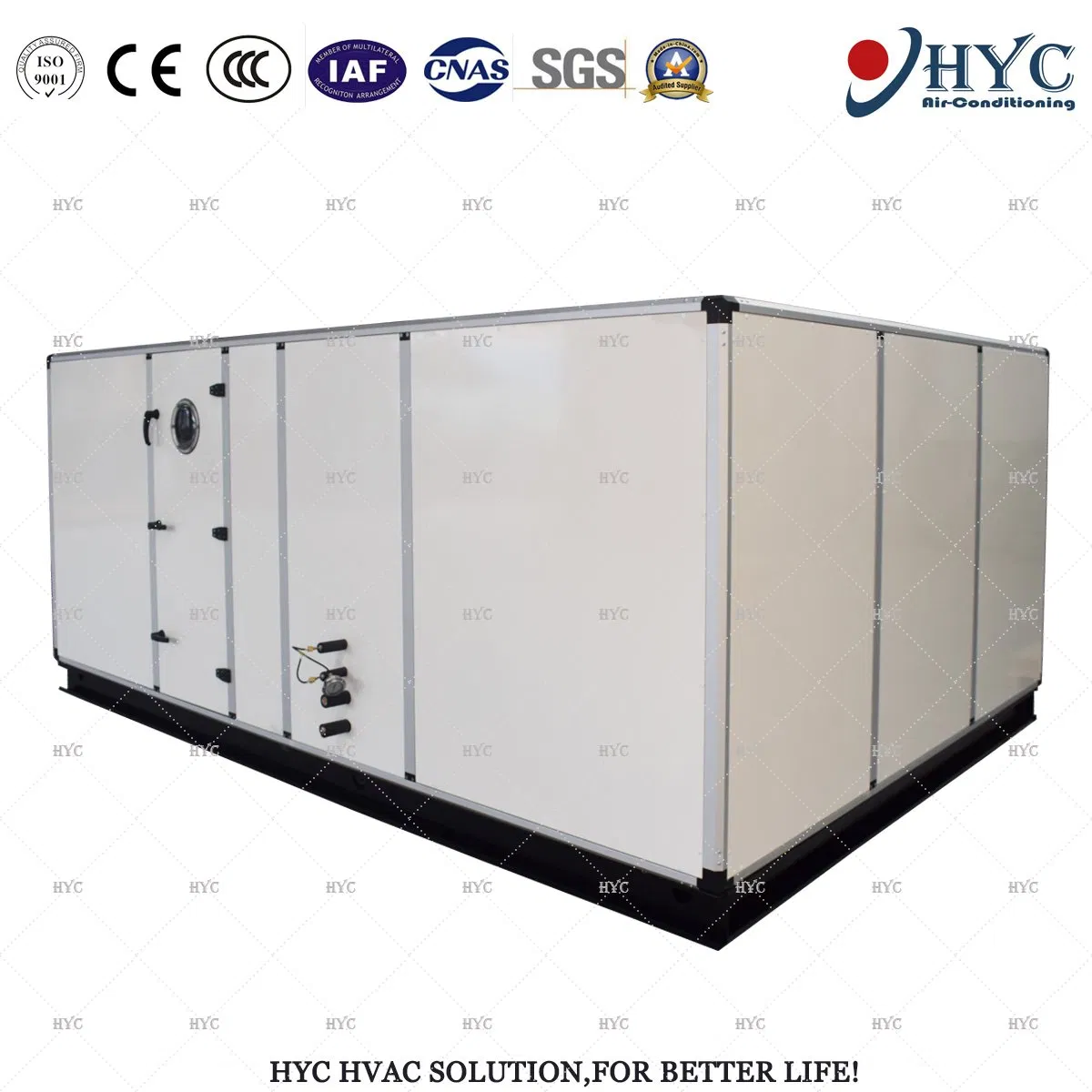

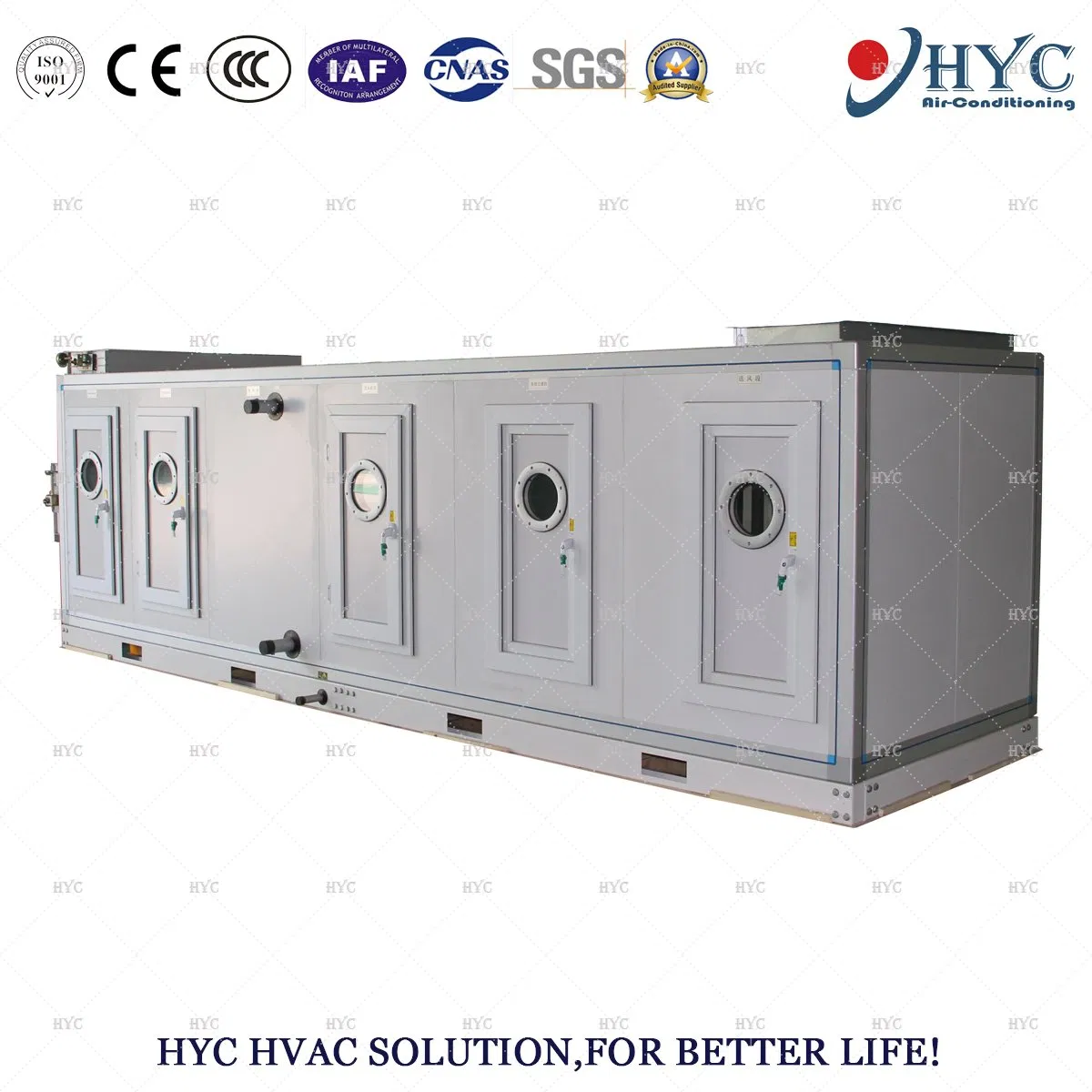

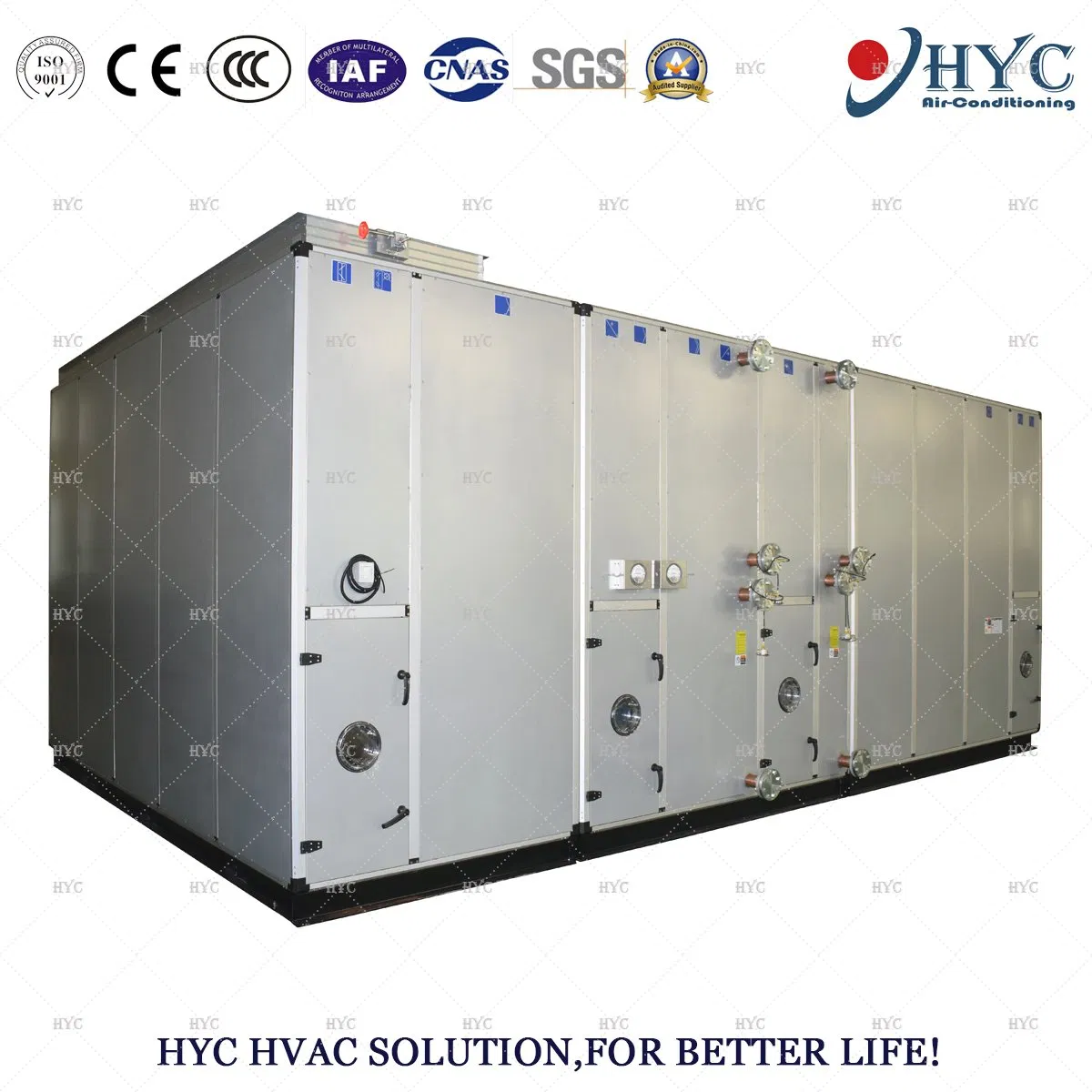

Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
1 / 5
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System
Medical Clean Room Combined Modular Fresh Air Conditioning System

Medical Clean Room Combined Modular Fresh Air Conditioning System

Customization: Available
Type: Air Handling Unit
Air Tube Material: Galvanized Sheet
Send Inquiry

Product Description

i

Basic Information

Model NO.
HAH
Corrosion Durability
Higher
Operating Voltage
220V, 380-415V, 50/60Hz
Noise Level
Low
Application Fields
Apartment, Office Building, Villa, Industrial
Lifetime
>20 years
Certification
ISO, CE, CCC
Condition
New
Coil Material
Blue Hydrophilic Aluminum Fin/Copper
Delivery Time
25 days
Tailor Made
Available
OEM/ODM
Available
Capacity
1500-60000 Cfm
Refrigerant
Water
Motor
Low Noise
Coil
4rows/6rows/8rows
Panel Material
Double Skin with Polyurethane Fitting
Transport Package
Film/Wooden Package
Trademark
OEM/ODM/HYC
Origin
China
Production Capacity
50000sets
Medical Clean Room Combined Modular Fresh Air Conditioning System
✓

Product Description

WIDE AIR FLOW RANGE Air flow ranges from 2700 to 120000m3/h, which is able to fulfill various application requirements.
PANEL STRUCTURE DESIGN Panel is made of powder coated double steel (outer and inner both) with high pressure polyurethane foam fitting in between, thus offering a rigid and robust panel. Frame is made of aluminum alloy which is fastened to the panel, as a result, the unit is strong and lightweight.
LOW AIR LEAKAGE Thanks to the high pressure PU foam fitting, and special design insulation method to guarantee no low air leakage, to best minimize loss of energy.
LOW NOISE Thanks to the rigidly bolted panel, dynamically and statically balanced fan assembly with spring isolator and closely integrated section, maximum to reduce the vibration and noise.
COIL DESIGN All coils are designed by professional computer selection software, proved through the lab testing and real life application.
MODULAR DESIGN Modular design method, able to make it flexible and robust to suit different site conditions. Easy assemble and installation at site.
⚙

Functional Parts

Cabinet
Mixing box section
Fresh air/exhaust air section
Pre-Sec-Hepa filter section
Coil section
Fan section
Humidification section
Electrical heater section
Sound attenuator section
Heat recovery section
Air flow (m³/h) 4 ROW 6 ROW 8 ROW
TC (kW)SC (kW)Water Flow (L/S)Resistance (kPa) TC (kW)SC (kW)Water Flow (L/S)Resistance (kPa) TC (kW)SC (kW)Water Flow (L/S)Resistance (kPa)
21108.507.770.381.013.4010.190.623.416.4511.520.766.1
364019.4315.320.916.026.6518.831.2614.931.1920.851.4624.8
518030.2922.771.4316.139.8727.491.8836.345.8630.192.1559.3
799046.0834.702.1818.961.0142.042.8740.963.6963.513.069.2
1041063.4046.513.0137.873.8252.323.5310.987.0958.204.1818.1
1282079.6357.843.6859.794.2365.744.4718.3110.1072.835.2630.3
20670117.5188.605.6313.3156.33107.687.5129.4180.23118.438.6046.1
📷

Factory & Production View

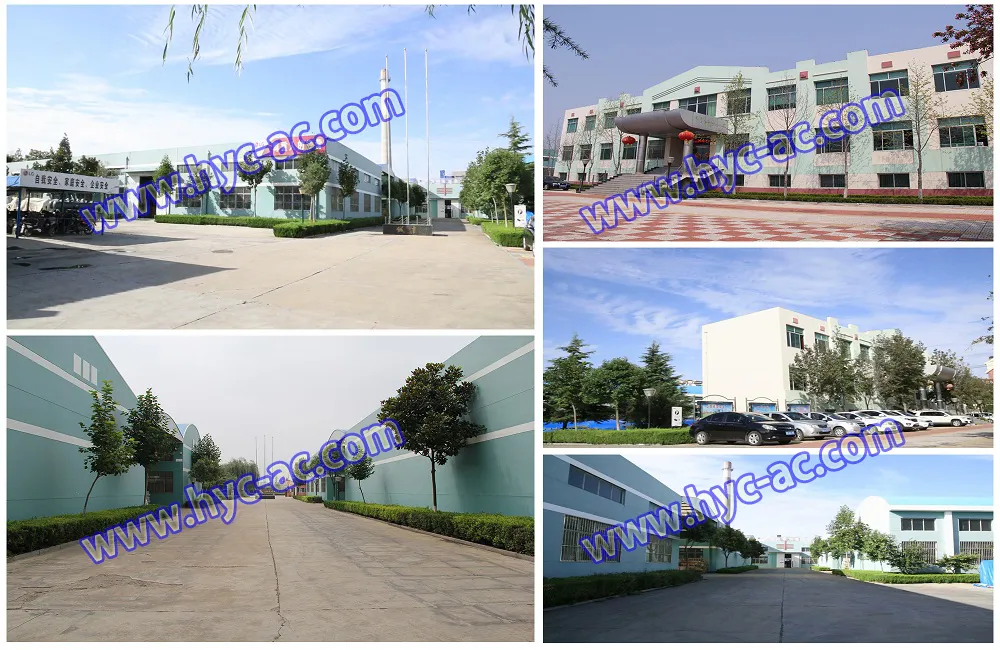

Factory View

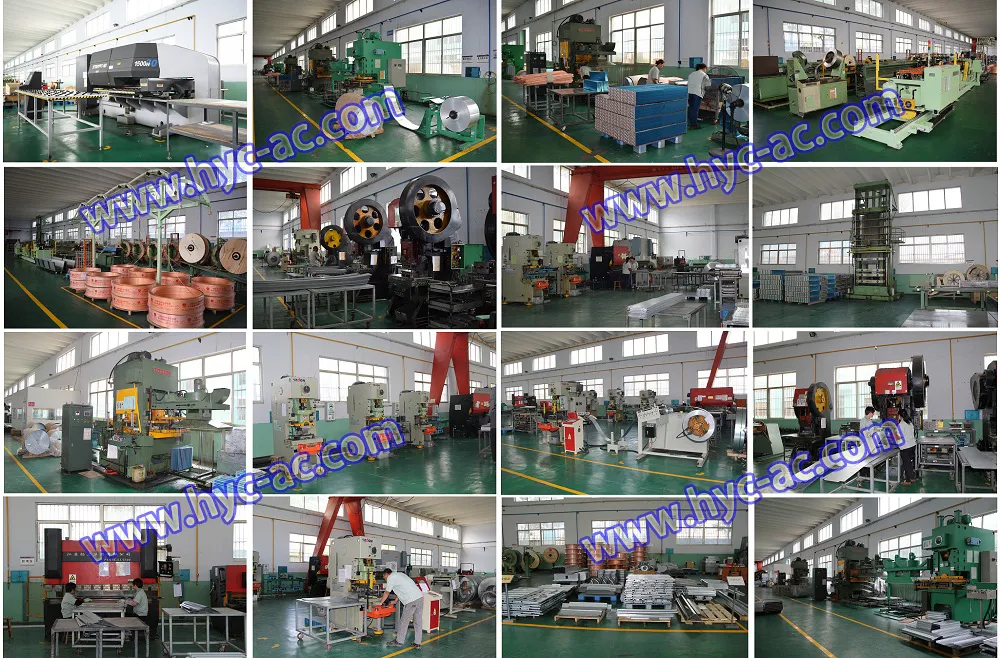

Production Machinery

Production Machinery

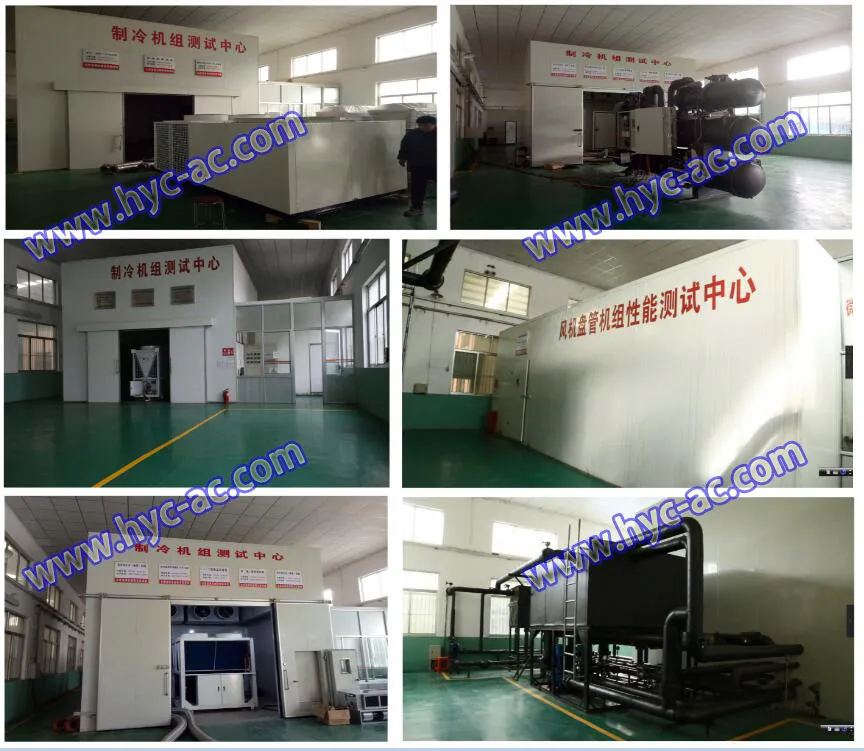

Test Lab

Test Lab

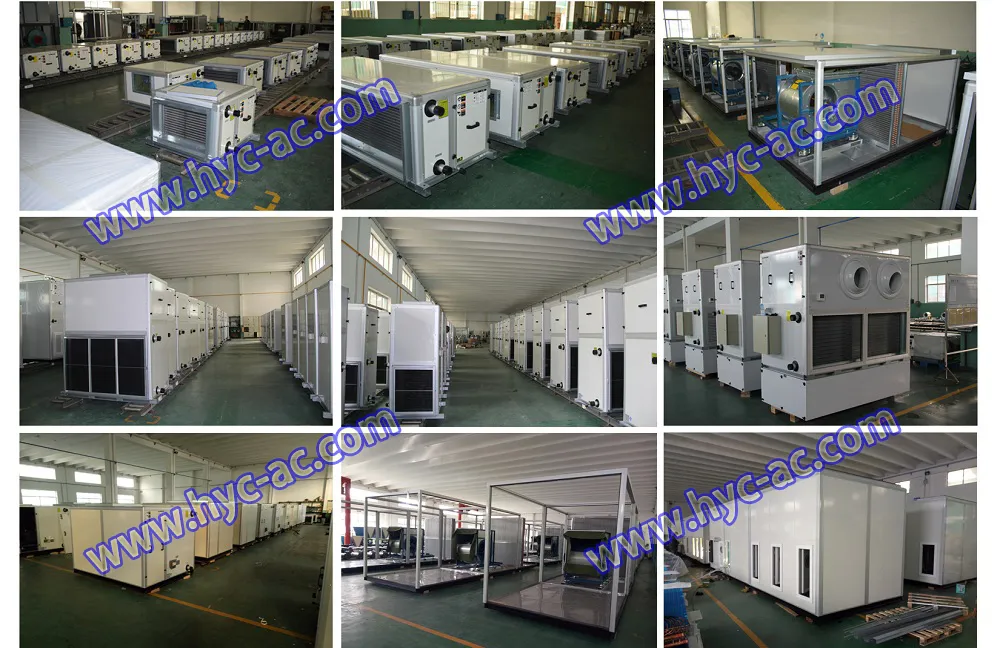

AHU Production Line

AHU Production Line

?

Frequently Asked Questions

What is the air flow capacity of this AHU system?
The system offers a wide range of air flow from 1500 to 60000 Cfm (2700 to 120000 m³/h), making it suitable for various scales of application.
What materials are used for the panel construction?
The panels feature a double-skin structure made of powder-coated steel with high-pressure polyurethane foam insulation to ensure rigidity and thermal efficiency.
Does the system support customized requirements?
Yes, tailor-made solutions and OEM/ODM services are available to meet specific site conditions and engineering requirements.
What are the main application fields for this system?
It is designed for use in medical clean rooms, apartments, office buildings, villas, and various industrial environments.
What certifications does the product hold?
The fresh air conditioning system is certified by ISO, CE, and CCC, ensuring international quality and safety standards.
How does the system ensure low noise levels?
Noise is minimized through rigidly bolted panels and dynamically balanced fan assemblies equipped with spring isolators.
