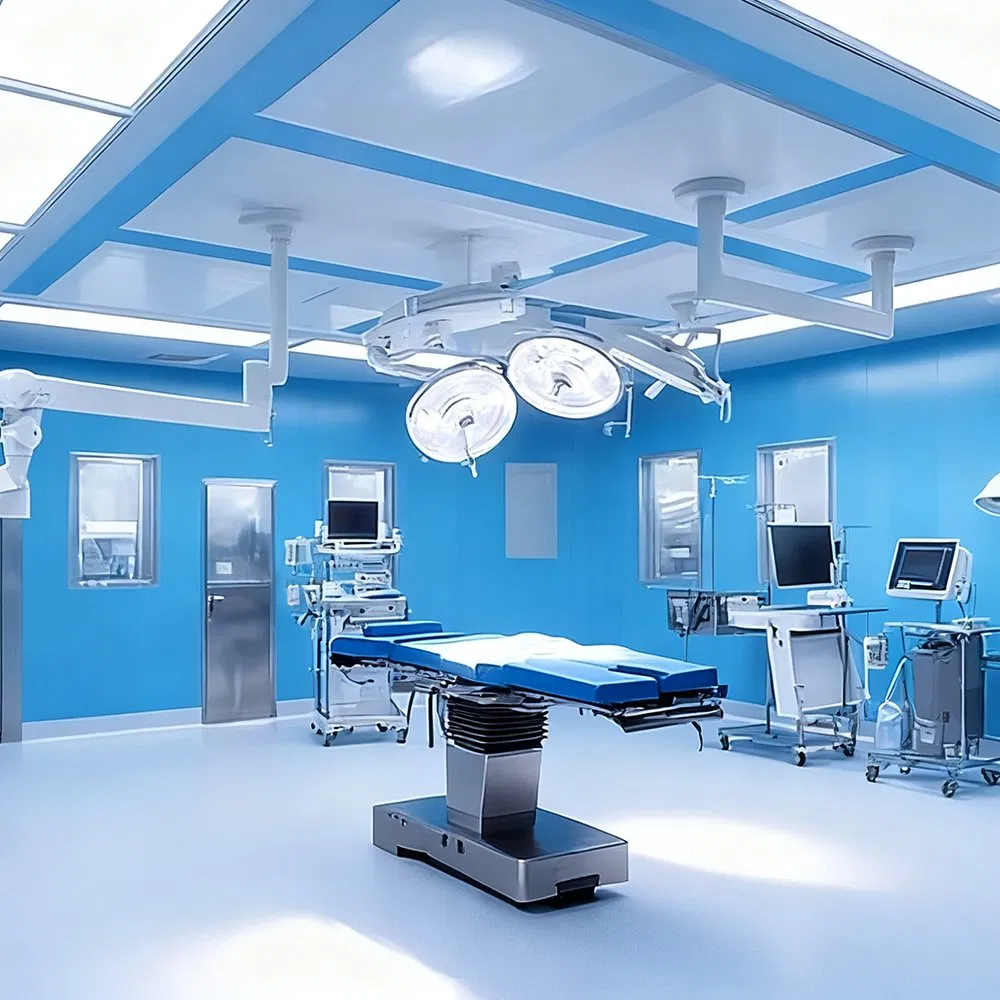

Advanced Modular Clean Room Dust Control System for Hospitals

1 / 5

Advanced Modular Clean Room Dust Control System for Hospitals

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model:

Operating Room

Fire Rating:

Grade 1

Certification:

Customization:

Fully Customized

Cleanliness:

Class 100-100000

Material:

Electrolytic Steel Plate

Standard Width:

1150mm

Application:

Hospital & Medical

Thickness:

1.2mm

Capacity:

50,000 SQM

Product Description

We provide one-stop service for clean room solutions, including hospital operating rooms, ICU, wards, biopharmaceuticals, and bio-labs. Our comprehensive service covers design, manufacturing, and installation.

Modular Wall Panels: Composite module splicing type, pre-fabricated in the factory for zero on-site welding.
Hygienic Design: Corner joints utilize R300mm steel and aluminum profile arcs for easy cleaning.
Durability: Joints are sealed with anti-aging, weather-resistant adhesive.

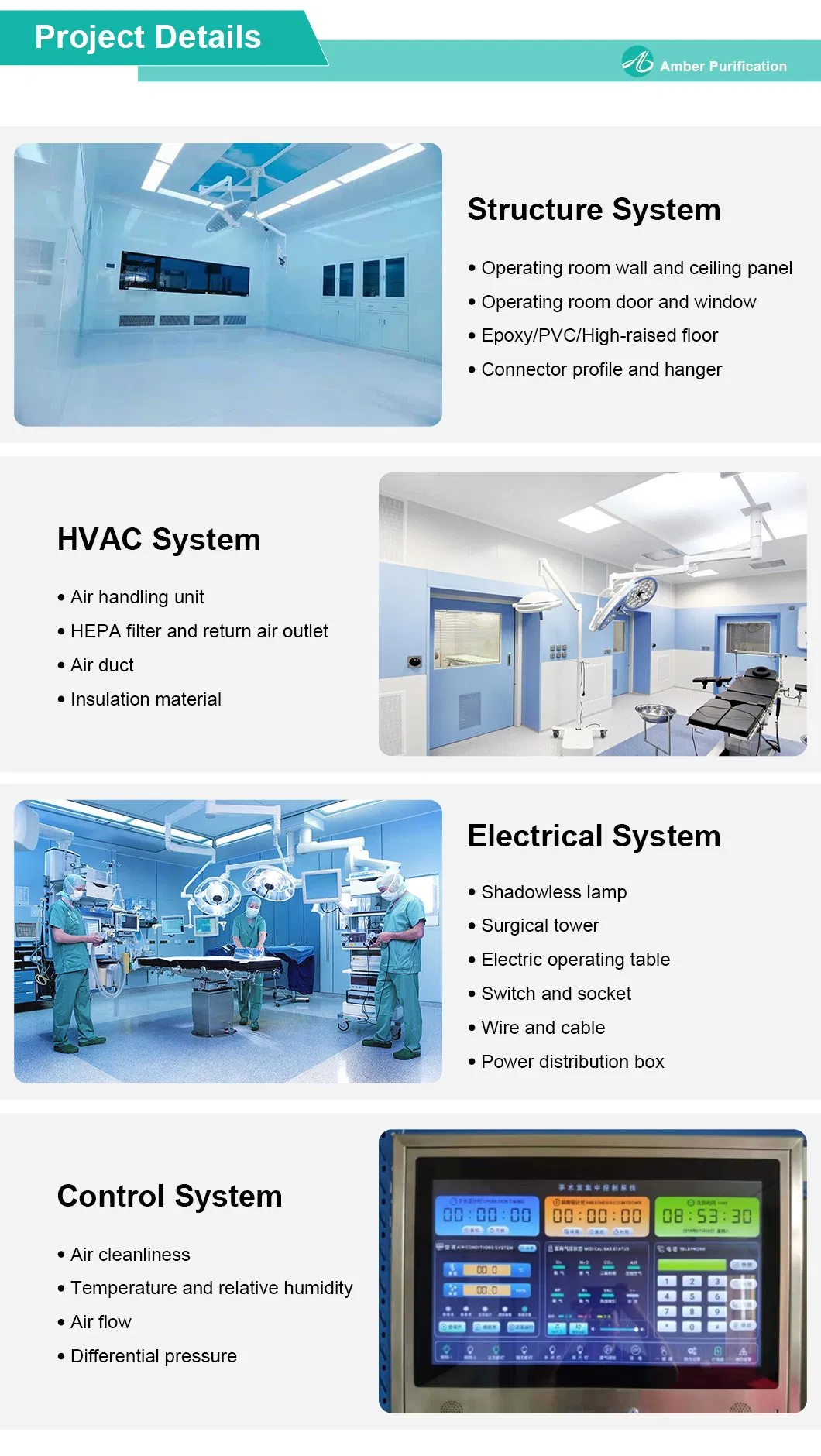

Project Features

Feature	Specifications
Cleanliness Level	Available from Class 100 to Class 10,000
Wall Panel Types	1. PVC electrolytic steel board; 2. Spray electrolytic steel board

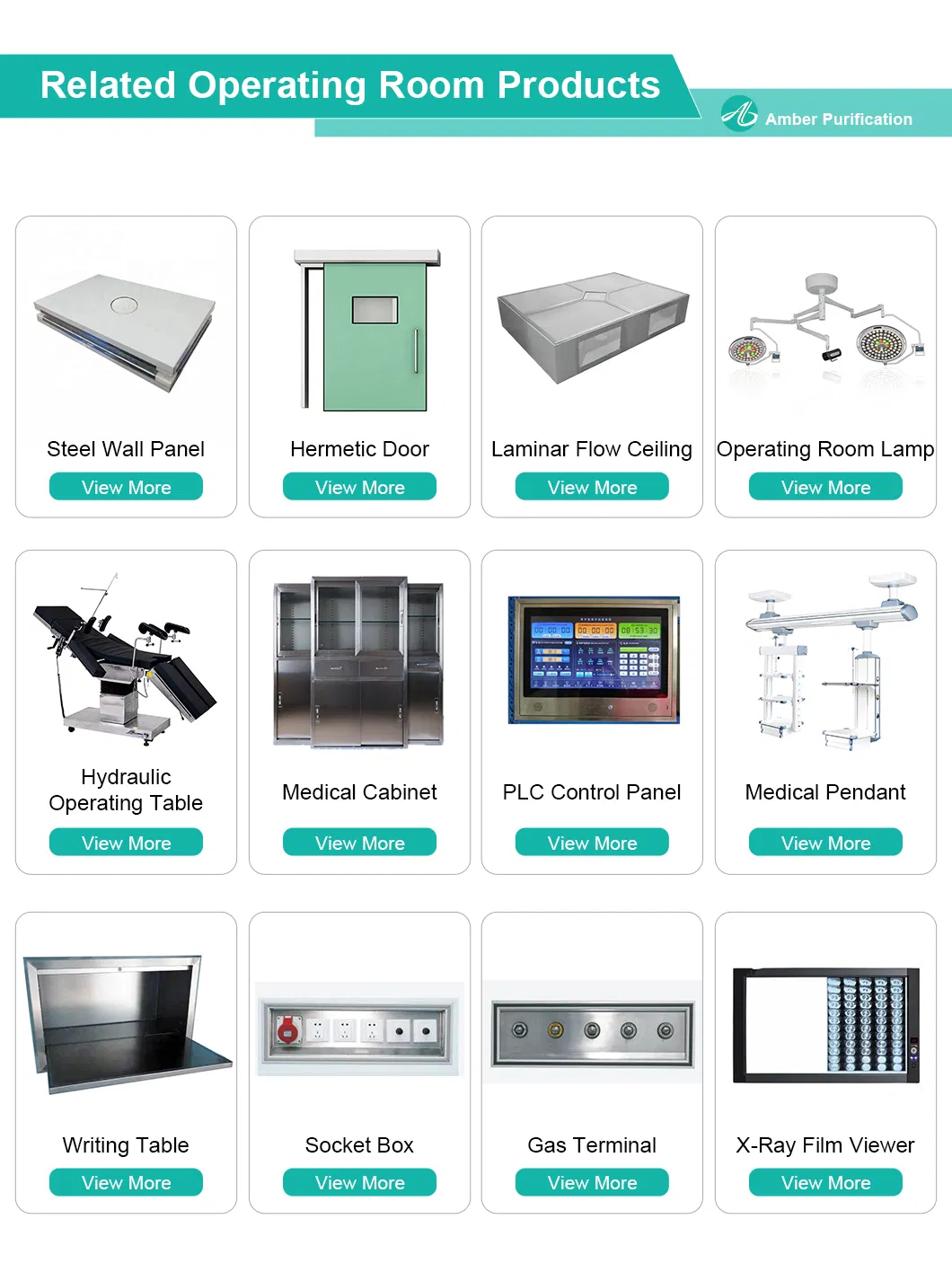

Core Accessories	Medicine cabinets, anesthetic cabinets, antibacterial PVC flooring, and airtight hermetic auto-sliding doors
Air Systems	Air purification ceilings (Class 100-100,000)
Medical Equipment	LED film viewers, gas connection terminals, surgical lights, and ceiling suspended pendants
Control Systems	OT room control (Time, temperature, humidity, and nurse call)
Operating Conditions	Temp: 21-27°C \| Humidity: 30-60%

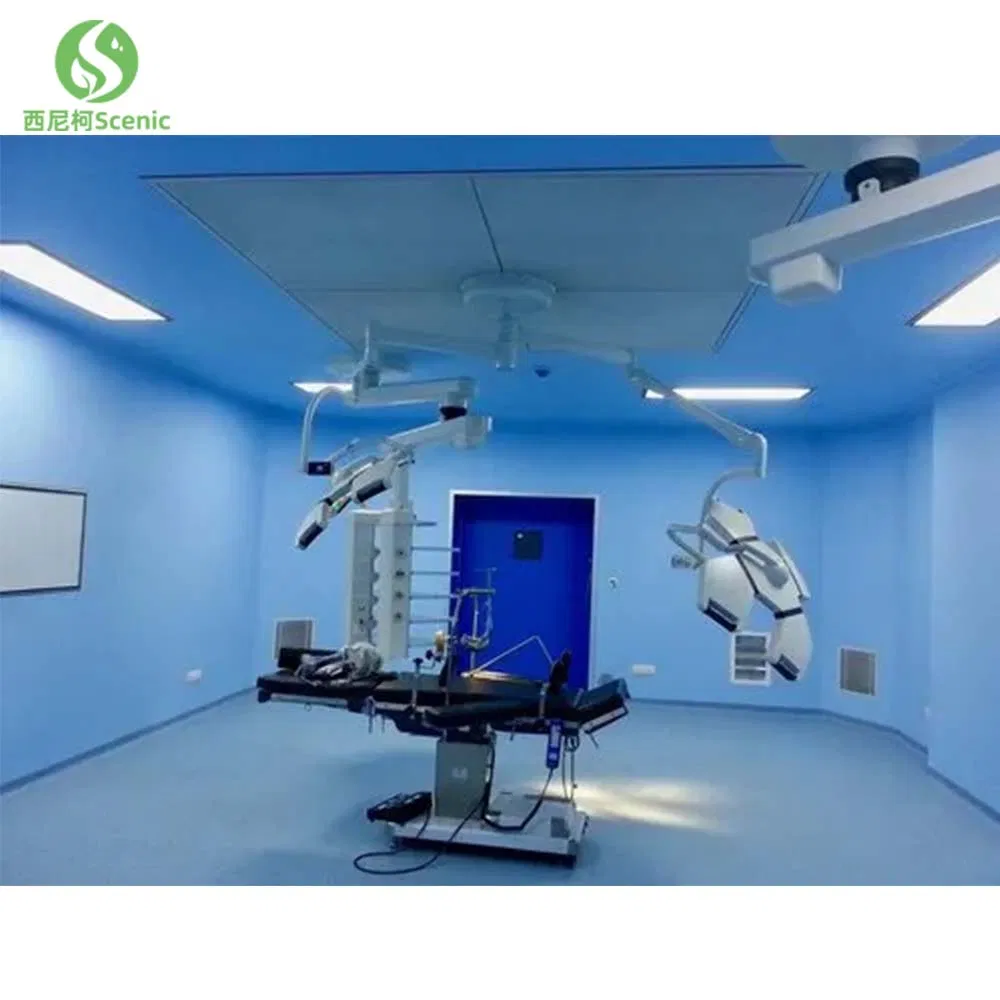

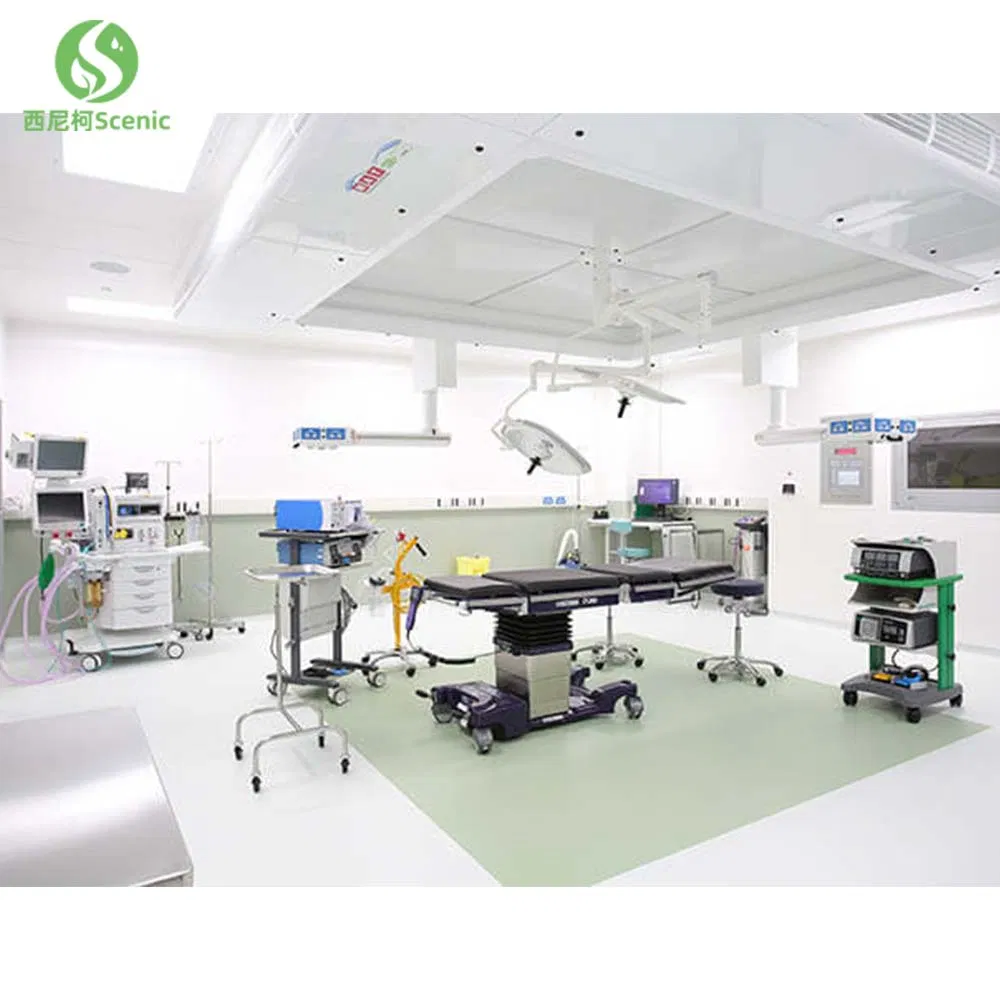

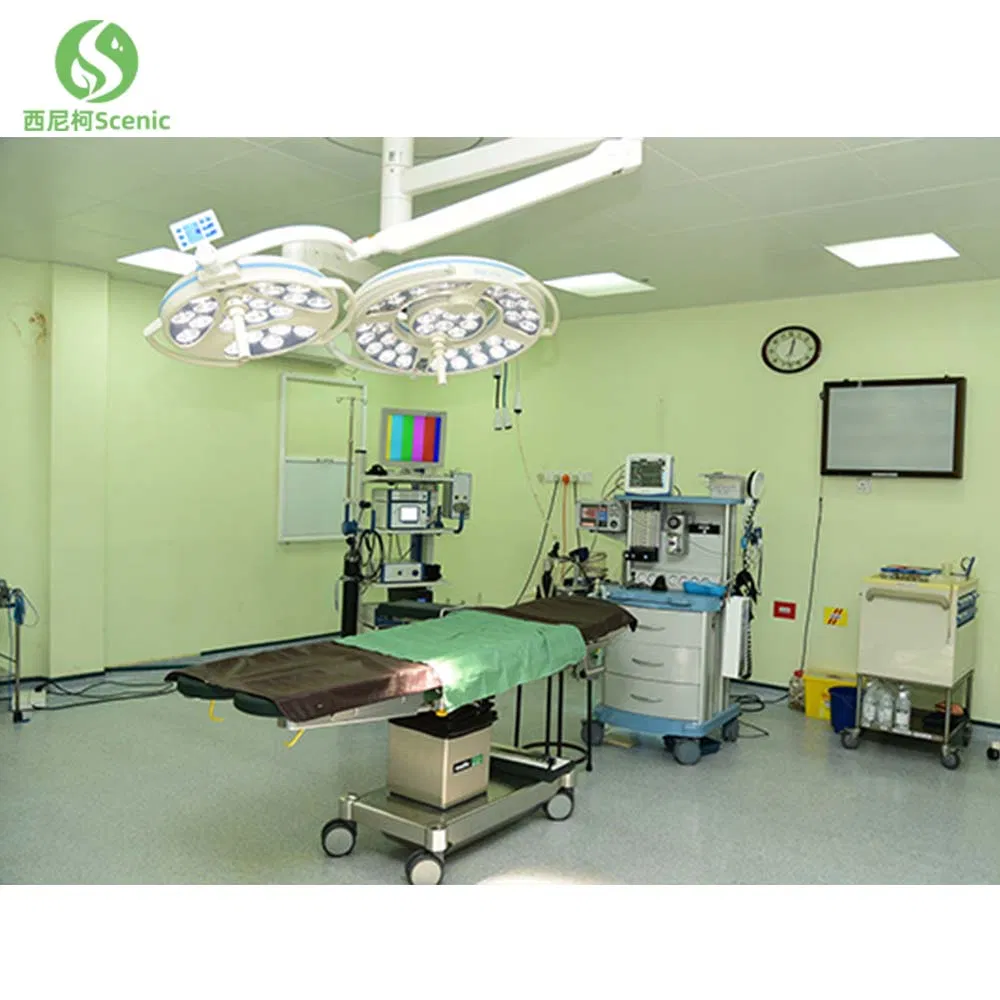

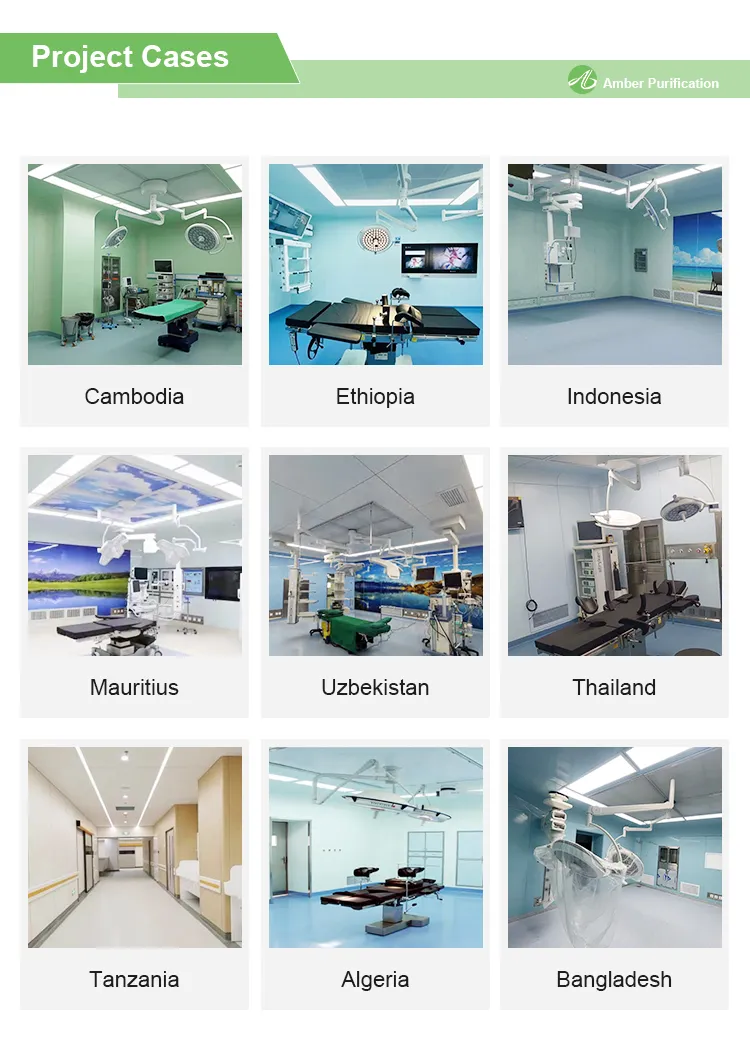

Project Showcase

Frequently Asked Questions

What levels of cleanliness can your modular operating rooms achieve?

Our systems are designed to support cleanliness requirements ranging from Class 100 to Class 100,000, suitable for various surgical and pharmaceutical environments.

What are the primary materials used for the wall panels?

We use high-quality electrolytic steel plates and fireproof gypsum boards. The surfaces are typically finished with PVC or specialized spray coatings for antibacterial properties.

How is the installation handled on-site?

The system is fully modular. Panels and components are pre-fabricated in our factory, allowing for a "splicing" installation on-site. This eliminates the need for welding and minimizes dust during construction.

Can the humidity and temperature be controlled?

Yes, our OT room control systems allow for precise regulation of temperature (21-27°C) and humidity (30-60%) to meet specific medical standards.

Are the designs customizable?

Absolutely. All dimensions, colors, and accessory configurations (like cabinet placement and door types) can be customized based on the specific architectural needs of the hospital or laboratory.

What accessories are included in a standard package?

A comprehensive project typically includes air purification ceilings, antibacterial PVC flooring, airtight doors, LED film viewers, medical cabinets, and centralized control systems.
