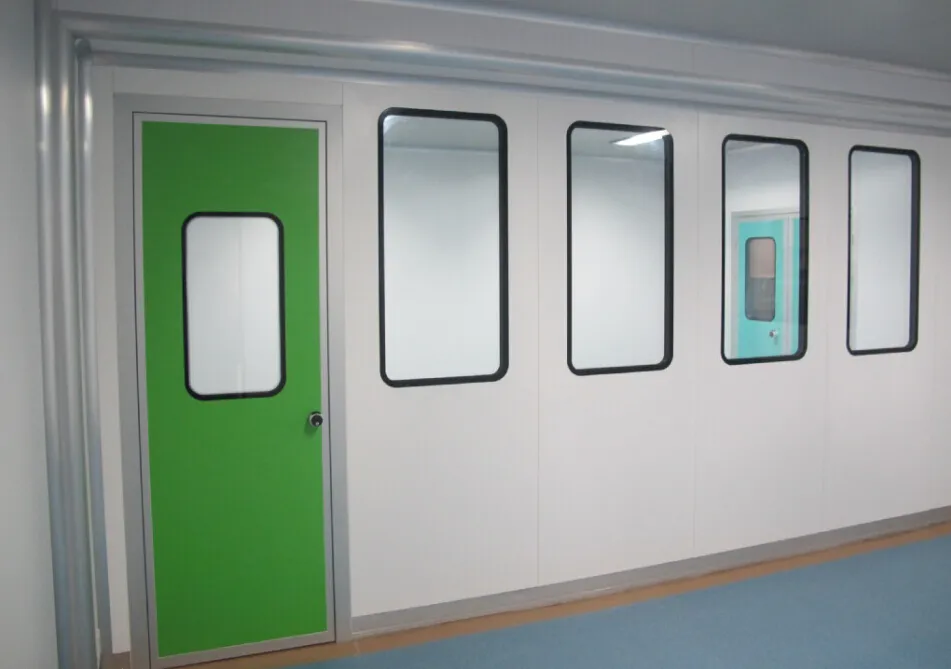

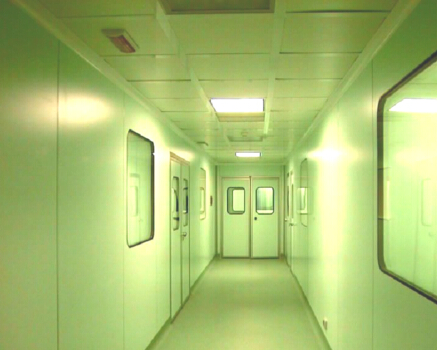

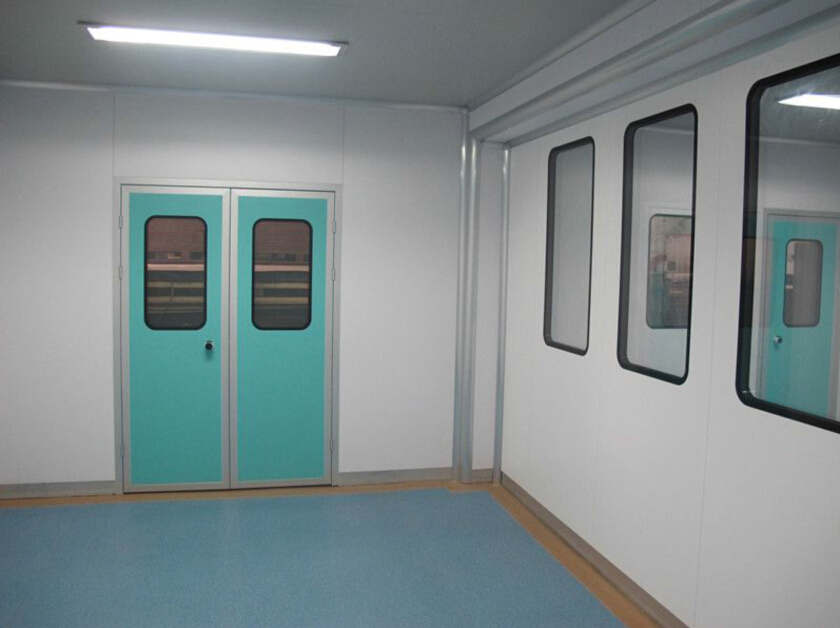

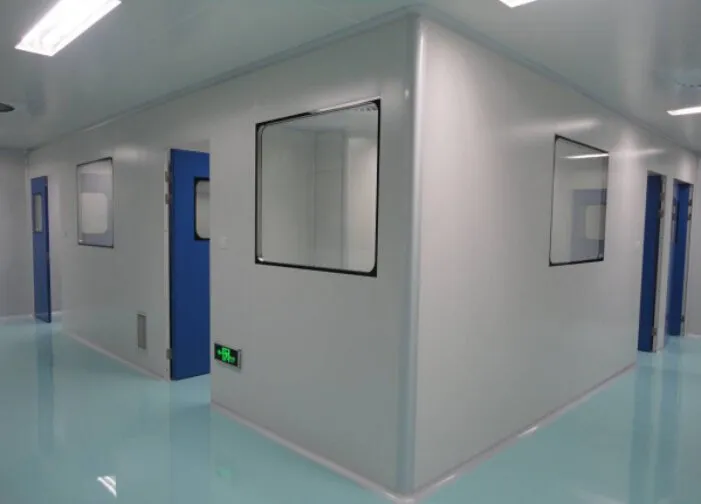

Our modular construction system is designed for easy and fast installation. It features a full flush system encompassing wall-to-wall, wall-to-floor, and wall-to-ceiling radius corners, ensuring a high-quality and strong surface finish for clean room environments.

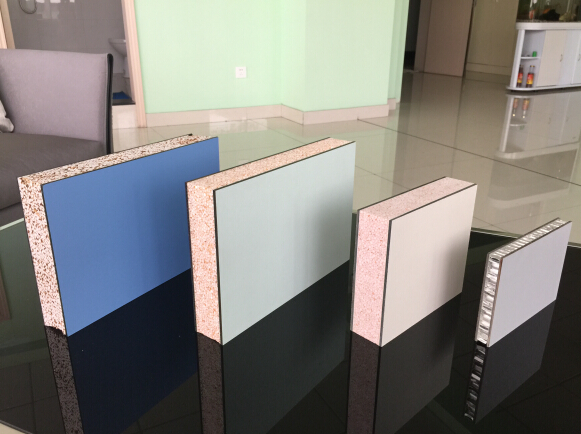

HPL Sandwich Panel Specs: Double side HPL skin (3mm/4mm), smooth flush surface, standard thickness 50mm (custom 100mm available), standard width 1200mm, length up to 3000mm. Core materials include TPS, EPS, PU, or AH.

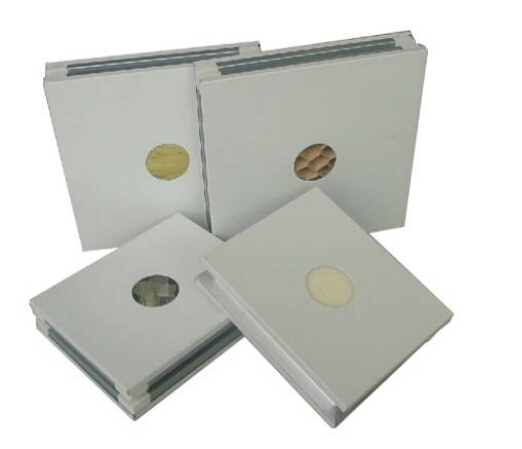

A modular flush system compatible with walls, windows, and doors. It uses Pre-Painted Galvanized Iron (PPGI) steel skin (0.5mm to 0.6mm).
| Material Core | Density | Fire Resistance | Thermal Conductivity |
|---|---|---|---|
| Thermal-setting Polystyrene (TPS) | 30-40kg/m3 | Class B, A | 0.030-0.036 W/mK |
| Expanded Polystyrene (EPS) | 12-15kg/m3 | Class E, D | 0.035-0.040 W/mK |
| Rock Wool (RW) | 100-120kg/m3 | Class A | 0.037-0.050 W/mK |
| Polyurethane Foam (PU) | 35-40kg/m3 | Class E, D | 0.022-0.028 W/mK |
| Aluminum Honeycomb (AH) | 35 kg/m3 | Class A | 0.045-0.056 W/mK |

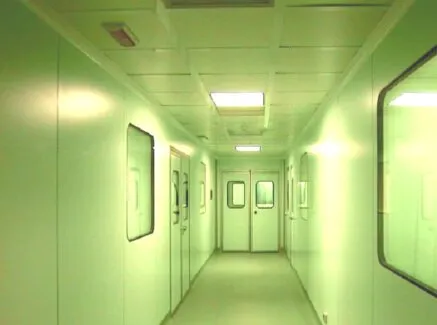

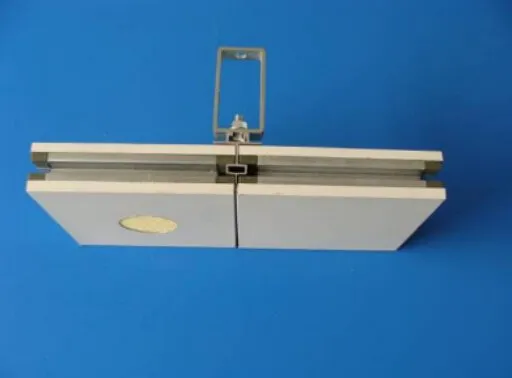

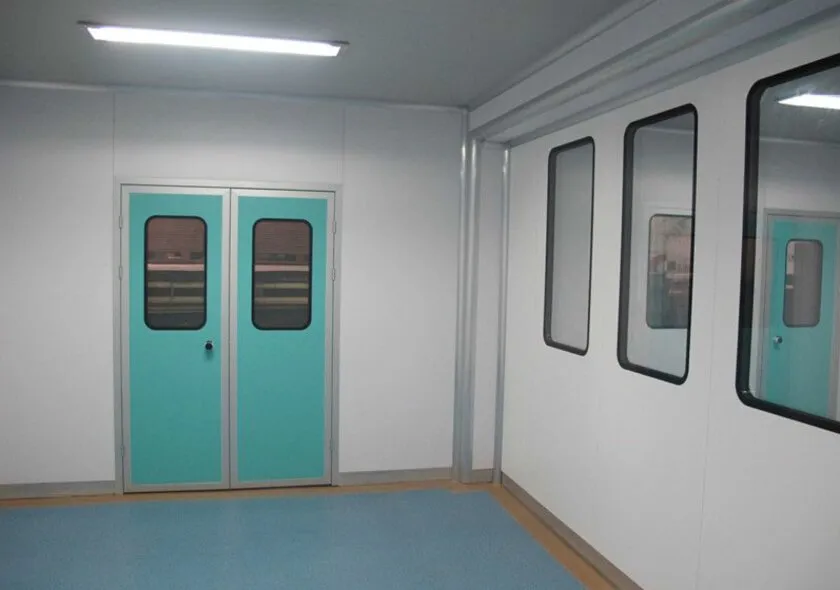

Walkable ceilings utilize a concealed "H" type hanger system. Non-walkable ceilings typically use an unconcealed T-grid hanger system.

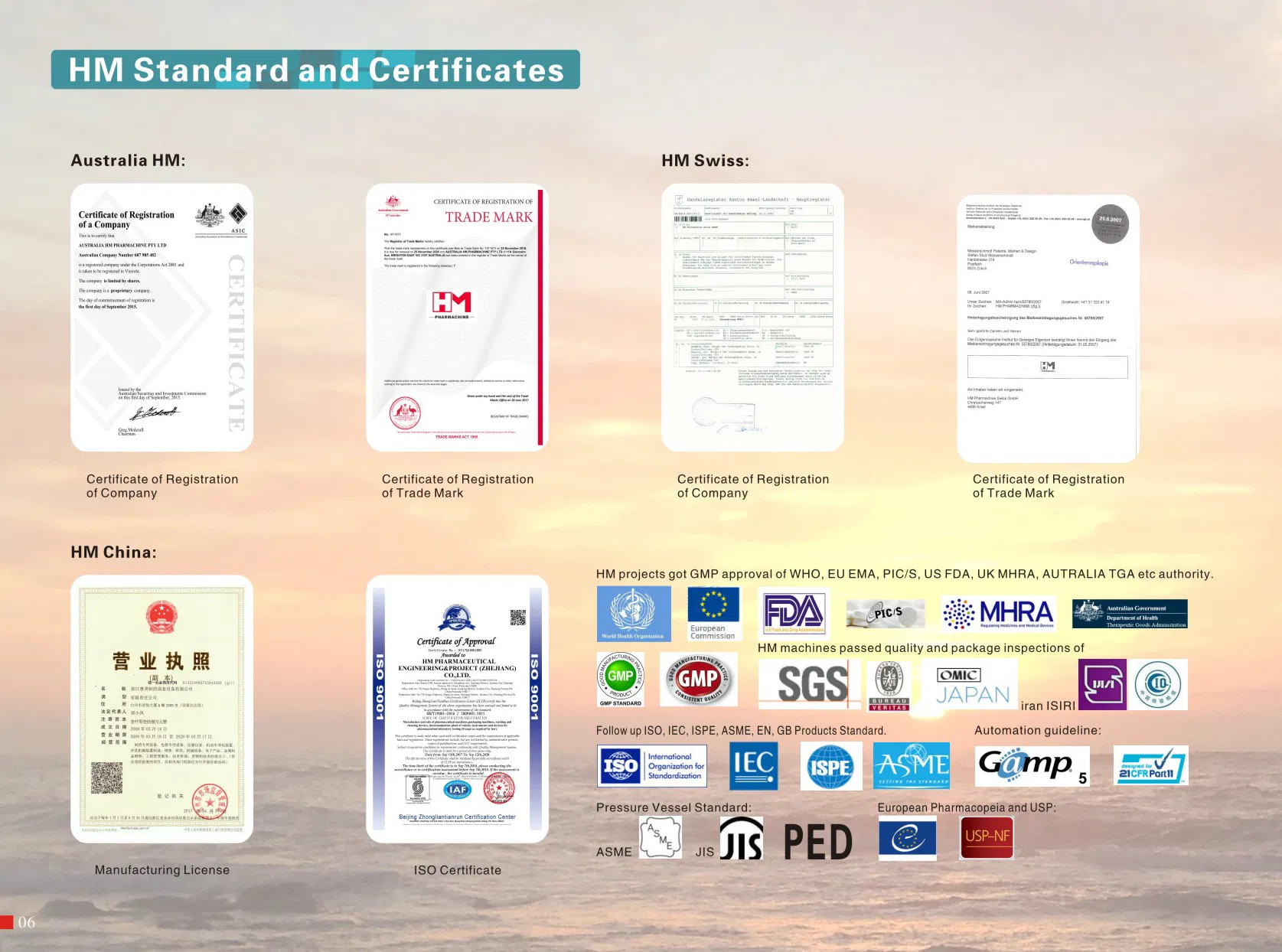

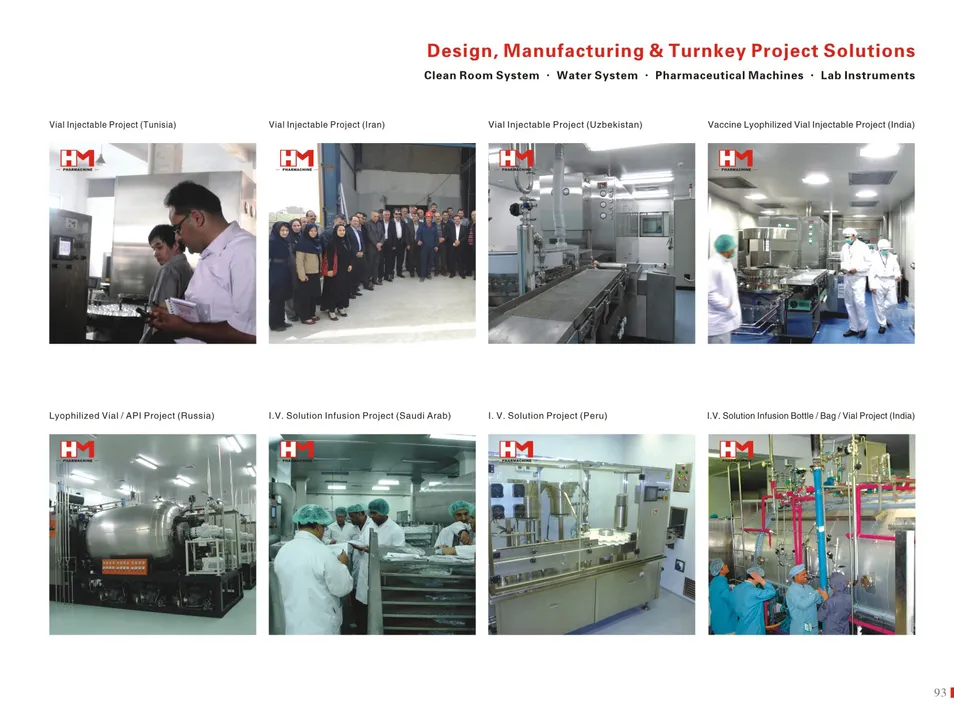

Specializing in Turn-key Project Solutions for Clean Room Systems, Water Systems, and Pharmaceutical Machinery. Our solutions combine international technical standards with efficient manufacturing to provide high-class modular systems that meet WHO GMP, EU cGMP, US FDA, and UK MHRA standards.
