Modular Plasma Treatment System with Single or Dual Nozzles

1 / 5

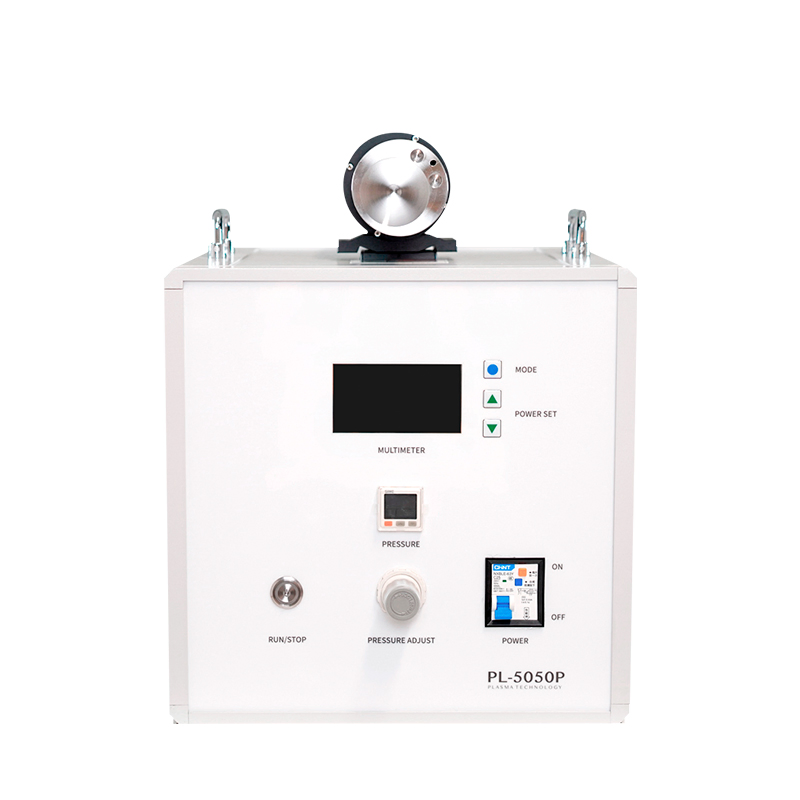

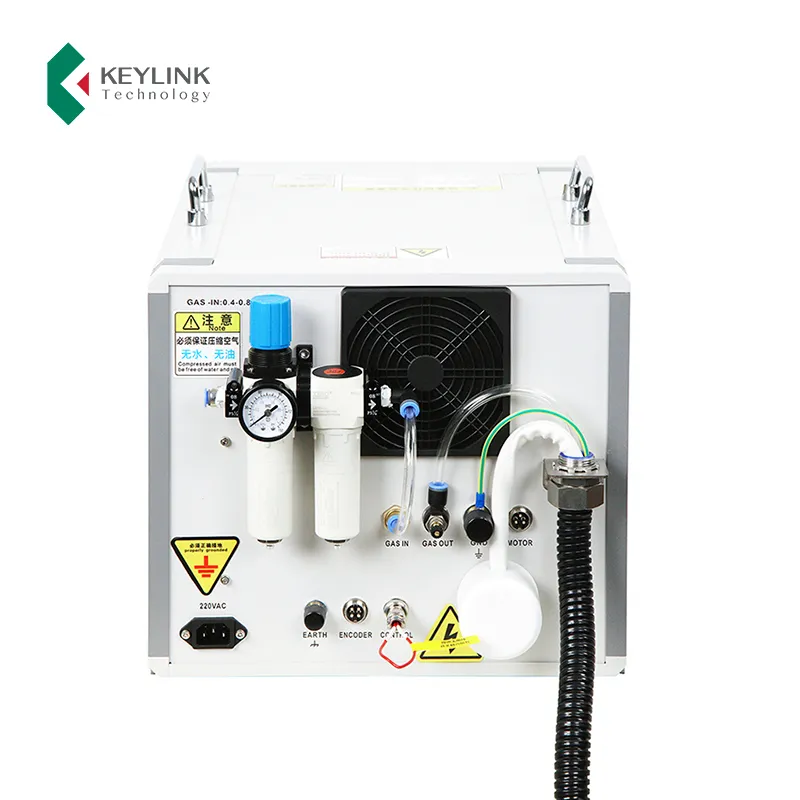

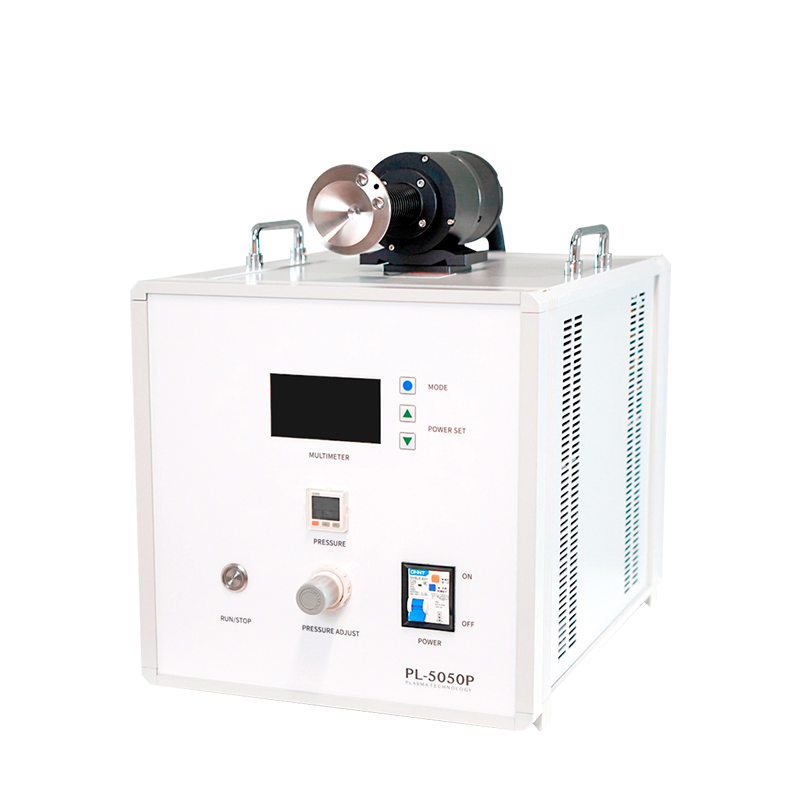

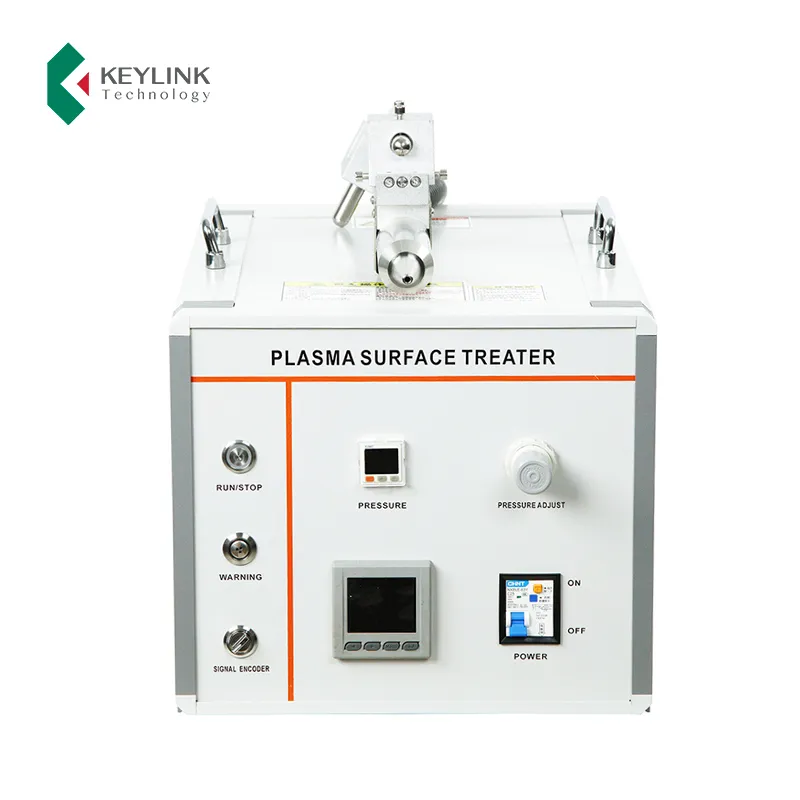

Modular Plasma Treatment System with Single or Dual Nozzles

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Overview & Basic Information

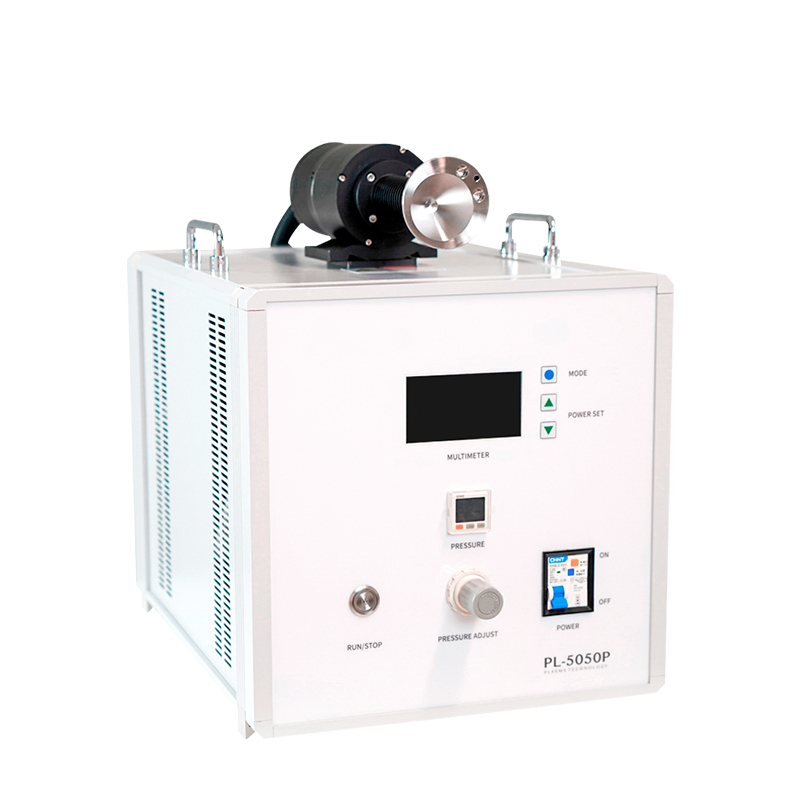

Model NO.:Pl-5050P

Model:Clean-Pl-5010-out

Voltage:220V

Gas Input Pressure:2-3bar

Output Power:1000va

Treatment Width:≤13mm

Origin:China

HS Code:8479899990

Production Capacity:1000sets/Year

Package Size:640cm * 395cm * 475cm

Gross Weight:26.000kg

Product Parameters

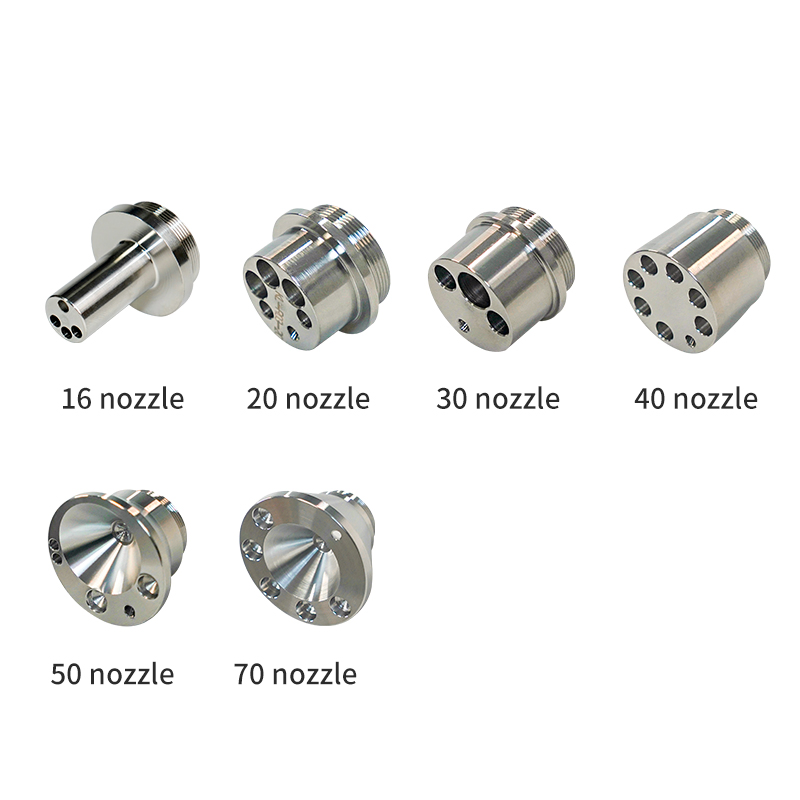

Technical Specification		Nozzle Models	Treatment Area	Model
PL-5010-OUT Technical Specifications
Interface display	Multifunctional LED digital tube	D04 NX Nozzle A	7-8mm	PL-JX-101-1
Rated supply voltage	AC220V ±10%	D04 NX Nozzle B	7-8mm	PL-JX-102-1
Plasma output power	1000VA	D03 Nozzle C (flat)	12-13mm	PL-JX-104-1
Input current	4.0-6.0A	D02xy nozzle	7-8mm	PL-JX-106-1
Supply frequency	20kHz
Air source requirement	External source (50L/min)
Air pressure range	0.1-0.25Mpa
Storage temperature	-25ºC to +55ºC
Cleaning height	5-15mm
Dimensions	580350320 mm	Net Weight: 19kg / Gross Weight: 26kg
Detection function	Air pressure, overtemperature, and undercurrent detection

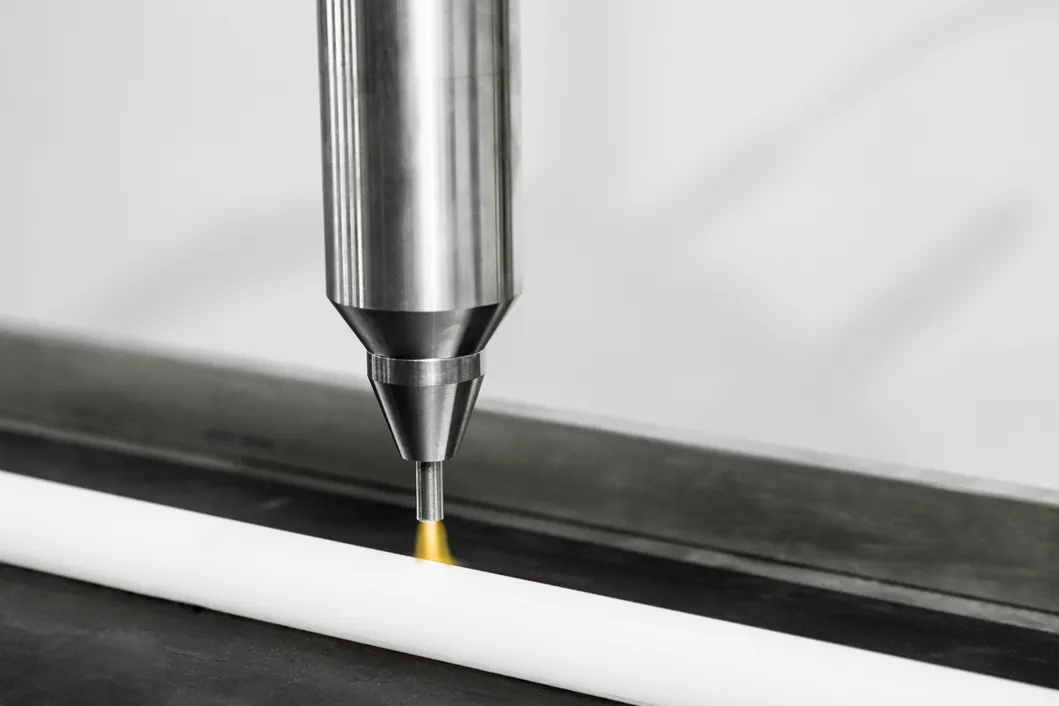

Plasma Surface Treatment for Cables and Wires

In modern cable production, materials like PTFE, FEP, EPDM, silicone, PVC, and PE have very low surface energy, making adhesion difficult for inks and coatings. Plasma surface treatment uses an ionized gas jet to functionalize the outer layer, "activating" the surface by breaking bonds and removing contaminants.

This inline step ensures inks and adhesives form permanent bonds, eliminating defects like "beading" and resulting in durable marking and joints.

Compatible Insulation Materials

Fluoropolymers: PTFE/Teflon, FEP, ETFE (Aerospace/Medical).
Elastomers: Silicone rubber, EPDM (Flexible/Harsh environments).
Thermoplastics: PVC, PE (Common jacketing).
Specialty: XLPE, CPE, Polyurethane, Neoprene.

Downstream Processes Enabled

Printing: Durable inkjet or laser marking for alphanumeric codes and logos.
Overmolding: Ensures molded housings or sealants adhere perfectly to cable sheaths.
Adhesive Bonding: Improves the bond of epoxies and solder joints by removing release oils.
Extrusion: Ensures uniform bonding between layers in multi-layer cable designs.

Technical & Environmental Benefits

Enhanced Adhesion: Increases surface energy to prevent delamination.
Contaminant Removal: Etches away mold-release oils and dust without primers.
Chemical-Free: Zero VOC emissions; uses only ionized air and electricity.
Energy Efficient: Eco-friendly design with low power consumption.
Safety: No toxic fumes or flammable chemicals, simplifying regulatory compliance.

Company & Certification

Frequently Asked Questions

1. What is the shipping warehouse location? Our main shipping warehouse is located in China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods.

2. What is the production lead time? For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

3. Can I customize my order? Yes, customization is available! We can tailor machine configurations, spare parts, and accessories like nozzles or cable lengths based on your specific requirements.

4. What are the payment terms? We offer flexible terms: full payment before shipping or a 50% deposit upon order confirmation with the remaining balance before shipment. Payments are typically made via SWIFT transfer.

5. What kind of after-sales support do you provide? We provide technical assistance via email/video, quick access to spare parts, comprehensive user manuals, and on-site support for critical issues if required.

6. Can I test my samples before purchasing? We encourage customers to send insulation compound samples for free trial testing. Our labs will report optimal settings and recommend the ideal plasma setup for your application.
