Movable Portable Prefabricated Folding Flatpack Containers Tiny House Steel Structure

Customization: Available
After-sales Service: Online Technical Support, Onsite Installation
Product Name: Container Tiny Houses Steel Structure

Product Description

1

Basic Specifications

Model NO.
TS-S-22
Design Style
Traditional
Product Type
Container Houses
Standard Size
W3.01m*L5.94m*H2.81m
Roof/Wall
EPS Sandwich Panel
Window
PVC or Aluminum
Steel Type
Carbon Structural Steel Q235
Connection
Welded Connection
Warranty
1 Years
Capacity
10000 Set/Month
2

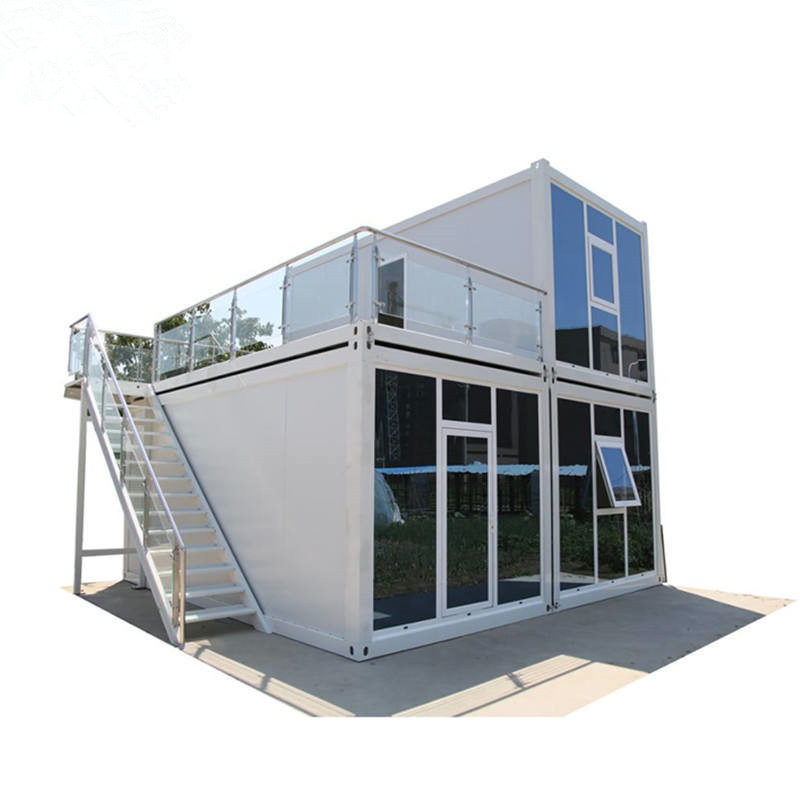

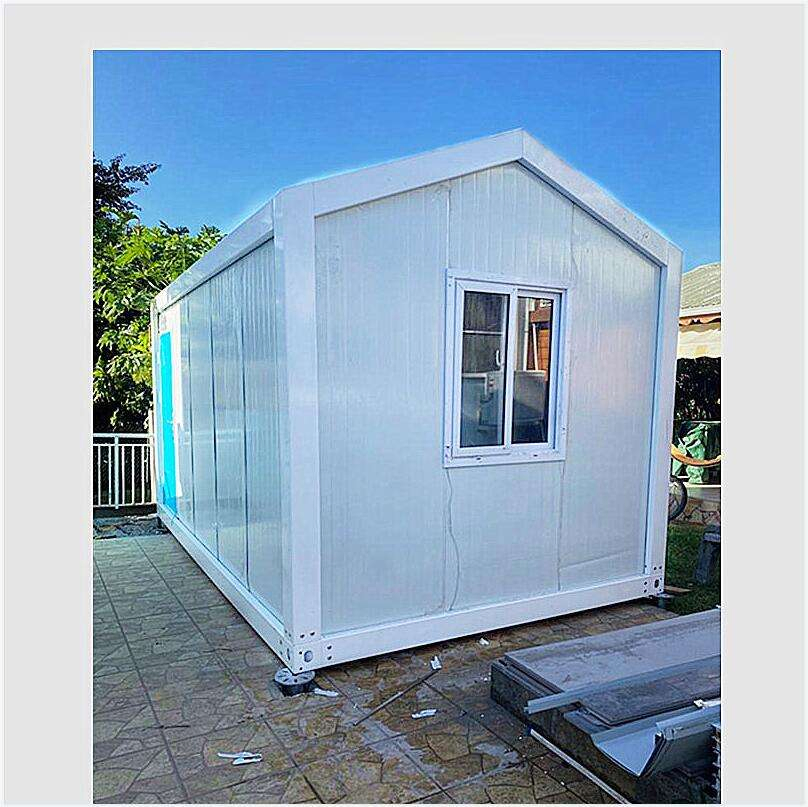

Movable Portable Prefabricated Container House

This prefabricated container house is designed from a collapsible container frame, offering significant advantages for modern construction needs:

  • Superior Durability: Galvanized frame with powder coating for enhanced anti-rust quality.
  • Robust Structure: Main frame thickness ranges from 2mm to 3mm.
  • Enhanced Space: Larger standard size (W3M * L5.95M * H2.8M) compared to traditional models.
  • Easy Installation: Designed for manual re-assembly without the absolute requirement of a crane.
  • Flexible Modular Design: Units can be combined to create larger spaces or stacked up to 2-3 levels.
  • Versatile Application: Ideal for accommodation, offices, bathrooms, and kiosks.

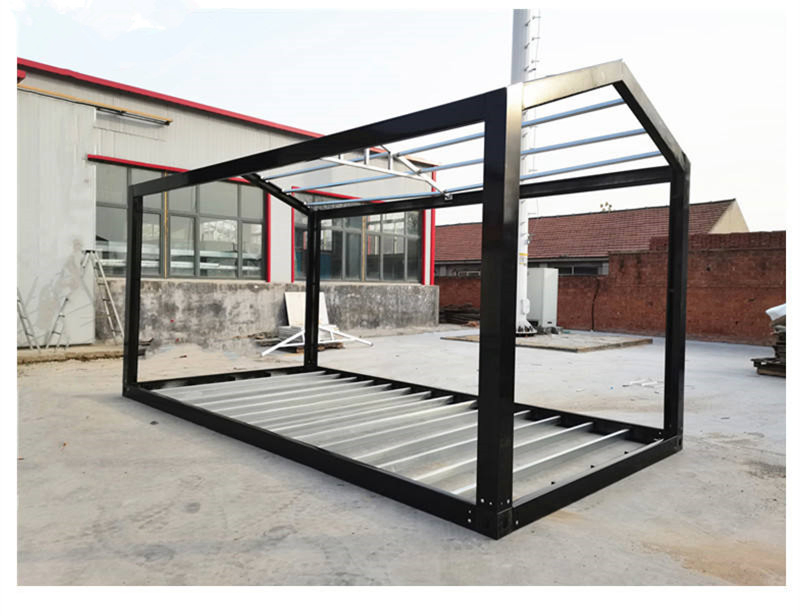

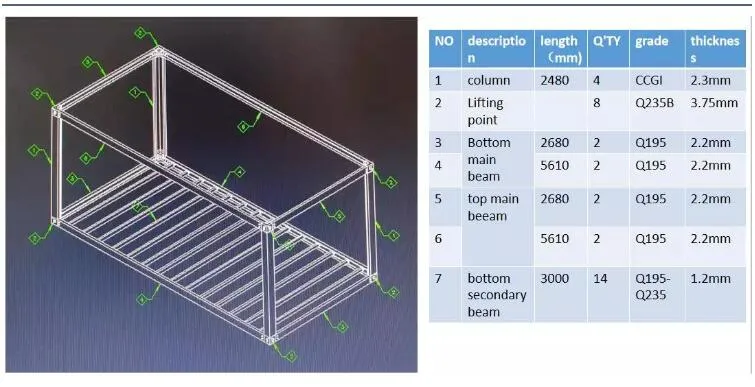

Container House Frame Structure

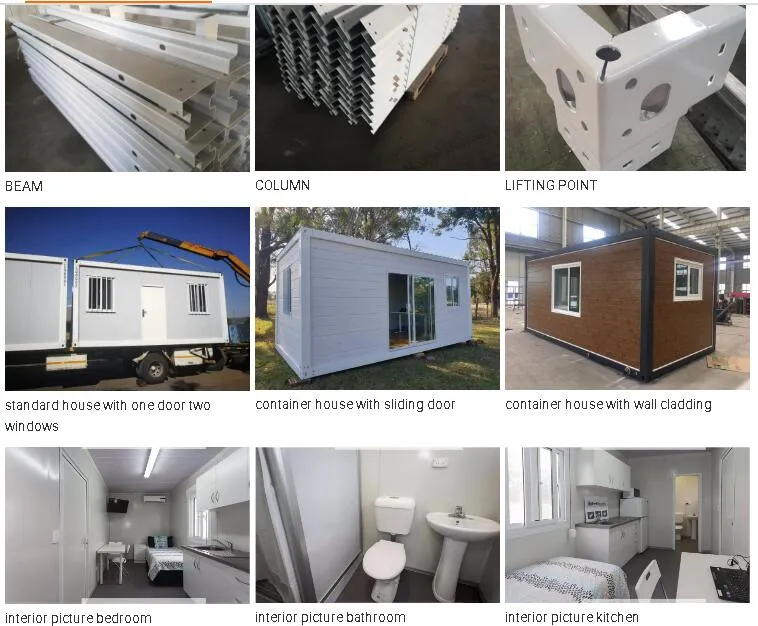

Container House Detail
3

Technical & Engineering Report

Seismic Resistance: The structure is designed to withstand magnitude 8 earthquakes (Horizontal seismic coefficient αmax = 0.04).

Load Capacity:

  • Bottom Floor Live Load: 3.0 kN/m2
  • Roof Board Live Load: 0.5 kN/m2
  • Wind Pressure: W0=0.3KN/m2 (based on 15-year design life)

Material Strength: Steel beams and columns utilize Q235B cold-bending galvanized light steel (f=215N/m2).

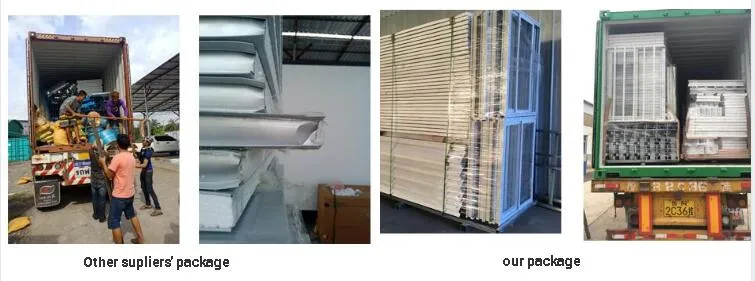

Packaging and Loading

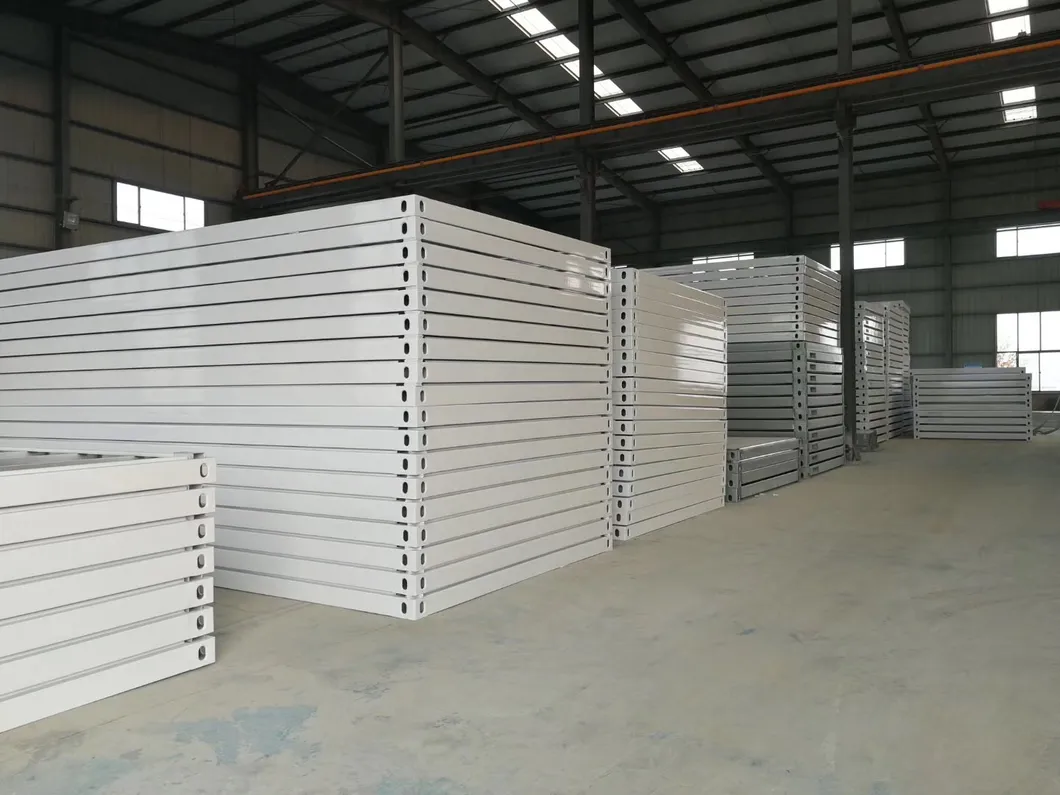

Factory Production Show

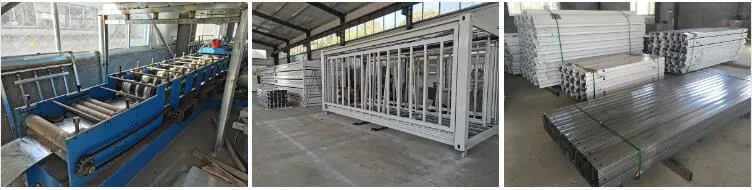

Interior Construction
4

Packaging & Support

Special Packaging: To prevent damage to sandwich panels, we weld steel pallets on the bottom and wrap materials in plastic film for maximum protection during transit.

Project Support: Detailed installation drawings are provided. For overseas projects, technical engineers can be dispatched for on-site supervision and training.

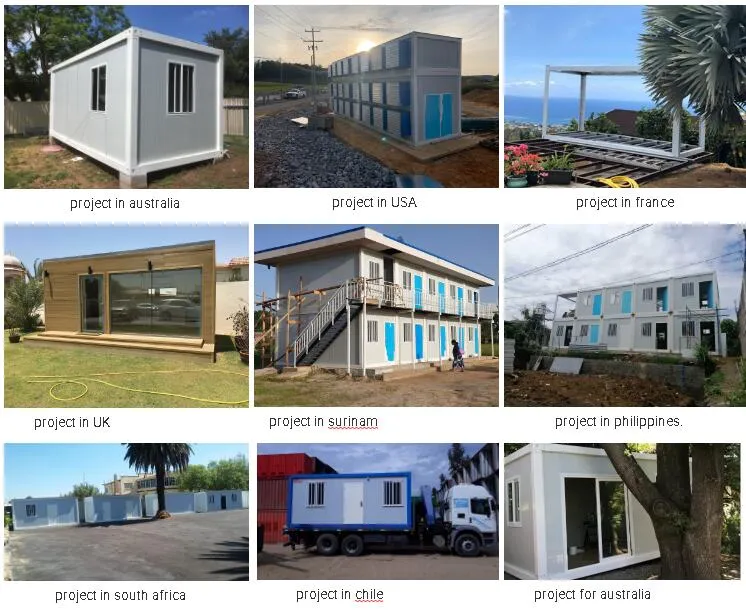

Successful Container Project
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a manufacturing factory. You are welcome to visit our facility to inspect our quality control flow and professional production processes.
What is the earthquake resistance of these container houses?
Our structures are engineered to withstand up to magnitude 8 earthquakes, following strict structural safety grade 2 standards.
Can you provide design services for custom projects?
Yes, our engineering team uses professional software like Auto CAD, PKPM, and Tekla Structures to design full solution drawings based on your specific requirements.
How do you ensure the quality of the materials?
We have established procedures to check products at every stage: raw materials, in-process testing, and finished goods inspection. Third-party testing is also available.
Is on-site installation guidance available overseas?
Yes. We provide detailed installation drawings as standard. If required, we can also provide professional technical engineers for on-site supervision and training.
How are the units shipped to prevent damage?
We use a special welding steel pallet system at the bottom and wrap the entire unit in plastic film to protect sandwich panels from damage during shipping.
