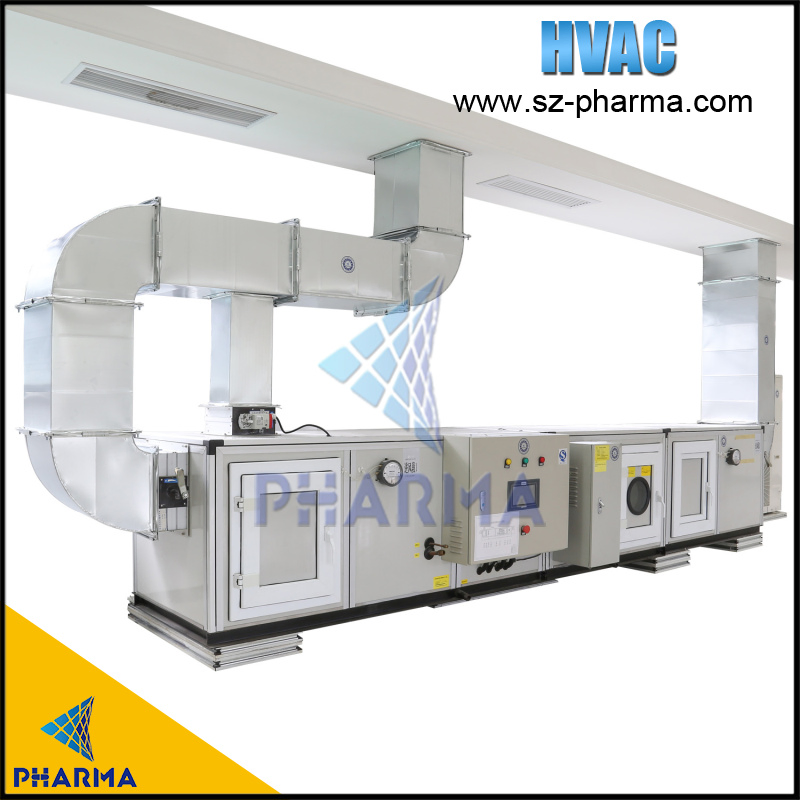

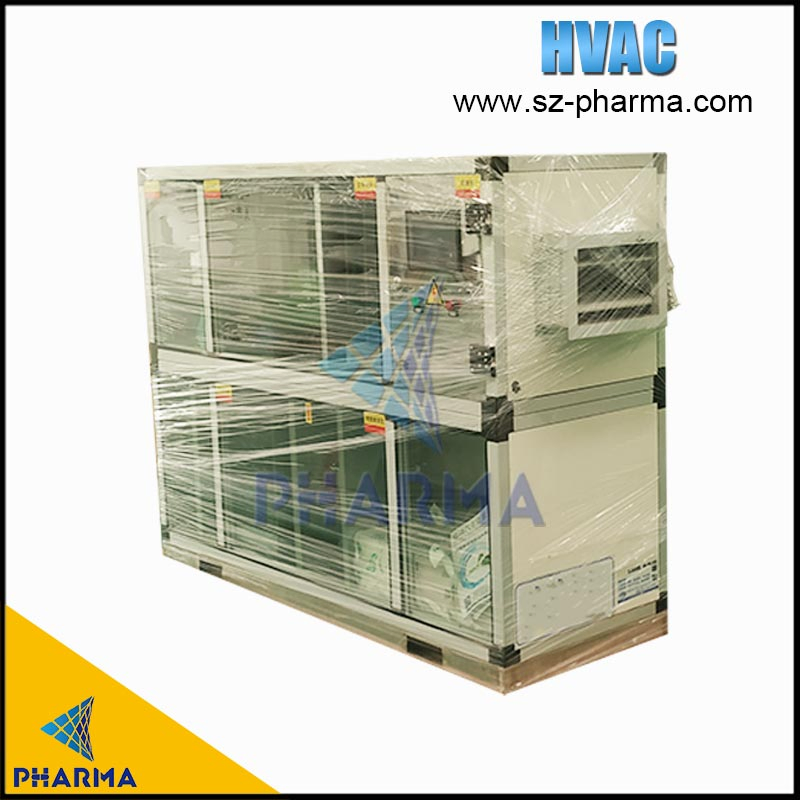

| Product Name | Clean room HVAC system |
| Service Items | Project Design, Equipment production, installation and debugging |
| Color | White, blue or customized |
| Heat transfer mode | Fan cooler, water well cooler, water tower |
| Air clean grade | Class 100-1000000 |
| Standard | CE, ISO9001 |
| Humidity control | 5%~90% |
| Application | Pharmacy, factory, hospital, Laboratory, etc. |
The HVAC system (Heating, Ventilation, Air-conditioning, and Cooling) uses refrigerant to evaporate or condense under the compressor's action, changing the surrounding air's temperature and humidity. It is a comprehensive control system for temperature, humidity, air cleanliness, and circulation.

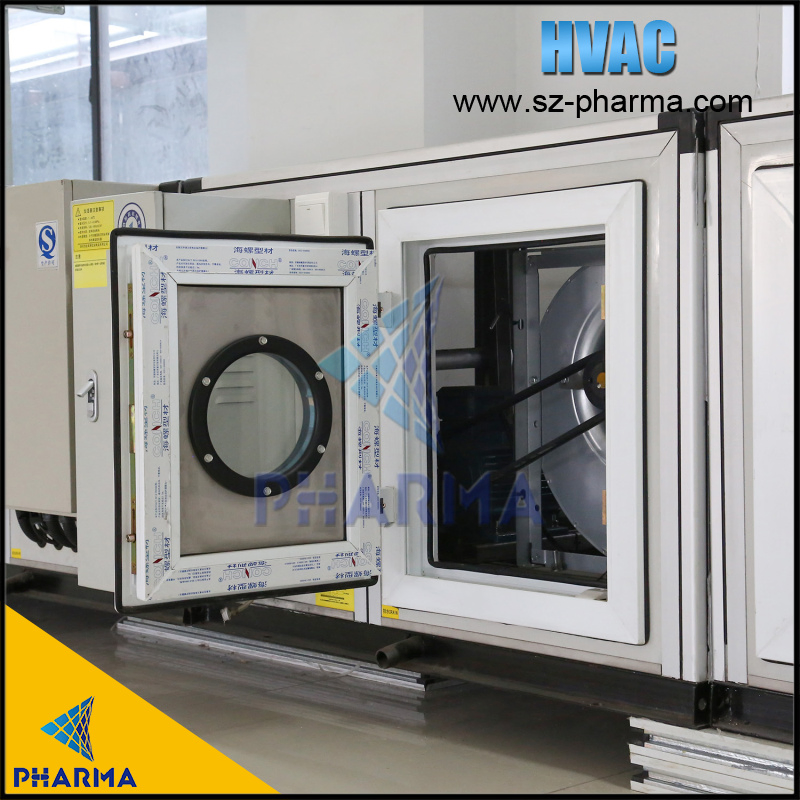

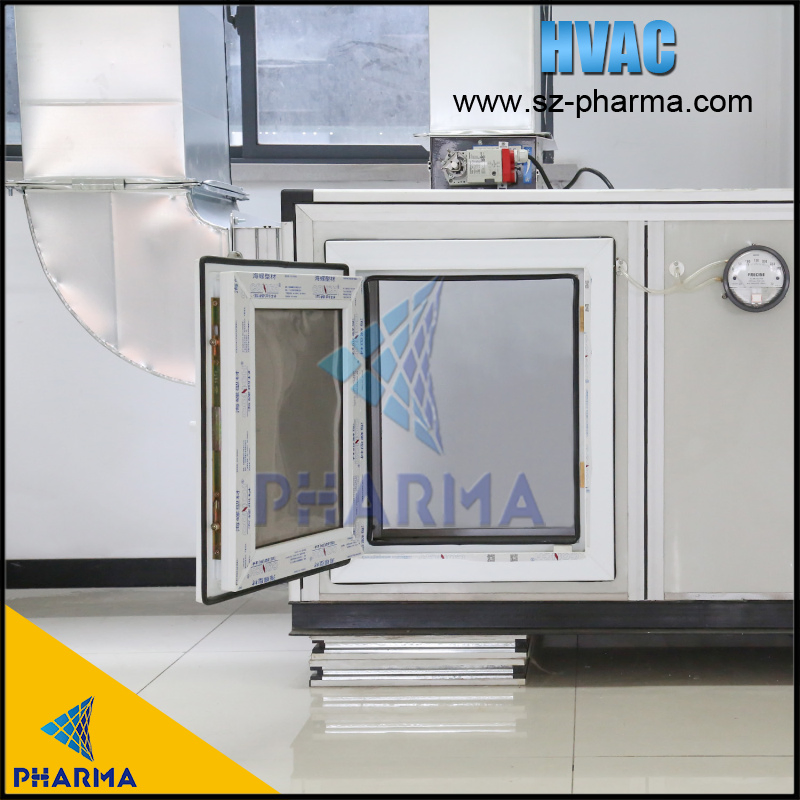

Structure: Panels and frame are made from galvanized steel protected with polyester powder painting to ensure resistance to atmospheric agents. Direct expansion coils include a condensate drain tray.
Hermetic Compressor: High-efficiency scroll compressor with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers. Ripple-type acoustic insulation ensures low noise.

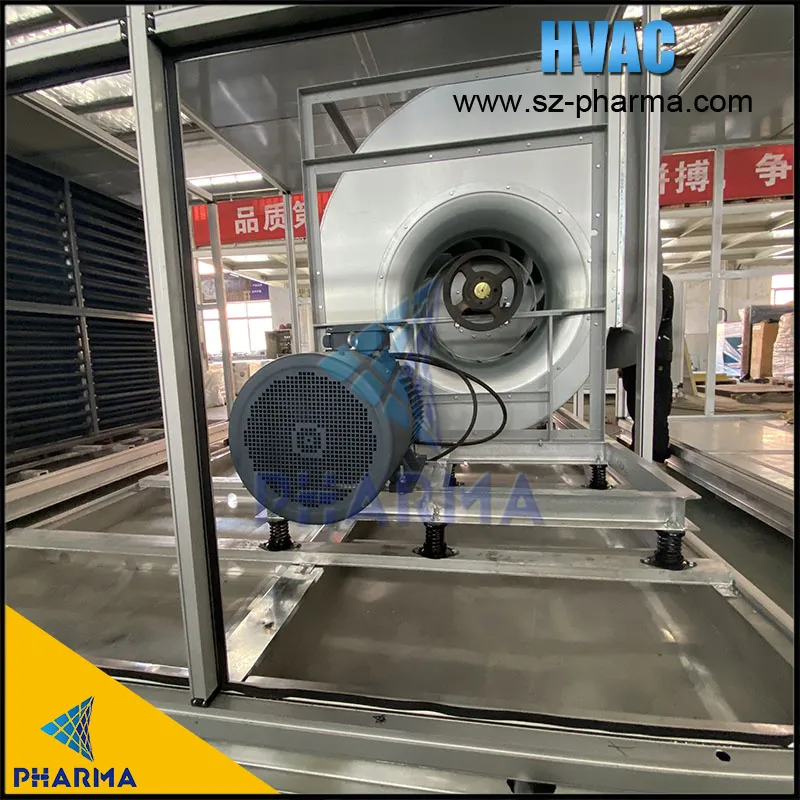

Centrifugal Fan: Forward curve centrifugal fans for air treatment and axial fans for condensation. High external pressure supports long-distance air supply.

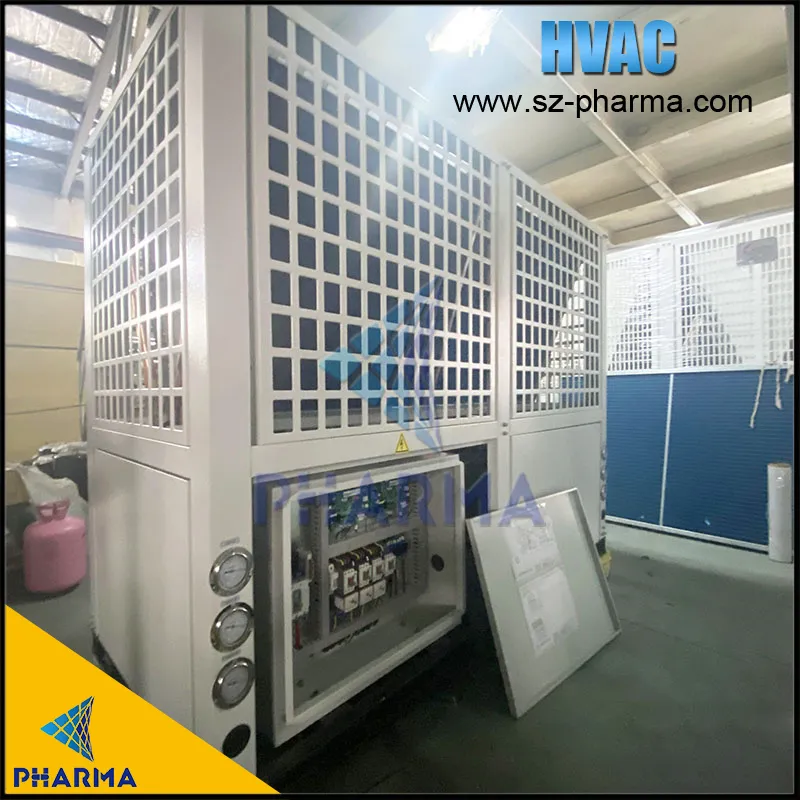

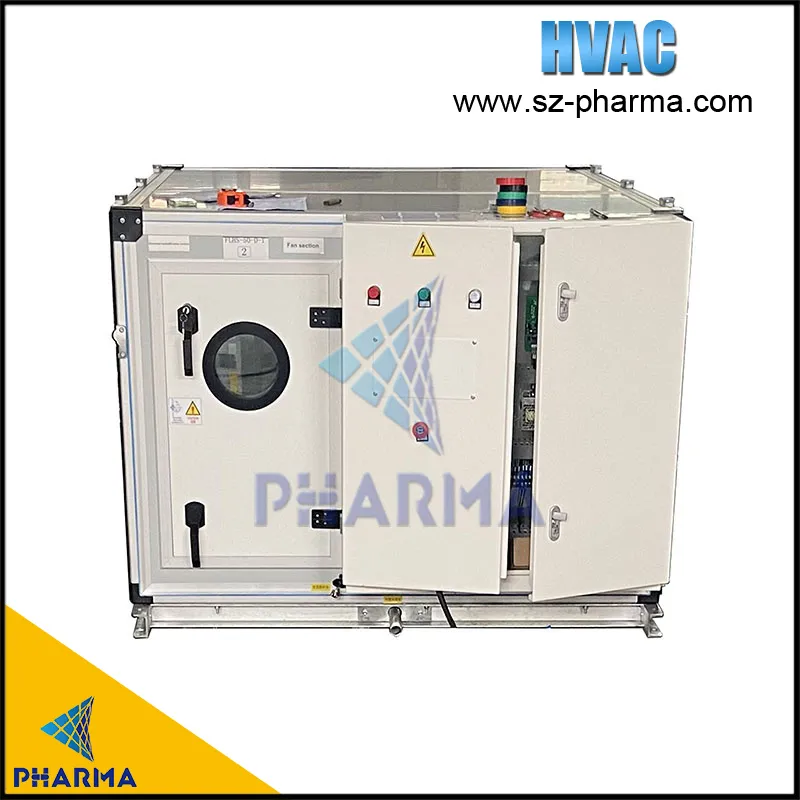

Electric Panel: Consists of breakers, contactors, phase sequence relays, and protection devices for main components.
Line Controller: Easy operation for Cooling/Heating/Auto modes with timing and error indication.
A1: It is primarily designed for high-standard cleanroom environments, including pharmaceutical plants, hospitals, laboratories, and specialized electronics factories.
A2: The system utilizes multiple stages of HEPA and ULPA filtration combined with controlled air changes per hour (ACH) to remove particles as small as 0.3 microns.
A3: Yes, it provides precise humidity control (5%~90%) and cooling capacities ranging from 10kw to 260kw to meet specific manufacturing or medical requirements.
A4: Yes, the panels and frames are made from galvanized steel with polyester powder painting, ensuring high durability and resistance to atmospheric agents.
A5: The system is compliant with ISO and CE standards, ensuring international quality and safety requirements are met.
A6: Yes, OEM and ODM services are available, including project design, equipment production, and customized color options.
