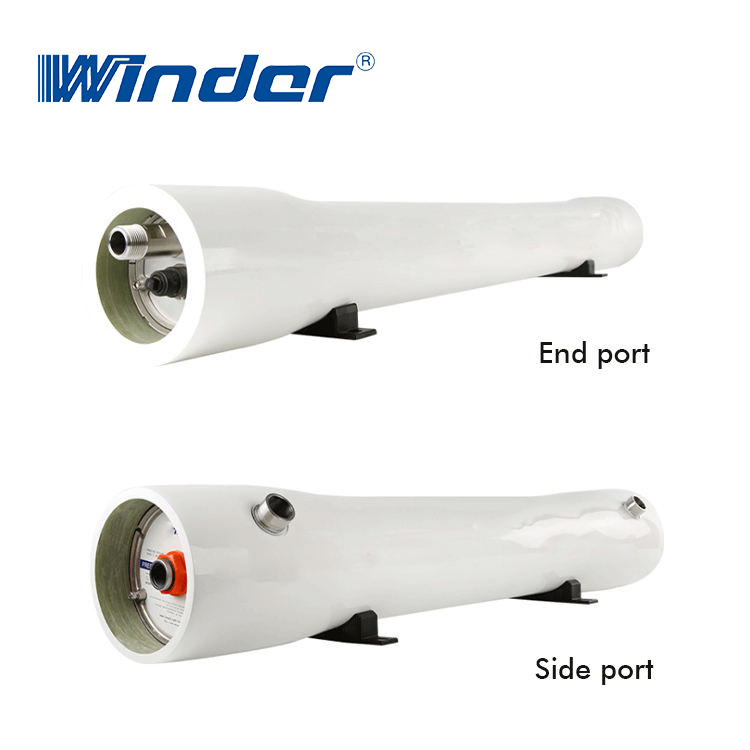

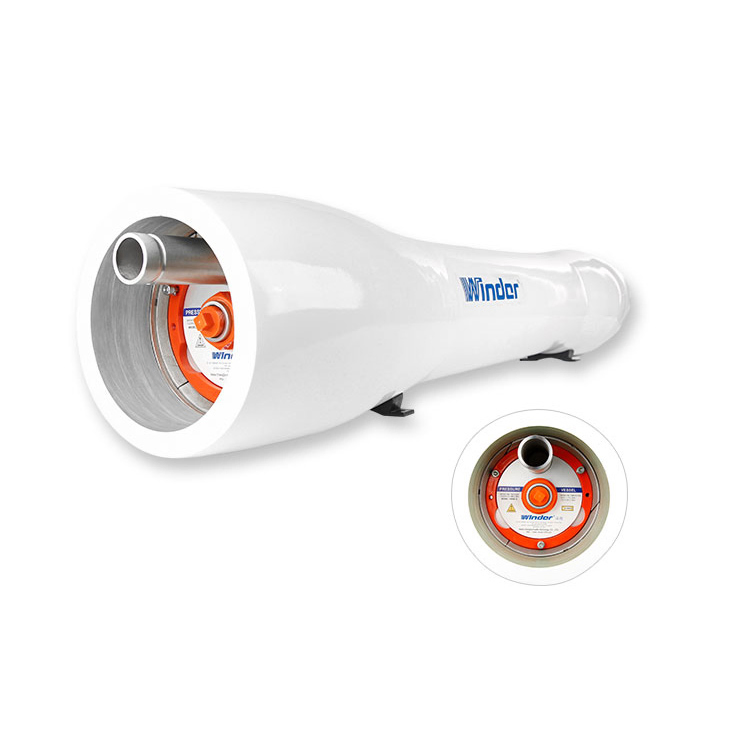

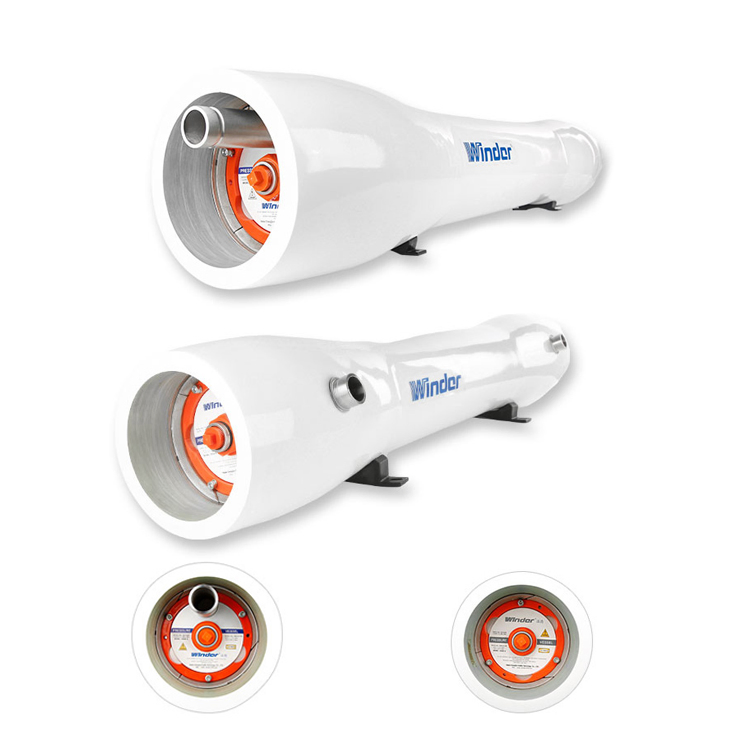

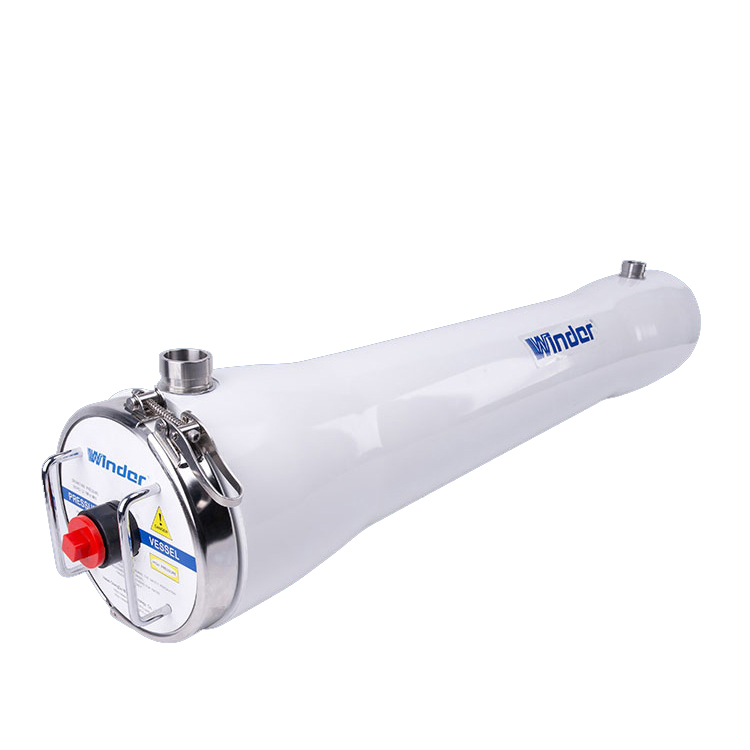

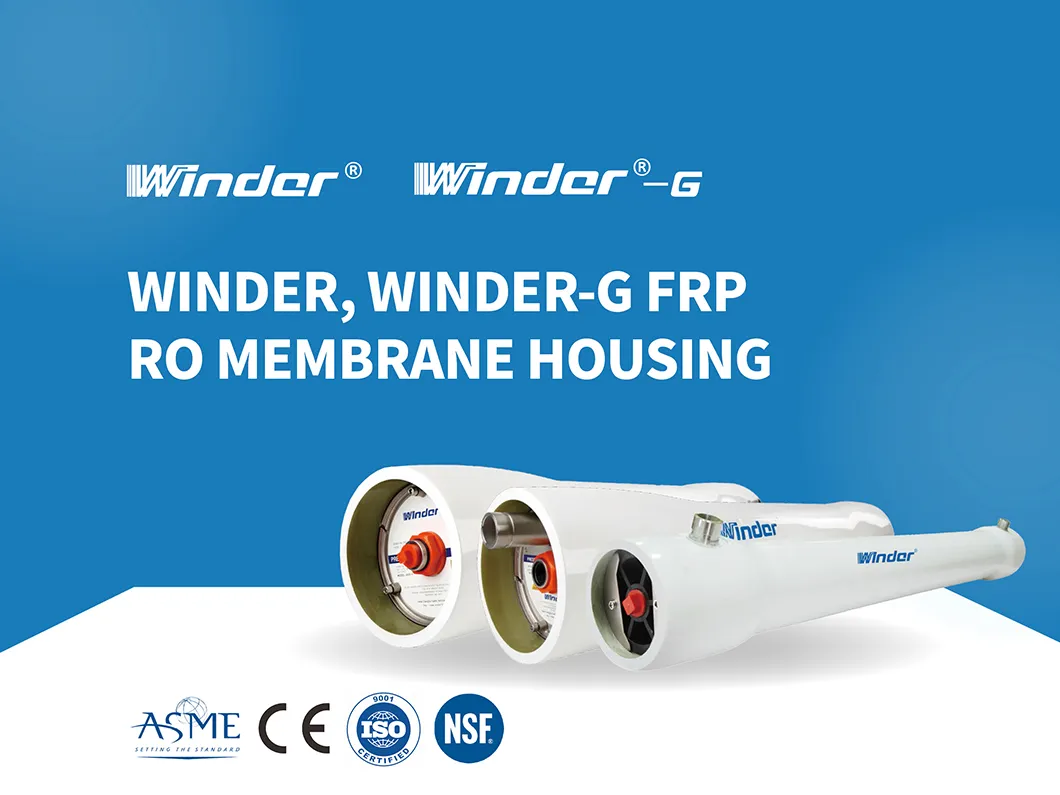

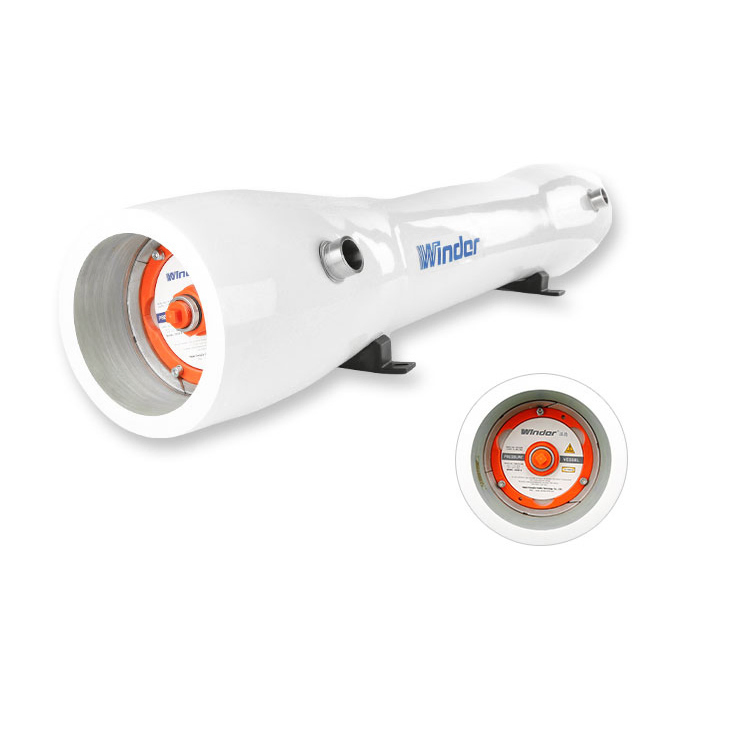

The 8-inch winder FRP Membrane Housing can hold up to 8 RO Membranes, and the maximum pressure can reach 2000PSI. Designed for humid operating environments, specialized disassembly methods and tools are provided for ease of maintenance.
Installation & Disassembly Steps:
1. Fully release pressure in the membrane housing.
2. Use the Allen wrench to unscrew end cap bolts.
3. Loosen the stopper by knocking the bearing plate if tight.
4. Fix the ejection screw to the end cap permeate port.
5. Set the ejection plate and secure with the round nut.
6. Rotate the afterburner clockwise until the end cap is out of the sealing area.
Feature
8inch Side Port (Low Pressure)
8inch Side Port (High Pressure)
Model
W80S300/450
W80S600 to 2000
Design Pressure
300/450 PSI
600-2000 PSI
Cyclic Test
100,000 times
100,000 times
Burst Pressure
6 Times
6 Times
Element Quantity
1-8
1-8
Operating Temp
-10ºC to 66ºC
-10ºC to 66ºC

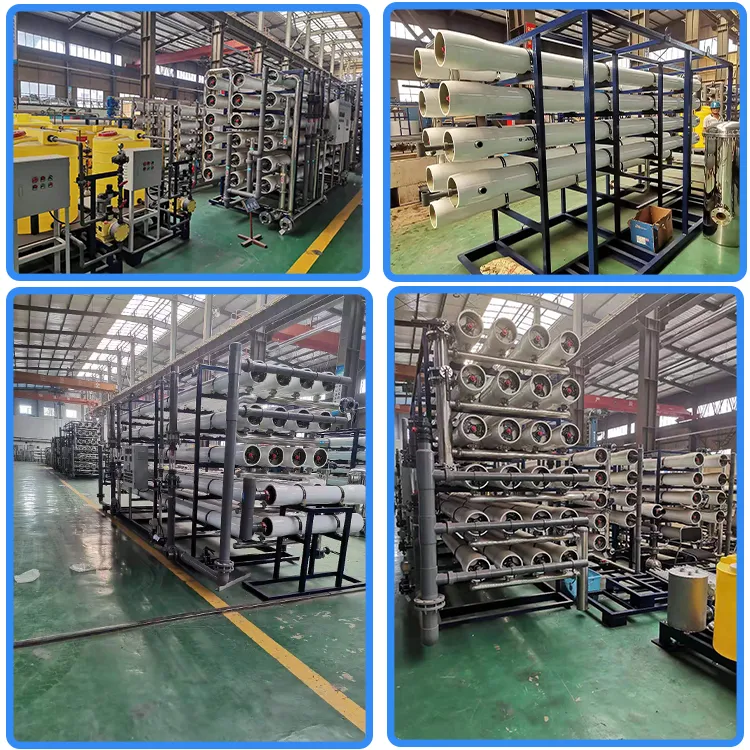

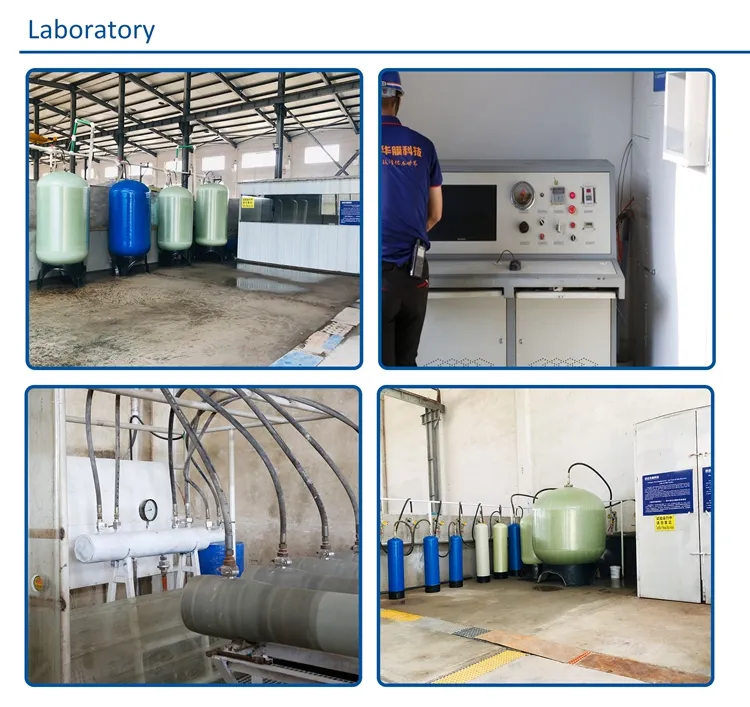

Pressure Test & Applications
Our products undergo rigorous testing to ensure stability in various industrial applications.
Related Products

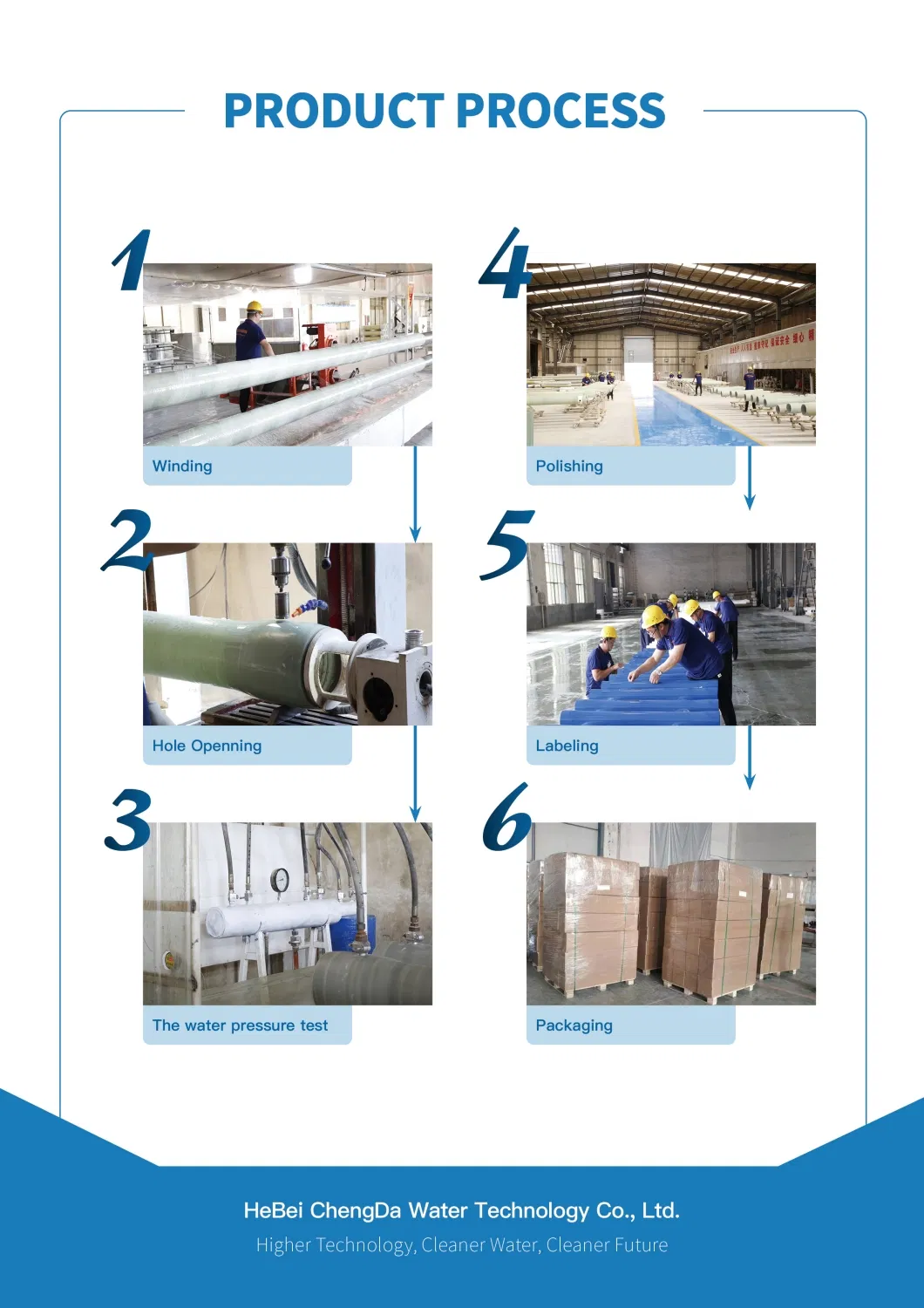

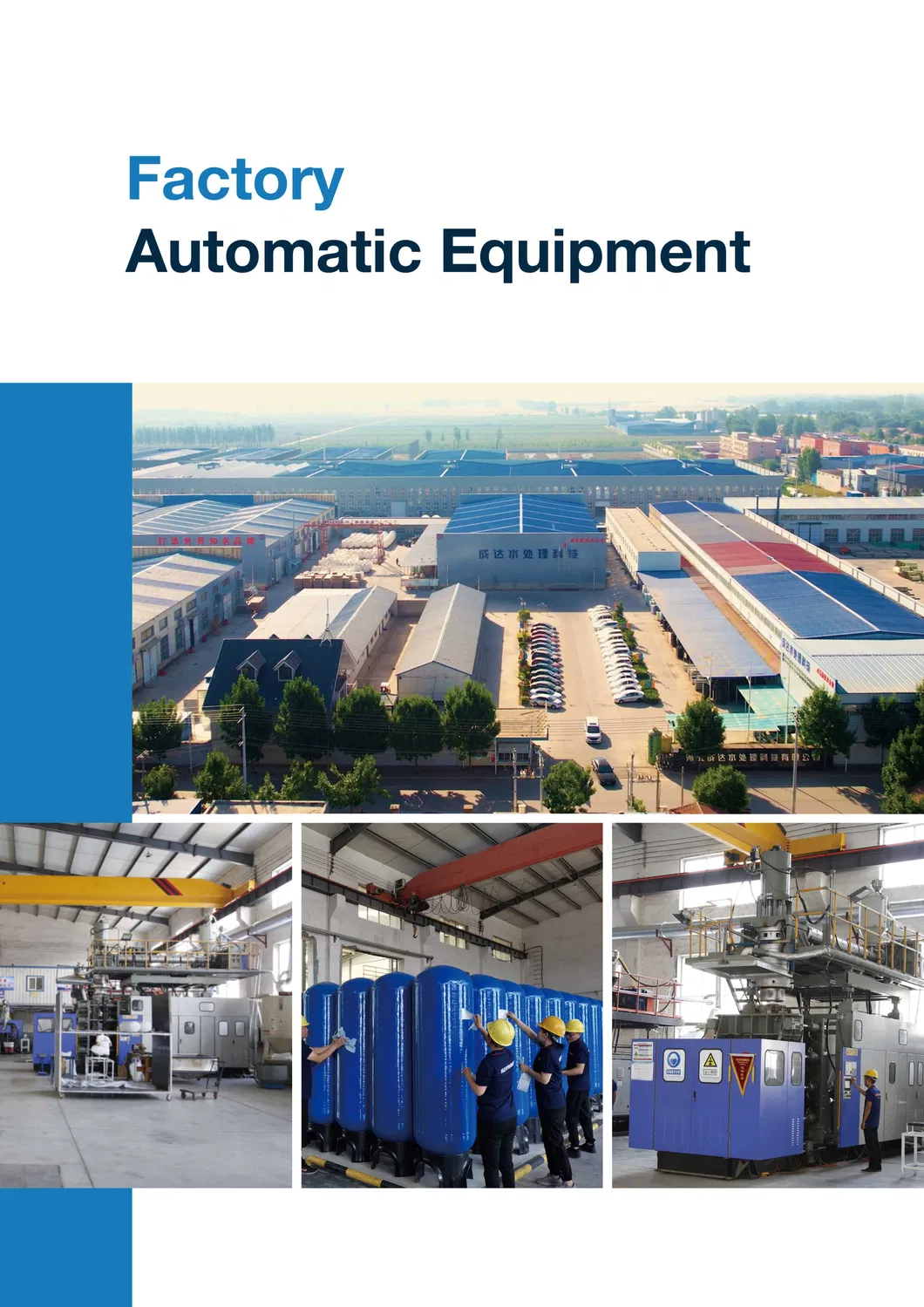

Manufacturing Excellence
Specialized in water treatment products R&D, production, and sales. Utilizing advanced winding equipment and production technology to produce world-class FRP vessels and filters. All products meet CE, ASME, and NSF standards.
Global Presence & Feedback
Frequently Asked Questions
Q: What products do you provide?
A: We offer FRP Pressure Tanks, FRP Pressure Vessels, FRP Filter Housings, FRP Membrane Housings, and High Flow Cartridge Filters.
Q: How is the product quality guaranteed?
A: We provide a pre-production sample before mass production and conduct a final inspection before every shipment to ensure international standards.
Q: What is the typical delivery time?
A: Common products are delivered within 7 days. Customized orders generally take up to 30 days.
Q: Do you offer samples before mass orders?
A: Yes, samples can be arranged for confirmation. We provide free samples; you only need to cover the freight costs.
Q: Can you customize products with our logo?
A: Yes, we offer OEM services and can place your logo directly on the products.
Q: What payment terms do you accept?
A: We accept various payment methods including T/T and L/C, in currencies such as USD, EUR, and CNY.
