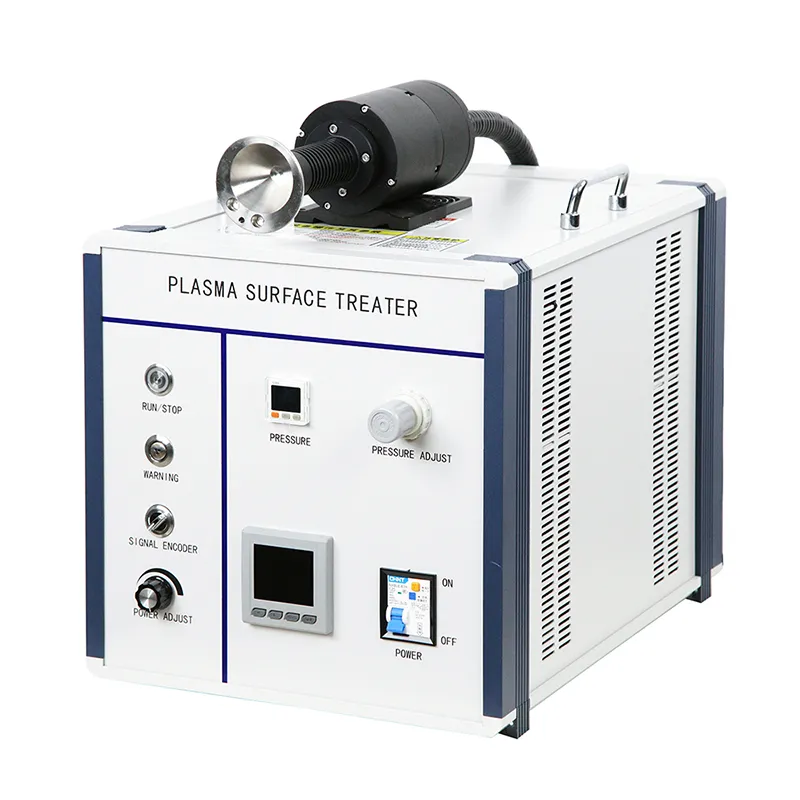

Atmospheric Pressure Plasma Surface Cleaning Platform Treatment System

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

📋 Basic Information

Model NO.

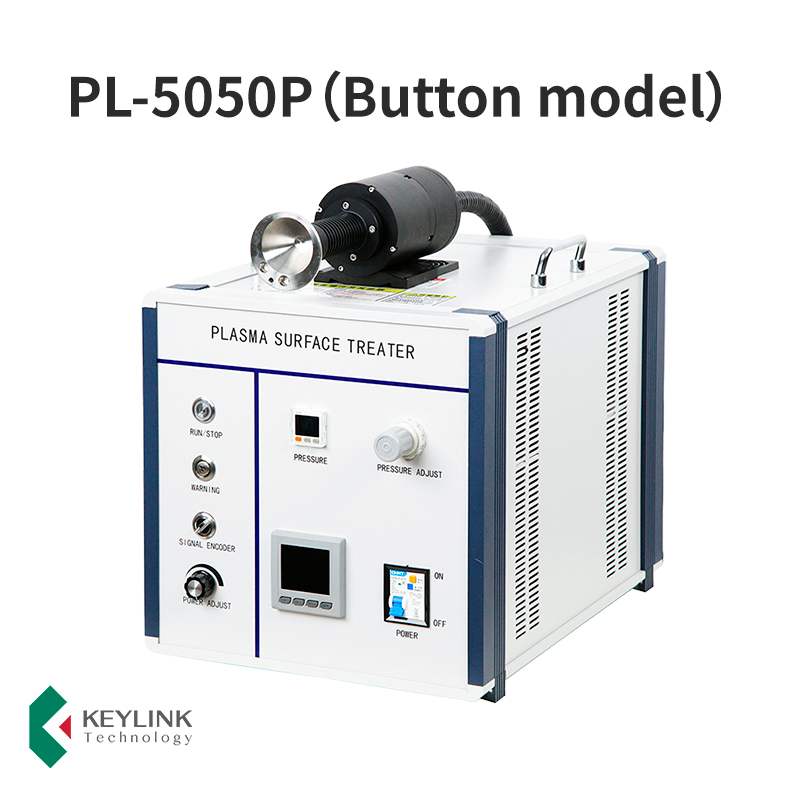

PL-5050P button model

Type

Clean Machine

Voltage

220V

Transport Package

Wooden Case

Origin

China

HS Code

8479899990

Production Capacity

1000 sets/Year

⚙️ Technical Specifications

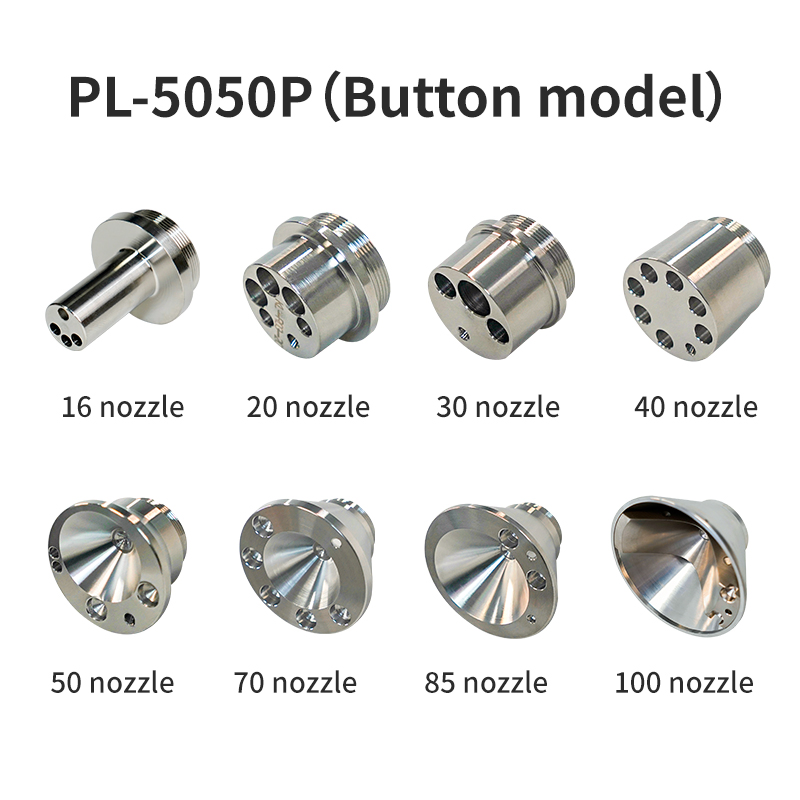

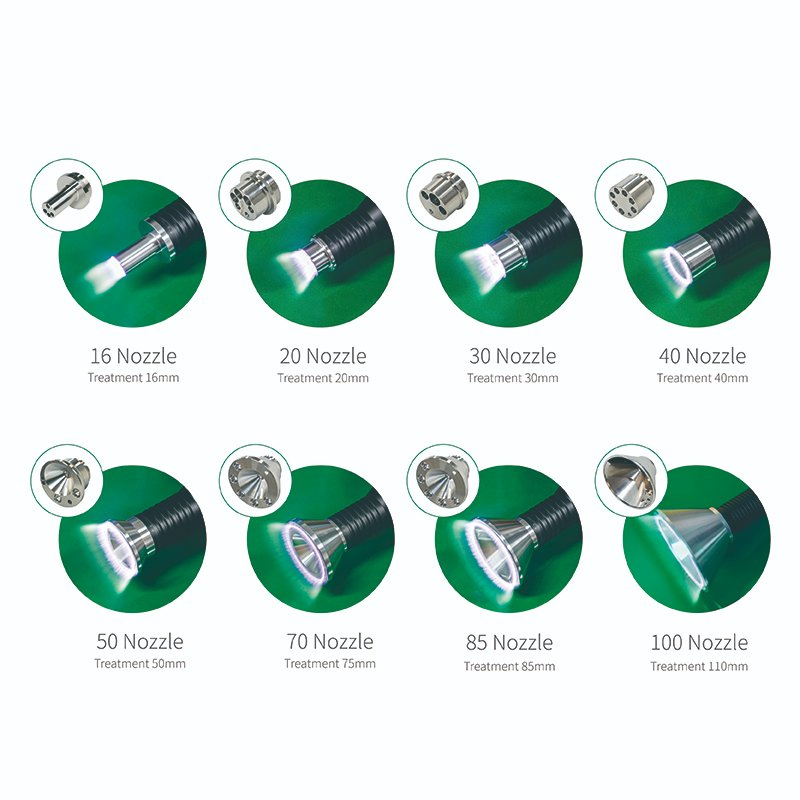

Technical Parameters		Available Nozzles	Treatment Area
Interface display	Multifunctional LED digital tube	R17 Rotate nozzle	16mm
Rated supply voltage	AC220V ±10%	R03 Rotary nozzle	20mm
Plasma output power	1500VA	R04 Rotary nozzle	30mm
Input current	4.0-8.0A	R21 Rotary nozzle	40mm
Supply frequency	17.3-27kHz	R05 Rotary nozzle	50mm
Air source requirement	External (60L/min)	R23 Rotate nozzle	75mm
Cleaning height	5-15mm	R19 Rotary nozzle	85mm
Treatment width	≤110mm	R20 Rotary nozzle	110mm

💡 Product Description

What is plasma?

Plasma is an aggregate state of high energy level. Through the input of energy, material is transformed from solid/liquid to gas. Additional energy discharge produces the plasma state, breaking chemical bonds to form free electrons, ions, and molecules—the fourth state of matter.

The plasma cleaner is widely used for: Box folding-gluing bonding, automobile headlights, household appliances, and safety components in the automotive industry.

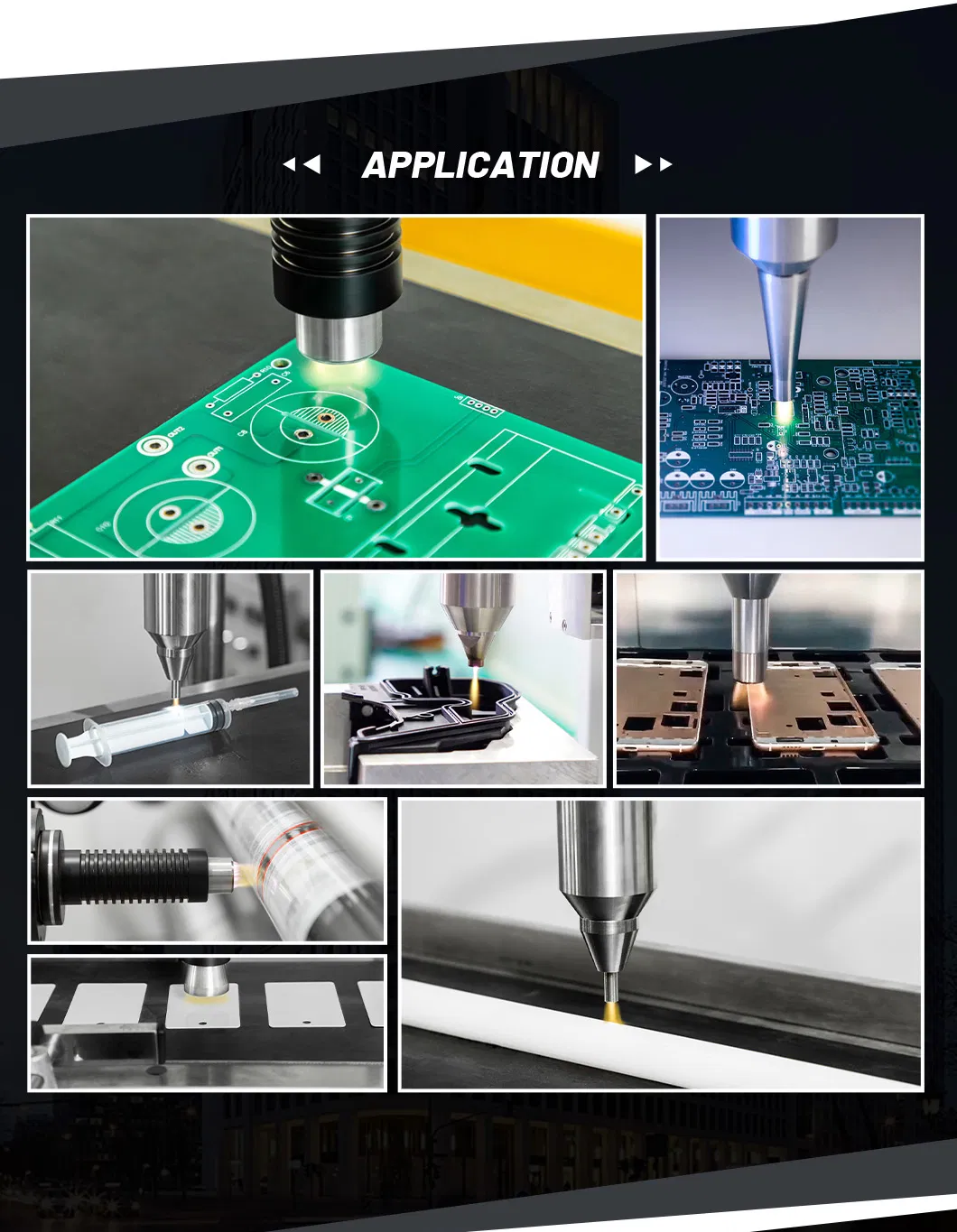

🚀 Main Applications

Automotive: Headlights, EPDM profiles, Control devices, Tyres, Motor pumps.
Electronics: Mobile phones, Flat screens, Displays, Microphones, Computers.

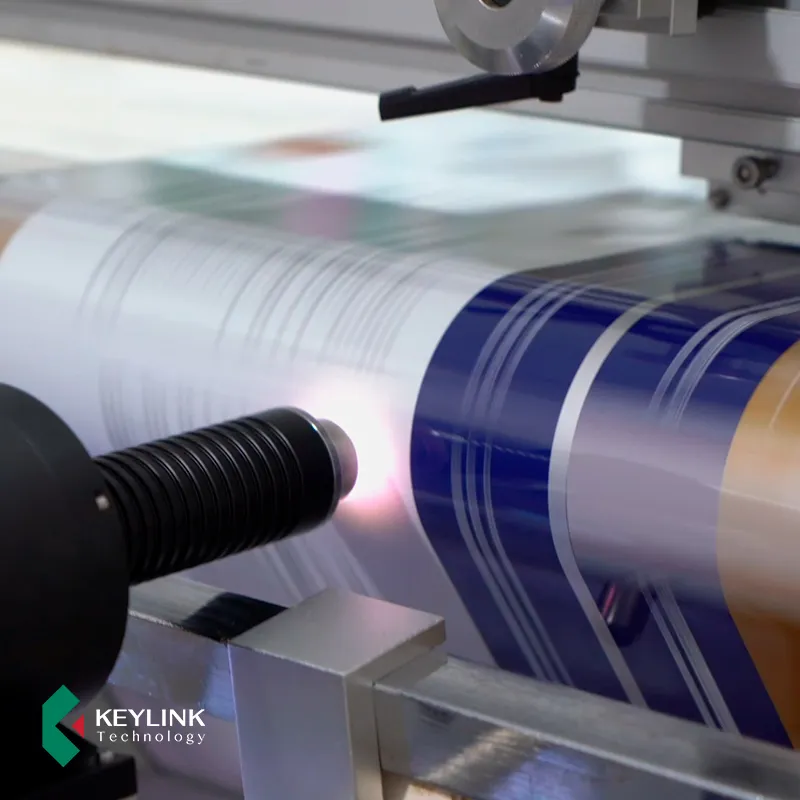

Packaging: Cardboard boxes, Bottle caps, Tamper evident seals, Plastic films.

Medical: Oxygenators, Implants, Pacemakers, Cardiac catheters.
Sports: Shoes, Textile fibres, Golf equipment, Watches.
Home: Solar panels, Window frames, Safety glass, Furniture edges.

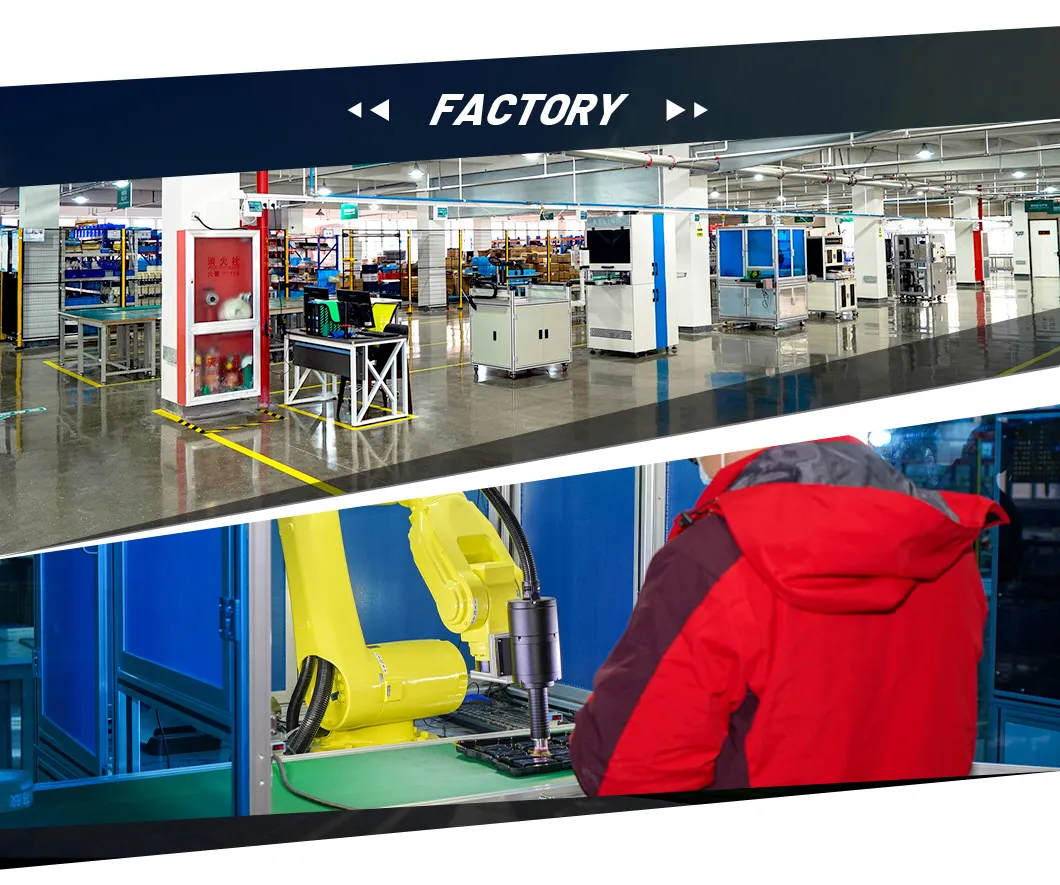

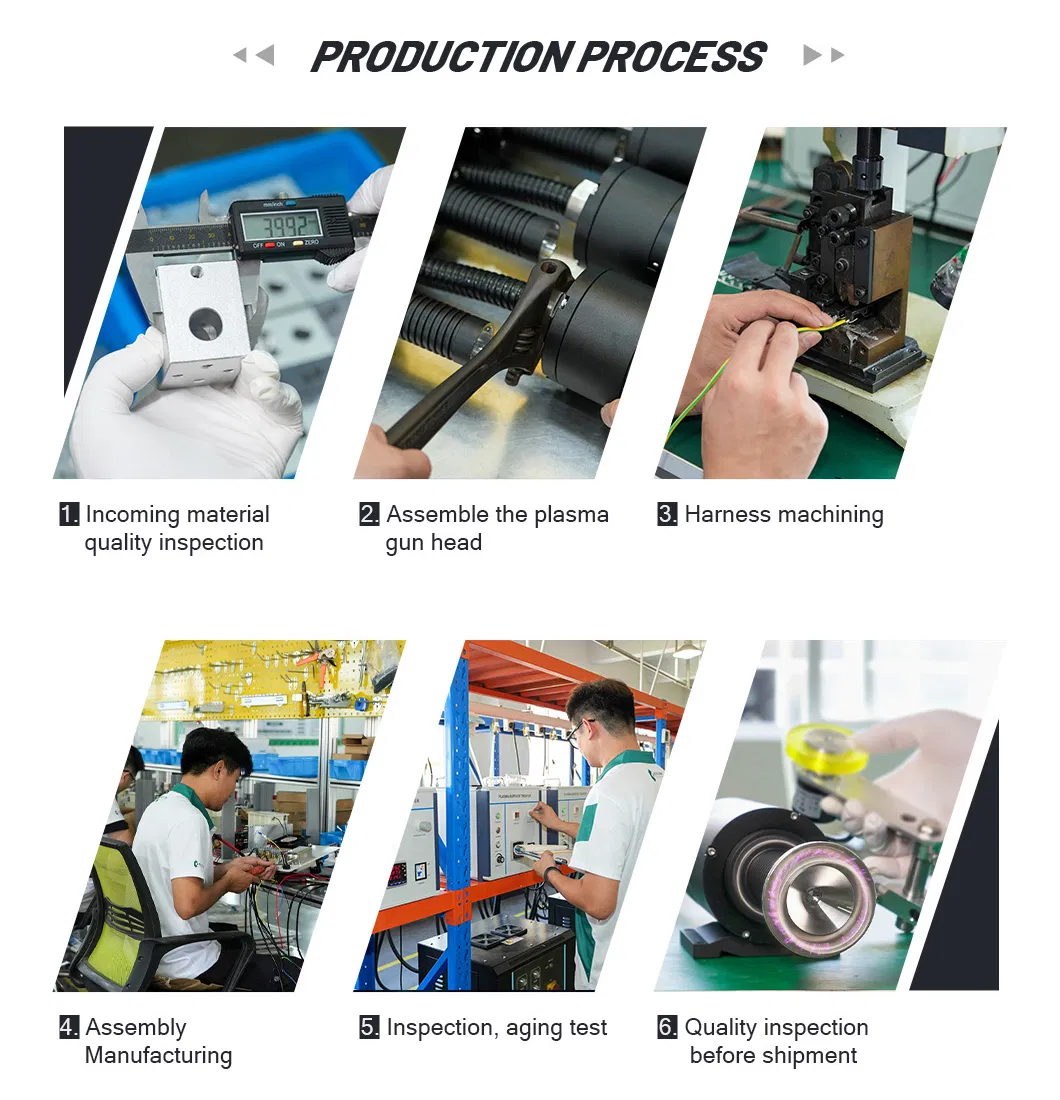

🖼️ Production & Quality Control

📜 Certifications & Exhibitions

📦 Packaging & Shipping

❓ Frequently Asked Questions

What is the shipping warehouse location?

Our main shipping warehouse is located in Zhejiang, China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

What is the production lead time?

Lead time varies based on order size: For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

Can I customize my order with specific configurations?

Yes, customization is available. We can tailor machine configurations, spare parts, and accessories such as nozzles or cable lengths based on your specific requirements.

What are the payment terms?

We offer flexible payment terms: Full payment before shipping or 50% deposit upon order confirmation with the remaining balance before shipment. Payments are typically made via SWIFT transfer.

What kind of after-sales support do you provide?

We provide comprehensive support: Technical assistance via video calls, quick access to replacement spare parts, detailed user manuals/SOPs, and on-site support for critical issues if required.

Does the machine include fault detection functions?

Yes, the system includes integrated air pressure detection, over-temperature detection, motor speed monitoring, and driver fault alarms for safe and efficient operation.
