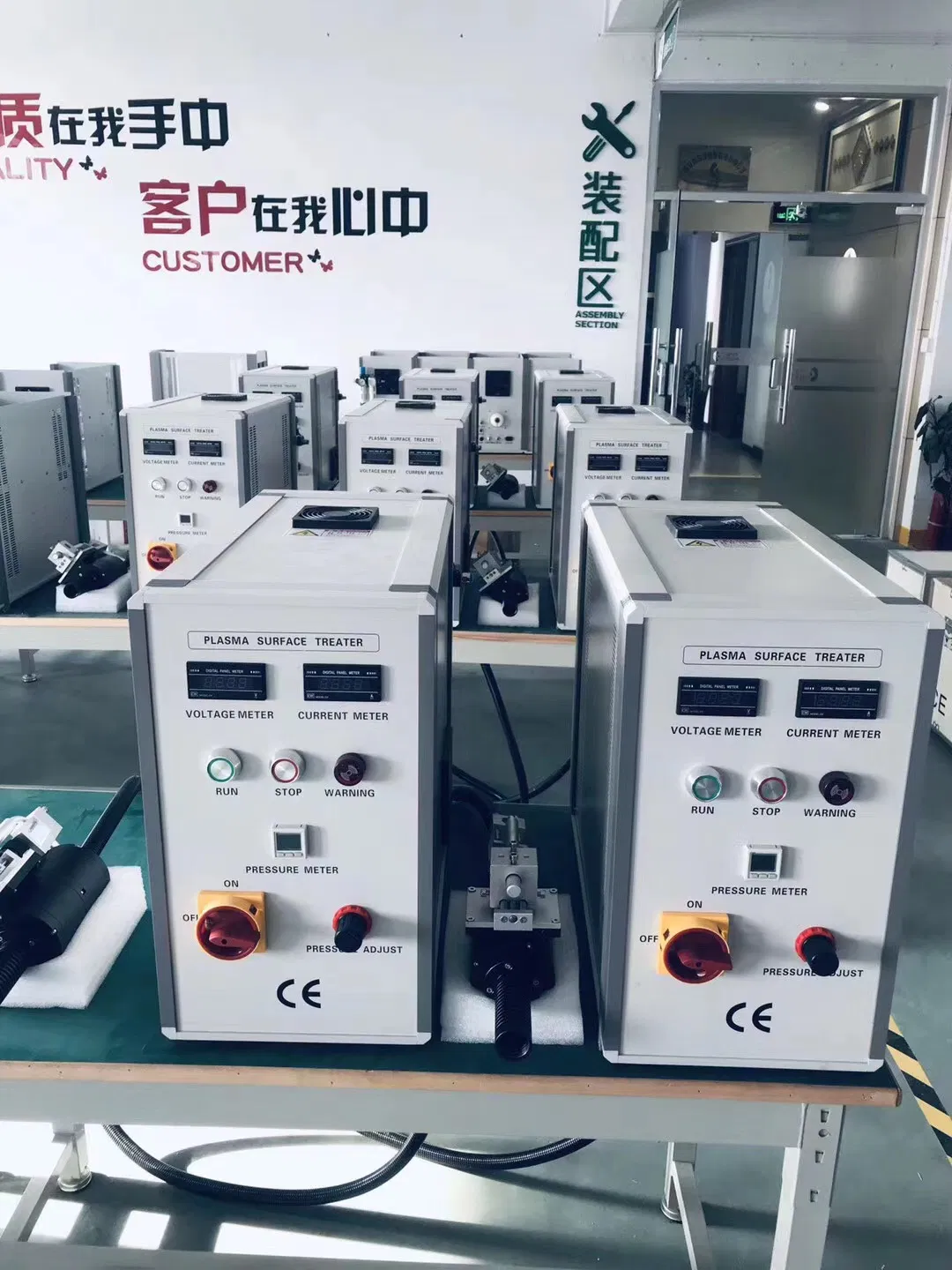

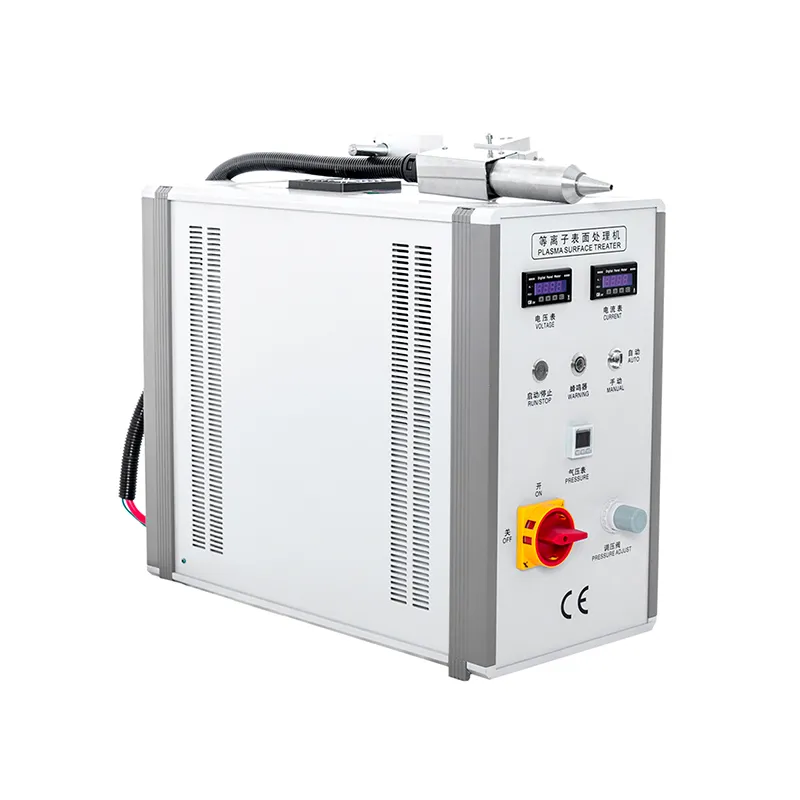

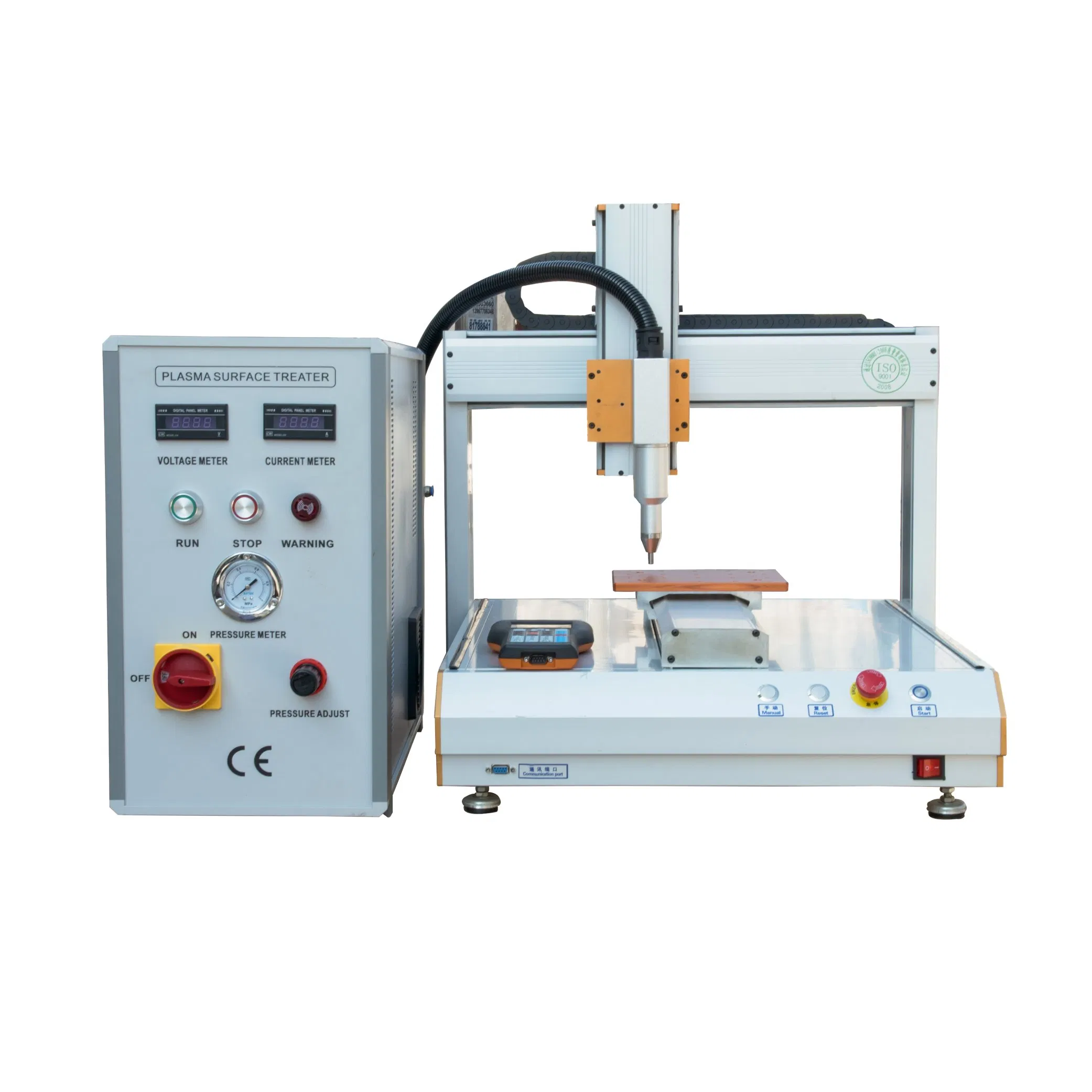

Atmospheric Pressure Plasma Surface Treatment Machine Plasma Surface Treatment System

1 / 5

Atmospheric Pressure Plasma Surface Treatment Machine Plasma Surface Treatment System

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.	PL-5010H-OUT
Type	Clean Machine
Rated Supply Voltage	AC220V ±10%
Plasma Output Power	1000va
Input Current	4.0-6.0A
Supply Frequency	20kHz
Air Source Requirement	External Air Source (Gas Consumption 50L/Min)
Air Source Input Pressure	≥0.6MPa
Cleaning Height	5-15mm
Treatment Width	≤13mm
HS Code	8479899990
Production Capacity	1000sets/Year

Product Parameters

PL-5010H-OUT Technical Specification

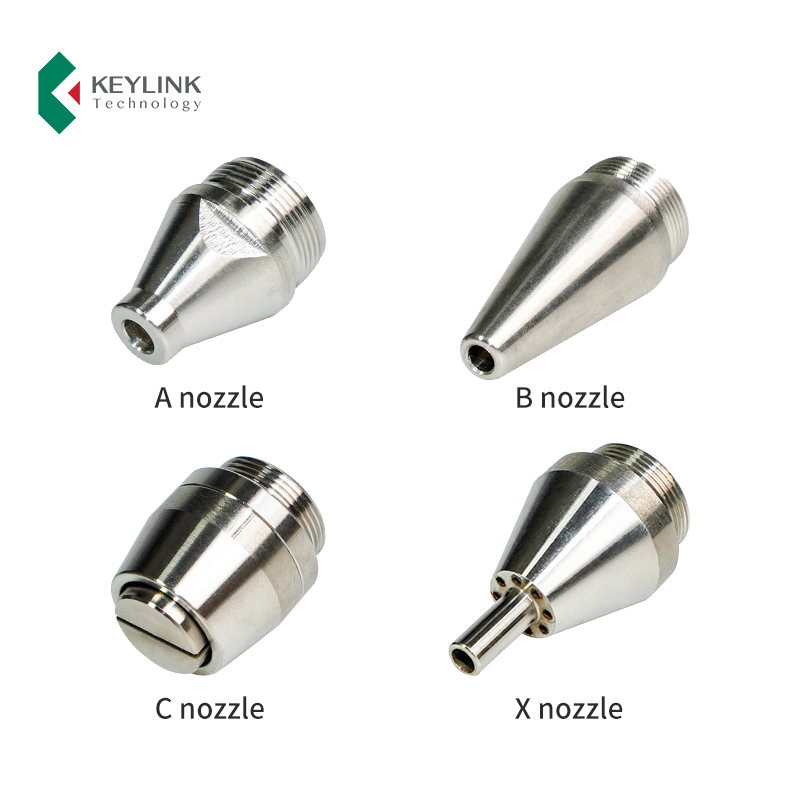

Technical Specification		Nozzle Models	Treatment Area	Model
Interface Display	Three and a half LED digital tube	D04 NX Nozzle A	7-8mm	PL-JX-101-1
Rated Voltage	AC220V ±10%	D04 NX Nozzle B	7-8mm	PL-JX-102-1
Output Power	1000VA	D03 Nozzle C(flat)	12-13mm	PL-JX-104-1
Input Current	4.0-6.0A	D02xy Nozzle	7-8mm	PL-JX-106-1
Supply Frequency	20kHz
Air Source	External (50L/min)
Input Pressure	≥0.6Mpa
Operating Range	0.1-0.25Mpa
Mode	Switch/Encoder Sync
Storage Temp	-25ºC to +55ºC
Cleaning Height	5-15mm
Net Weight	21kg	Gross Weight	26.1kg
Detection	Air pressure, overtemperature, undercurrent detection

Product Description

What is plasma?

Plasma is an appellation for a kind of unstable aggregation state of high energy level. Through the input of energy, the material is transformed from solid and liquid to gas. Additional energy is injected into the gas through the discharge action, and then the plasma state is produced. The input of the energy allows electrons to break away from their atomic orbitals and can break the chemical bonds to form free electrons, ions, and molecules. The result of this process is regarded as the fourth state of material existence except for solid, liquid and gas states.

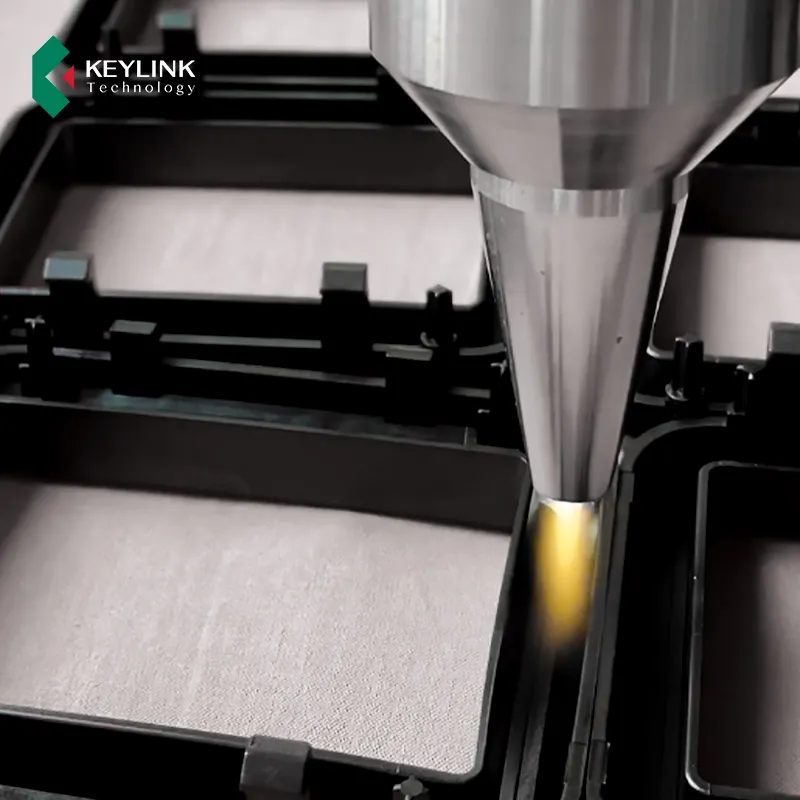

Plasma cleaner can used on Box folding-gluing bonding in the industry of print and package; Reliable bonding of automobile headlights; Bonding of household appliances; Bonding of safety components in the automobile.

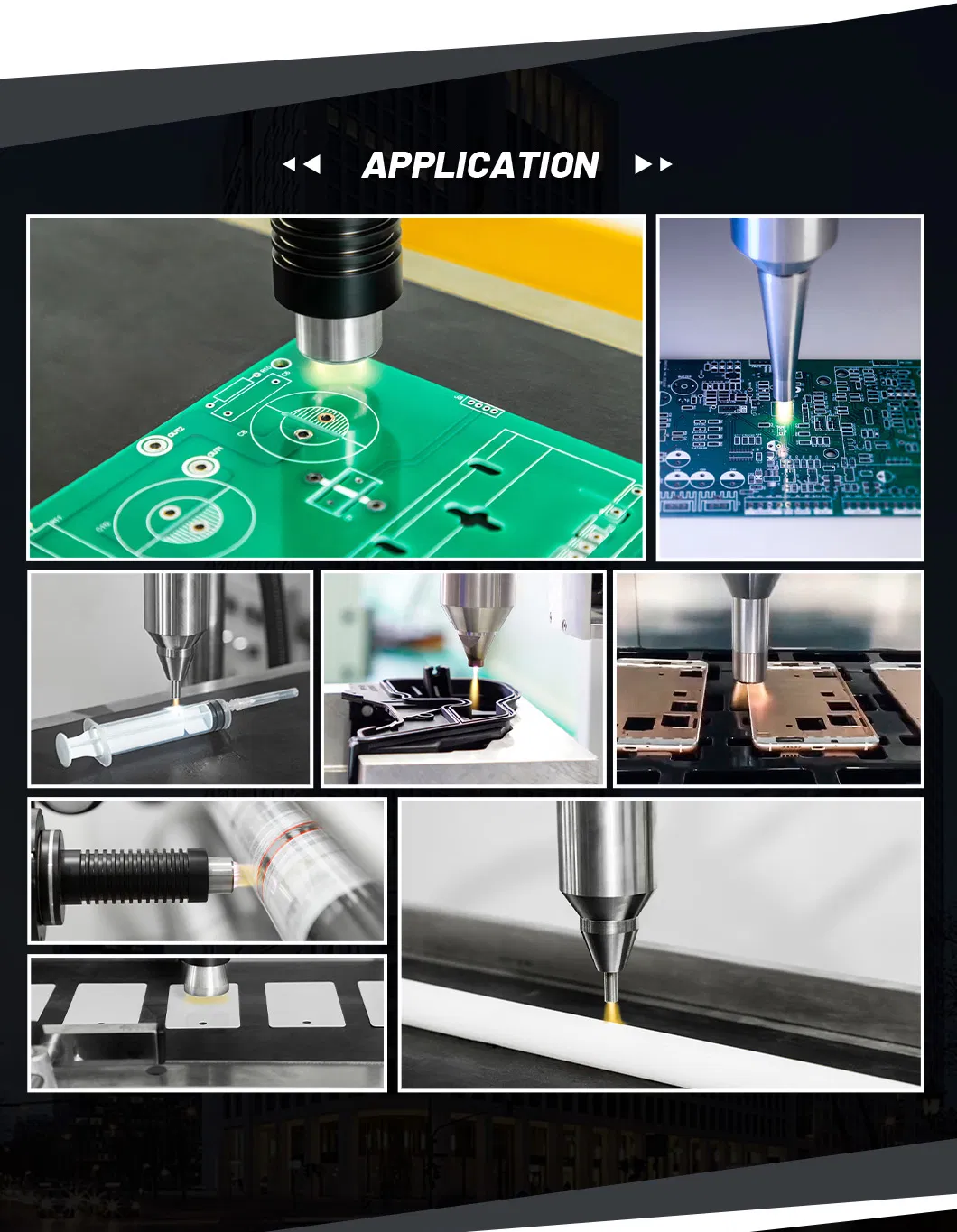

Product Application

01 Automotive & Aerospace

Car headlights & EPDM profiles
Control devices & Tyres
Motor pump housing
Aircraft components

02 Electronics & Purity

Mobile phones & Flat screens
Displays & Discs
Microphones and loudspeakers
Computer hardware

03 Packaging & Consumer

Cardboard packaging
Bottle caps & Can lids
Plastic films
Wet labeling

04 Medical & Sports

Infant oxygenators
Operating instruments/implants
Cardiac pacemakers & catheters
Golf equipment & Textile fibres

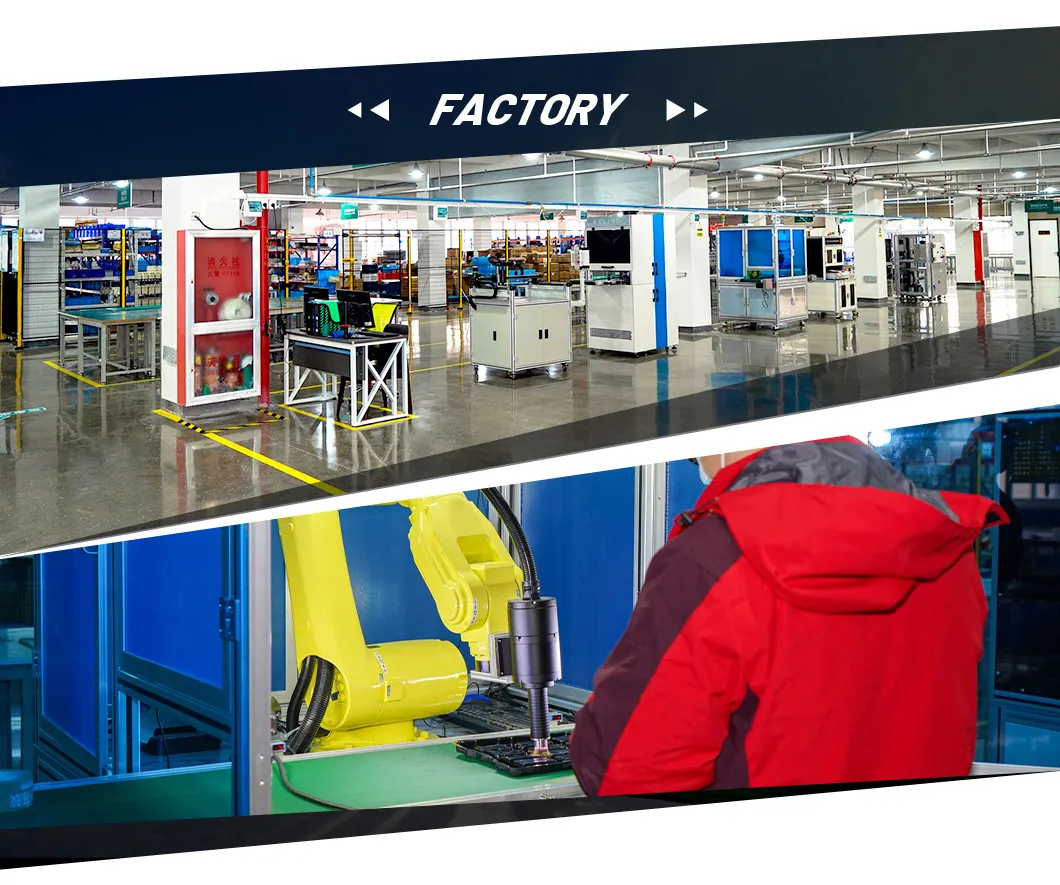

Company Profile & Certifications

Exhibition & Shipping

Frequently Asked Questions

What is the shipping warehouse location?

Our main shipping warehouse is located in Zhejiang, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

What is the production lead time?

Lead time varies based on order size. For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

Can I customize my order?

Yes, customization is available! We can tailor machine configurations, spare parts, and accessories (e.g., nozzles or cable lengths) based on your specific requirements.

What are the payment terms?

We offer flexible payment terms, including full payment before shipping or a 50% deposit upon order confirmation with the remaining balance before shipment. Payments are typically made via SWIFT transfer.

What kind of after-sales support do you provide?

We provide technical assistance via email, phone, or video calls, quick access to spare parts, comprehensive documentation (manuals/SOPs), and on-site support for critical issues subject to agreement.
