| Product Information | Details | |
|---|---|---|
| General | Dimensions | (L)5900mm x (W)6320mm x (H)2430mm |
| Weight | 4.5 Ton | |
| Total Power | 12 KW | |
| Occupancy | 2-4 People | |
| Main Frame | Top/Bottom Beams | 80*140*3.5mm square tube (Galvanized) |
| Steel Column | 3.0mm bent plate | |
| Coating | Electrostatic spraying white plastic powder | |

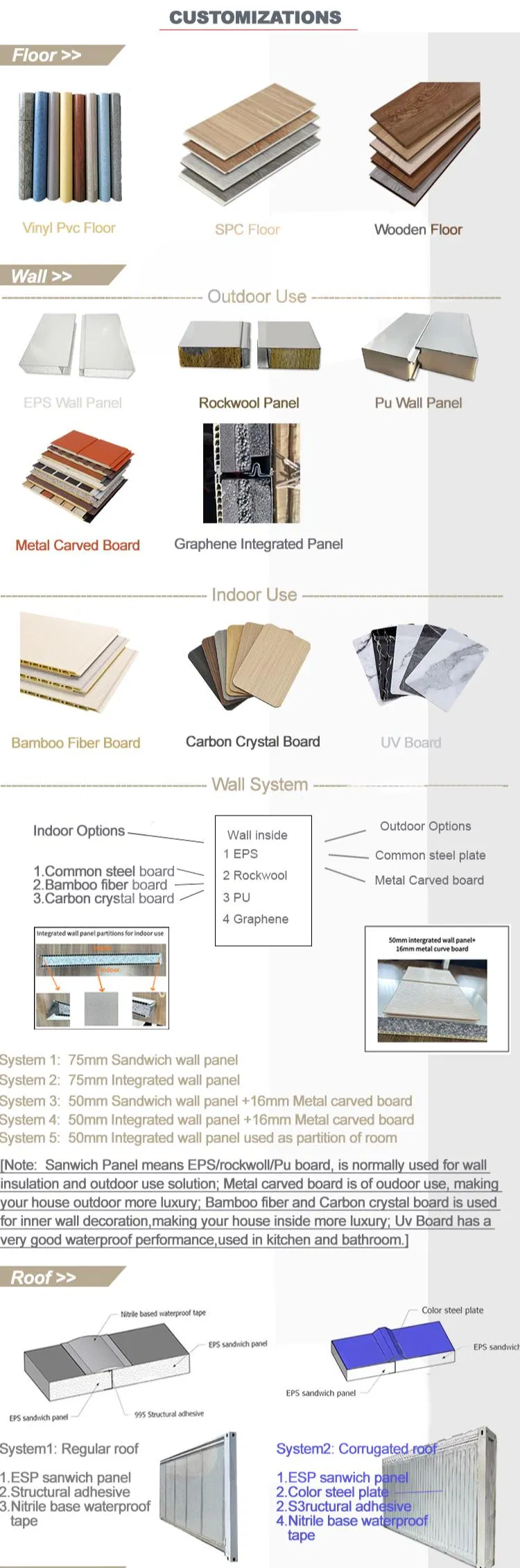

| Panels | Roof Panel | 50mm EPS color steel plate + Bamboo fiber ceiling |
| Wall Panel | 50mm EPS color steel plate | |

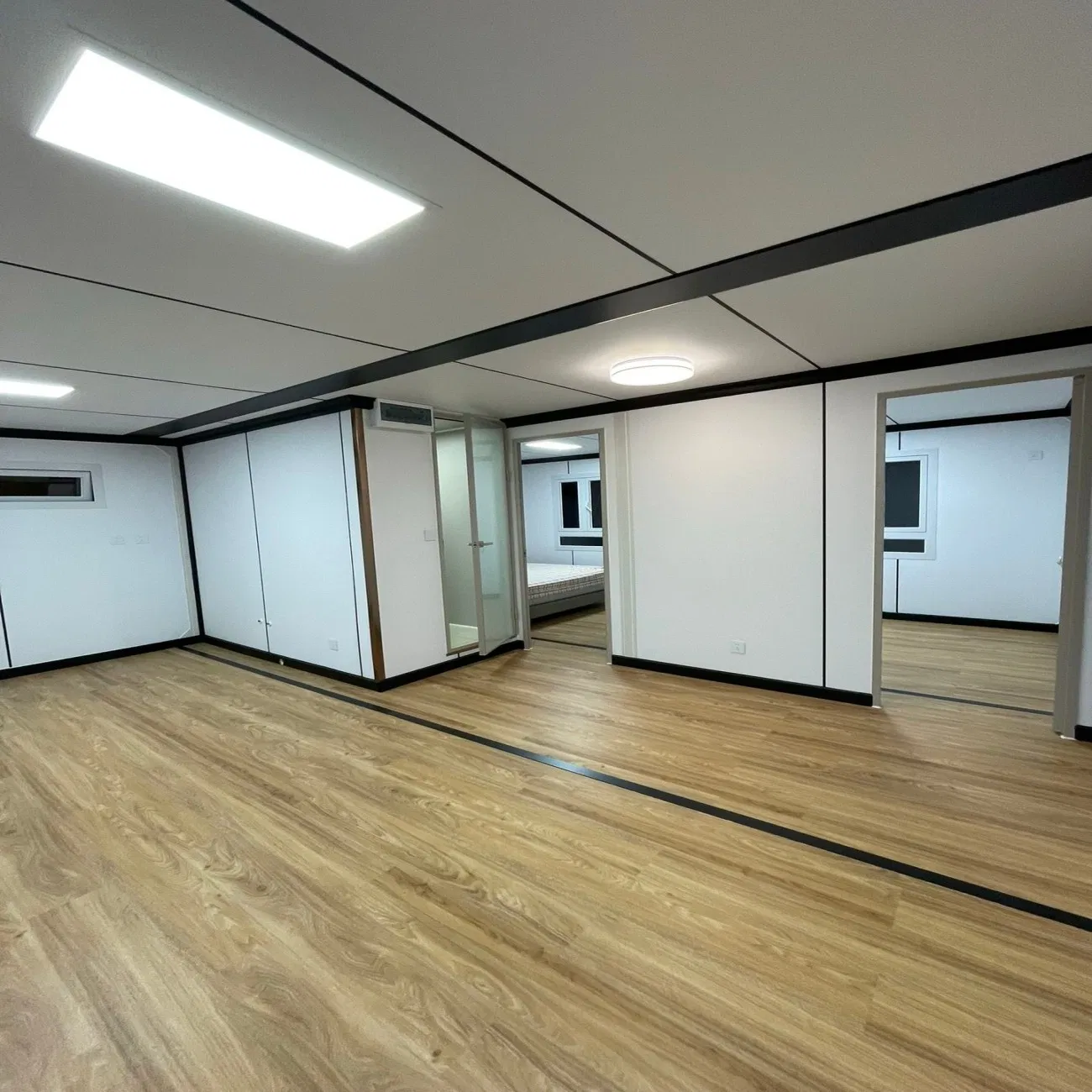

| Interior | Flooring | 20mm fireproof glass-magnesium + 2.0mm PVC |

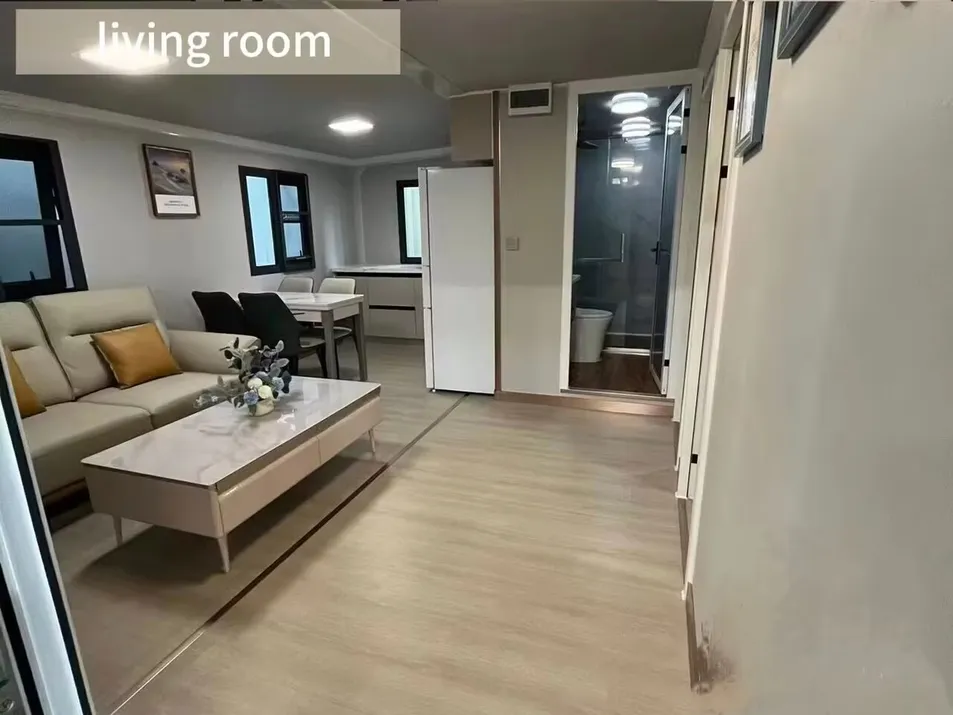

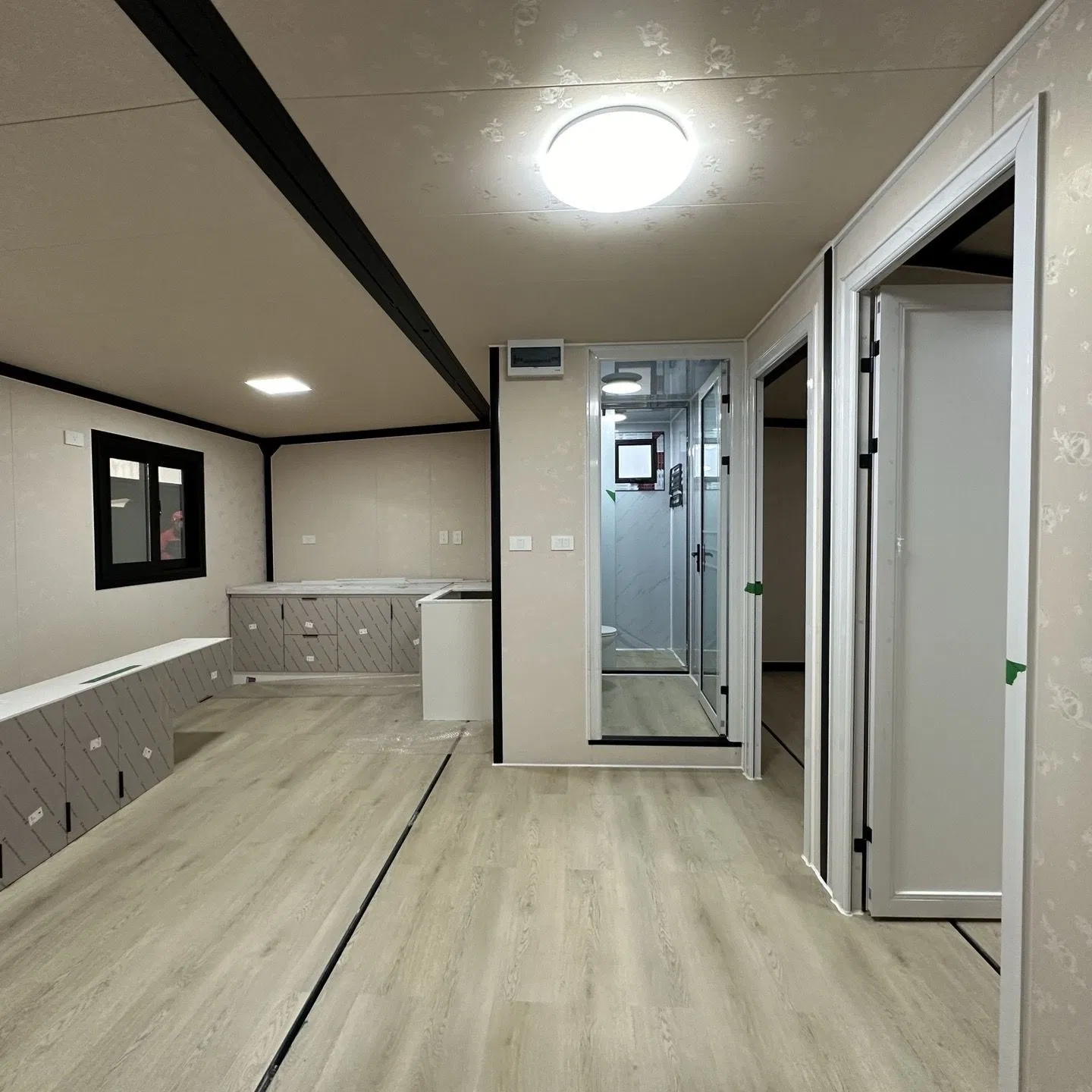

| Bathroom | Dry-Wet separation, shower, toilet, sink cabinet | |

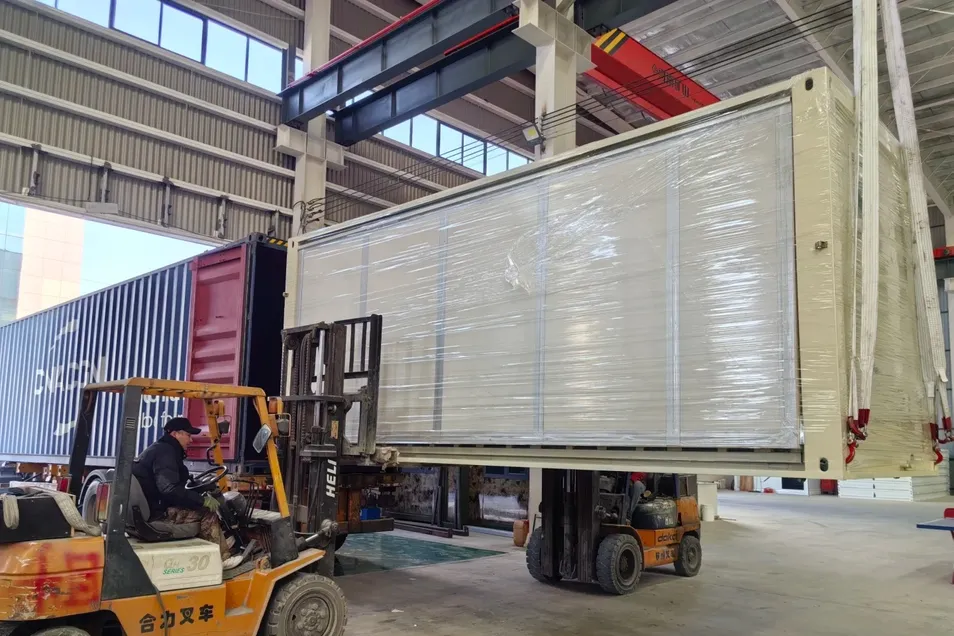

Transportation Phase: Standard semi-trailer (13.5m length, 3m width) can freely pass on highways nationwide.
Lifting Stage: Product weight is between 6 and 10 tons. It is recommended to use a crane of no less than 25 tons for unloading.

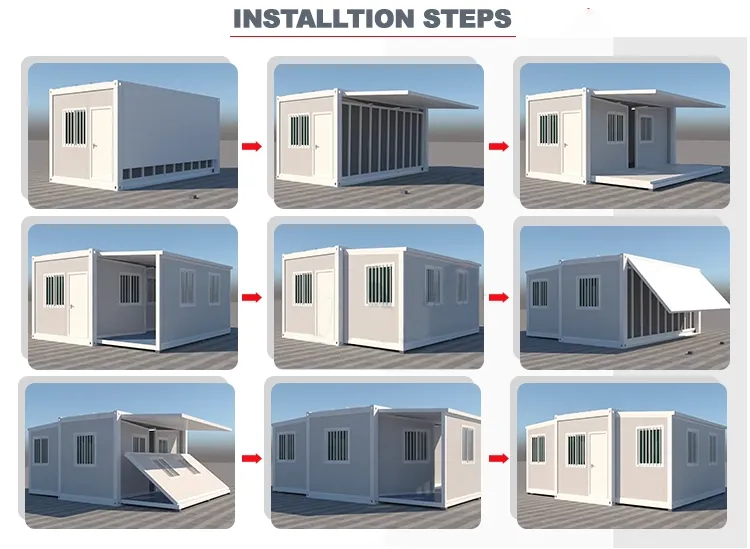

Installation Phase: Site works including water supply, power, and sewage pipelines must be completed according to technical guidance.

With over 17 years of industry expertise, we specialize in innovative prefabricated housing solutions including space capsules, expandable houses, and modular steel structures. Our commitment to sustainability and innovation ensures high-quality products for the global market.
