Product Description

Basic Specifications

Model NO.
ZXH
Installation
Fast Installation
Material
Sandwich Panel
Wall Thickness
50#/65
Warranty
1 Year
Certification
ISO, CE
Package
40hq Hold 2 Units
Specification
5900*6200*2480mm
Capacity
500000PCS/Month

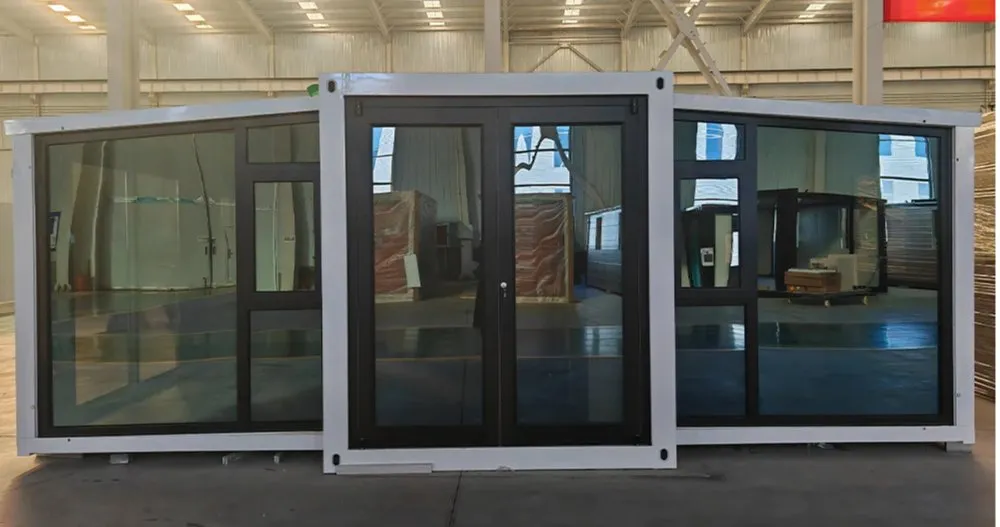

Foldable Portable Office Units
Modular Expandable Mobile House

Technical Parameters

Category Specifications
Framework Main beam Galvanized square tube 80*100*2.5MM Q235
Sub-frame Galvanized square tube 40*60*1.0MM Q235
Hinges Galvanized thickened hinge Q235
Frame color Painting process White frame
Floor Structure 18mm glass magnesium board (non-asbestos)
Finish Floor leather Palm wood

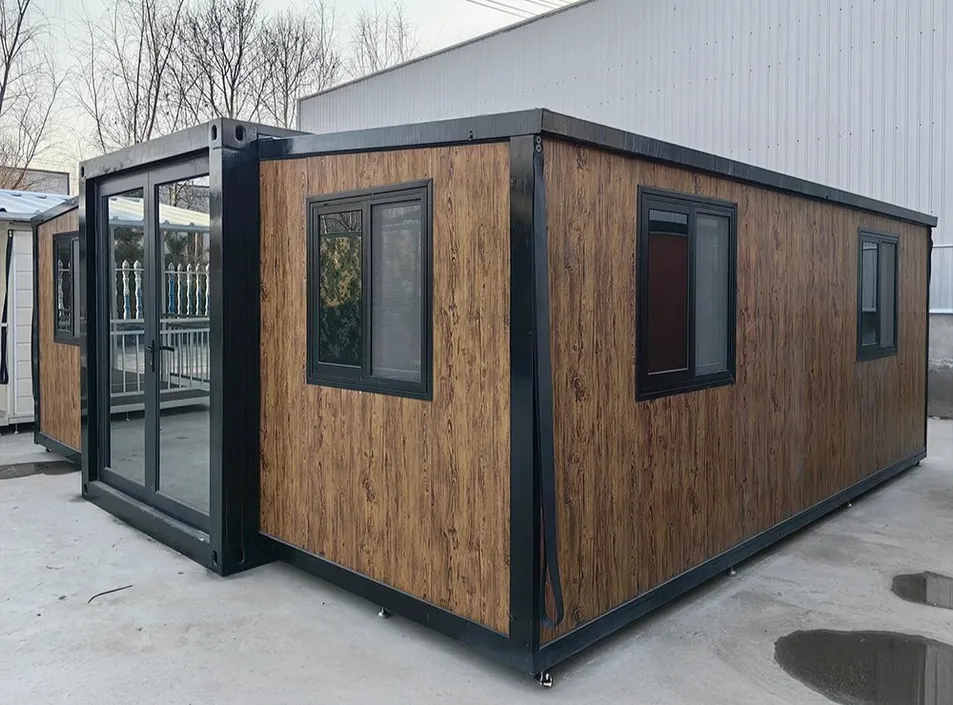

Wall Insulated Panel 70mm sandwich board, color roll double-sided 0.25 (wood grain) EPS material
Electrical System Standard wires; 6² incoming, 4² AC sockets, 2.5² sockets, 1.5² lighting; 6 LED ceiling lights.

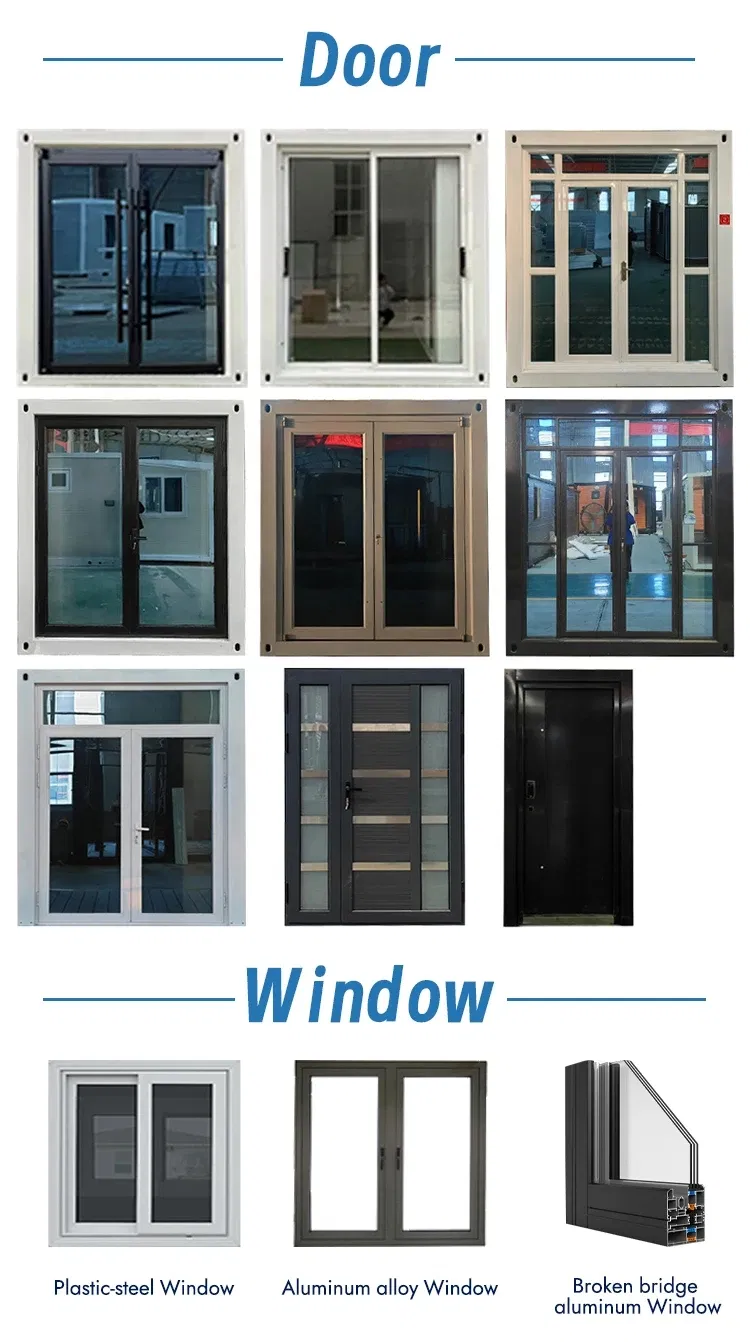

Doors & Windows Entrance Thermally-insulated aluminum (double-glazed tempered glass), W1890*H2230
Window Aluminum alloy sliding window with diamond mesh, 920*920*6 pieces

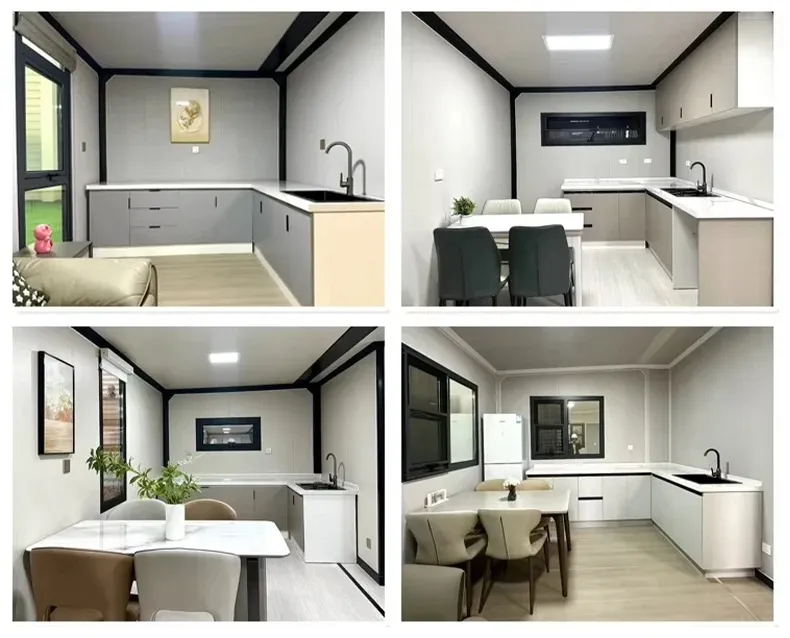

Interior View 1 Interior View 2

Key Design Philosophy

1. Commercial Exhibition
The double-wing expandable house serves as a versatile exhibition space for product launches and events, attracting attention with its novel design.
2. Cost & Efficiency Advantages

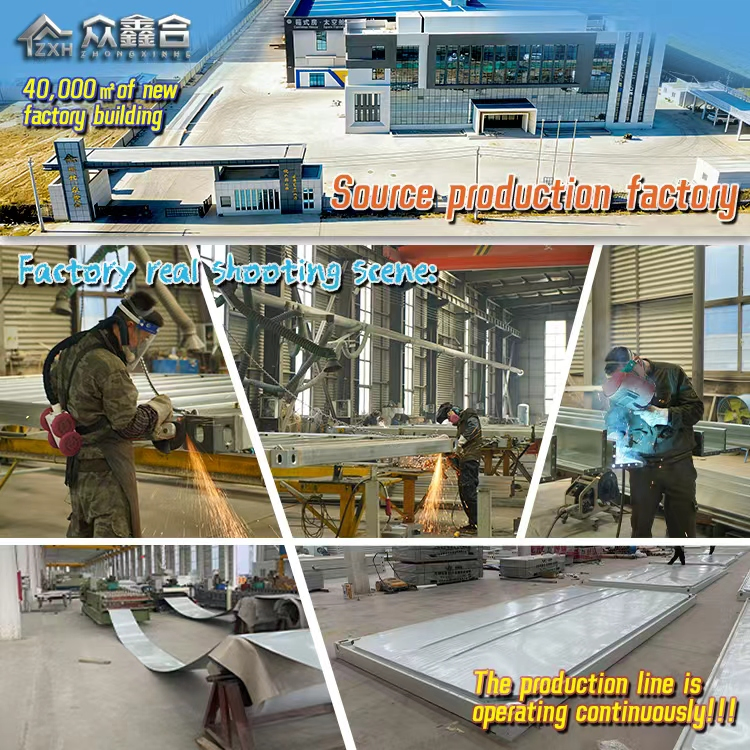

Standardized flat-base structure fits container transport tools, reducing logistics costs. Factory prefabrication allows quick on-site assembly.
3. Eco-friendly Materials
Crafted from recyclable steel and sustainable panels, offering durability while aligning with green living standards.
4. Flexible Expansion
Modular assembly enables rapid creation of multi-story or large-area spaces for residences, stores, or emergency facilities.

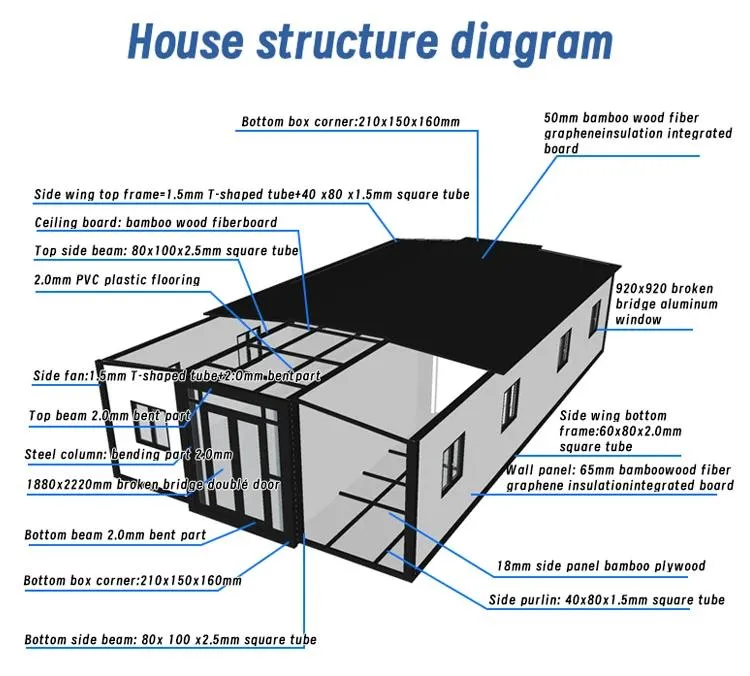

Product Structure
Expandable Wing Detail
Assembly Process 1 Assembly Process 2
Folded State
Floor Plan

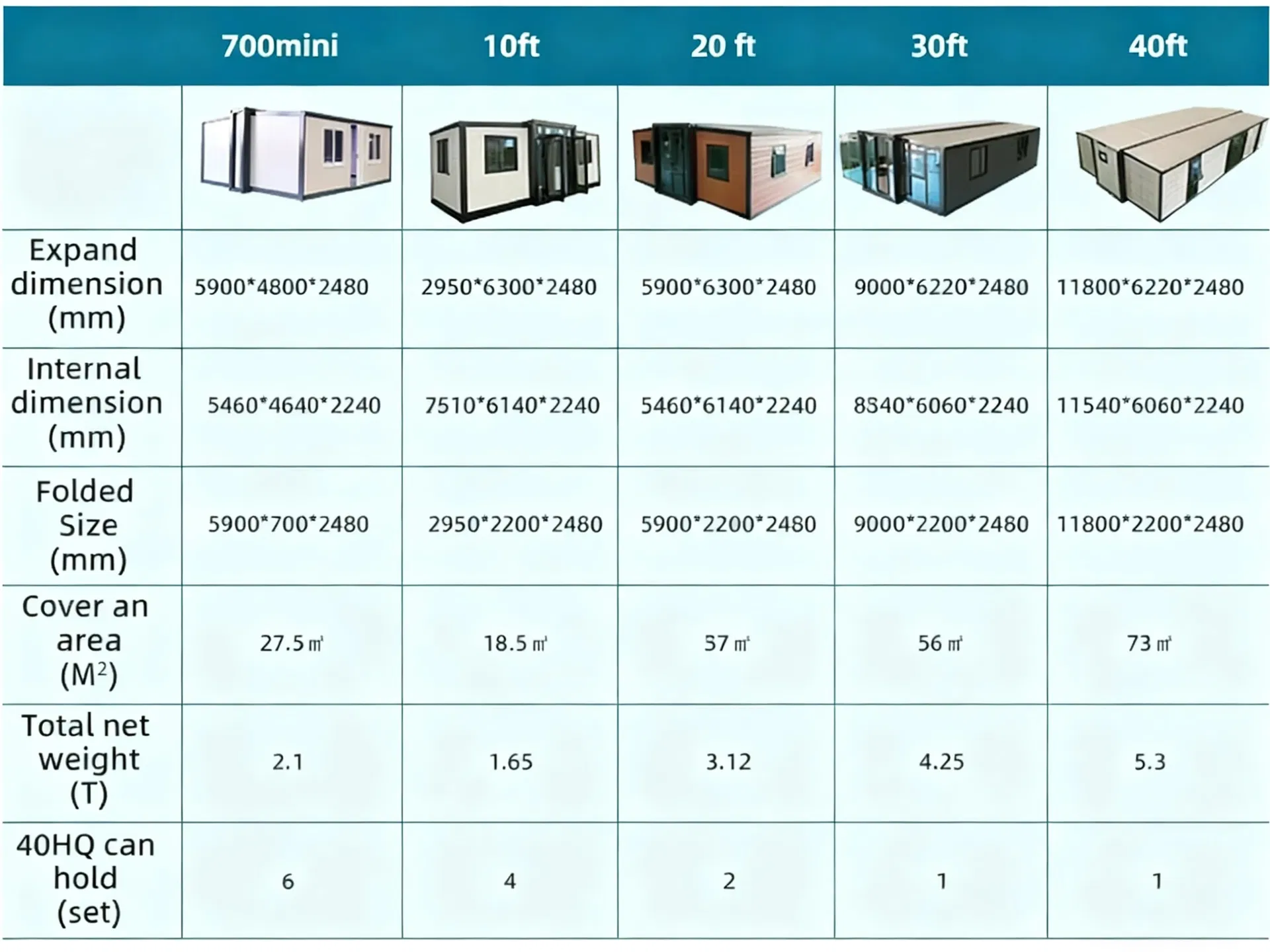

Full Product Dimensions

Frequently Asked Questions

Q1: What are the main features of this expandable house?
It is earthquake resistant, easily movable, eco-friendly, flexibly combinable, leak-proof, moisture-proof, and offers excellent thermal insulation.
Q2: How many units can be transported in a 40HQ container?
A standard 40HQ container can hold 2 complete units of the expandable house.
Q3: Is the electrical system compliant with international standards?
The system includes standard Australian wires and circuit breakers. Circuits can be customized to meet specific certification requirements of different countries.
Q4: What materials are used for the wall and floor?
The walls use 70mm sandwich panels (EPS insulation) with wood grain finish, and the floor is made of 18mm asbestos-free glass magnesium board with palm wood leather finish.
Q5: Can these units be used for commercial purposes?
Yes, they are ideal for commercial exhibitions, pop-up stores, tourism vacation rentals, and emergency housing.
Q6: What is the typical installation time?
The design focuses on fast installation. Since it is factory-prefabricated, it allows for very quick on-site assembly with minimal labor.
