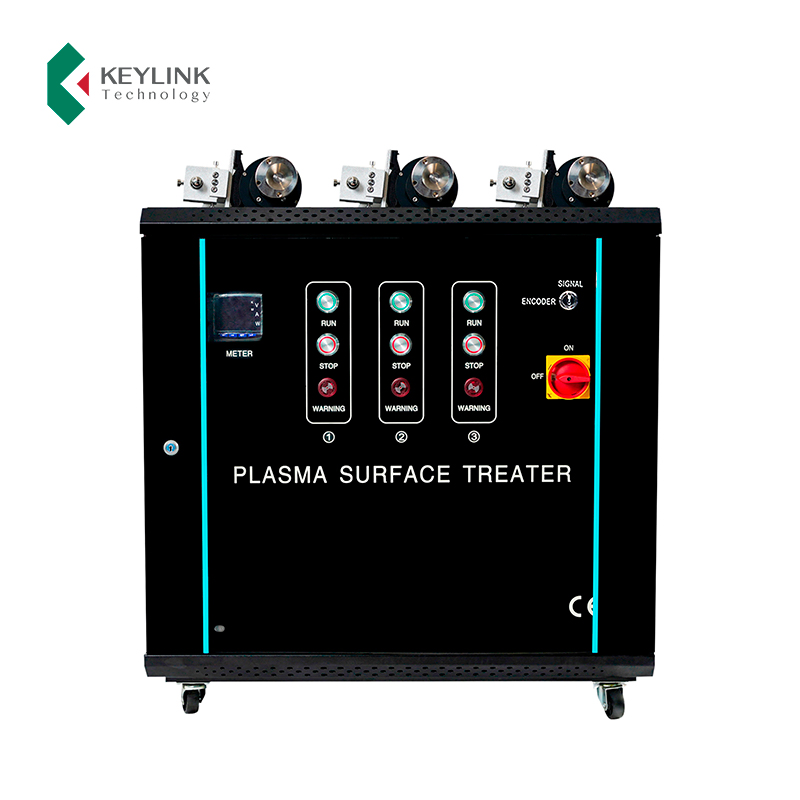

High-Speed Plasma Treatment System for Surface Activation

1 / 5

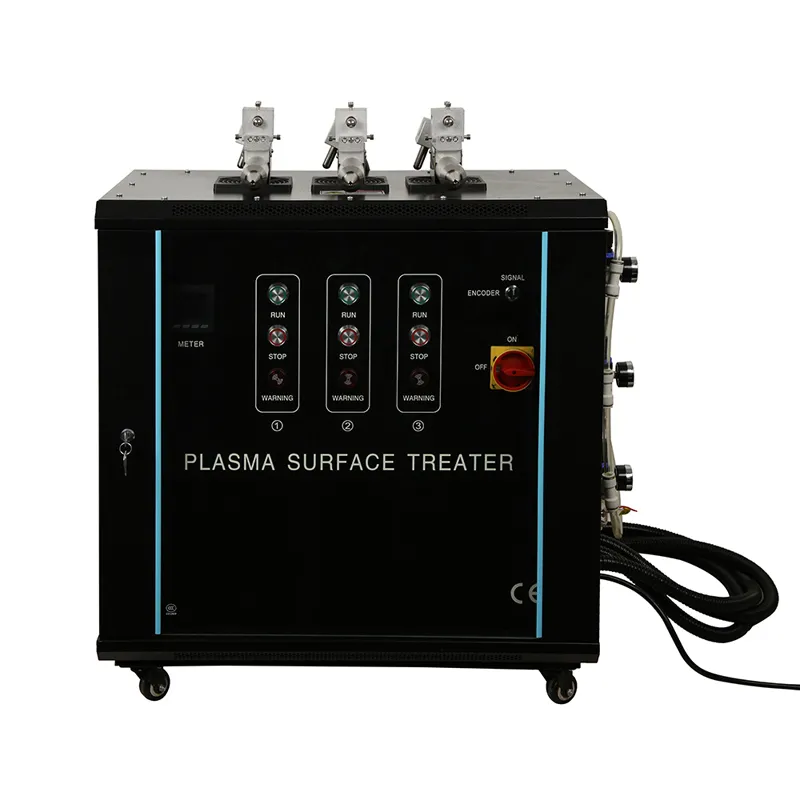

High-Speed Plasma Treatment System for Surface Activation

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Info.

Model NO.

PL-5030

Name

Plasma Surface Treatment Processor

Input Voltage

AC220V

Nominal Power

2500AV

Power Frequency

25-30 kHz

Air Source Requirement

External Air Source (50L/Min)

Gas Input Pressure

0.10MPa-0.50MPa

Mode

Signal Mode/ Encoder Mode

Warranty Period

One Year

Treatment Width

≤13mm*3

Cleaning Height

5-15mm

Weight

65kg

Origin

China

HS Code

8479899990

Product Parameters

Technical Specification		Nozzle Options
Interface Display	LED Digital Tube	D04 NX Nozzle A
Rated Supply Voltage	AC220V(±10%)	D04 NX Nozzle B
Plasma Output Power	3000VA	D03 Nozzle C (Flat)
Input Current	5-15A	D02xy Nozzle
Supply Frequency	20kHz
Air Source Requirement	External (150L/min)
Air Input Pressure	≥0.6Mpa
Operating Range	0.1-0.25Mpa
Mode	Signal/Encoder
Relative Humidity	<93%

What is Plasma?

Plasma is an unstable aggregation state of high energy. Through energy input, material transforms from solid/liquid to gas, then into plasma through discharge. This process breaks chemical bonds to form free electrons, ions, and molecules, often referred to as the "fourth state of matter."

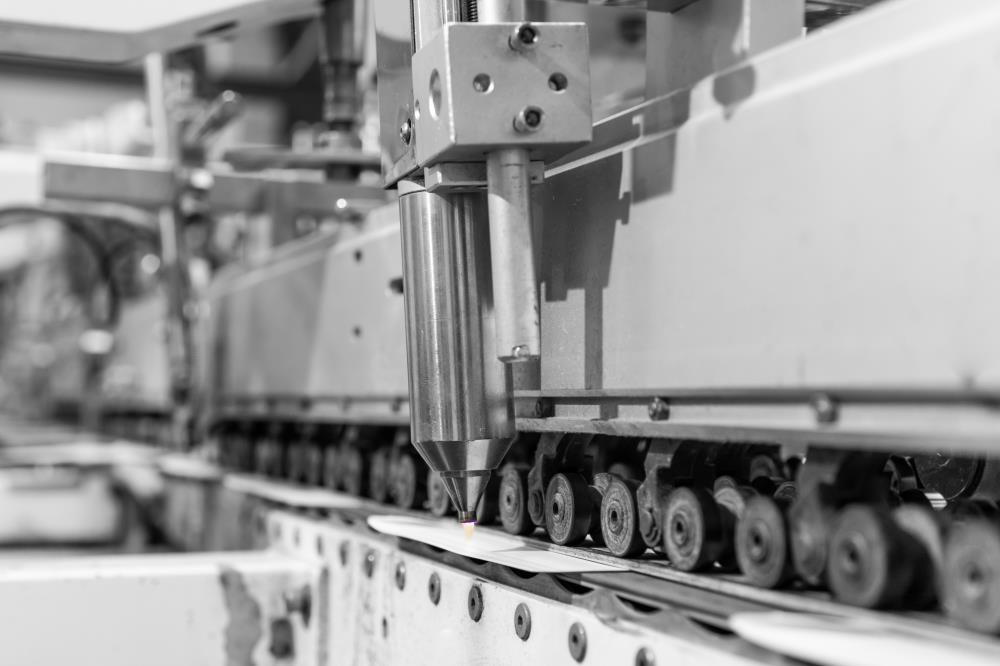

Applications include box folding-gluing in printing, headlight bonding, household appliance assembly, and automotive safety component bonding.

Product Applications

Automotive & Aerospace

Headlights, EPDM profiles, control devices, tires, motor pump housings, aircraft components.

Electronics

Mobile phones, flat screens, displays, discs, microphones, loudspeakers, computers.

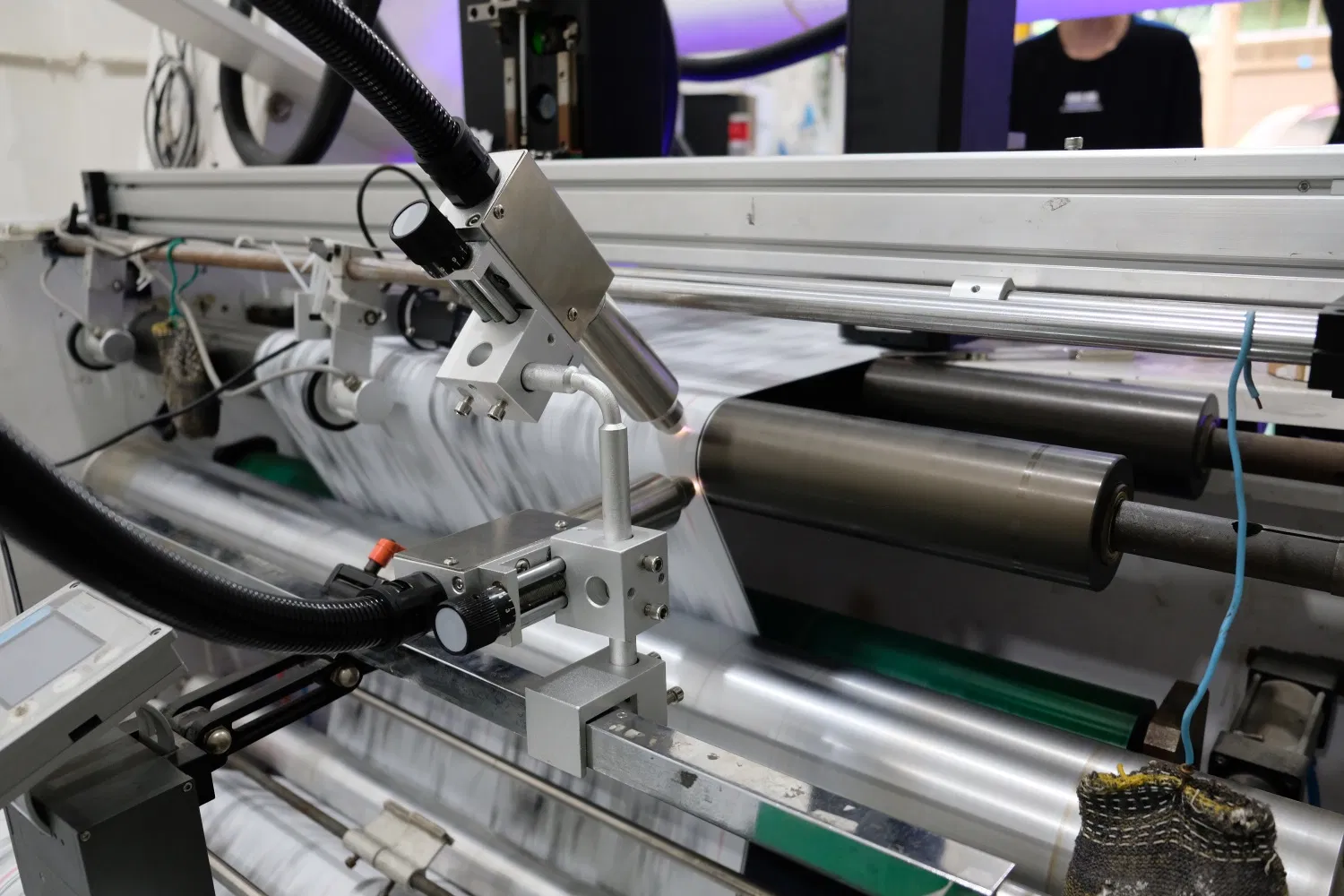

Packaging

Cardboard packaging, bottle caps, lids, tamper-evident seals, plastic films, labeling.

Medical & Sterilization

Infant oxygenators, implants, cardiac pacemakers, heart-lung machines.

Visual Overview

Frequently Asked Questions

What is the shipping process and warehouse location?

Main shipments are handled through major logistics hubs in China to global destinations. We utilize trusted logistics partners and can accommodate customer-preferred carriers.

What is the typical production lead time?

Lead time depends on order volume. For small to medium orders (10-20 units), it is approximately 3-4 workdays. We strive to expedite production for urgent deadlines.

Can the machine configurations be customized?

Yes, customization is available. We can tailor machine configurations, spare parts, and accessories such as nozzles and cable lengths to meet your specific industrial requirements.

What are the standard payment terms?

Flexible terms are available, including 50% deposit upon confirmation and the remaining balance before shipment. Payments are typically processed via SWIFT transfer.

What kind of after-sales technical support is provided?

We offer comprehensive support including troubleshooting via video calls, quick access to spare parts, detailed maintenance guides, and on-site technician support for critical issues when applicable.

What materials can be treated with this plasma processor?

The system is versatile and can treat plastics, metals, glass, and composite materials to enhance surface energy for better bonding, printing, or coating results.
