Industrial Plasma Surface Treatment System for Surface Cleaning

Customization: Available
After-sales Service: Online Technical Support
Warranty: One Year

Product Description

Basic Info

Model NO.
PL-5030
Name
Plasma Surface Treatment Processor
Input Voltage
AC220V
Nominal Power
2500AV
Power Frequency
25-30 kHz
Air Source Requirement
External Air Source (Gas Consumption 50L/Min)
Gas Input Pressure
0.10MPa-0.50MPa
Mode
Signal Mode/ Encoder Mode
Warranty Period
One Year
Treatment Width
≤13mm*3
Cleaning Height
5-15mm
Dimension(L*W*H)
840*450*780
Weight
65kg
Transport Package
Wooden Case
Specification
Material: Steel
Origin
China
HS Code
8479899990
Production Capacity
1000sets/Year

Technical Specification

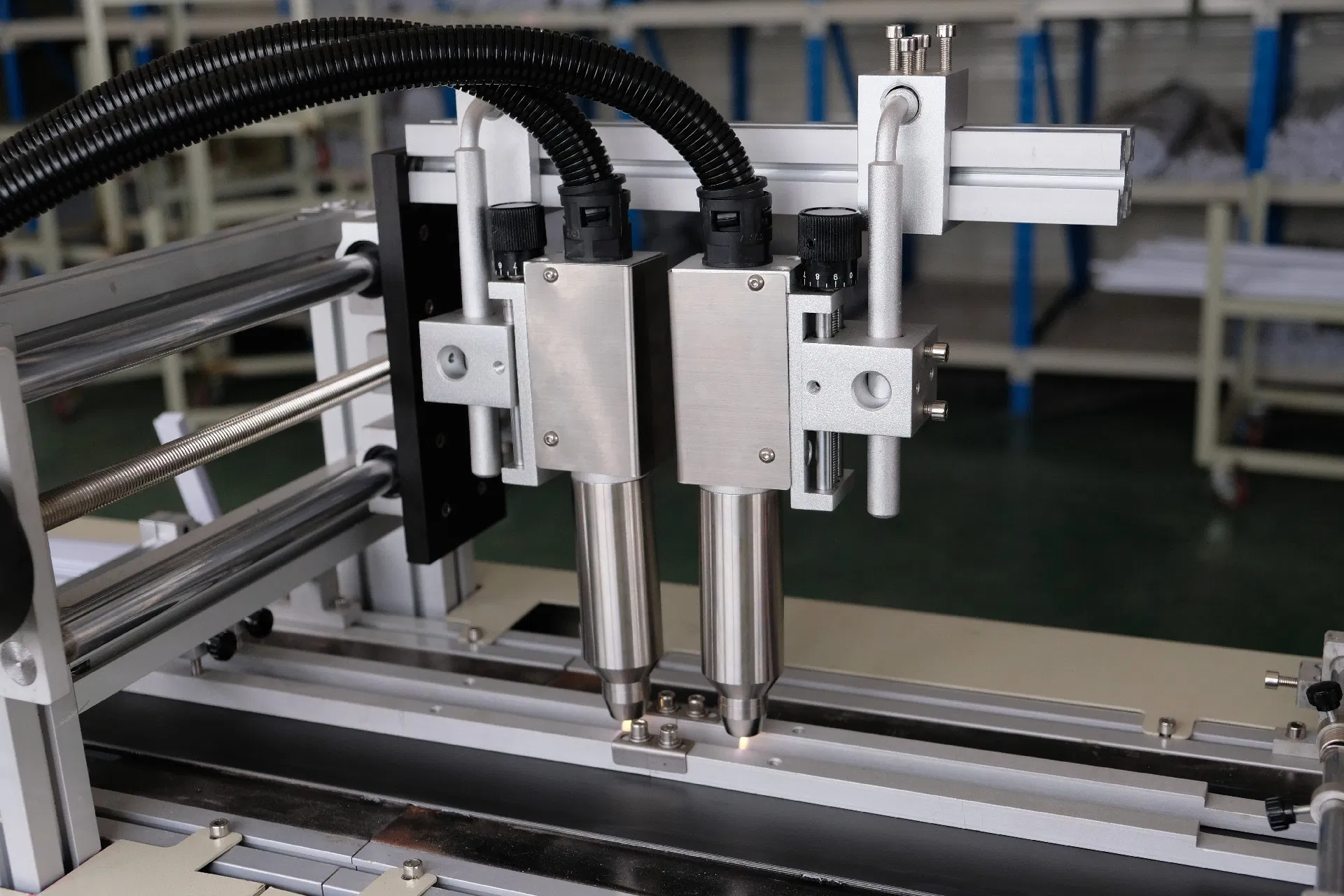

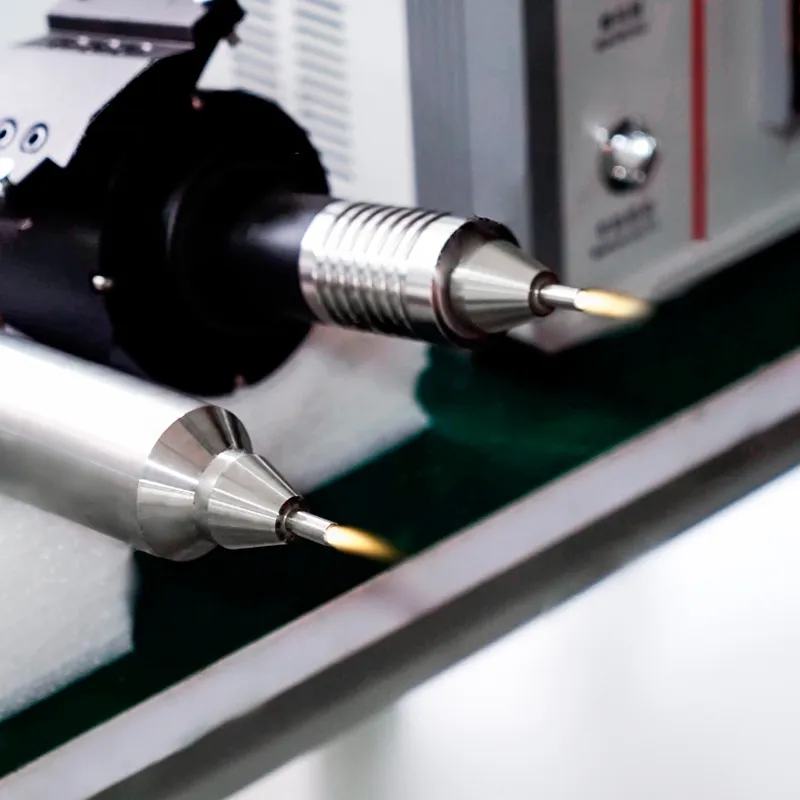

Parameter Details Available Nozzles
Interface DisplayMultifunctional one body LED digital tubeD04 NX Nozzle A
Rated Supply VoltageAC220V(±10%)D04 NX Nozzle B
Plasma Output Power3000VAD03 Nozzle C(flat)
Input Current5-15AD02xy nozzle
Supply Frequency20kHz-
Air Source RequirementExternal air source (three-way 150L/min)-
Input Pressure≥0.6Mpa-
Operating Range0.1-0.25Mpa-
Relative Humidity<93%-

Product Description

What is plasma?

Plasma is an appellation for a kind of unstable aggregation state of high energy level. Through the input of energy, the material is transformed from solid and liquid to gas. Additional energy is injected into the gas through the discharge action, and then the plasma state is produced. The input of the energy allows electrons to break away from their atomic orbitals and can break the chemical bonds to form free electrons, ions, and molecules. The result of this process is regarded as the fourth state of material existence except for solid, liquid and gas states.

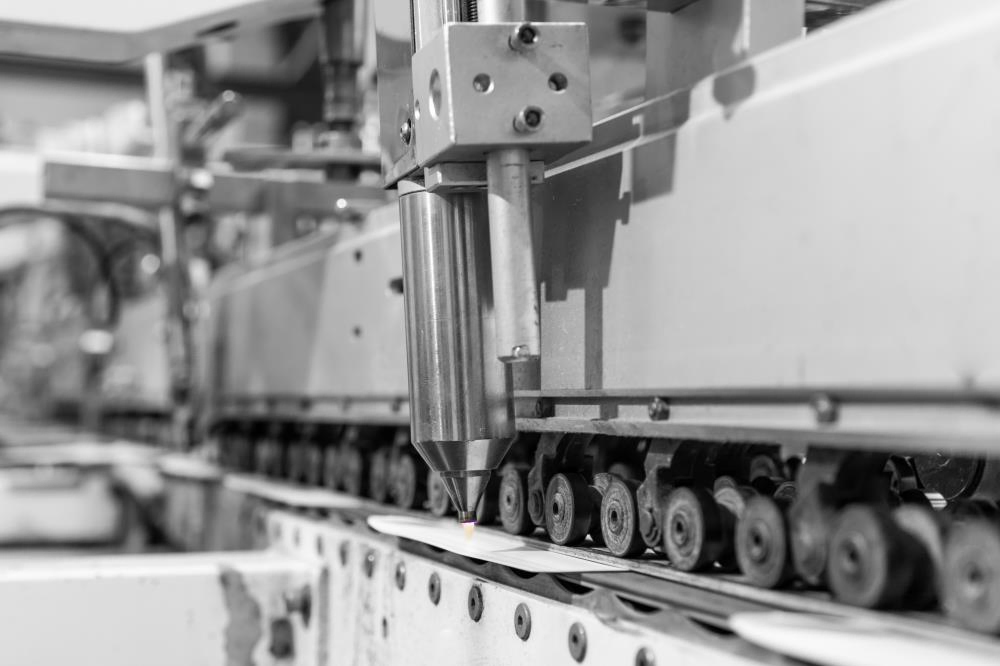

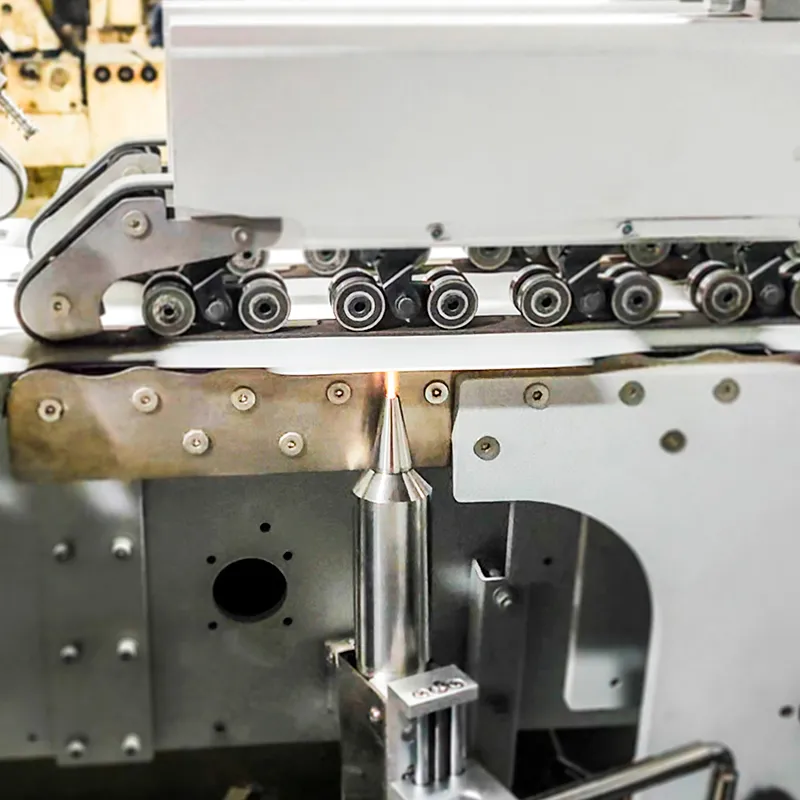

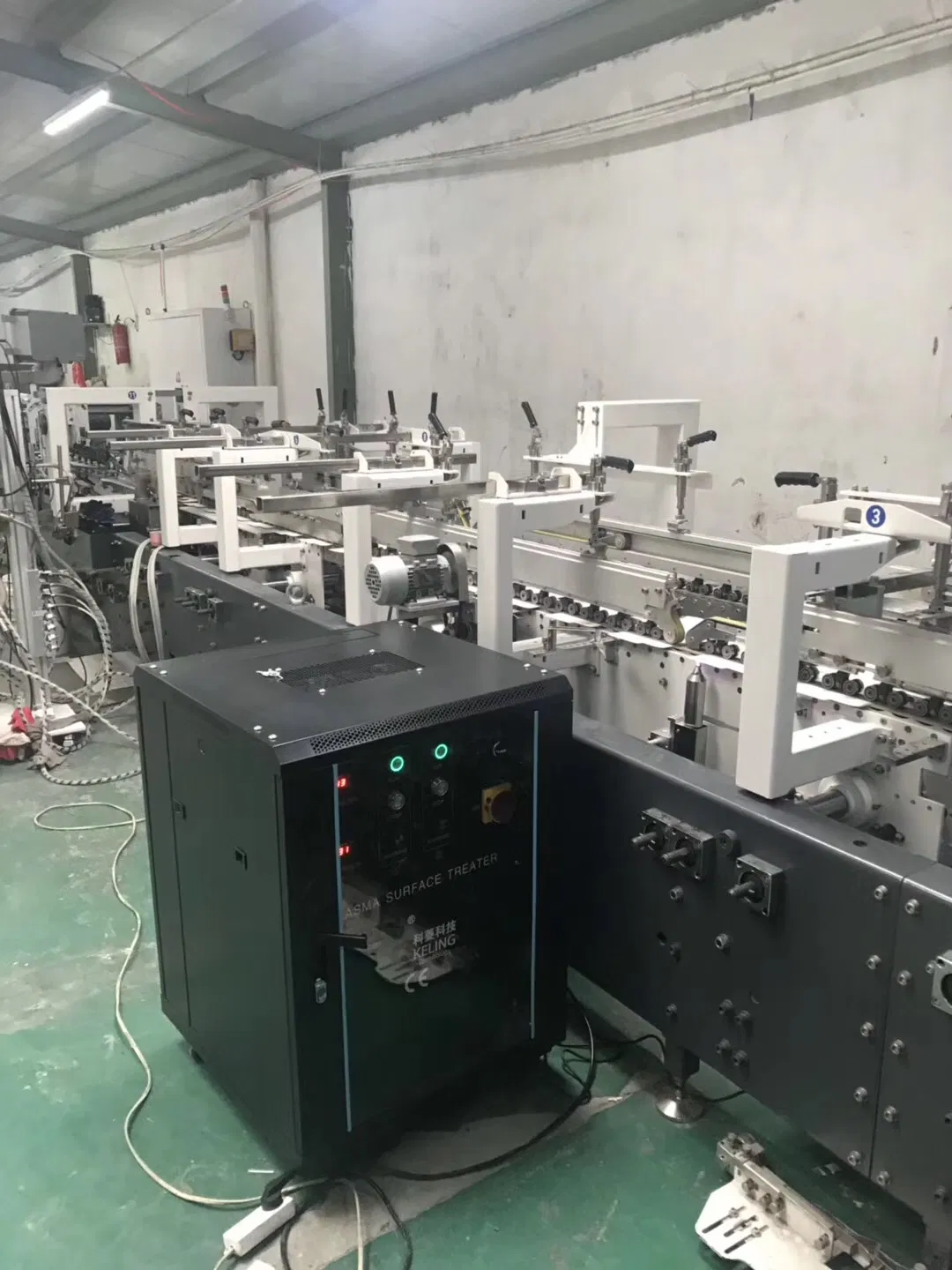

Plasma cleaner can used on Box folding-gluing bonding in the industry of print and package; Reliable bonding of automobile headlights; Bonding of household appliances; Bonding of safety components in the automobile.

Product Application

🚗 Automotive & Aerospace
Car headlights, EPDM profiles, Control devices, Tyres, Motor pump housing, Bicycles, Trucks, Aircraft.
📱 Electronics & Display
Mobile phones, Flat screens, Displays, Discs, Microphones and loudspeakers, Computers.
📦 Packaging & Labeling
Cardboard packaging, Bottle caps, Lids on cans, Tamper evident seals, Plastic films, Wet labeling.
🏠 House & Home
Solar panels, Window frames, Safety glass, Roller blinds, Façade cladding, Furniture edges.
🏥 Medical & Sterilisation
Infant oxygenators, Operating implants, Cardiac pacemakers, Cardiac catheters, Heart-lung machines.
⚽ Leisure & Sports
Shoes, Textile fibres, Golf tees, Golf balls, Golf clubs, Watches.

Frequently Asked Questions

1. What is the shipping warehouse location?
Our main shipping warehouse is located in Zhejiang, China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.
2. What is the production lead time?
Lead time varies based on order size: For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.
3. Can I customize my order?
Yes, customization is available! We can tailor machine configurations, spare parts, and accessories (e.g., nozzles or cable lengths) based on your specific requirements.
4. What are the payment terms?
We offer flexible terms: Full payment before shipping, or a 50% deposit upon order confirmation with the remaining balance before shipment. Payments are typically made via SWIFT transfer.
5. What kind of after-sales support do you provide?
We provide technical assistance via email/video calls, quick access to spare parts, comprehensive documentation (manuals/SOPs), and on-site support for critical issues if required.
6. What air source is required for operation?
The system requires an external air source with a gas consumption of approximately 50L/Min to 150L/Min, and an input pressure range between 0.10MPa and 0.60MPa depending on the specific model setup.
