Keylink Efficient Plasma Cleaning System for Exceptional Surface Preparation

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Overview

Model NO.

VL-10-A

Type

Clean Machine

Voltage

220V

Function

Improve Adhesion of Surface

Application

Printing, ED Interest and Creative Work etc

Product Name

Vacuum Plasma Surface Treater

Trade Terms

FOB

Transport Package

Wooden Case

Origin

China

HS Code

8479899990

Production Capacity

1000 sets/Year

Packaging & Delivery

Package Size

65.00cm * 65.00cm * 90.00cm

Gross Weight

200.000kg

Product Parameters

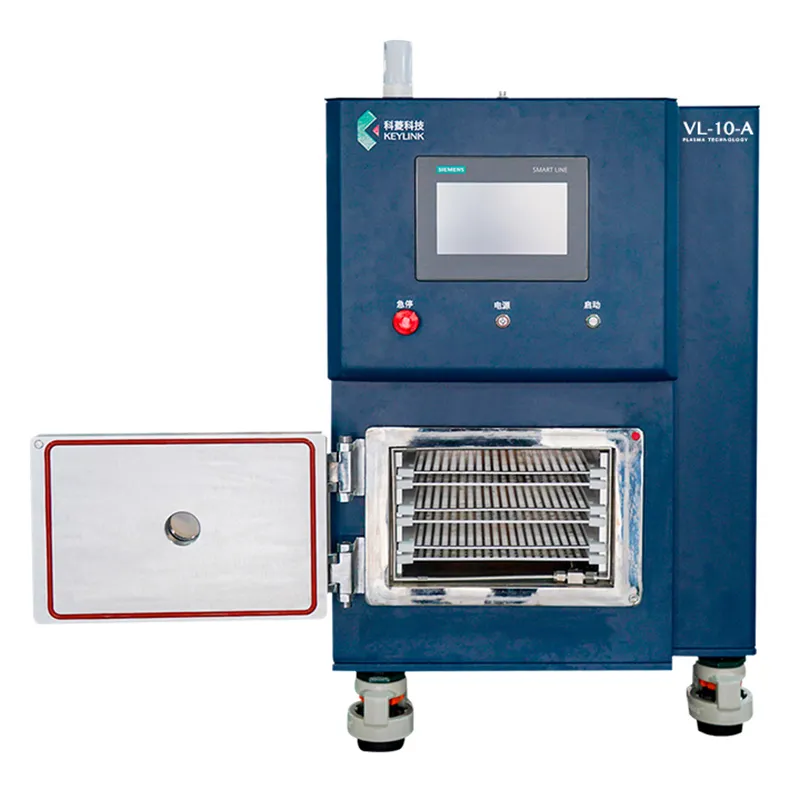

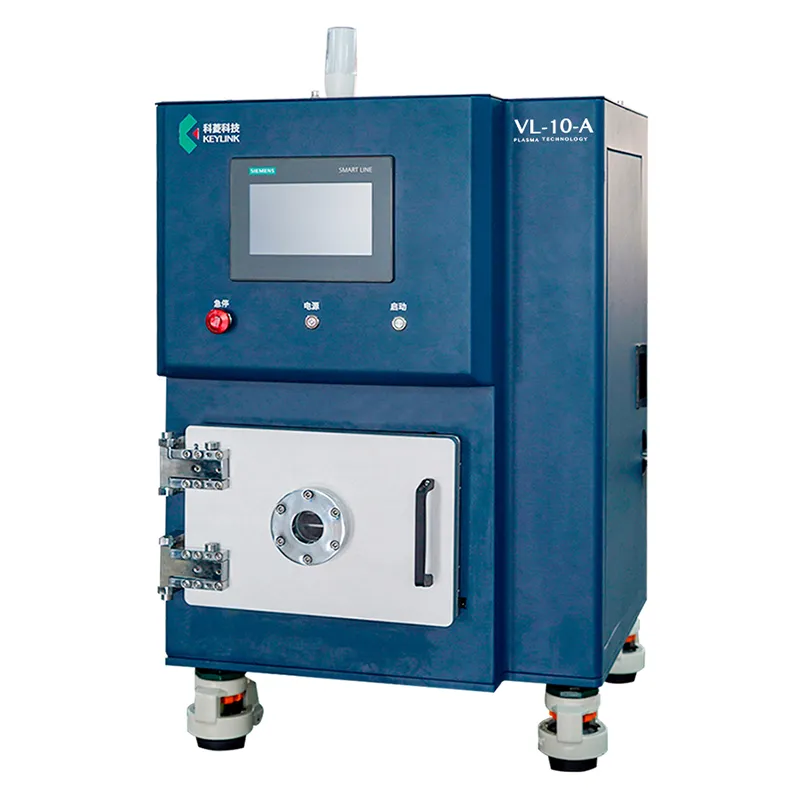

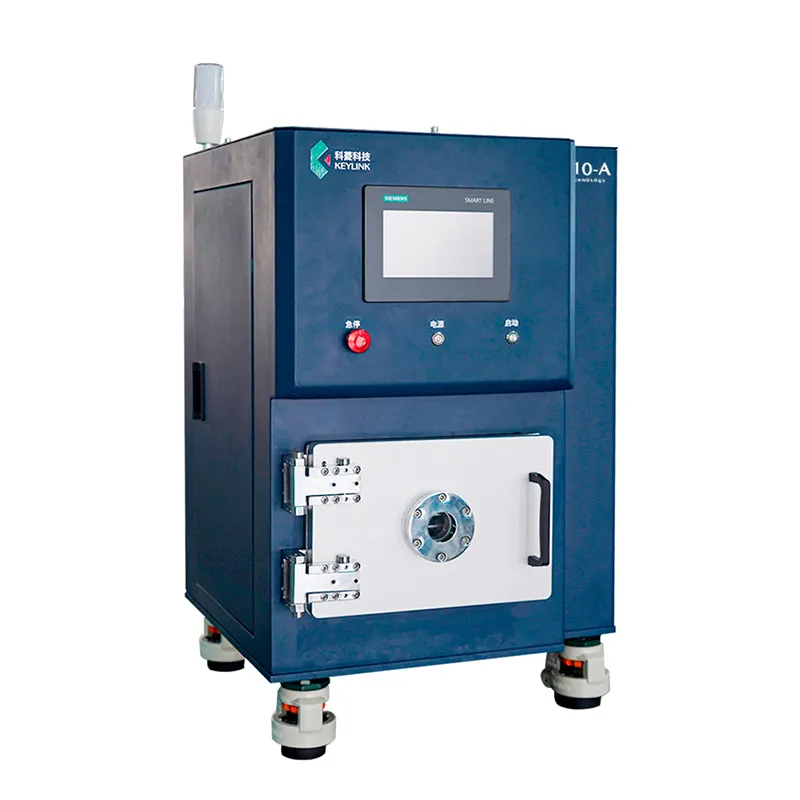

VL-10-A Vacuum Plasma Treatment System Technical Specification
Factory Requirements	Input Voltage	AC220V(±10%)
	Compressed Gas	≥0.4Mpa
	Process Gas	0.3~0.4Mpa
Host System	Dimension	550(L)×550(W)×830(H)mm
	Weight	About 200Kg
	Total Power	1.8KW
Power Source	Power Output	300W
Power Source	Frequency	13.56MHz/40KHz
Vacuum System	Vacuum Pump	40m³/h
	Vacuuming Time	Within 20s
	Cavity Material	Stainless Steel (10mm thickness)
	Ultimate Vacuum	<5Pa
	Internal Dimensions	280(W)×180(H)×270(D)mm
Control System	Interactive Mode	PLC (Siemens) 7-inch Touch Screen

Product Description

What is plasma?

Plasma is an appellation for a kind of unstable aggregation state of high energy level. Through the input of energy, the material is transformed from solid and liquid to gas. Additional energy is injected into the gas through the discharge action, and then the plasma state is produced. The input of the energy allows electrons to break away from their atomic orbitals and can break the chemical bonds to form free electrons, ions, and molecules. The result of this process is regarded as the fourth state of material existence except for solid, liquid and gas states.

Plasma cleaner can used on Box folding-gluing bonding in the industry of print and package; Reliable bonding of automobile headlights; Bonding of household appliances; Bonding of safety components in the automobile.

Product Applications

Automotive & Aerospace: Headlights, EPDM profiles, control devices, tires, aircraft components.

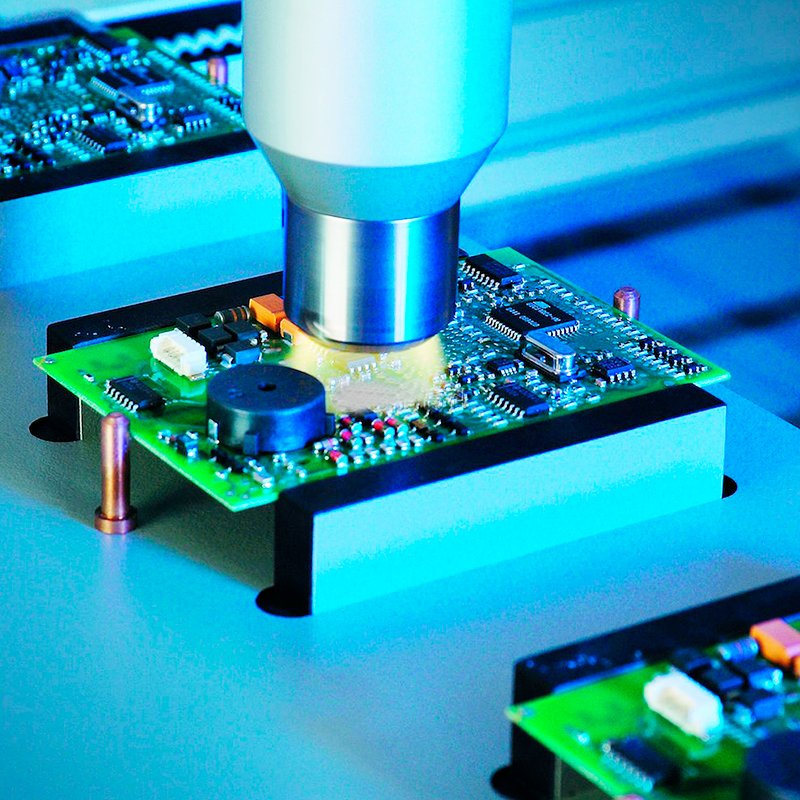

Electronics: Mobile phones, flat screens, displays, microphones, and loudspeakers.

Packaging: Cardboard packaging, bottle caps, plastic films, and tamper-evident seals.

Home & Construction: Solar panels, window frames, safety glass, and furniture edges.

Medical: Sterilization of operating instruments, implants, cardiac pacemakers, and catheters.

Sports Equipment: Shoes, textile fibers, golf equipment, and watches.

Company Profile

Certifications

Exhibition

Packaging & Shipping

FAQ

1. What is the shipping warehouse location?

Our main shipping warehouse is located in China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

2. What is the production lead time?

Lead time varies based on order size. For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

3. Can I customize my order (e.g., specific configurations or spare parts)?

Yes, customization is available! We can tailor machine configurations, spare parts, and accessories (e.g., nozzles or cable lengths) based on your specific requirements.

4. What are the payment terms?

We offer flexible payment terms, including: Full payment before shipping or a 50% deposit upon order confirmation with the remaining balance before shipment. Payments are typically made via SWIFT transfer.

5. What kind of after-sales support do you provide?

We provide comprehensive support: Technical assistance via email/video calls, quick access to spare parts, full documentation (manuals/SOPs), and on-site support for critical issues if required.

6. How is the equipment protected during transport?

All machines are packed in professional export-standard wooden cases to ensure maximum protection against vibration and moisture during international transit.
