Low Pressure Plasma System for Surface Energy Enhancement

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

i

Basic Information

Model NO.

VL-80-A

Type

Surface Clean Machine

Input Voltage

AC380V, 50/60Hz, 5-Wire

Total Power

4.5kw

Supply Frequency

13.56MHz/40kHz

Vacuum Pump

Oil Pump: 60m3/H

Cavity Material

Aluminium Alloy

Cavity Thickness

20mm

Trademark

KEYLINK

Origin

China

★

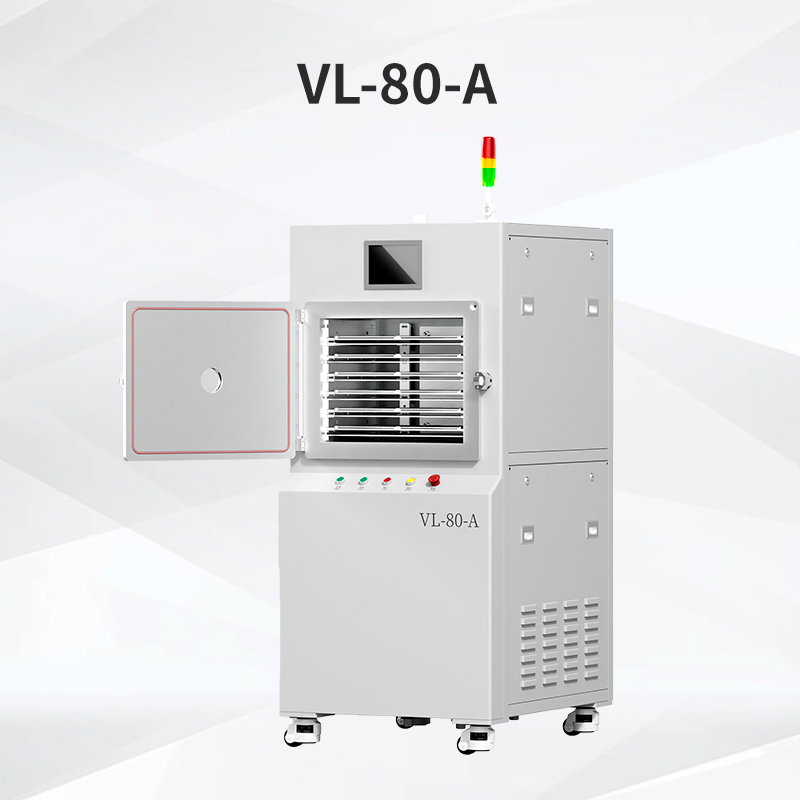

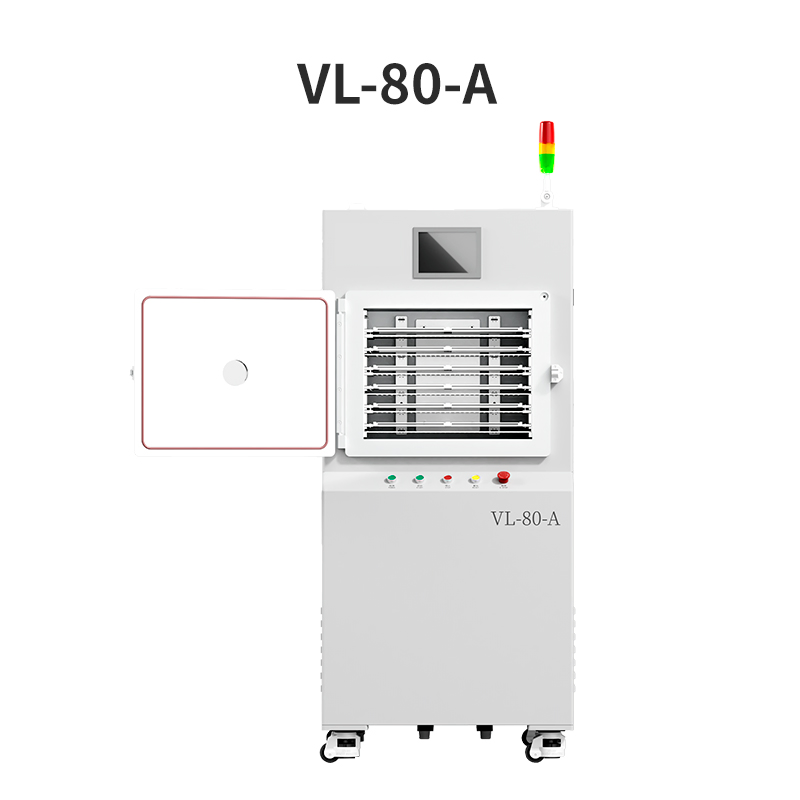

Product Gallery

⚙

Technical Specifications

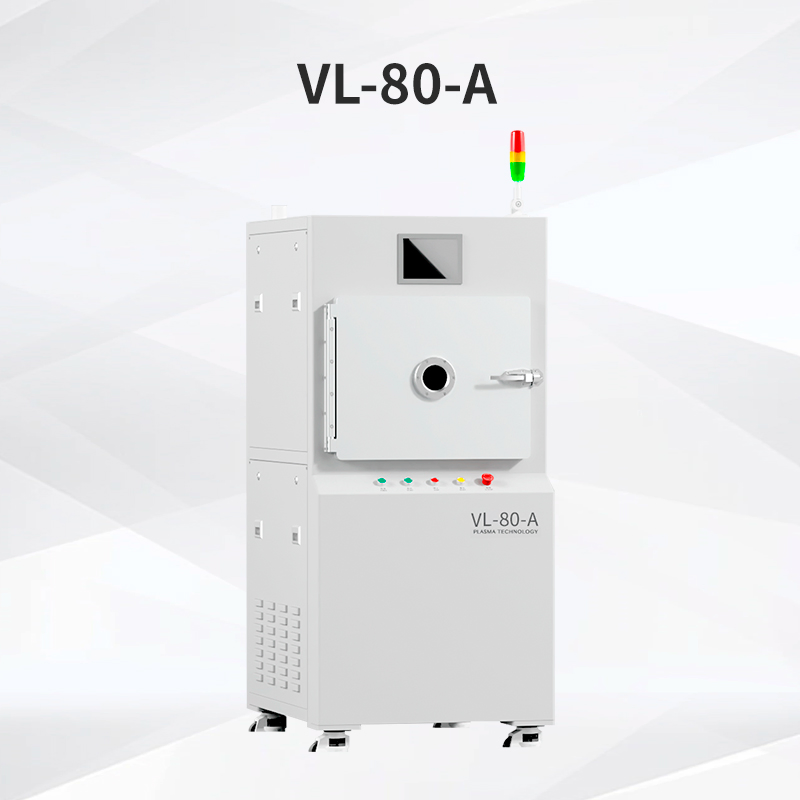

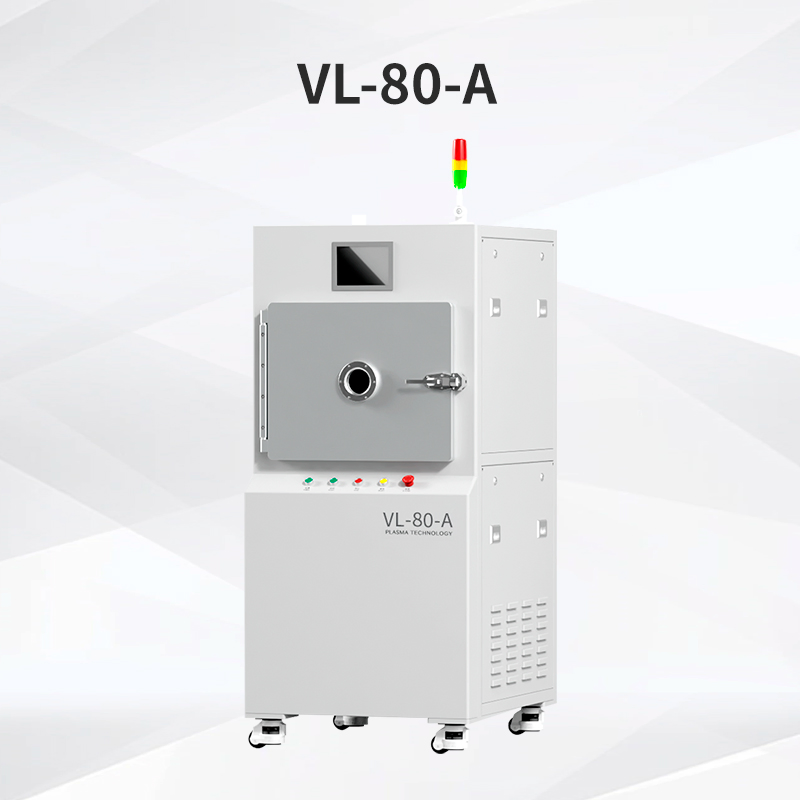

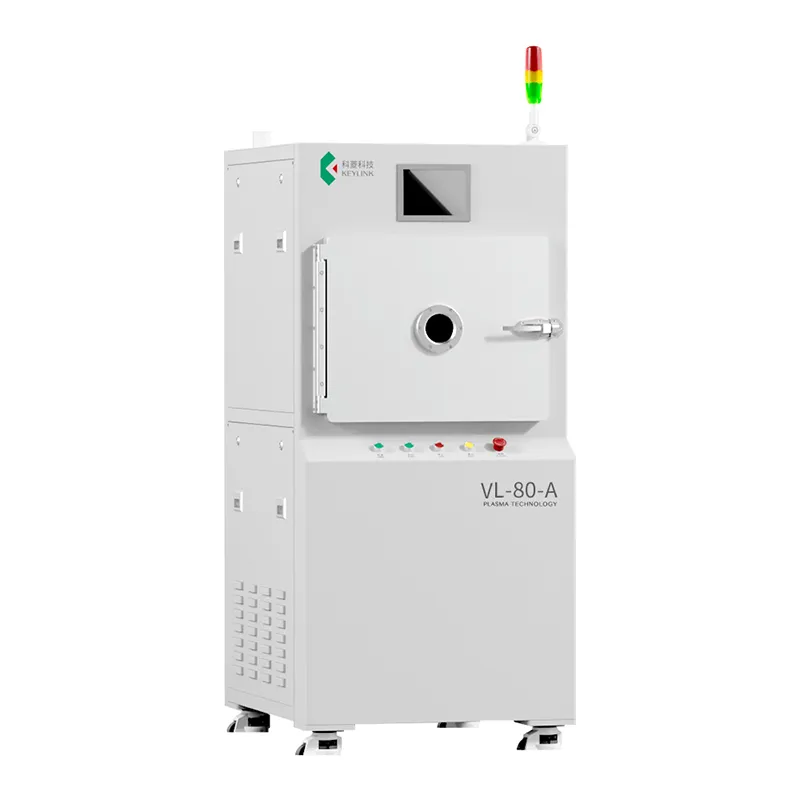

VL-80-A Vacuum Plasma Treatment System
Input Voltage	AC380V, 50/60Hz, 5-wire
Compressed Gas	0.3~0.4Mpa
Dimension	930(L)×765(W)×1750(H)mm
Weight	About 500Kg
Total Power	4.5KW
Vacuum Pump	Oil pump: 60m3/h
Vacuuming Time	≤60s
Cavity Material	Aluminium alloy (20mm thickness)
Internal Dimensions	515(W)×400(H)×410(D)mm

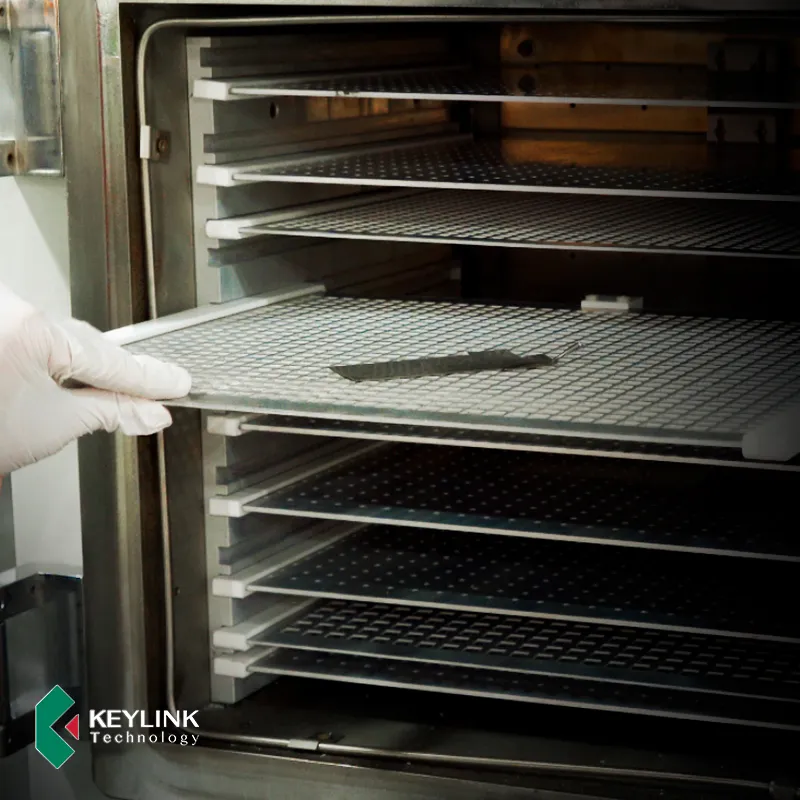

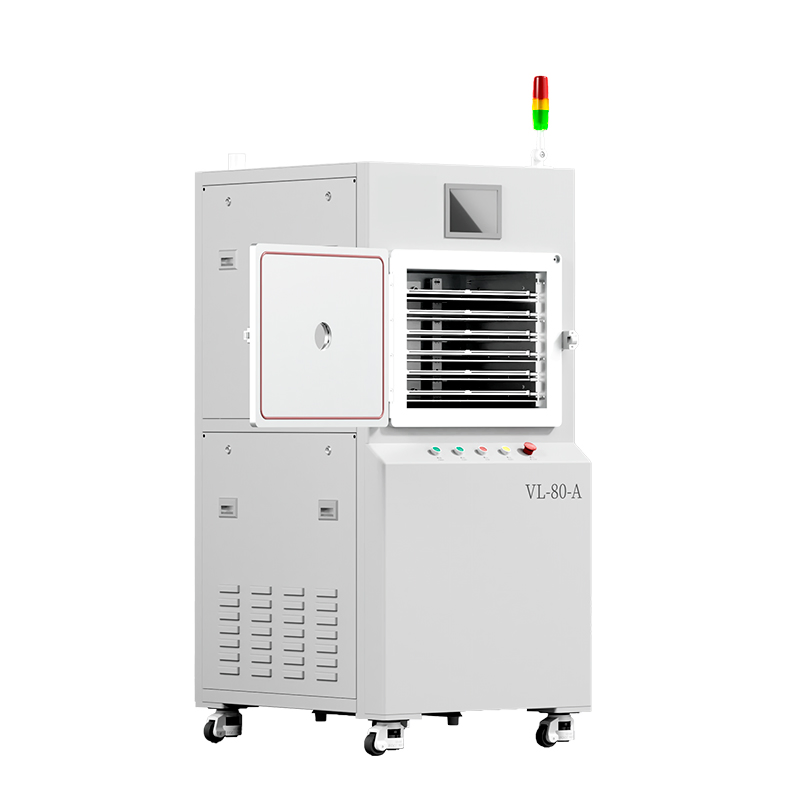

Electrode Plate	Horizontal, 6-layer wire mesh pallet
Control Mode	PLC (Siemens), Automatic/Manual switchable

?

What is Plasma?

Plasma is an appellation for a kind of unstable aggregation state of high energy level. Through the input of energy, the material is transformed from solid and liquid to gas. Additional energy is injected into the gas through the discharge action, and then the plasma state is produced.

The result of this process is regarded as the fourth state of material existence except for solid, liquid and gas states. Plasma cleaners can be used for box folding-gluing bonding, reliable bonding of automobile headlights, household appliances, and safety components.

✔

Product Application

Automotive & Aerospace

Car headlights & EPDM profiles
Tyres & Motor pump housing
Aircraft components

Electronics & Purity

Mobile phones & Flat screens
Microphones & Loudspeakers
Computers & Displays

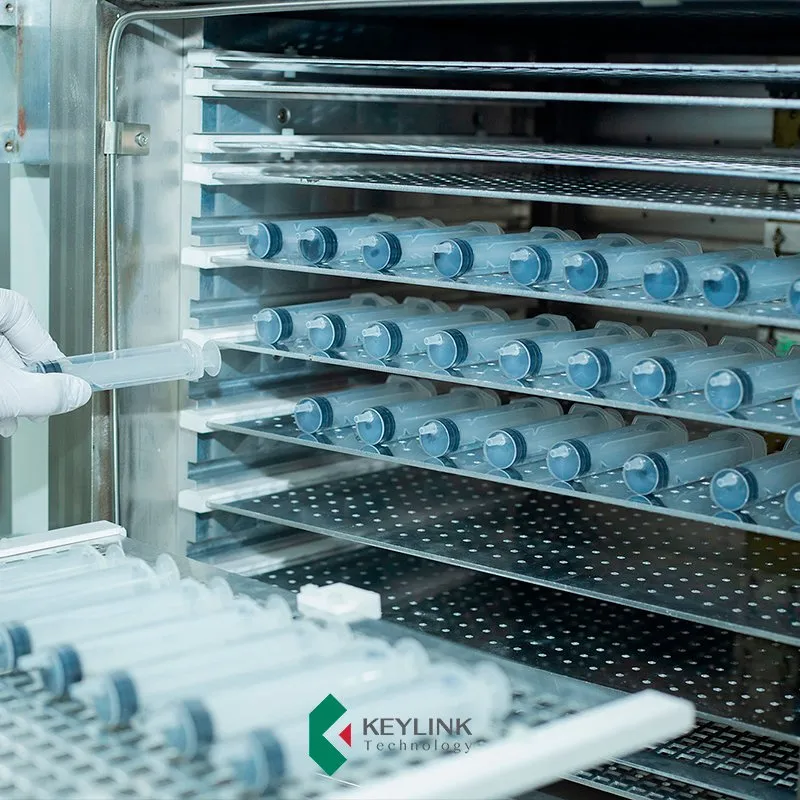

Medical & Sports

Operating instruments/implants
Cardiac pacemakers & catheters
Textile fibres & Golf equipment

⎙

Company Profile & Certifications

✈

Exhibition & Logistics

Q

Frequently Asked Questions

1. What is the shipping warehouse location?

Our main shipping warehouse is located in Zhejiang, China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

2. What is the production lead time?

Lead time varies based on order size. For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

3. Can I customize my order (configurations or spare parts)?

Yes, customization is available! We can tailor machine configurations, spare parts, and accessories (e.g., nozzles or cable lengths) based on your specific requirements.

4. What are the payment terms?

We offer flexible terms: Full payment before shipping or a 50% deposit upon order confirmation with the balance due before shipment. Payments are typically made via SWIFT transfer.

5. What kind of after-sales support do you provide?

We provide comprehensive support including technical assistance via video calls, quick access to spare parts, user manuals, and maintenance guides. For critical issues, on-site technician dispatch can be arranged.

6. What interactive modes are supported?

The system uses a Siemens PLC and a 7-inch Siemens touch screen for interaction, supporting both automatic and manual control modes.
