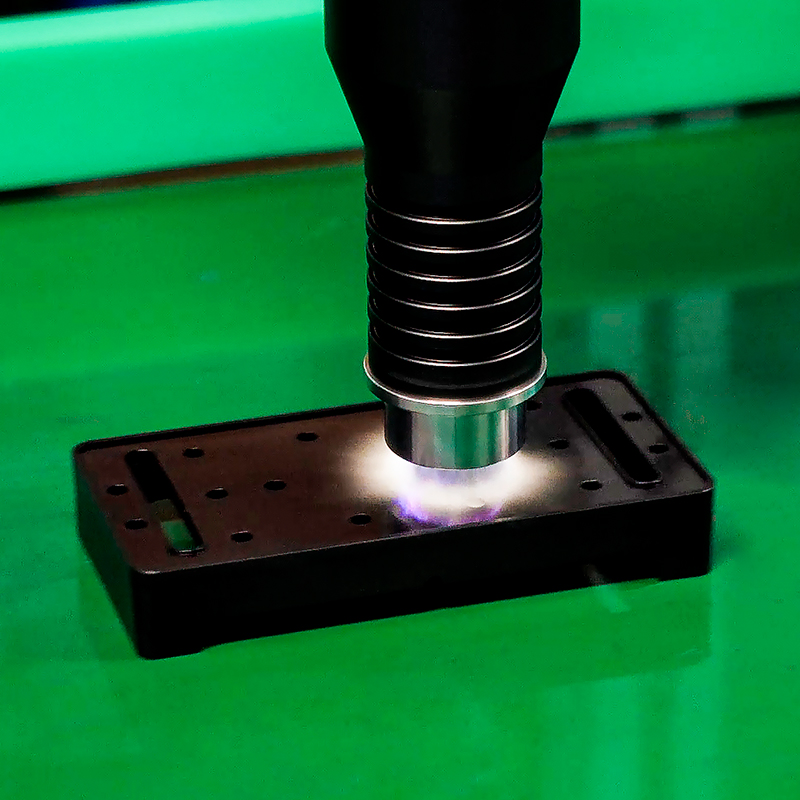

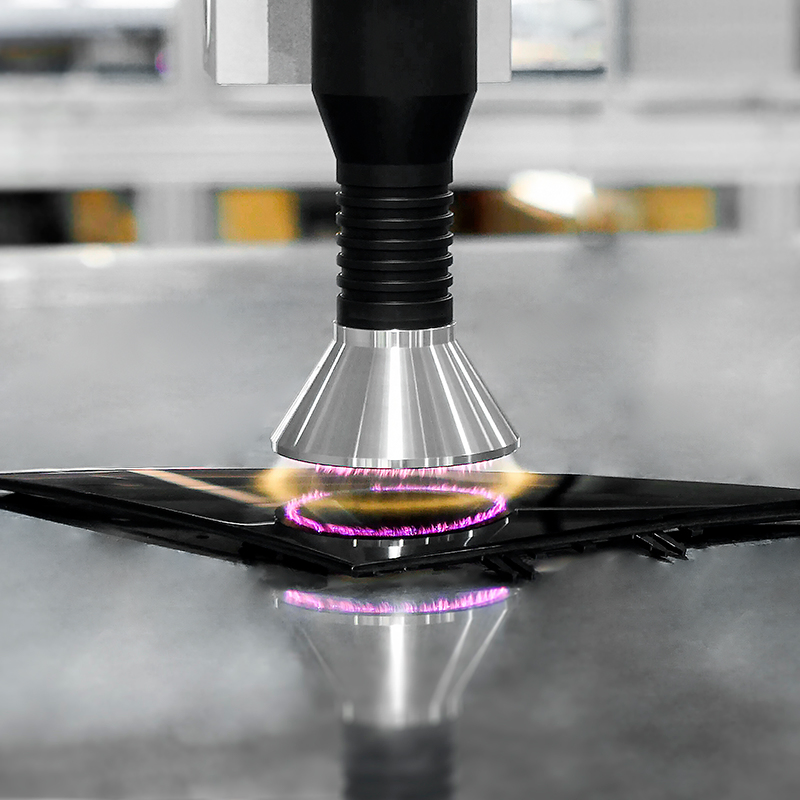

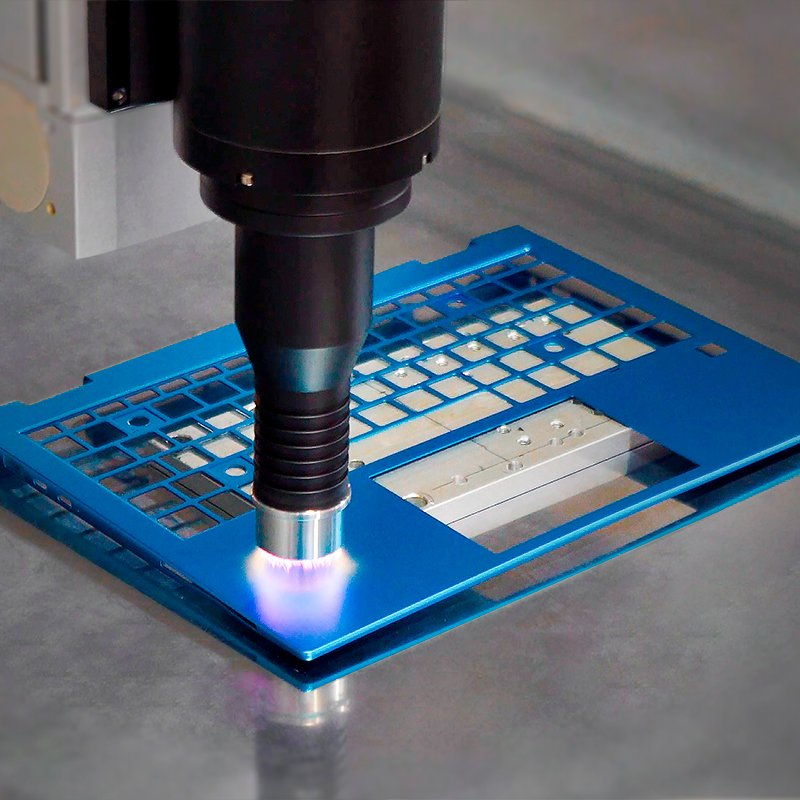

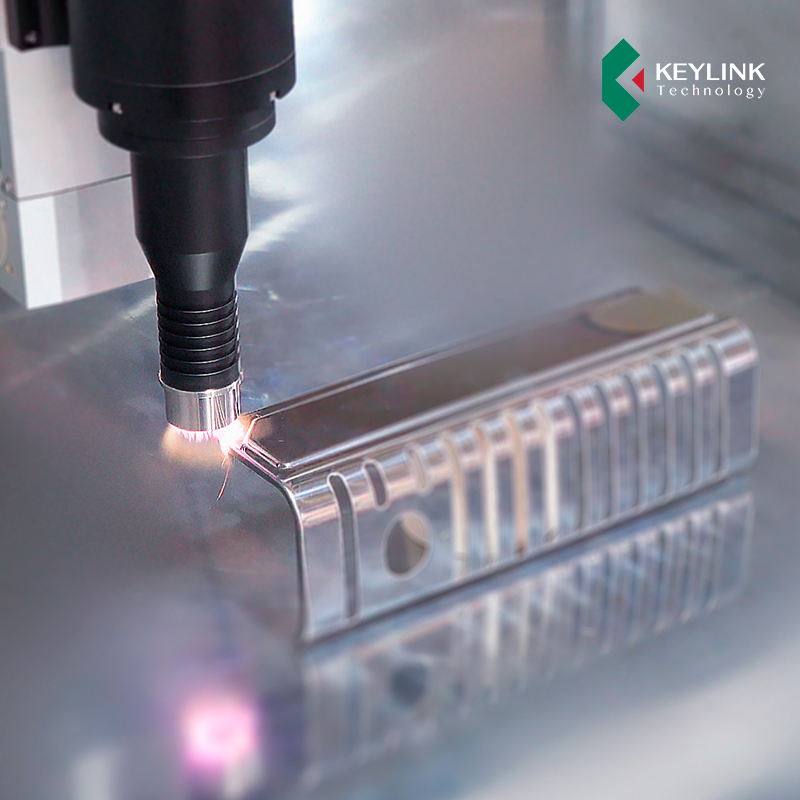

Pl-5050p Plasma Treatment System for Plastic Surface Cleaning and Activation

1 / 5

Pl-5050p Plasma Treatment System for Plastic Surface Cleaning and Activation

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

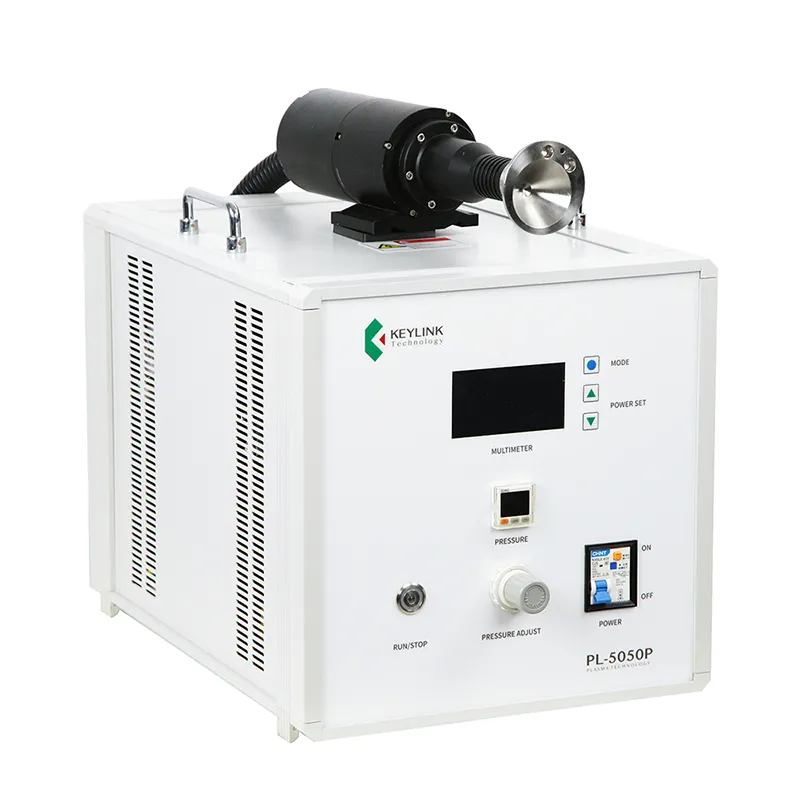

PL-5050P LCD screen model

Rated Supply Voltage

AC220V(±10%)

Plasma Output Power

750-1500W

Input Current

4.0-8.0A

Supply Frequency

17.3-30kHz

Air Source Requirement

External (Gas Consumption 60L/Min)

Air Source Input Pressure

≥0.6MPa

Air Pressure Operating

0.1-0.3MPa

Mode

Signal Mode/ Encoder Mode

Cleaning Height

5-15mm

Treatment Width

≤110mm

Net Weight

28kg

Production Capacity

1000 sets/Year

HS Code

8479899990

Technical Specifications

PL-5050P System Parameter		Nozzle Model	Area	Model Code
Interface	4.3-inch LCD screen	R17 Rotate	16mm	PL-JX-022-1
Voltage	AC220V ±10%	R03 Rotary	20mm	PL-JX-004-1
Output Power	750-1500W	R04 Rotary	30mm	PL-JX-006-1
Humidity	<93%	R21 Rotary	40mm	PL-JX-008-1
Storage Temp	-25ºC to +55ºC	R05 Rotary	50mm	PL-JX-010-1
Detection	Air pressure, Overtemperature, Motor speed, Driver fault	R23 Rotate	75mm	PL-JX-014-1

What is Plasma?

Plasma is an aggregation state of high energy level. Through energy input, material transforms from solid/liquid to gas. Discharge action produces the plasma state, breaking chemical bonds to form free electrons, ions, and molecules. This is the "fourth state" of matter.

Main Industrial Use: Box folding-gluing bonding, automobile headlights bonding, household appliance assembly, and safety component bonding.

Product Application Industries

💠 Automotive & Aerospace

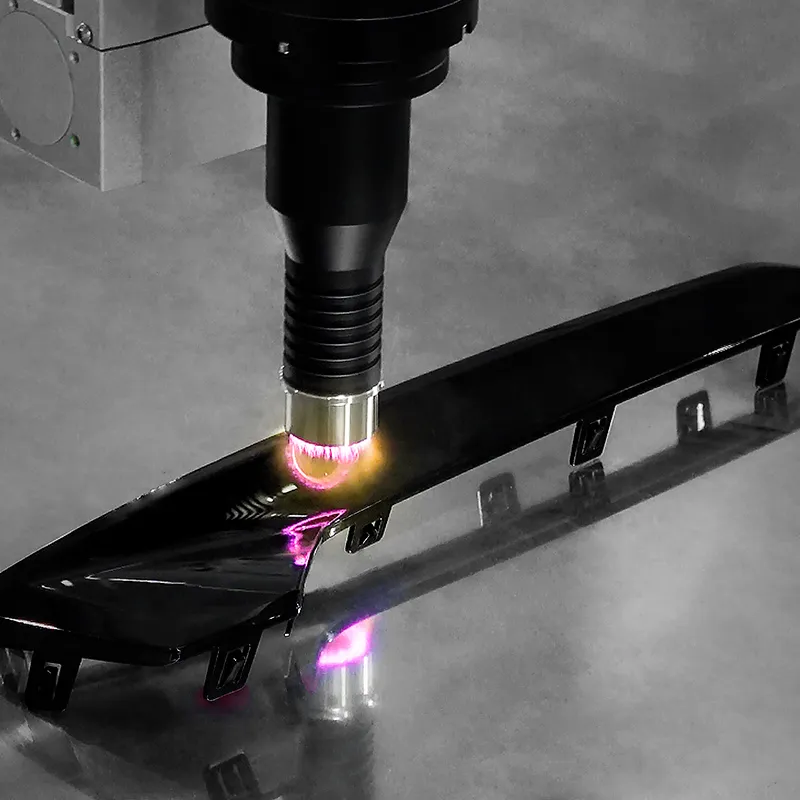

Headlights, EPDM profiles, Control devices, Tyres, Motor pumps, Aircraft components.

💠 Electronics & Displays

Mobile phones, Flat screens, Displays, Microphones, Loudspeakers, Computers.

💠 Packaging & Consumer Goods

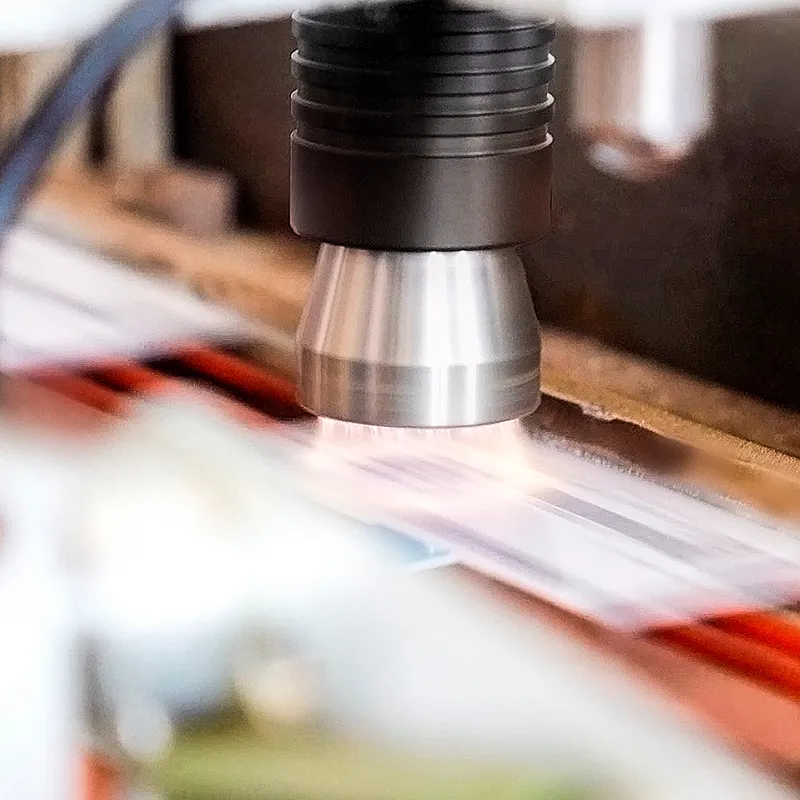

Cardboard packaging, Bottle caps, Plastic films, Wet labeling.

💠 Medical & Health

Oxygenators, Operating instruments, Cardiac pacemakers, Catheters.

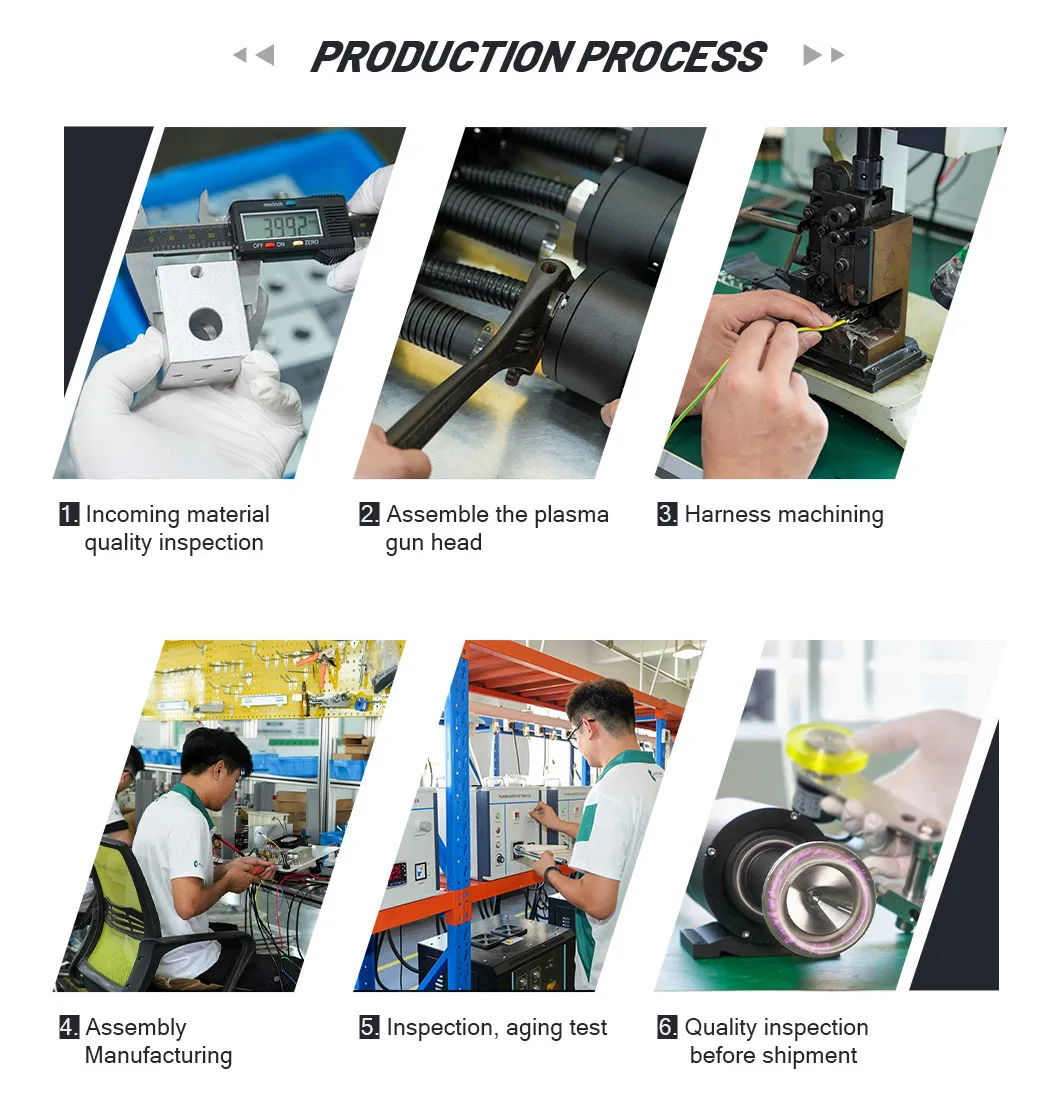

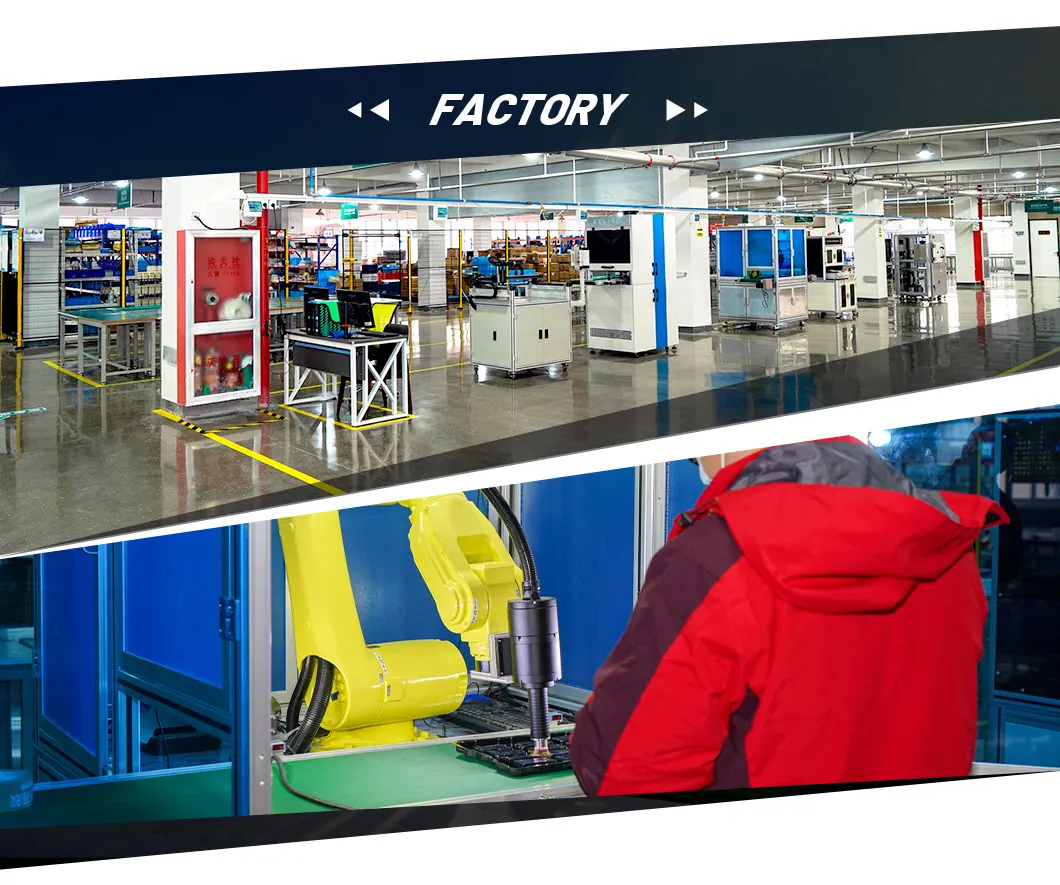

Facility & Quality Control

Exhibition & Logistics

Frequently Asked Questions

🔵 1. What is the shipping warehouse location?

Our main shipping warehouse is located in China, and we ship globally via trusted logistics partners. We also accommodate customer-preferred shipping methods or carriers.

🔵 2. What is the production lead time?

Lead time varies based on order size. For small to medium orders (e.g., 10-20 machines), the lead time is approximately 3-4 workdays. We expedite production to meet tight deadlines whenever possible.

🔵 3. Can I customize my order for specific configurations?

Yes, customization is available! We can tailor machine configurations, spare parts, and accessories like nozzles or cable lengths based on your specific requirements.

🔵 4. What are the payment terms?

We offer flexible terms: 50% deposit upon order confirmation and the remaining balance before shipment. Payments are typically made via SWIFT transfer.

🔵 5. What kind of after-sales support do you provide?

We provide technical assistance via email, phone, or video, quick access to spare parts, comprehensive user manuals, and maintenance guides. On-site support can be arranged for critical issues.

🔵 6. How is the product protected during shipping?

All machines are packed in standard export wooden cases to ensure maximum protection against impact and moisture during international transport.
