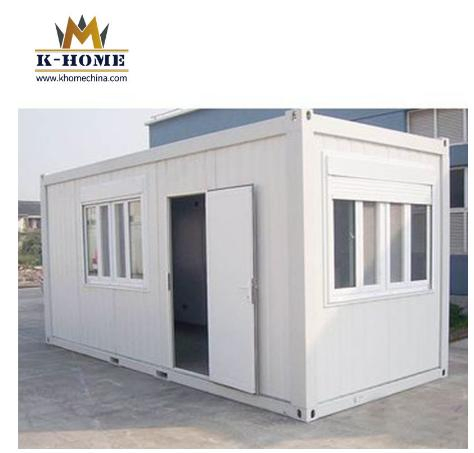

Temporary Portable Living Quarters Construction Site Containerized Housing Unit

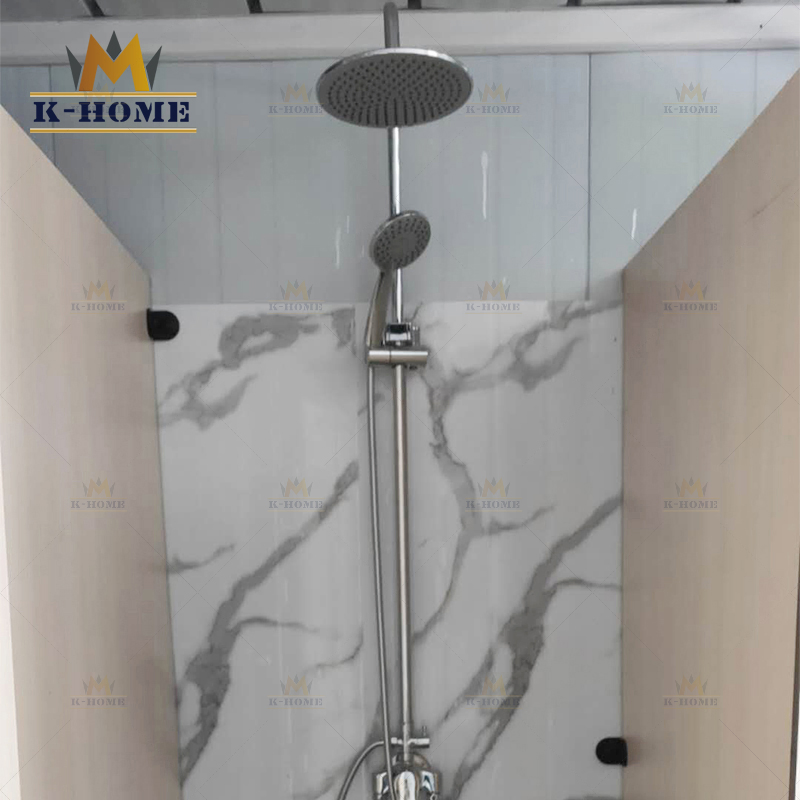

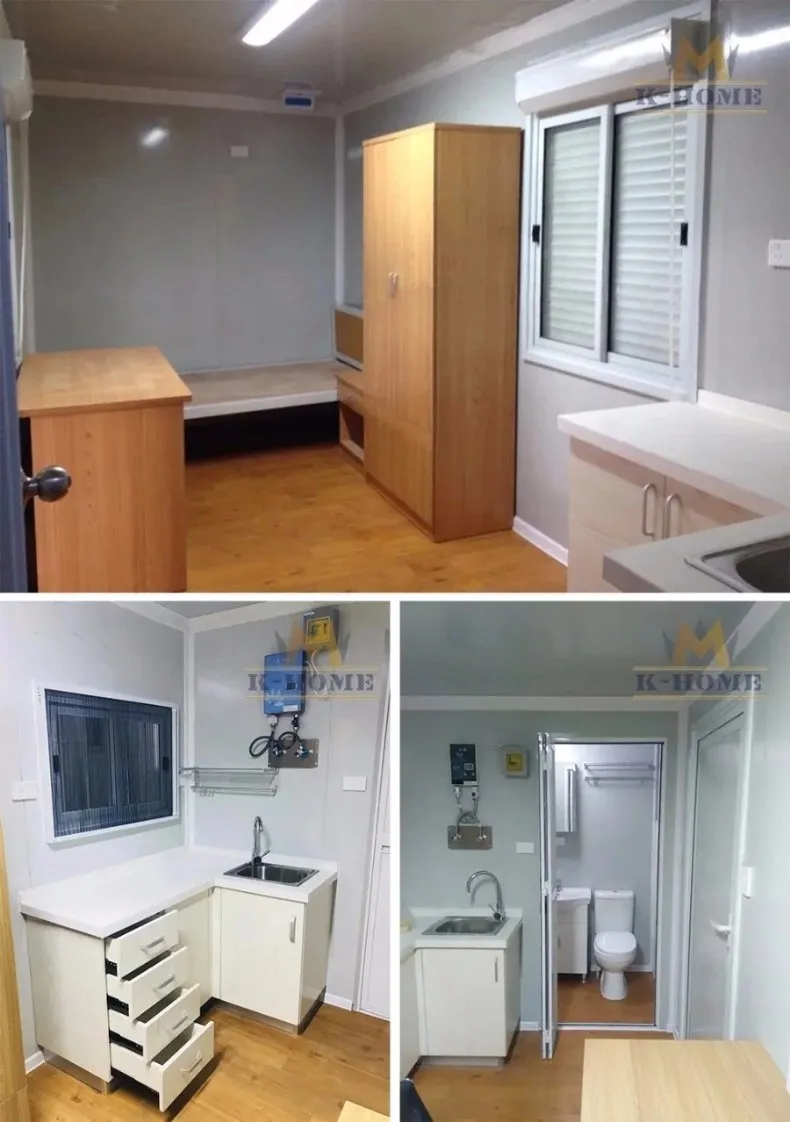

Modular Container Standard Equipment includes two windows, one door, distribution box, fluorescent lamp, socket, and more. These prefab tiny houses are widely utilized in disaster areas, remote site camps, temporary dwellings, worker camps, warehouses, temporary schools, and site offices. Equipped with toilet and shower boxes, the main frame is constructed from special steel plates, while side plates feature sound insulation packing for superior heat insulation, cold prevention, and fire resistance. The units are simple to install, move, and designed for long-term durability.
Advantages of Portable Living Containers:
Designed and engineered to meet international building codes. High-quality materials ensure structures endure decades of exposure to all weather conditions.

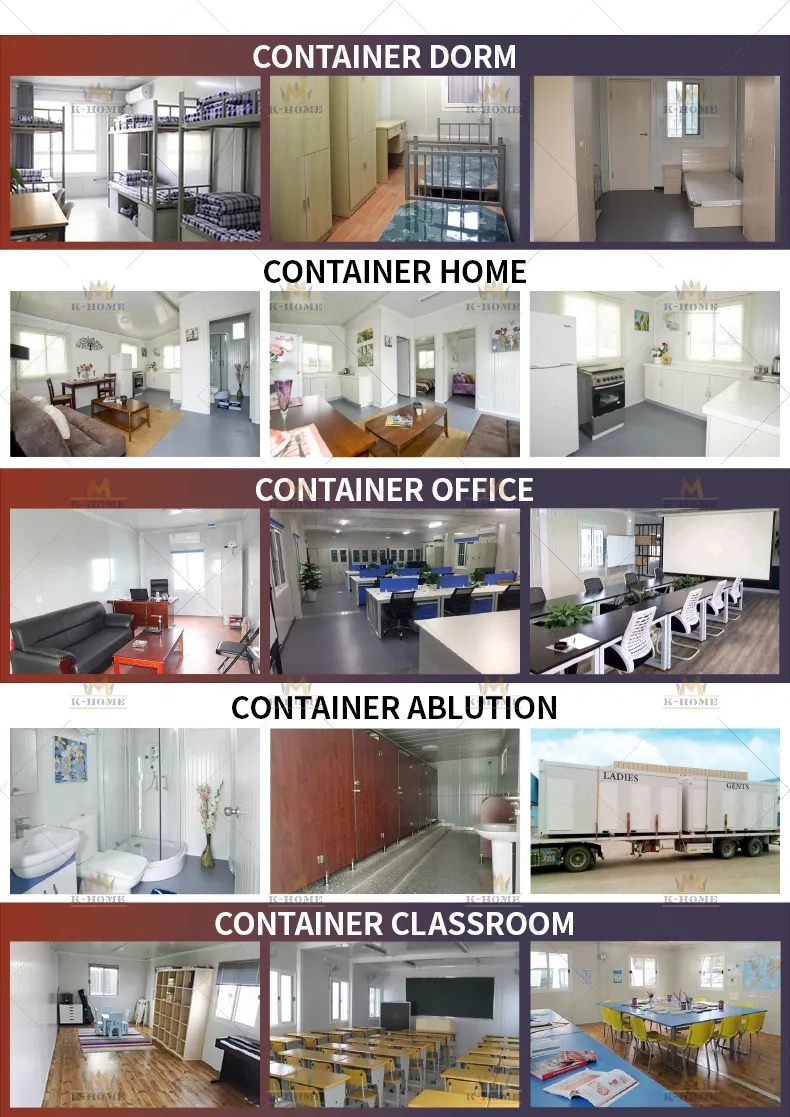

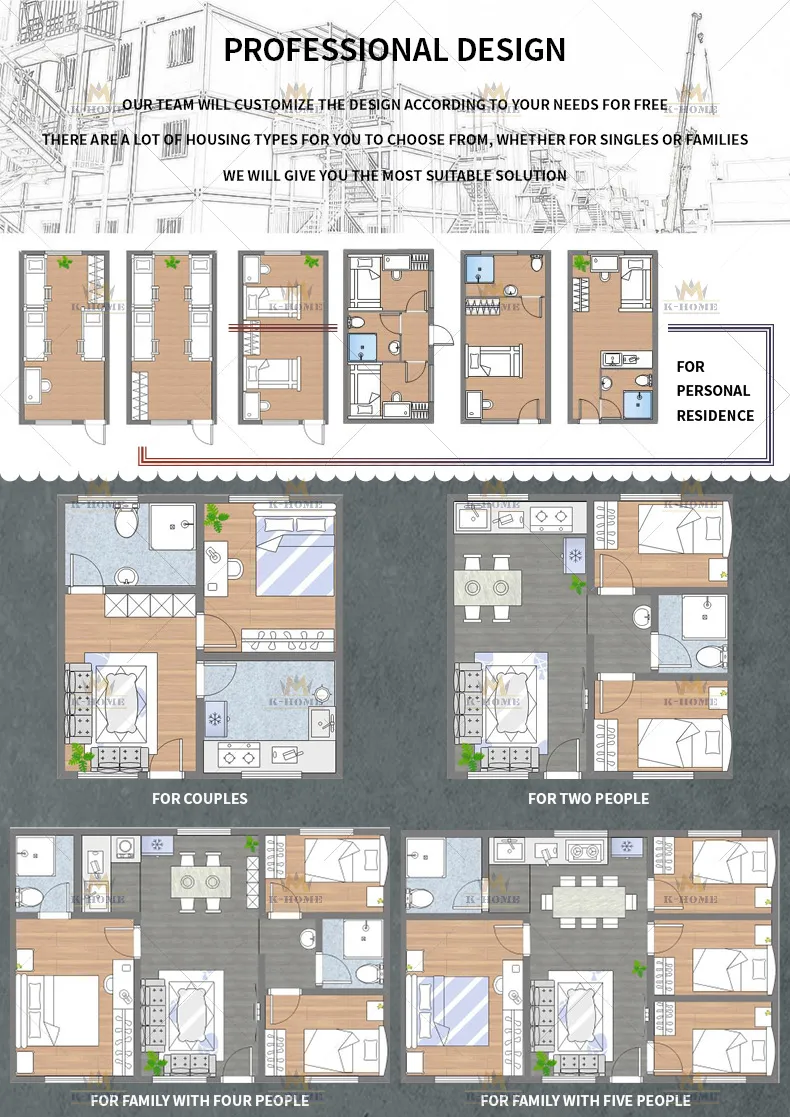

Versatile floor plans accommodate various applications, from storage sheds to living quarters. Units grow with your changing needs.
Factory-direct production allows for some of the fastest lead times in the industry, often delivering units within a matter of weeks.
1. Convenient Transportation: Fast and efficient lifting and moving capabilities.

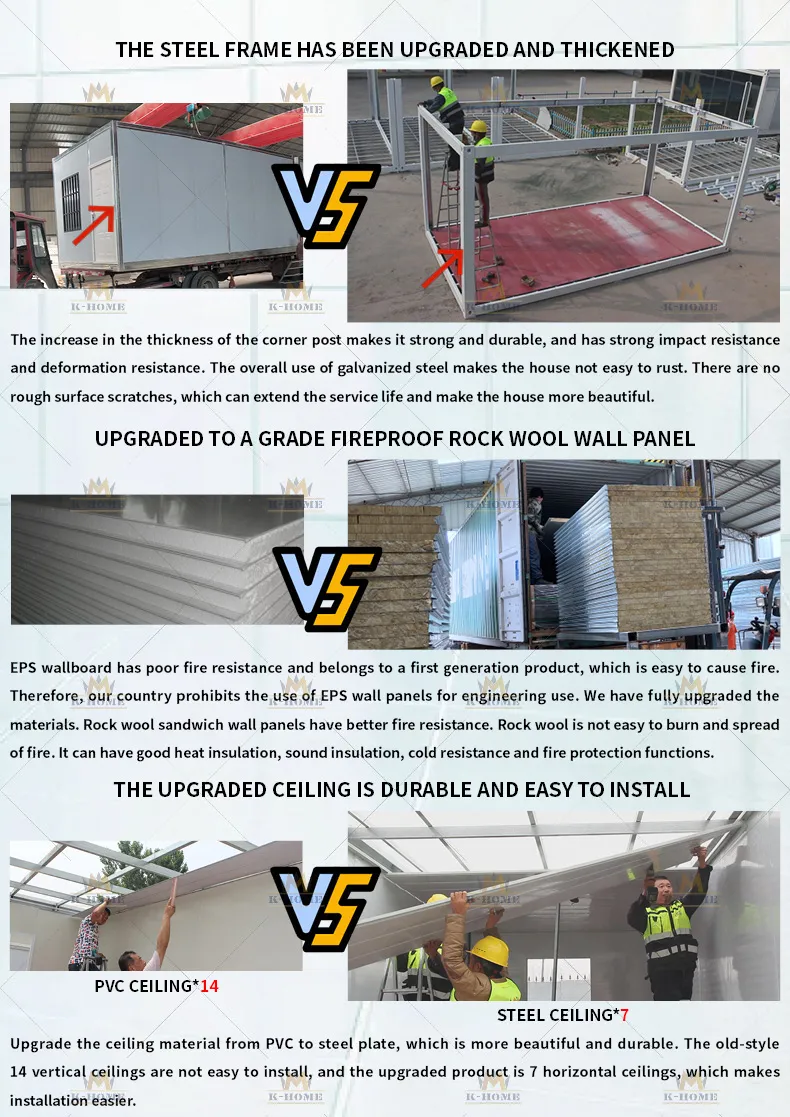

2. High Strength: Welded steel frame provides excellent seismic performance, ideal for post-disaster reconstruction.
3. Waterproof Design: The entire top is welded with a leak-proof design for maximum reliability.
4. Weather Resistance: Resistant to acid, alkali, and salt spray; suitable for humid and corrosive environments.

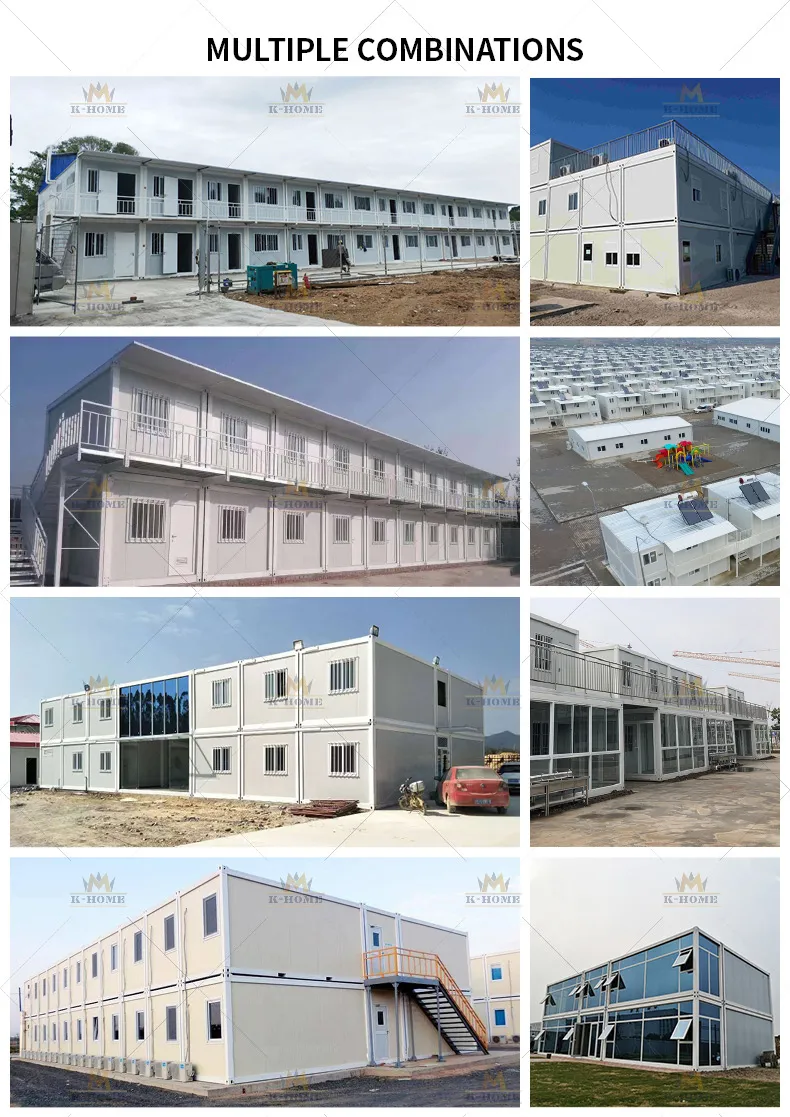

5. Flexibility: Standard measurements (3x6x2.8m) allow units to be stacked up to 3 layers or combined for spacious layouts.
| Unit Size | 6m (L) x 3m (W) x 2.8m (H) |

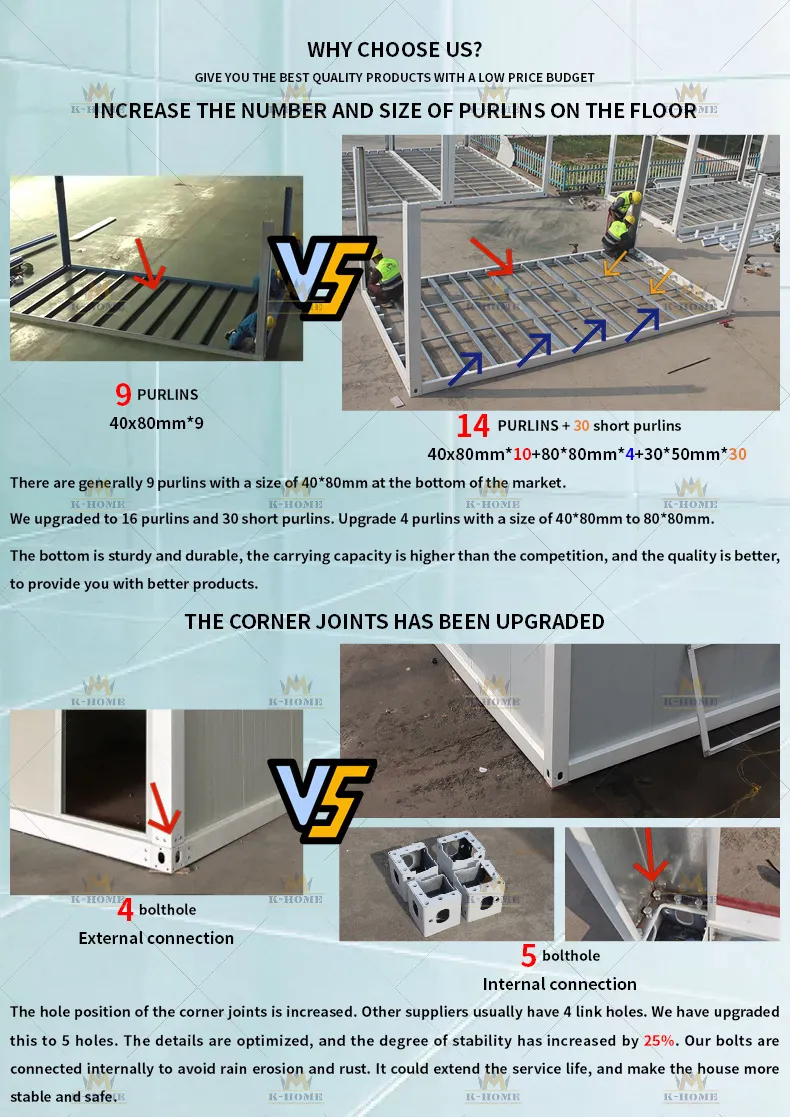

| Floor System | 3mm Galvanized Steel main structure + 1.5mm secondary beam; 15mm MGO board + PVC leather floor |
| Roof System | Q235 galvanized fittings; 0.4mm steel sheet outside; 50mm glass wool insulation |
| Wall System | 50mm Sandwich Panel; 0.35mm thickness steel (outside silver gray, inside white) |

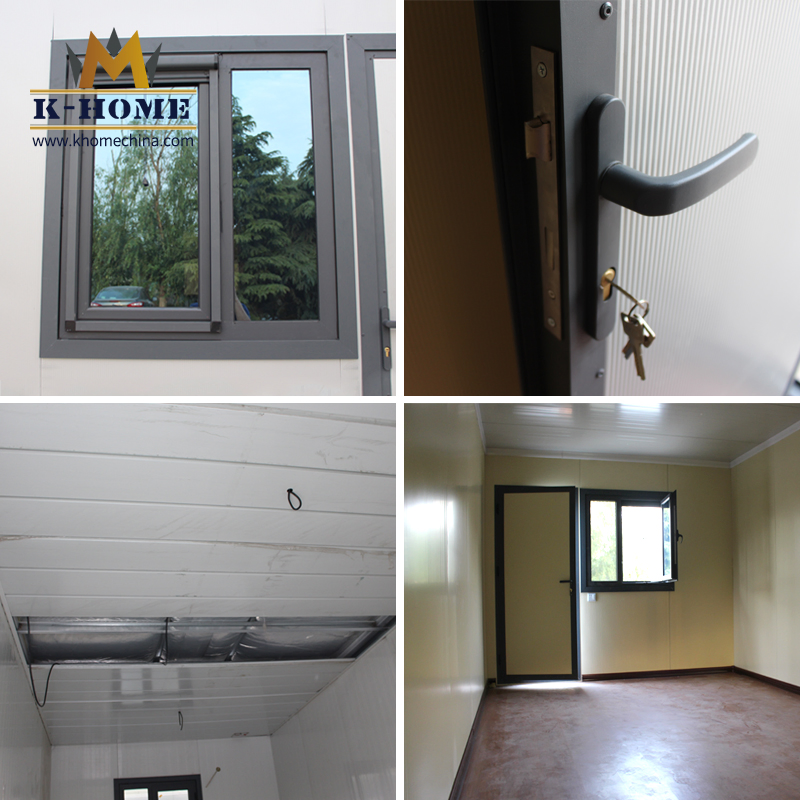

| Door & Window | Steel Door (2000*980mm); Aluminum alloy double hollow glass sliding window (1200*1000mm) |
| Electric System | LED lights, double sockets, air-switch, and electrical box with safety protection |
