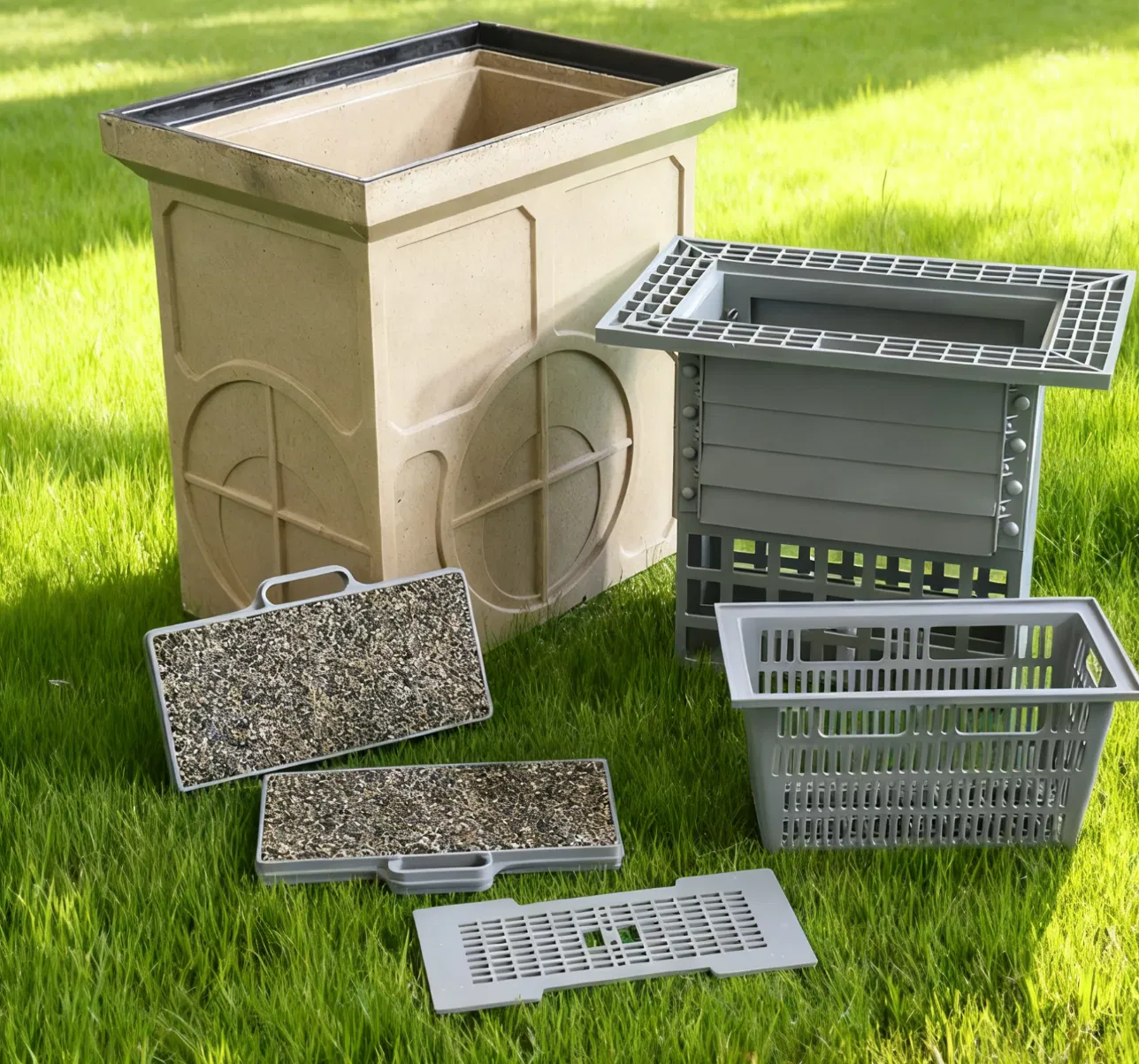

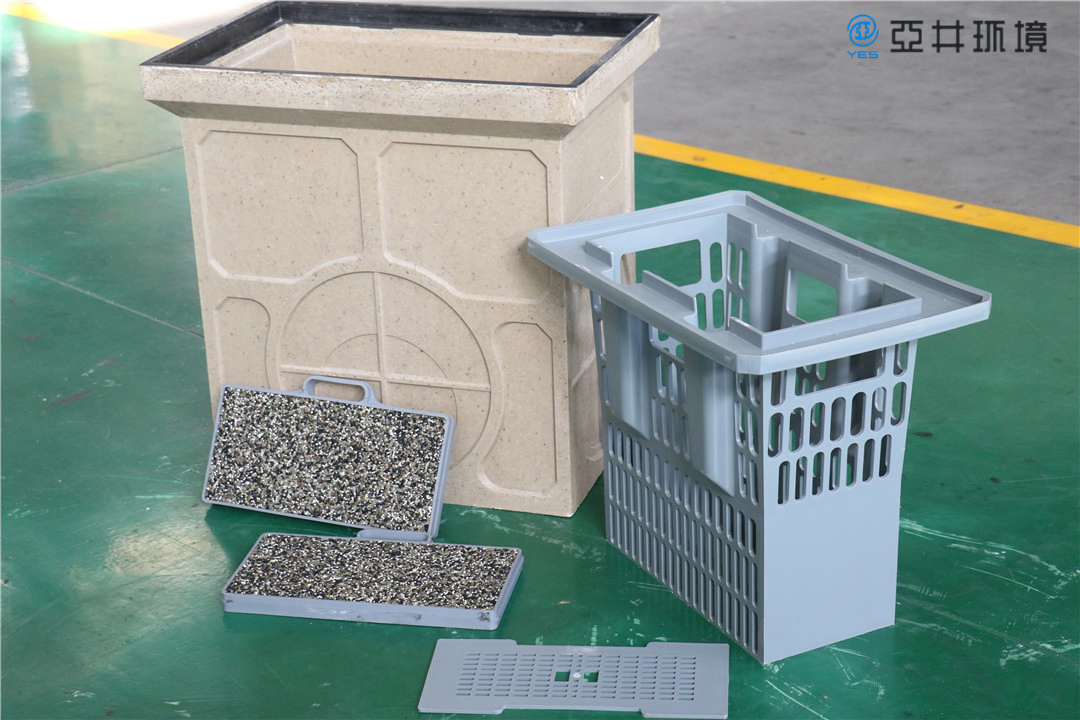

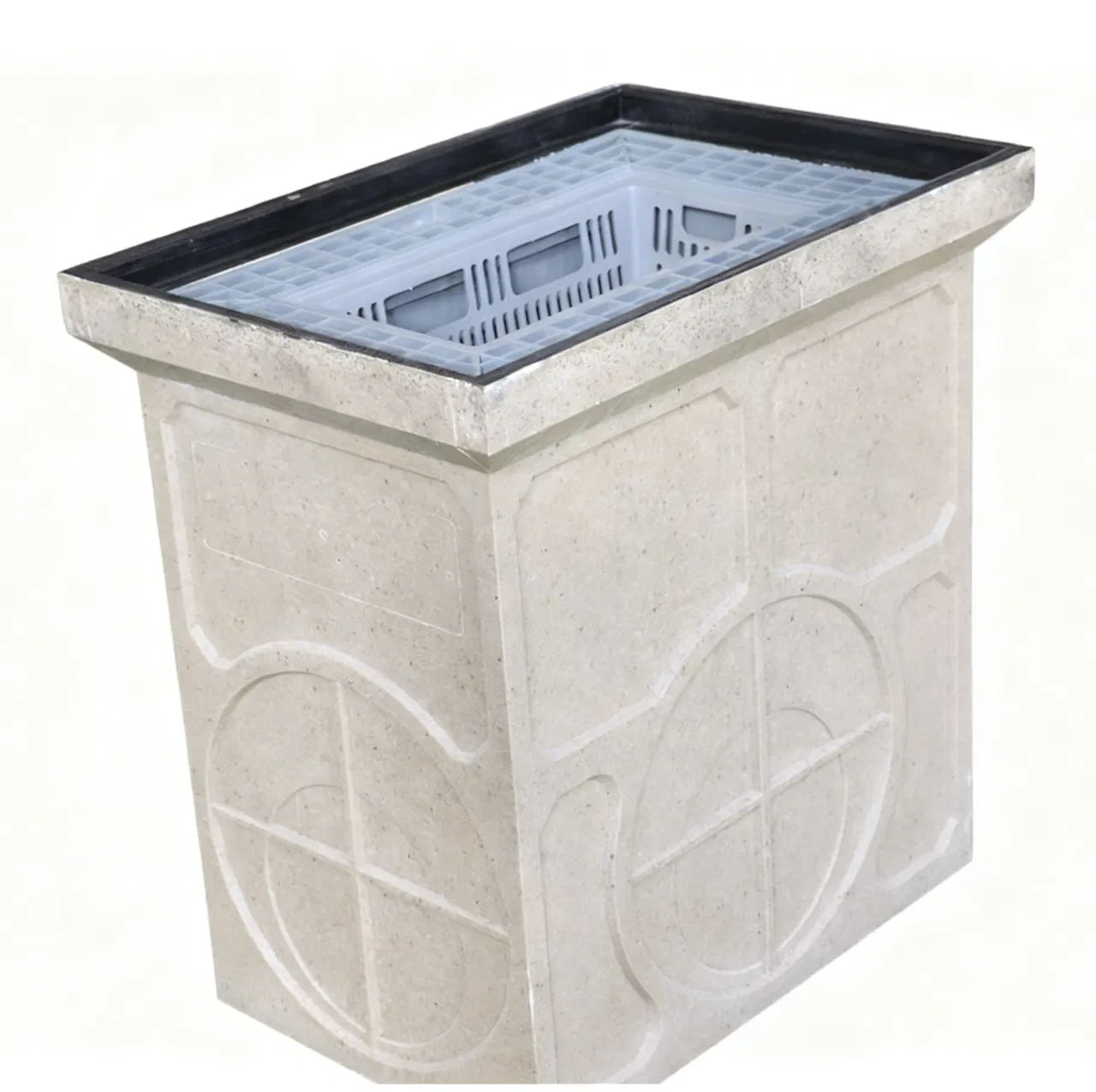

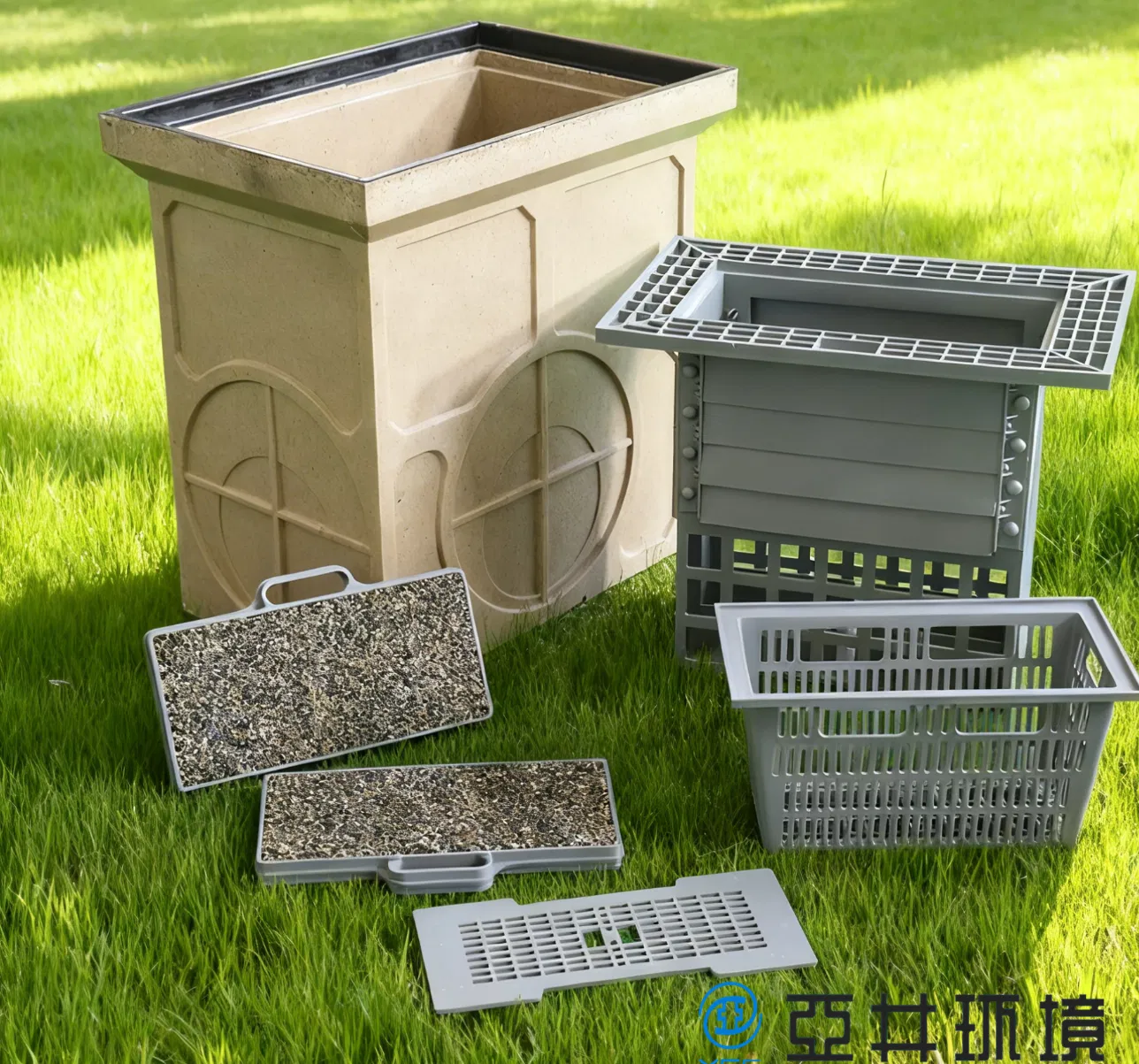

Traffic Resistant Inlet Solution for Strong Build Stormwater Filtration

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Product Type
Multifunctional Stormwater Inlet
Materials
Reinforced Polymer Concrete
Load Rating
Class D400 (Customizable)
Purification
>85% Tss Removal
Dimensions
L(640-800)*W(440-500)*H(120-720)
Installation
Prefabricated Modular Design
Maintenance
Low Frequency Cleaning
Features
Mosquito & Odor Prevention
Applications
Roads/Parks/Residential Areas
Origin
China
Product Description
Stormwater Inlet Solution

Multifunctional Stormwater Inlet

A pioneering product designed to tackle urban non-point source pollution at its source. Expert evaluations confirm its ability to significantly reduce pollutants in initial rainwater, featuring high-efficiency purification, load-bearing compliance, prefabricated modular design, mosquito and odor prevention, easy installation, and low maintenance.

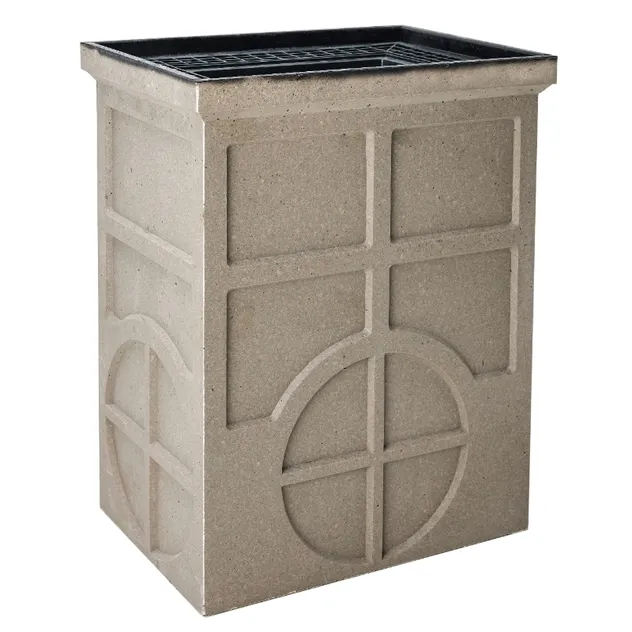

Inlet Detail 1

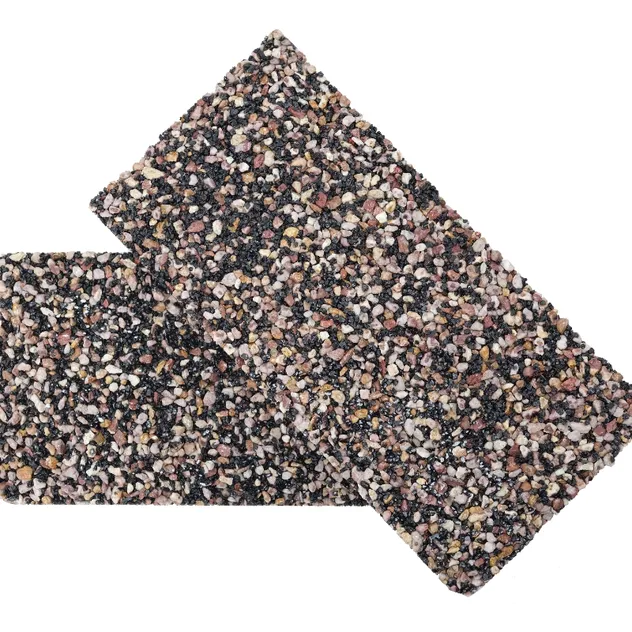

Inlet Detail 2

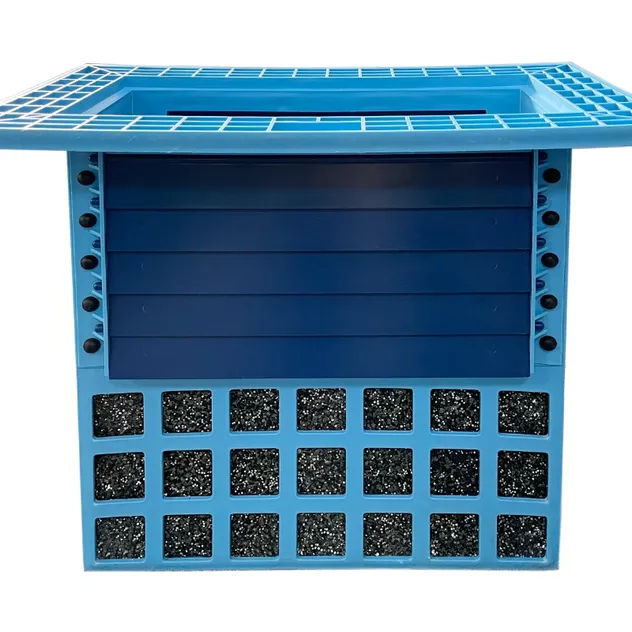

Inlet Detail 3
1
Proven Performance in Source Pollution Control: Intercepts and treats the most polluted "first flush" of stormwater directly at the source, effectively protecting downstream ecosystems.
2
Unmatched Durability: Engineered for high load-bearing capacity, ensuring reliable performance under roads and heavy-traffic areas.
3
Effortless Installation: The prefabricated, modular design drastically reduces installation time and labor costs.
4
User-Centric Design: Integrated mosquito and odor prevention enhance public comfort and minimize health risks.

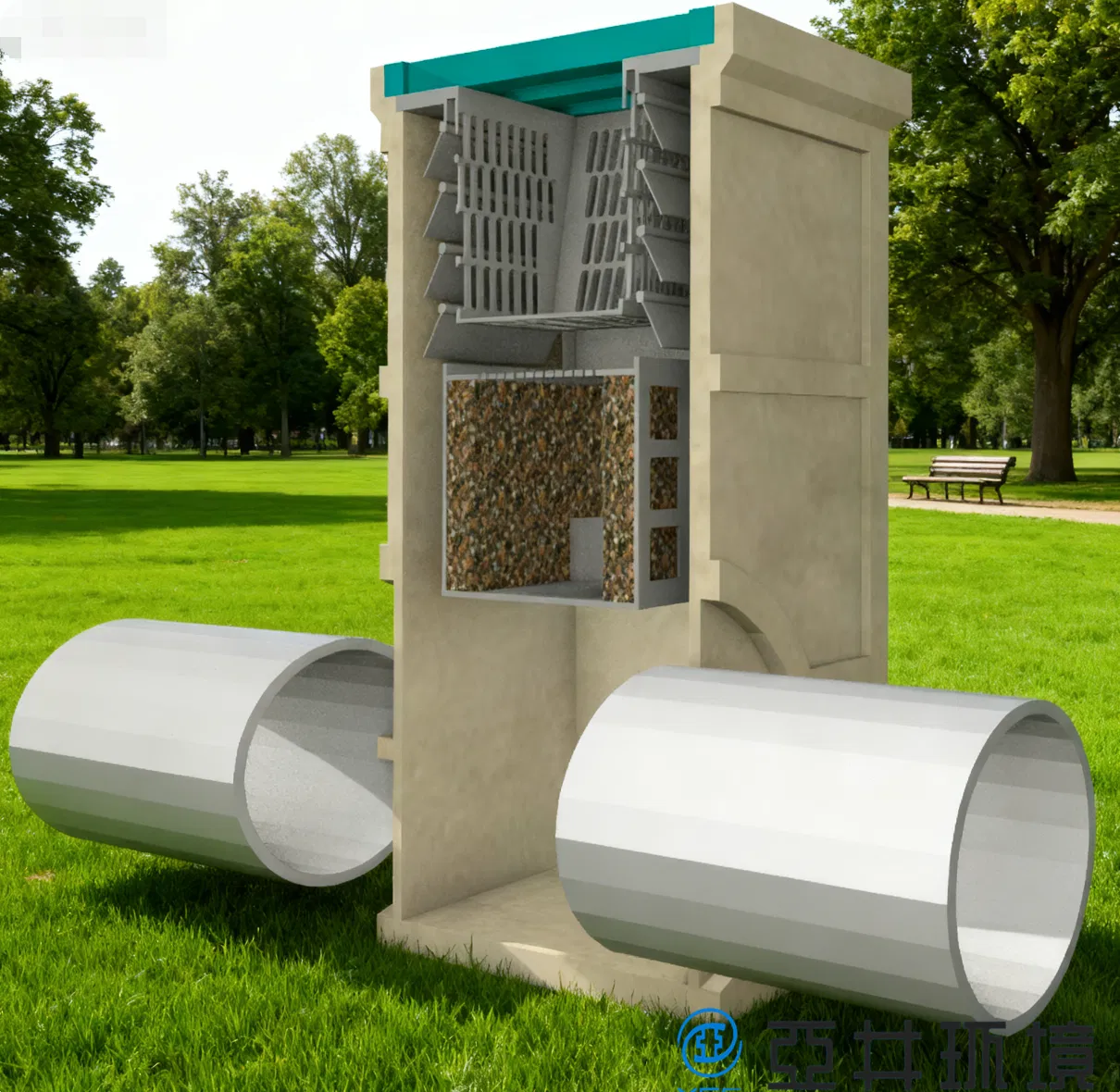

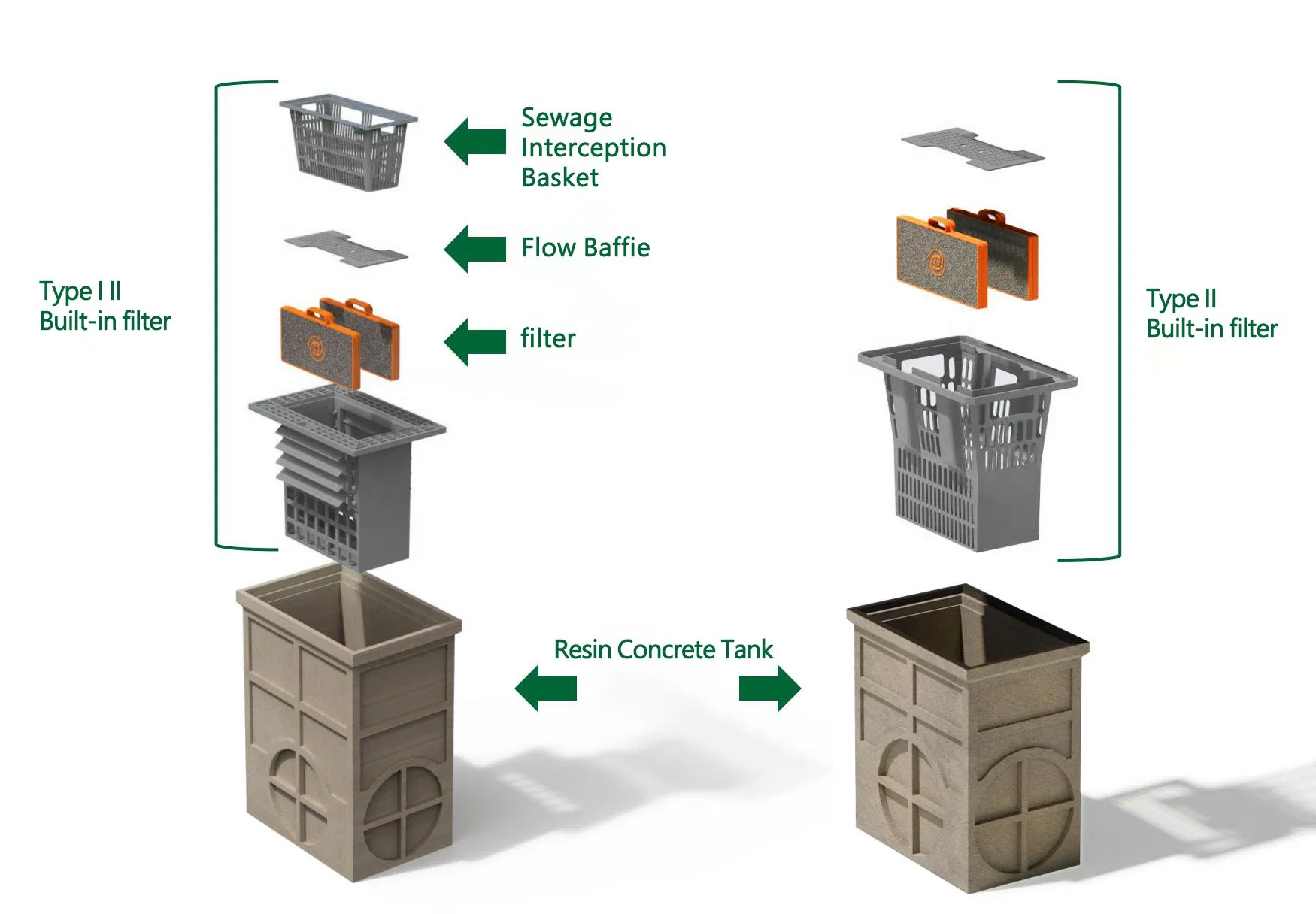

Inlet Structure

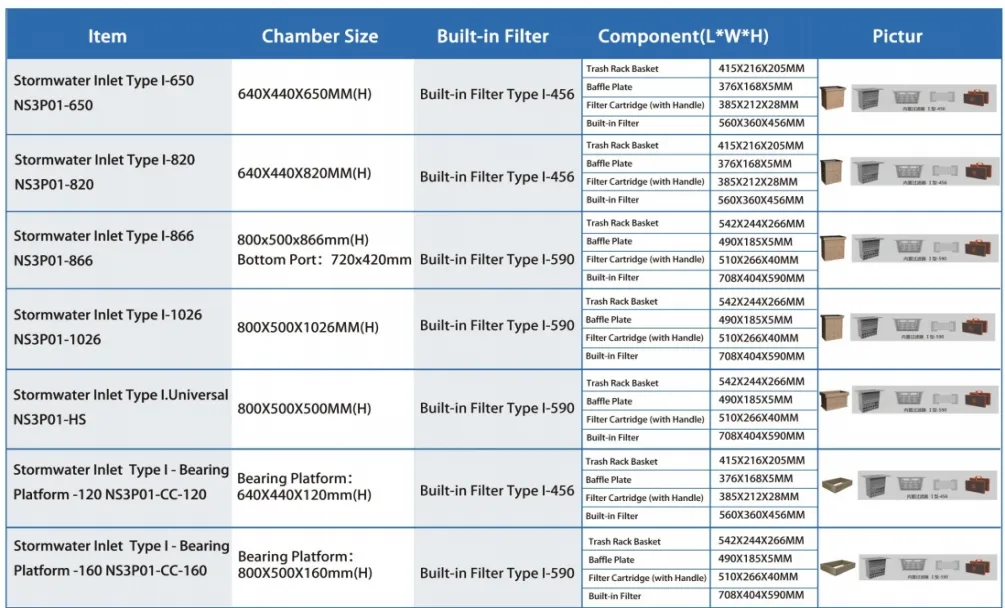

Technical Drawing
Installation Steps
  • 1. Pit PositioningConfirm the pit location according to the drainage pipe network layout after road base stabilization.
  • 2. Base Layer ConstructionLevel the ground with sand/gravel or pour a C20 concrete cushion layer.
  • 3. Tank Cutting/DrillingCreate holes matching the drainage pipe diameter at pre-marked positions.
  • 4. Tank AlignmentAdjust the tank position within the pit to align precisely with the pipe network.
  • 5. BackfillingSecure the structure with C25 concrete backfill.
  • 6. Pavement ControlMaintain 50mm distance from curb stones for paving equipment.
  • 7. Joint SealingFill gaps with structural adhesive or cement and wait for curing.
  • 8. Filter InstallationPlace the built-in filter into the tank after road asphalt paving is finished.
Product Applications

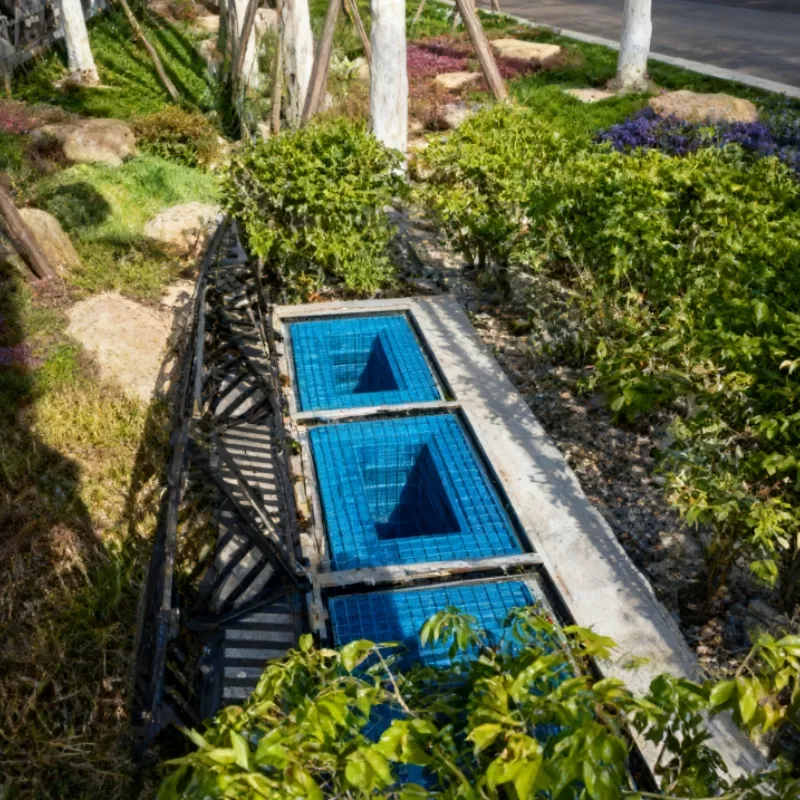

Application 1

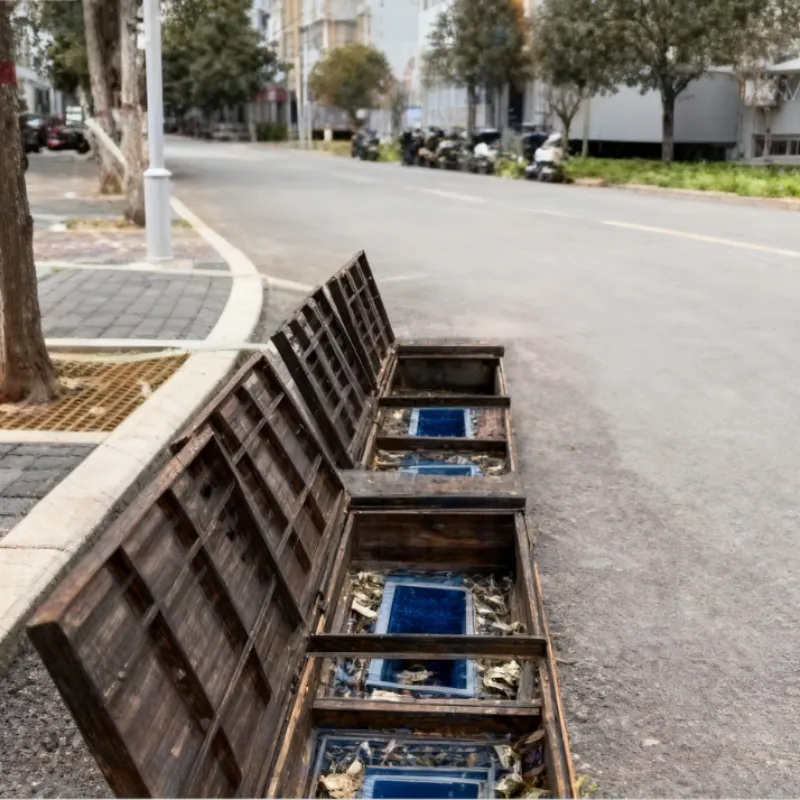

Application 2

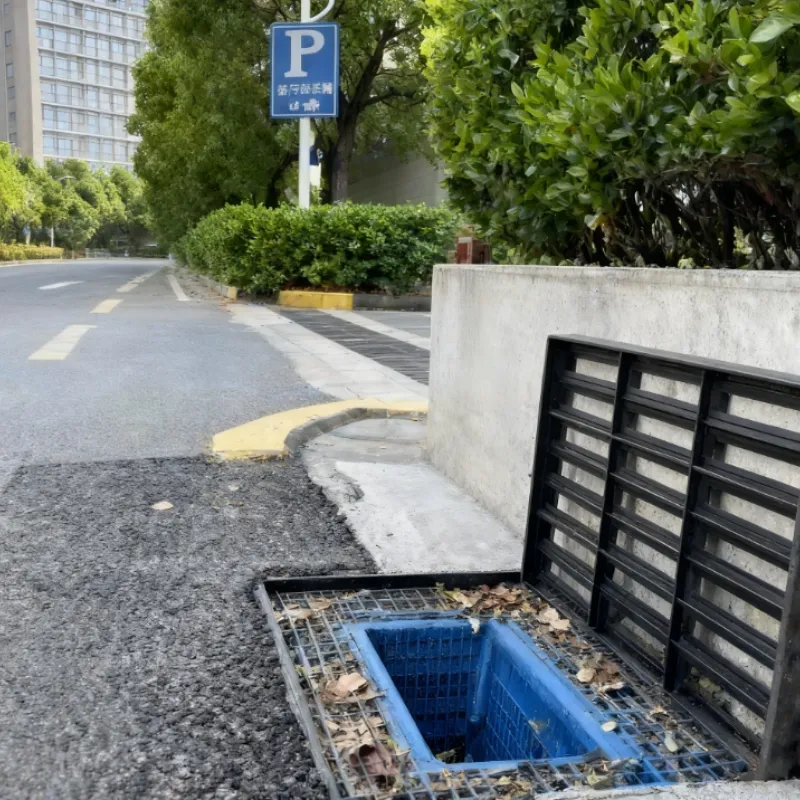

Application 3
Company Profile & Factory

Established in 2009, the company operates 30+ branches and 4 manufacturing bases. Utilizing automated production lines for resin concrete and plastic injection molding, a comprehensive quality control system ensures product reliability from raw materials to final output.

With a professional R&D team of over 40 staff and more than 150 patents, the company has participated in compiling 30+ industry standards. It is recognized as a National High-tech Enterprise.

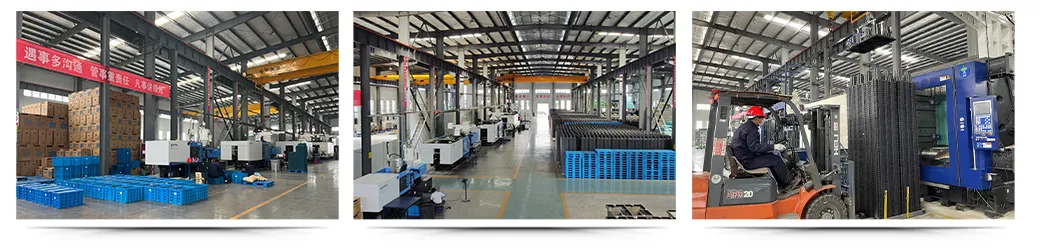

Factory Overview
Certifications

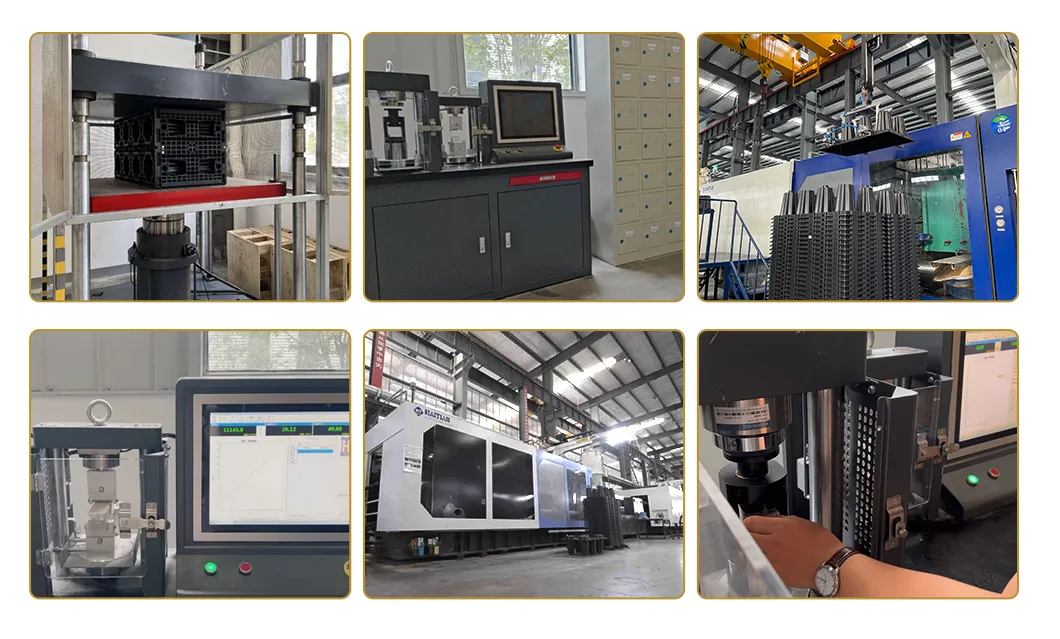

Process 1
Process 2
Packing
Frequently Asked Questions
What is the purification efficiency of this inlet?
The multifunctional stormwater inlet achieves over 85% TSS (Total Suspended Solids) removal, significantly reducing pollution in initial rainwater runoff.
Can the load rating be customized for heavy traffic?
Yes, while the standard load rating is Class D400, it can be customized to meet specific project requirements for various traffic conditions.
How does it prevent odors and mosquitoes?
The unit features an integrated design specifically engineered to seal off odors from the drainage system and prevent mosquito breeding in standing water.
What material is used for the tank construction?
The tanks are made from high-strength reinforced polymer concrete, which offers superior durability and chemical resistance compared to traditional concrete.
Is the installation process time-consuming?
No, the prefabricated modular design allows for a "plug-and-play" installation, which significantly reduces labor costs and site construction time.
What kind of maintenance is required?
The system is designed for low-maintenance operation. Periodic cleaning of the built-in filter is recommended to ensure optimal flow and purification performance.
