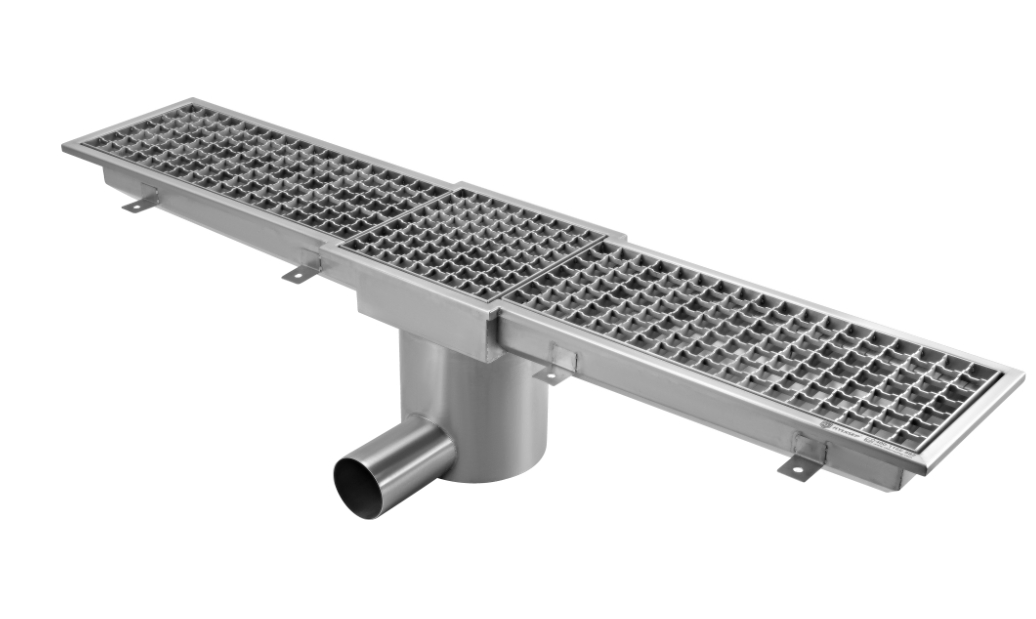

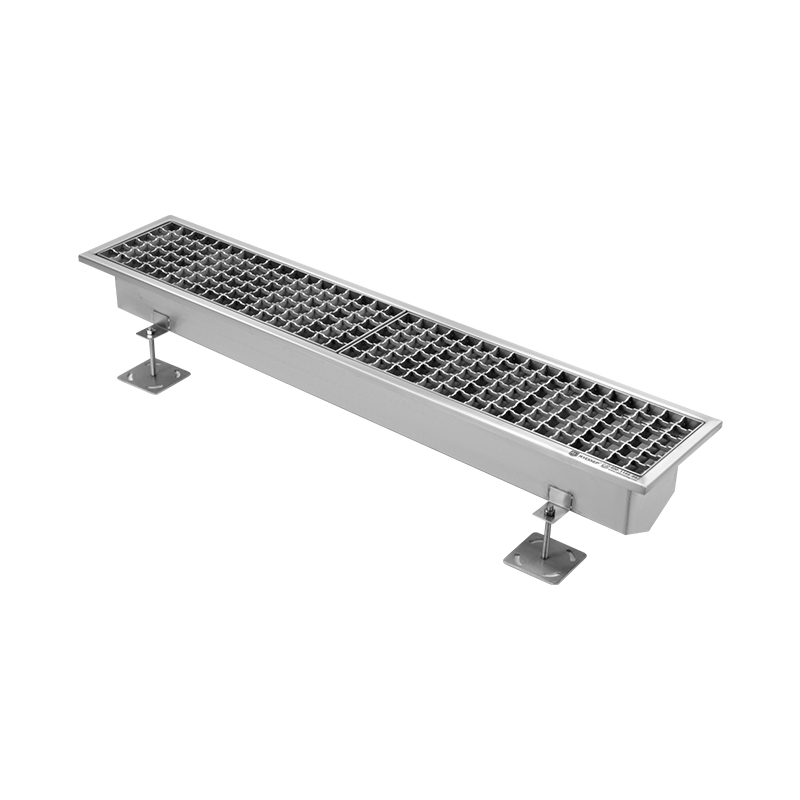

High Flow Rate Foodsafe 316L Durable Hygienic Stainless Trench Channel System for Poultry Industry

📋 Basic Information

Model NO.

KYDG-V

Material

Stainless Steel

Application

Floor

Surface Treatment

Polished

Kind

Floor Drain

Indoor/Outdoor

Indoor

Odour Proof

Style

Industrial Stainless Trench Drain

Color

Silver

Thickness

2mm / 1.5mm

Slope

0.3% - 1%

Shape

V-Bottom, U-Bottom

Production Capacity

3000 M/Day

💎 Product Advantages

Efficiently drain large amounts of water.
Easy configuration and connection at required angles.
Compatible with various types of covering gratings.
Hygienic design with easy access for cleaning (rounded internal corners).
Adaptable channel edges for different floor types (tiles, expansion joints).
Built-in bottom slope ranging from 0.3% to 1% for optimal flow.

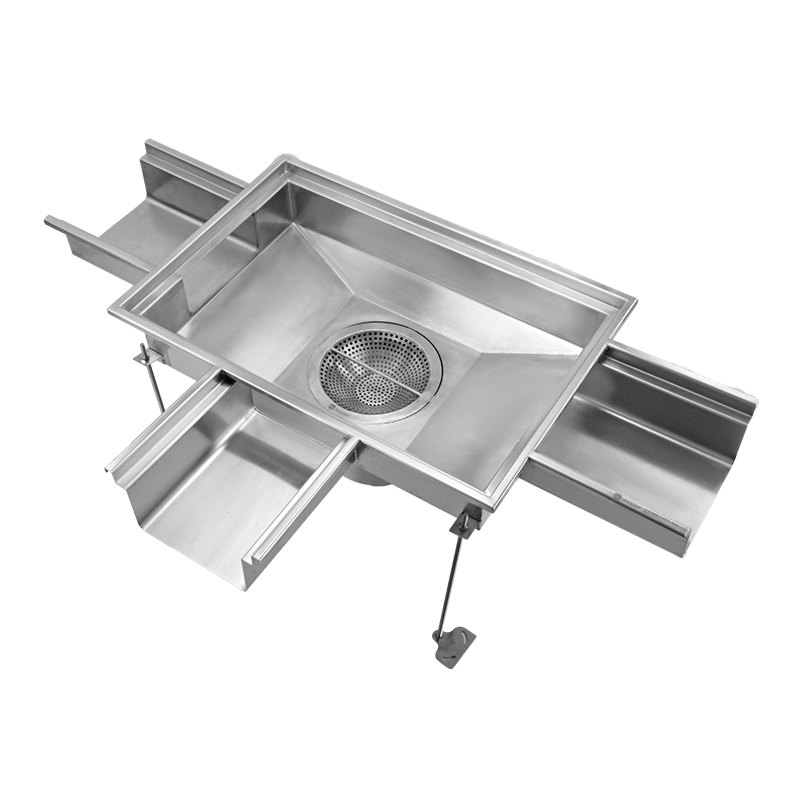

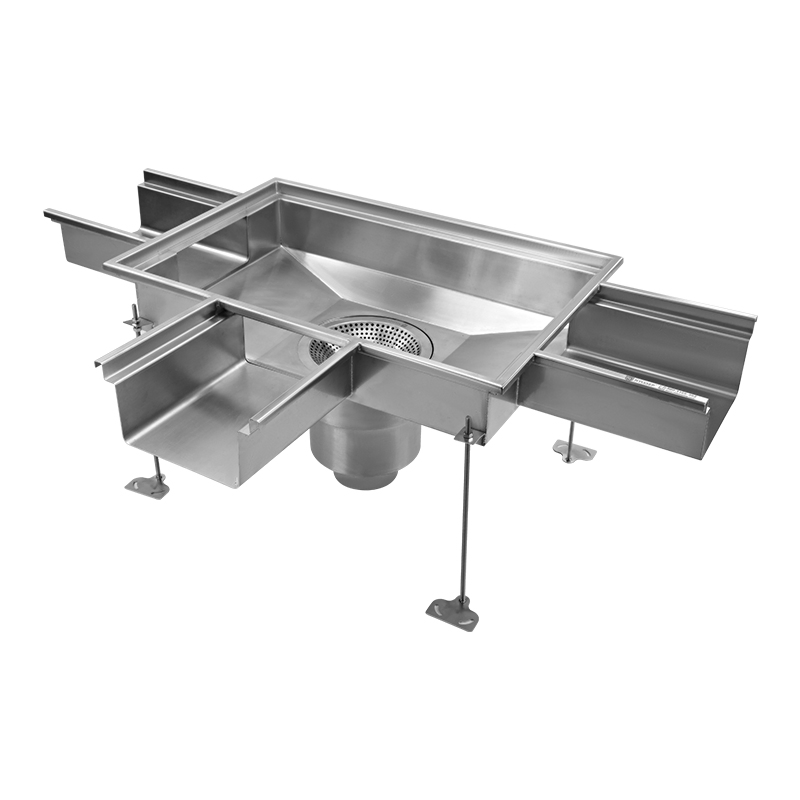

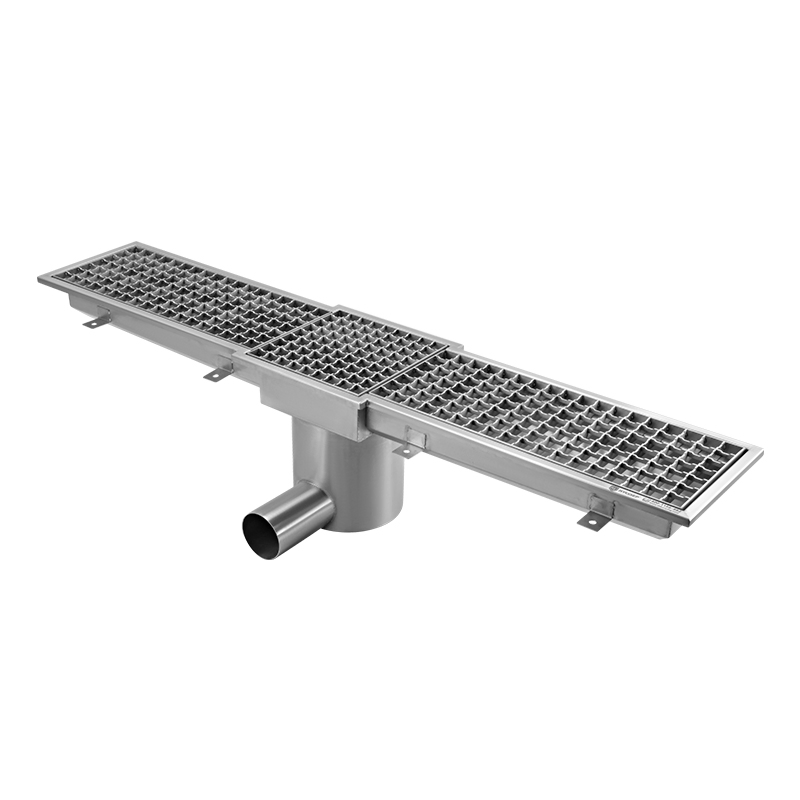

🖼️ Stainless Steel Trench Drain Gallery

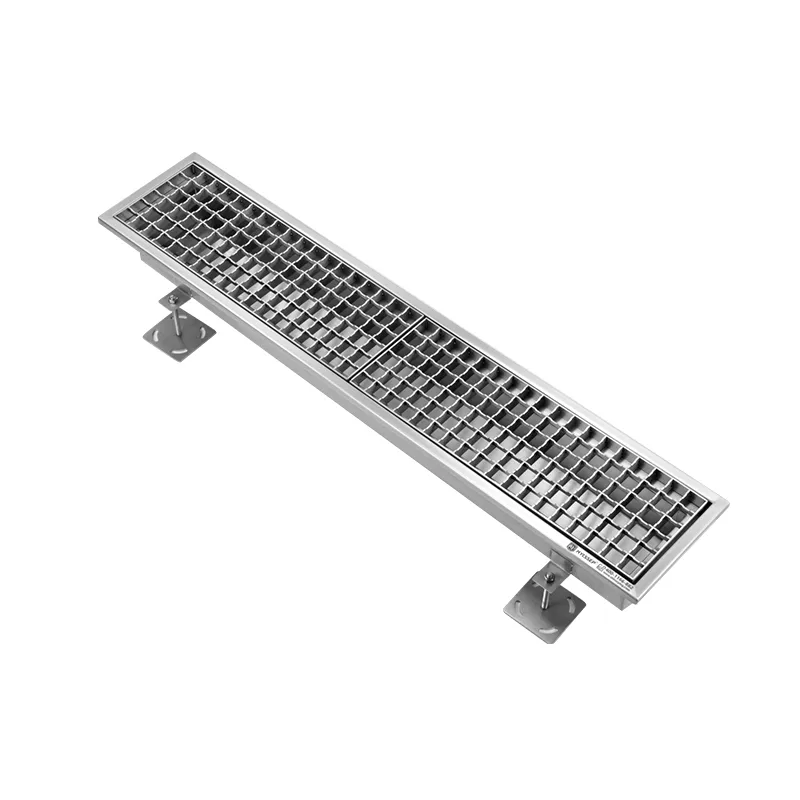

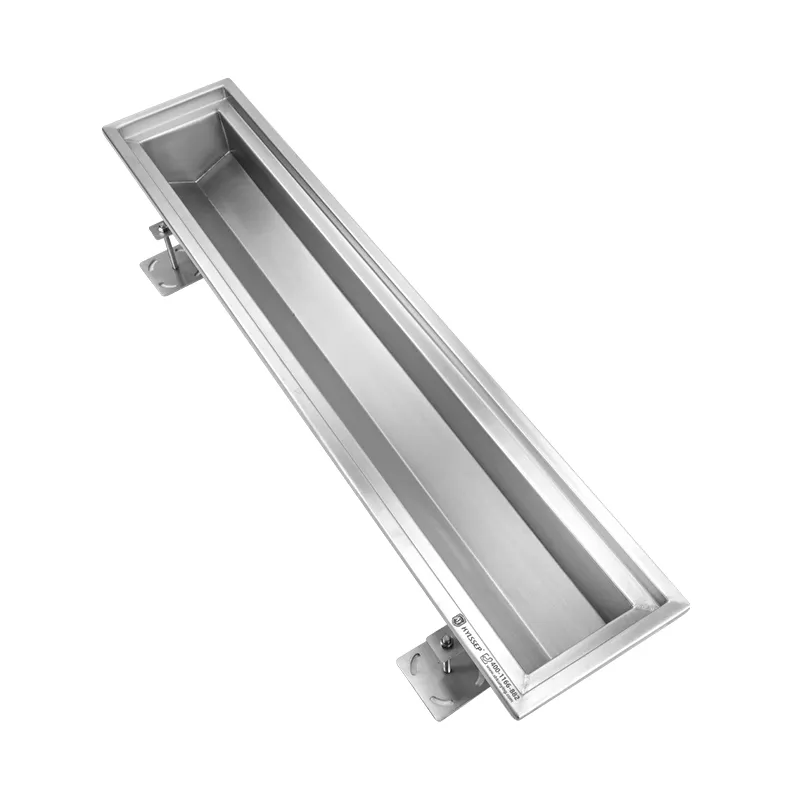

V-bottom Stainless Steel trench drain systems designed for high flow and durability.

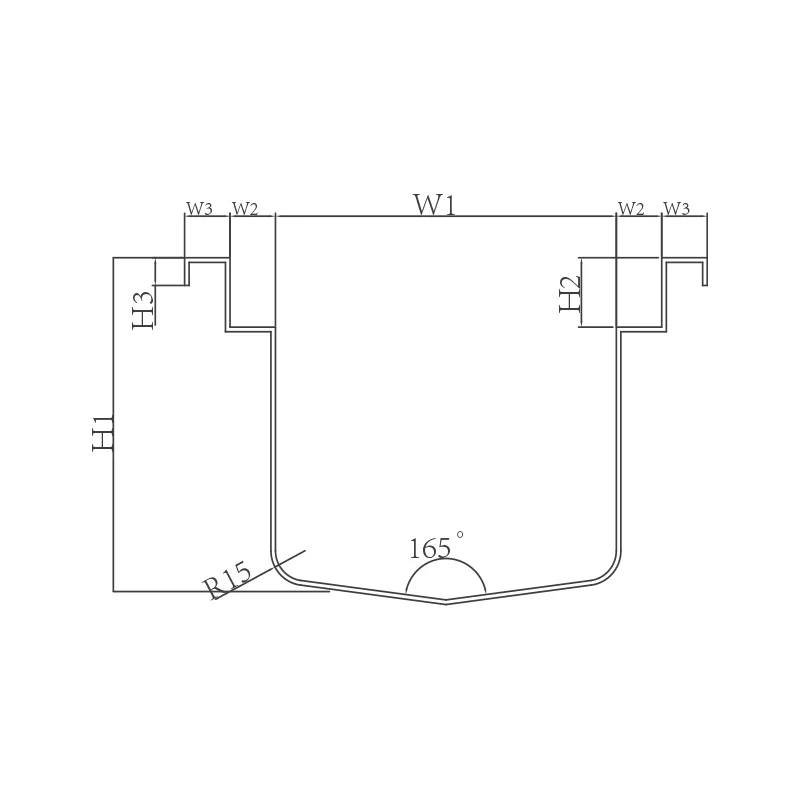

📊 Technical Parameters

W1	W2	W3	H1	H2	H3	W1	W2	W3	H1	H2	H3
100	20	20	100	30	12	250	25	20	150	30	12
100	20	20	150	30	12	250	25	20	200	30	12
150	20	20	100	30	12	250	25	20	250	30	12
150	20	20	150	30	12	250	25	20	300	30	12
200	25	20	200	30	12	300	30	20	250	30	12

⚙️ Key Features

R-angle Design: Smooth corners for effortless cleaning and maintenance.

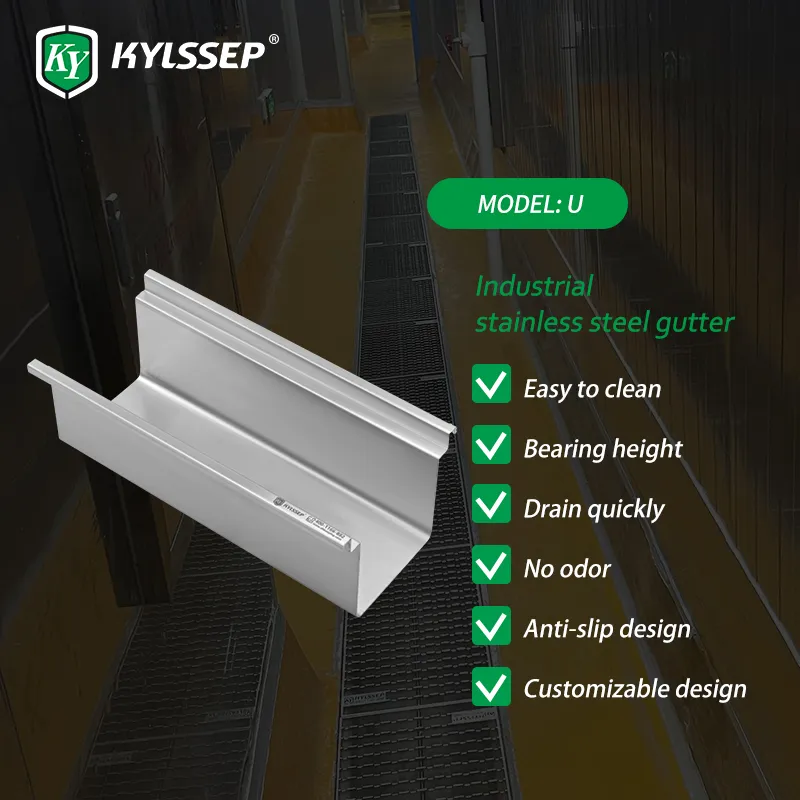

U-channel Shape: Maximizes flow capacity for high-demand environments.
Pre-sloped Construction: Ensures efficient drainage and prevents standing water.
Solid Top Bending: Reinforced structural design for heavy-duty support.
Hygienic Surface: Polished, pickled, and passivated for superior sanitation.

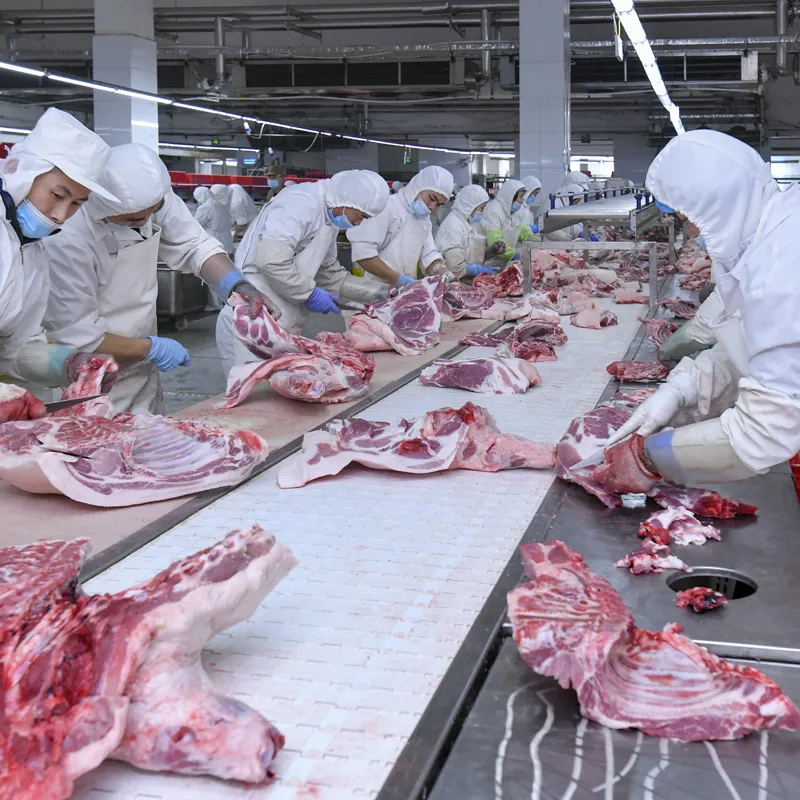

🏭 Industrial Applications

Ideal for Food Industry, Brewery & Winery, Chemical Plants, and Clean Rooms.

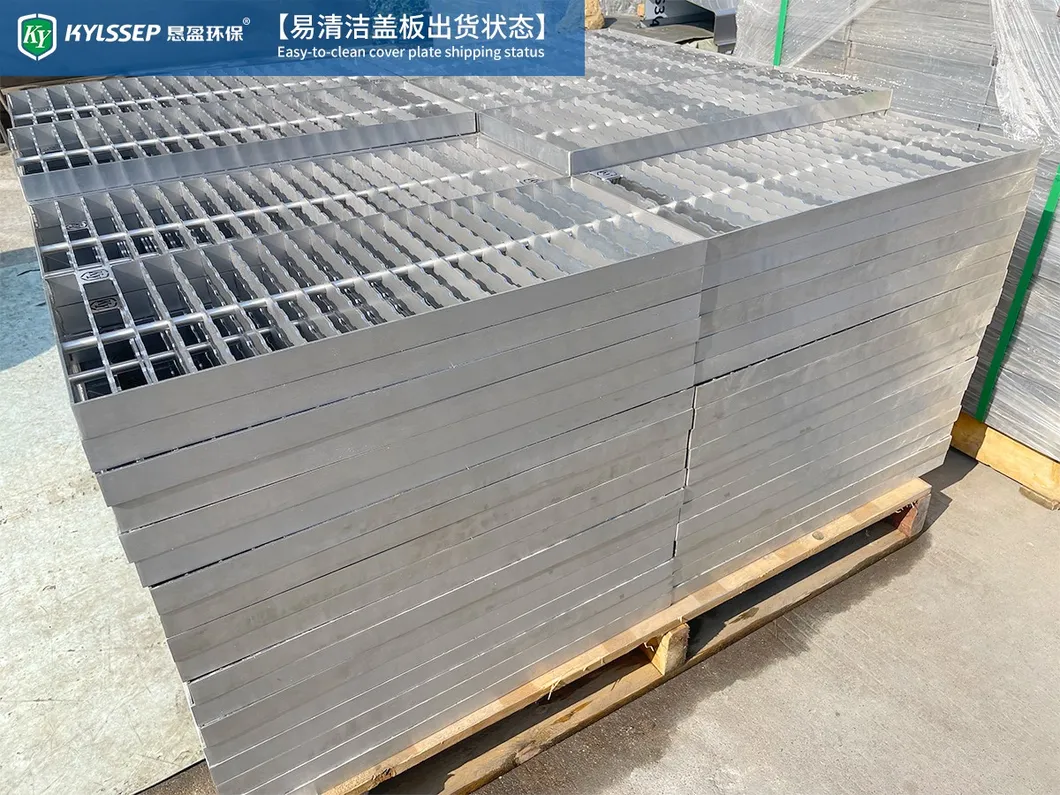

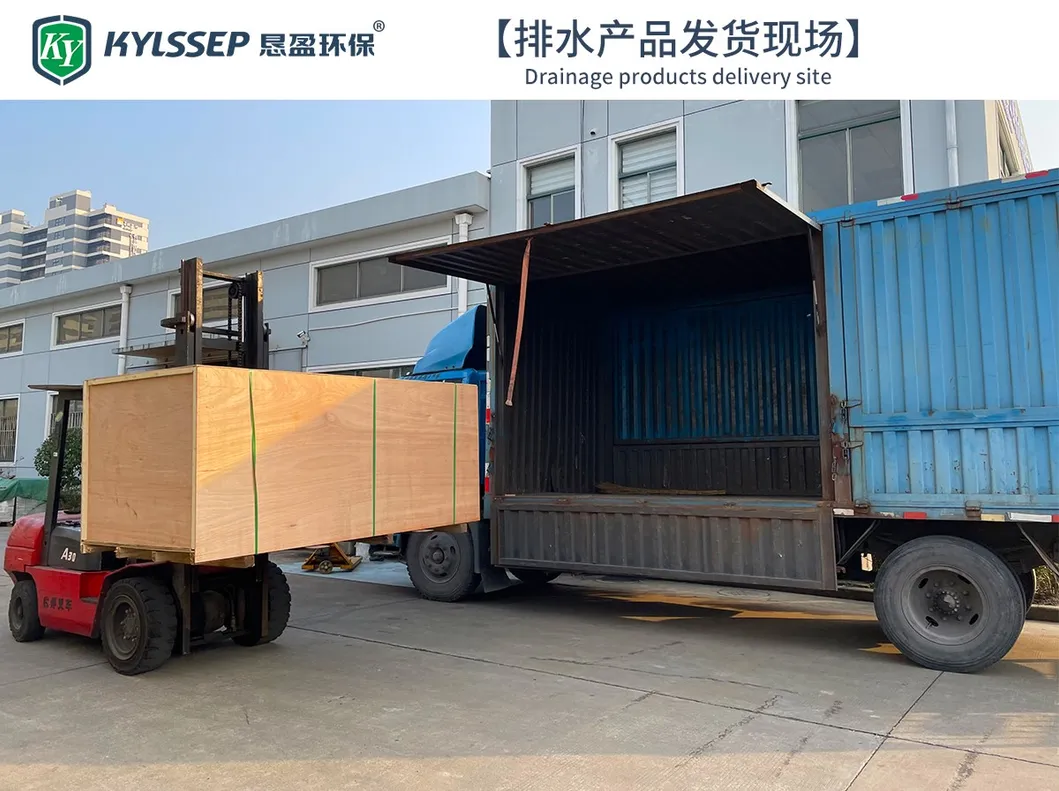

📦 Packaging & Logistics

❓ Frequently Asked Questions

What is the best floor drain material for corrosive materials?

Stainless steel is the premier choice. Its alloy composition allows it to withstand chemicals with both high and low pH levels, even in extreme industrial cases.

Which drain system is best for food processing facilities?

The stainless steel slot drain paired with high-flow capabilities is ideal. It features radiused edges and pre-sloped construction to prevent bacterial growth and handle heavy forklift traffic.

How do I choose the right floor drain for my application?

Consider factors like the type of liquid being drained, the volume of traffic (forklifts vs. pedestrians), chemical exposure, and sanitation requirements.

What load rating do these drains support?

Most of our industrial drains have a Load Class rating of E, which is more than adequate for food, beverage, and heavy warehouse applications.

Are the drains easy to clean?

Yes, the R-angle design and smooth internal corners ensure there are no dead zones where bacteria can hide, making them extremely easy to sanitize.

Do the drains prevent standing water?

Yes, the built-in slope (0.3%-1%) ensures that all water and liquids flow continuously toward the outlet, preventing stagnant water and odors.
