📋 Overview & Basic Info
| Model NO. | KYDG-U |
Material | Stainless Steel |
| Application | Floor |
Surface Treatment | Polished |
| Kind | Floor Drain |
Indoor/Outdoor | Indoor |
| Odour Proof | Odour Proof |
Style | Industrial Stainless Trench Drain |
| Color | Silver |
Wastewater Type | Industrial Wastewater |
| Thickness | 2mm / 1.5mm |
Slope | 0.3%-1% |
| Production Capacity | 3000 M/Day |
HS Code | 7326901990 |
💎 Advantages of Channel Drains
- Drain large amounts of water efficiently
- Easily configured and connected at required angles
- Compatible with various covering gratings
- Easy access for cleaning with rounded internal corners
- Edge adaptation for different floor types
- Built-in bottom slope (0.3%-1%)

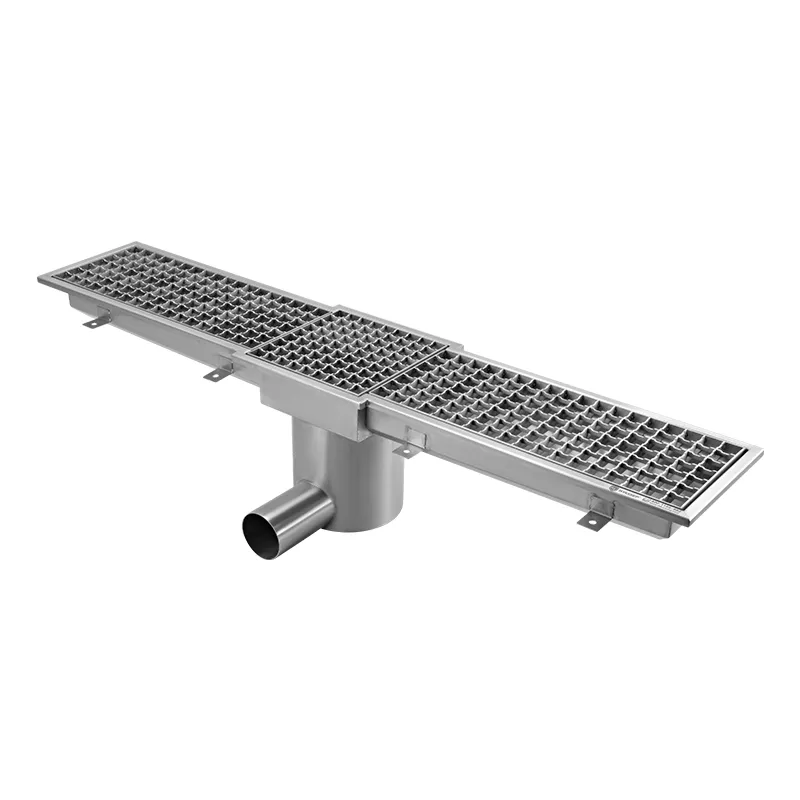

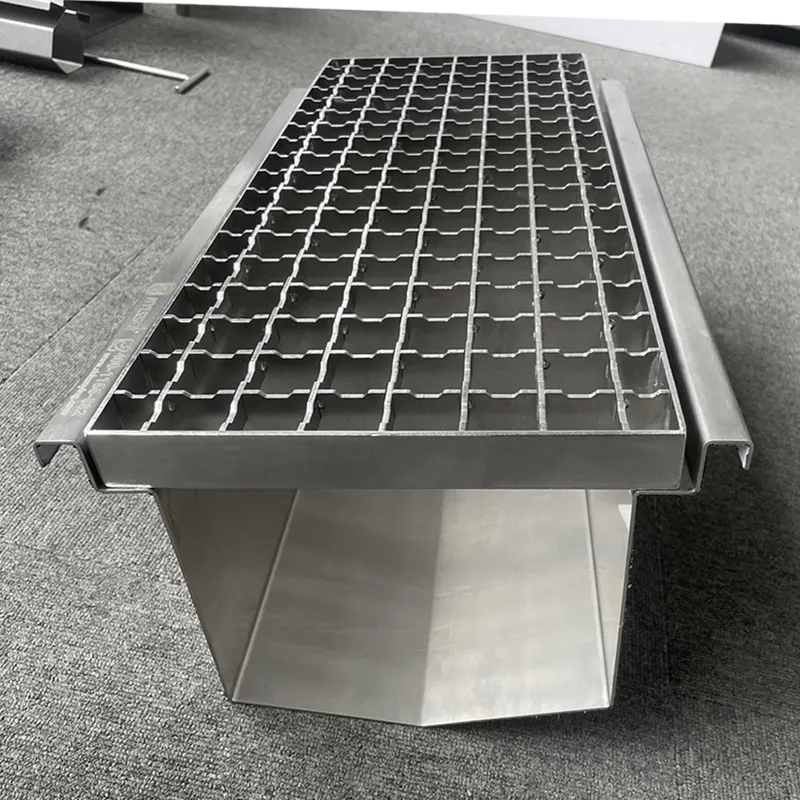

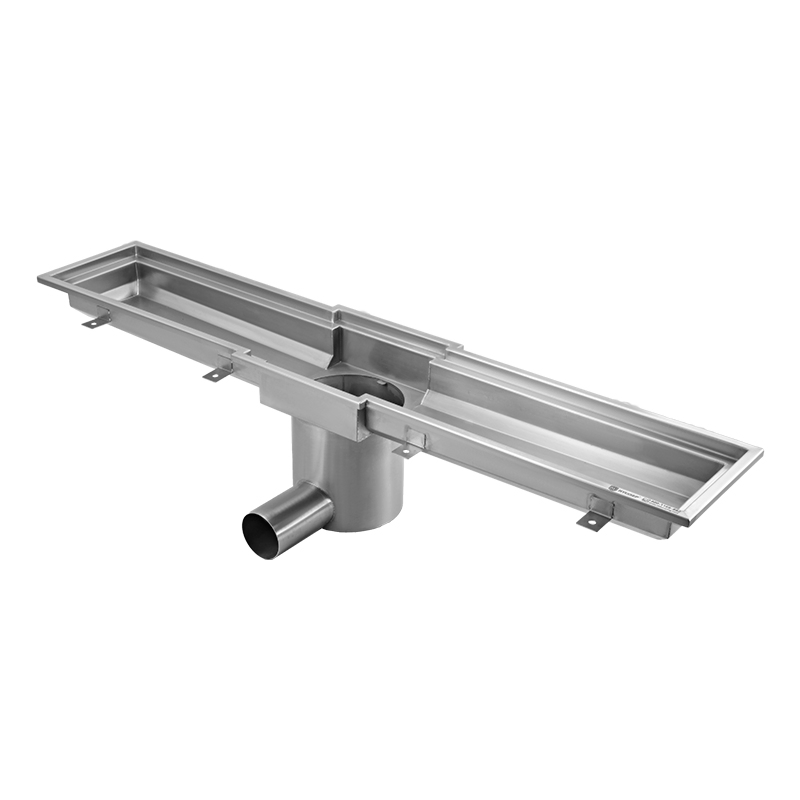

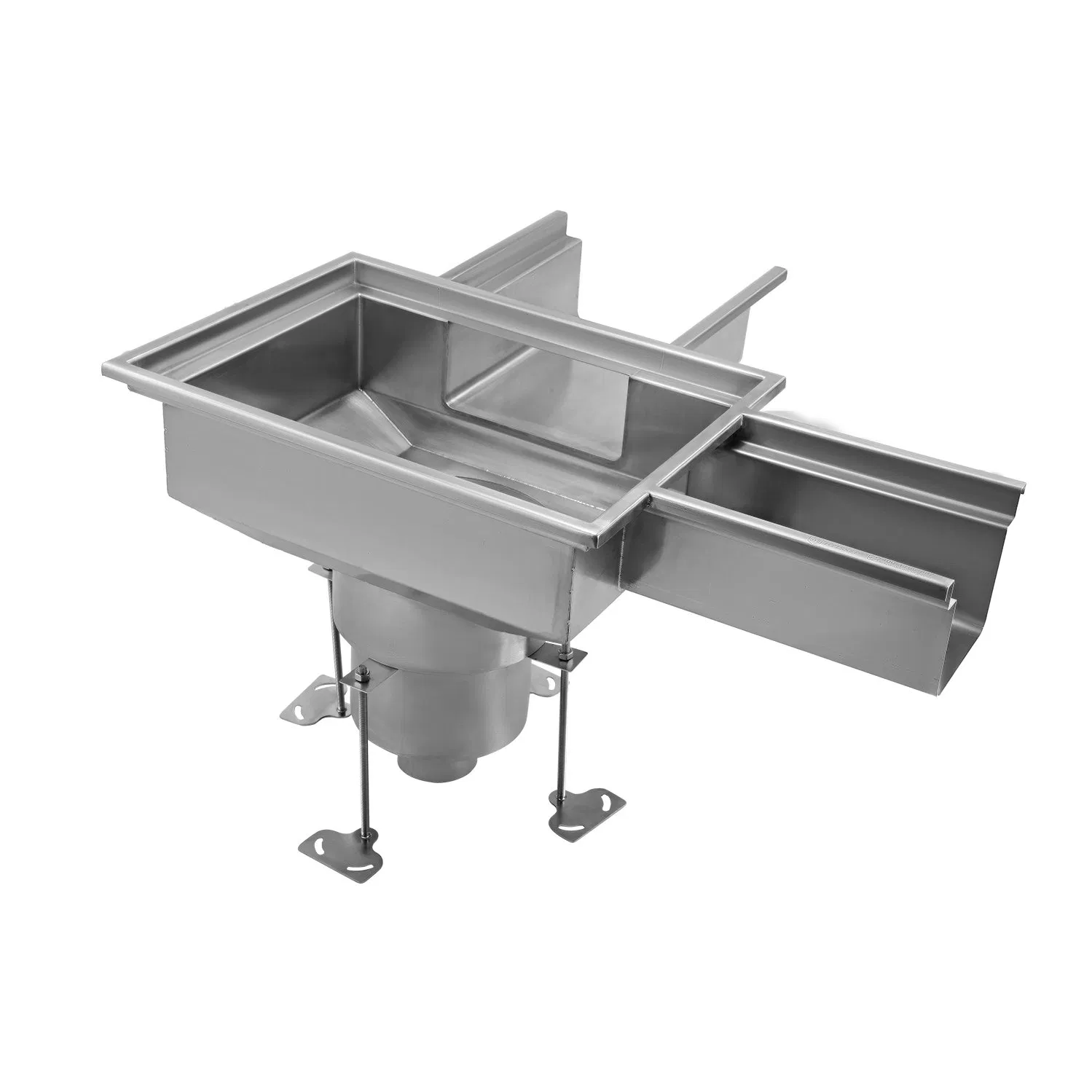

🏗️ Stainless Steel Trench Channel Drain
U-bottom Stainless Steel trench drain system designed for high flow rates and hygiene demanding environments.
📊 Product Parameters (Unit: mm)
| W1 | W2 | W3 | H1 | H2 | H3 |
W1 | W2 | W3 | H1 | H2 | H3 |
| 100 | 20 | 20 | 100 | 30 | 12 |
250 | 25 | 20 | 150 | 30 | 12 |
| 100 | 20 | 20 | 150 | 30 | 12 |
250 | 25 | 20 | 200 | 30 | 12 |
| 150 | 20 | 20 | 100 | 30 | 12 |
250 | 25 | 20 | 250 | 30 | 12 |
| 200 | 25 | 20 | 100 | 30 | 12 |
300 | 25 | 20 | 200 | 30 | 12 |
✅ Core Features
- R-angle design, easy to clean
- U-channel design, max flow capacity
- Built-in Slope design, easy to flow
- Top bending design, solid enough
- Hygienic, sanitary and safe
- Durable and easy to install

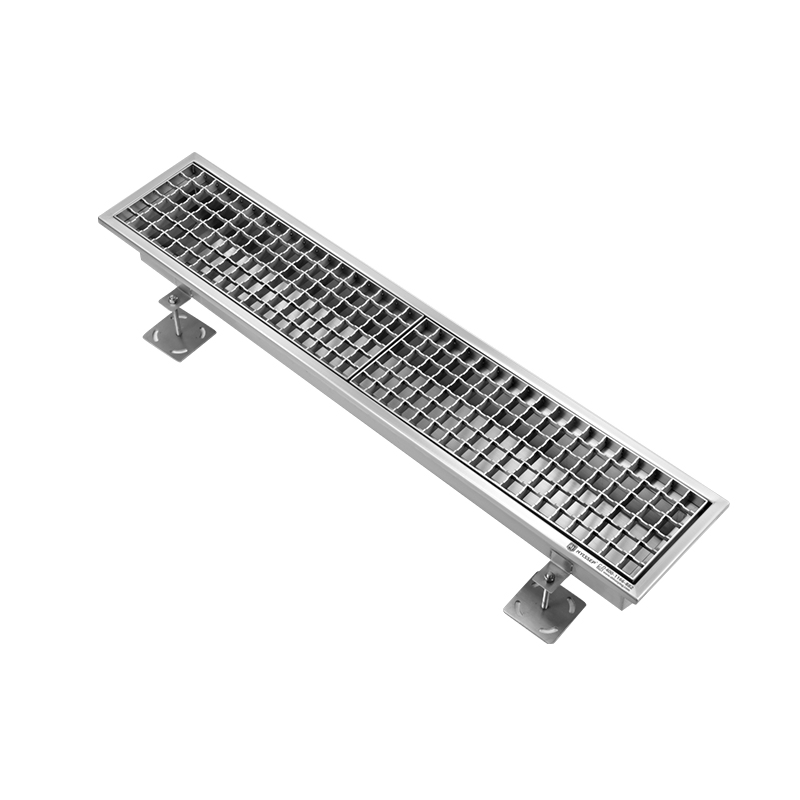

Our grated Trench Drain is ideal for facilities where solid materials accumulate. It provides a wide enough opening for solids to flow freely while preventing tripping hazards and sustaining heavy equipment weight.

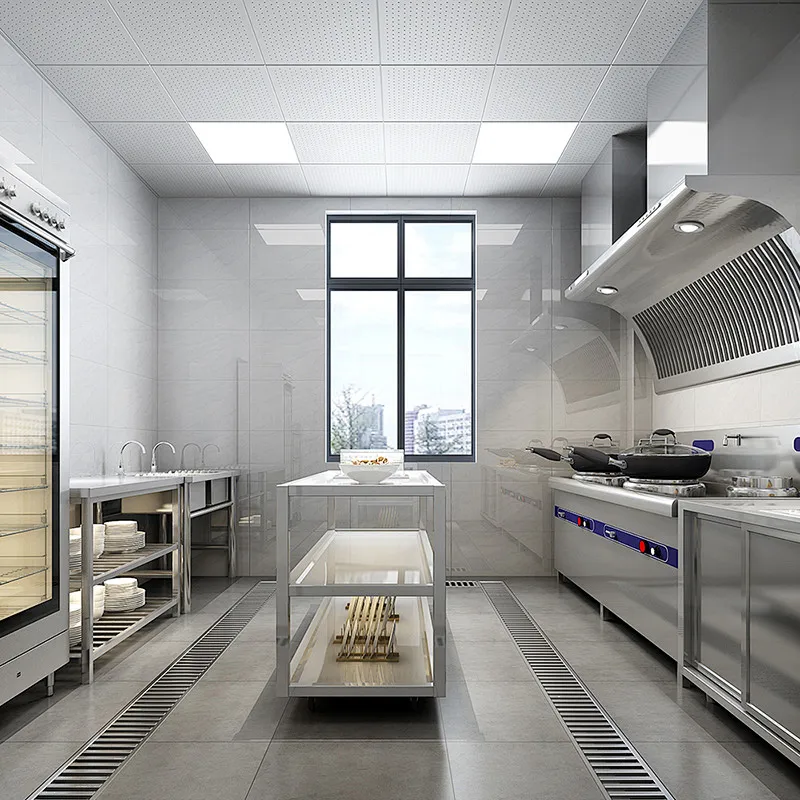

🏭 Industrial Applications
Suitable for the food industry, brewery & winery, chemical plants, and clean rooms.
📦 Packaging & Delivery

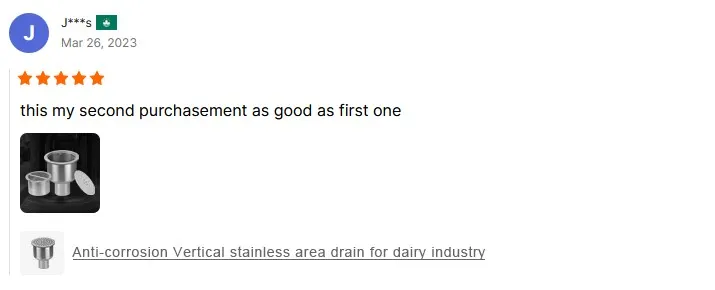

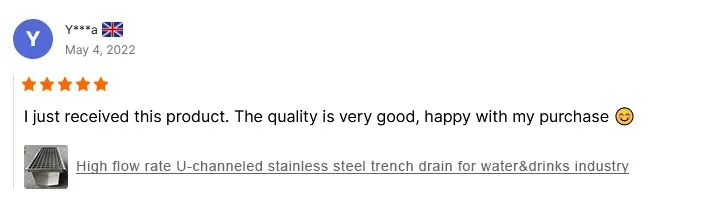

⭐ Customer Feedback
❓ Frequently Asked Questions
What is the best floor drain material for corrosive materials?
Stainless steel is the best material. Its alloy composition helps it stand up to chemicals with both high and low pH levels, even in fairly extreme cases found in industrial facilities.
What is the best floor drain for food processing facilities?
Stainless steel slot drains with detachable designs and high-flow capabilities are ideal. They provide the most sanitary construction with radiused edges and pre-sloped bottoms to prevent bacterial growth.
How do I choose the right floor drain for my application?
Consider the installation location, the volume of water, potential forklift or vehicle traffic, and exposure to harsh chemicals. Sanitation requirements also play a critical role in selection.
What load rating does my drain require?
Most industrial applications, especially in food and beverage, require a Load Class E rating, which is built to withstand heavy forklift traffic for the life of the drain.
Is custom design available for specific project needs?
Yes, custom OEM designs are available to meet unique drainage layouts, specific slope requirements, or particular floor thicknesses.
Why is the U-channel design important?
The U-channel design ensures maximum flow capacity and prevents the accumulation of debris in corners, making the drainage system more efficient and easier to clean.
Tags: Forklift Rated, High Flow Rate, Linear Drains, Easy-to-clean, Channel Drains, Trench Drains, Anti-corrosion, Anti-slip.
