Basic Information
Surface Treatment
Polished
Style

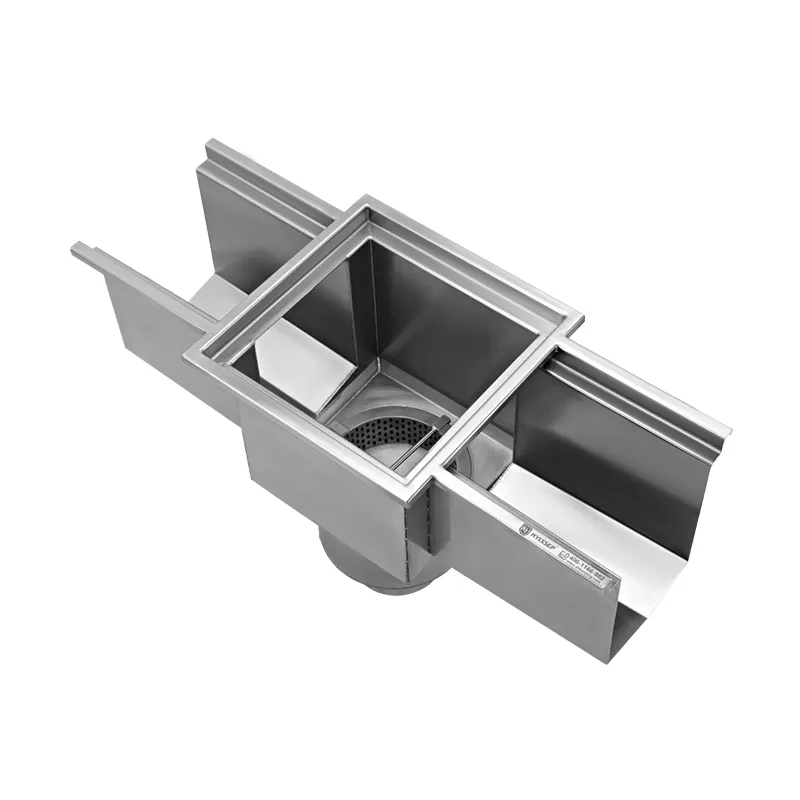

Industrial Stainless Trench Drain
Outlet
Vertical, Horizontal
Production Capacity
3000 M/Day
Product Description & Advantages

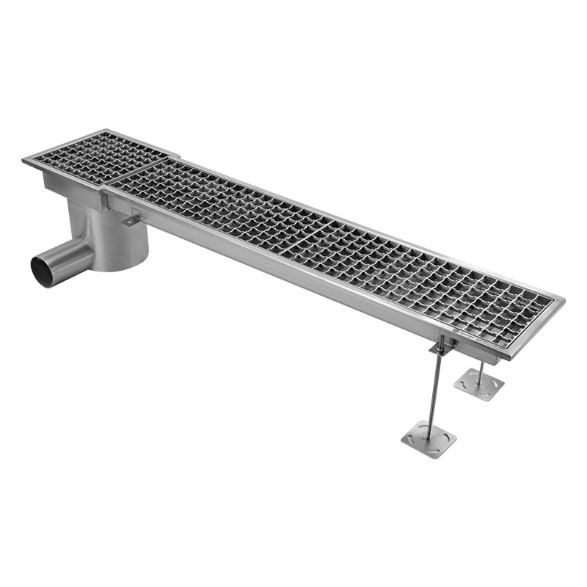

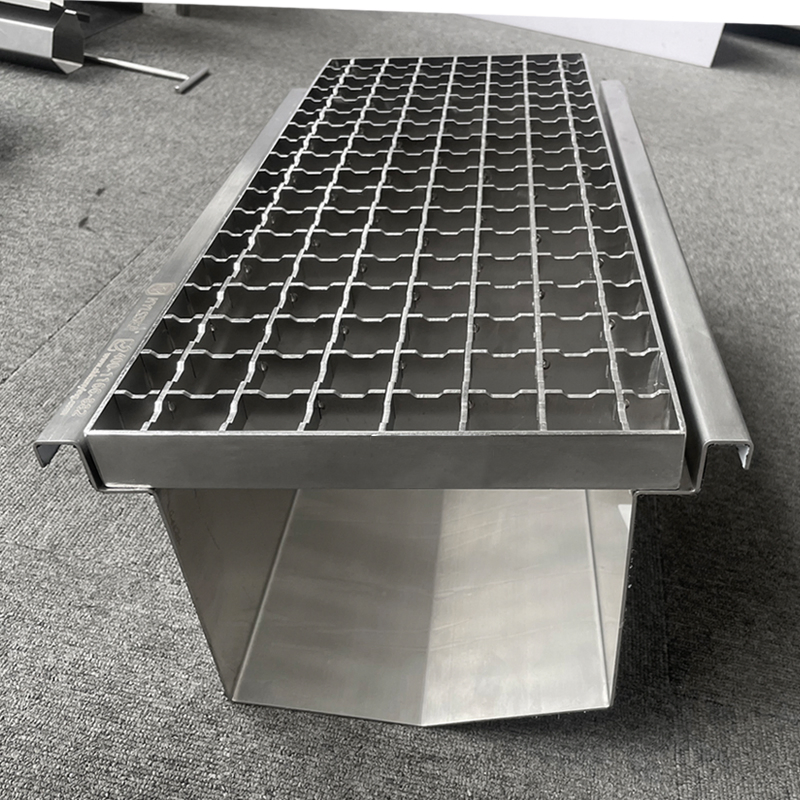

Our stainless steel trench drains are designed to handle large amounts of water efficiently. They are easily configured for required angles and compatible with various covering gratings. Ideal for hygienically demanding industries such as food processing, breweries, and chemical plants.
- Drain large amounts of water efficiently
- Easy configuration and connection at required angles
- Rounded internal corners for easy access and cleaning
- Built-in bottom slope in range of 0.3% - 1%
- Adaptable channel edges for various floor types (tiles, expansion joints)

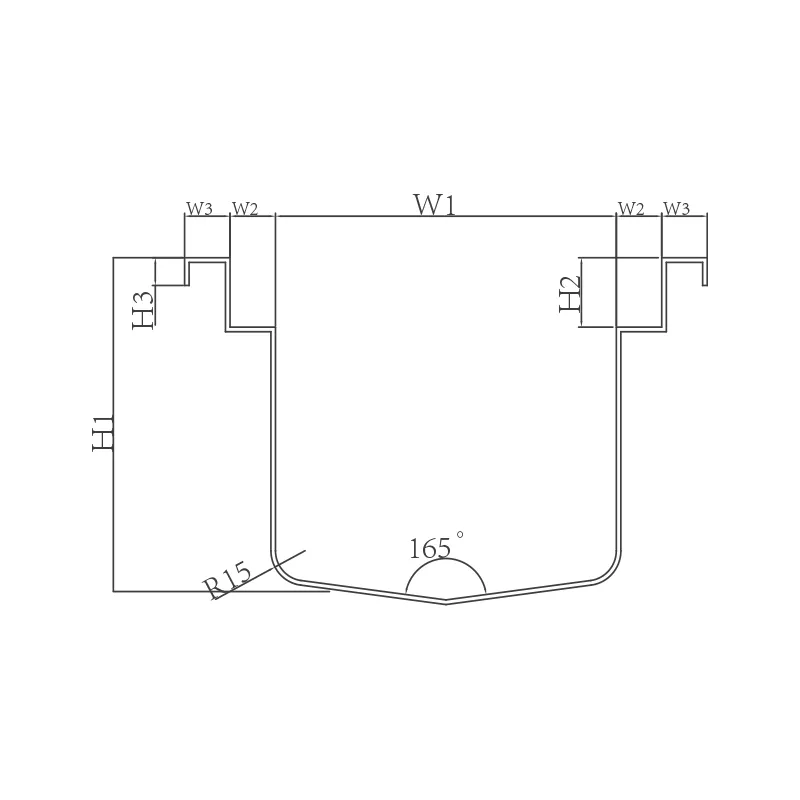

Technical Specifications (Unit: mm)
Model No.: KYDG-U | Material: SUS304
| W1 | W2 | W3 | H1 | H2 | H3 |
W1 | W2 | W3 | H1 | H2 | H3 |
| 100 | 20 | 20 | 100 | 30 | 12 | 250 | 25 | 20 | 150 | 30 | 12 |
| 100 | 20 | 20 | 150 | 30 | 12 | 250 | 25 | 20 | 200 | 30 | 12 |
| 150 | 20 | 20 | 100 | 30 | 12 | 250 | 25 | 20 | 250 | 30 | 12 |
| 150 | 20 | 20 | 150 | 30 | 12 | 250 | 25 | 20 | 300 | 30 | 12 |
| 200 | 25 | 20 | 200 | 30 | 12 | 300 | 30 | 20 | 250 | 30 | 12 |
Key Features
- R-angle Design: Smooth curves for easy cleaning and hygiene.

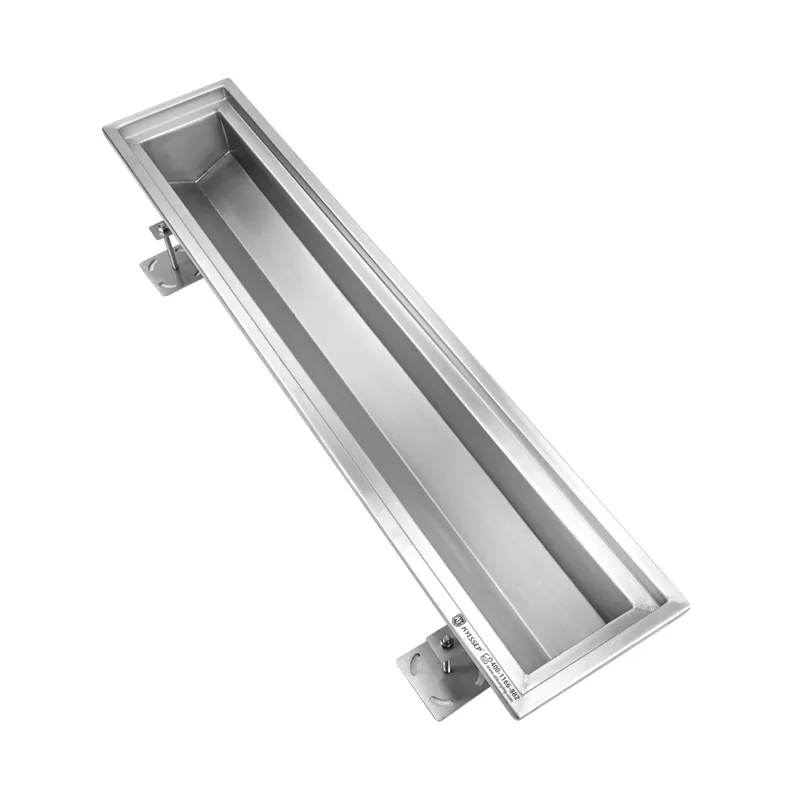

- U-channel Design: Maximizes flow capacity and prevents stagnant water.
- Built-in Slope: Ensures fast drainage toward the outlet.
- Top Bending: Reinforced structure for heavy-duty industrial use.
- Factory-direct supply with rich industry experience.
- Hygienic and safe for food/beverage applications.
- Durable stainless steel (304/316L) construction.
- Custom OEM designs available.

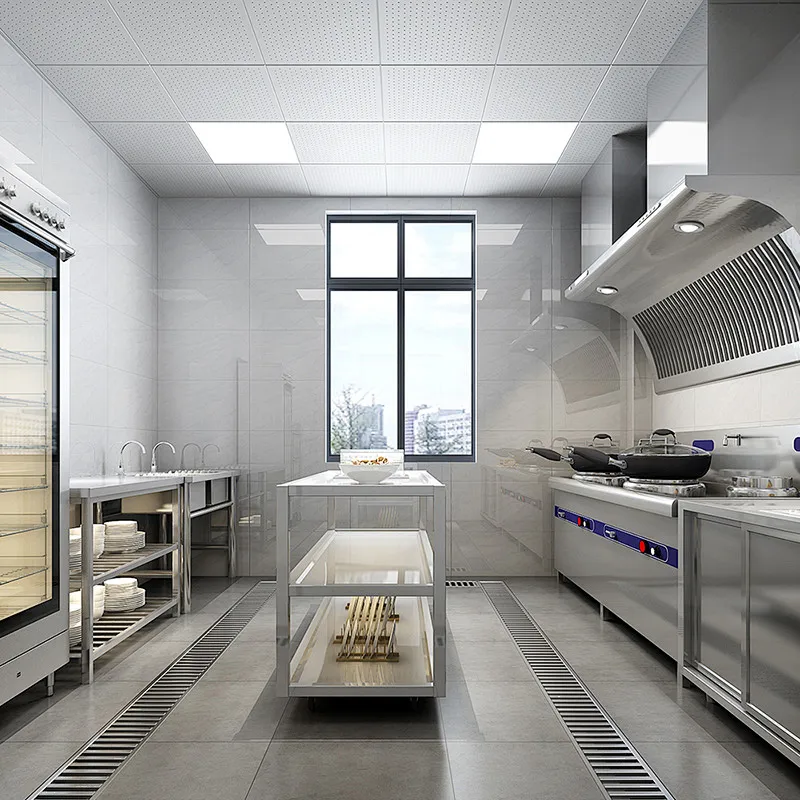

Applications

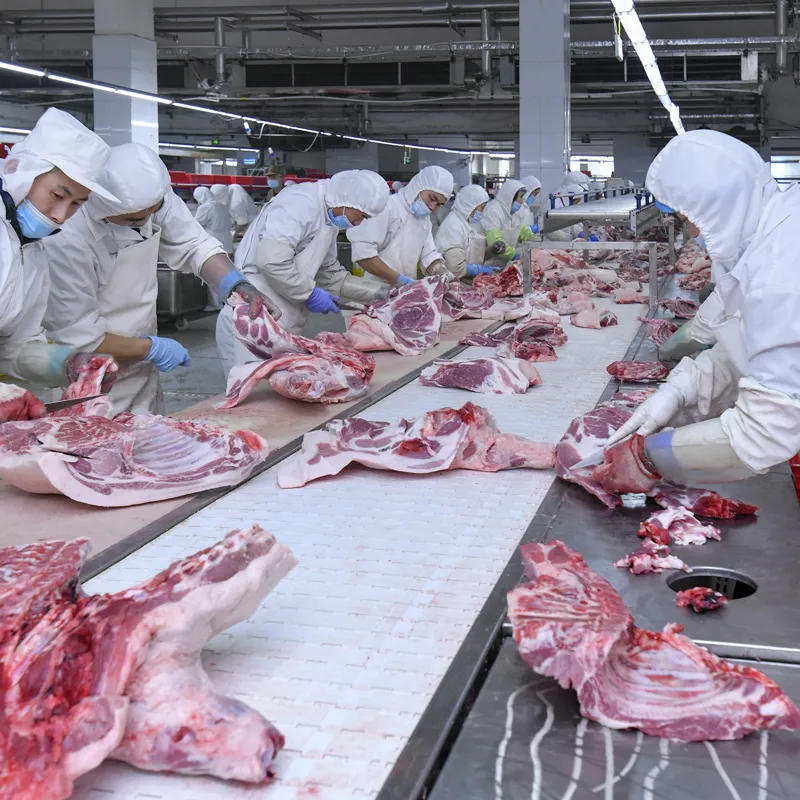

Widely used in the Food Industry, Brewery & Winery, Chemical Plants, and Clean Rooms. Perfect for environments requiring high sanitation and forklift-rated durability.
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Payment Terms
T/T, L/C (50% deposit, 50% before delivery)
Frequently Asked Questions
1. What is the best floor drain material for corrosive materials?
Stainless steel is the premier choice. Its alloy composition allows it to withstand chemicals with both high and low pH levels, making it ideal for facilities using corrosive cleaning agents.
2. What makes this drain suitable for food processing facilities?
The system features a high-flow slot design with radiused (R-angle) edges and a pre-sloped construction. This prevents standing water and bacterial growth, meeting the highest sanitation standards.
3. How do I choose the right floor drain for my specific application?
Consider the traffic (forklifts vs. pedestrians), chemical exposure, sanitation requirements, and the volume of liquid to be drained. Our experts can help determine the best product based on these factors.
4. What is the load rating for these industrial drains?
Most of our industrial drains are Load Class E rated, which is specifically designed to withstand heavy forklift and vehicle traffic common in food and beverage plants.
5. Does the drain include a slope for better water flow?
Yes, our drains feature a built-in bottom slope ranging from 0.3% to 1%, ensuring that water and liquids move quickly toward the outlet without pooling.
6. Can the drain handle solid waste accumulation?
The U-channel and V-bottom designs are engineered to allow solids to flow more freely than traditional drains, and removable gratings allow for easy access to waste baskets and traps for cleaning.
Forklift Rated
High Flow Rate

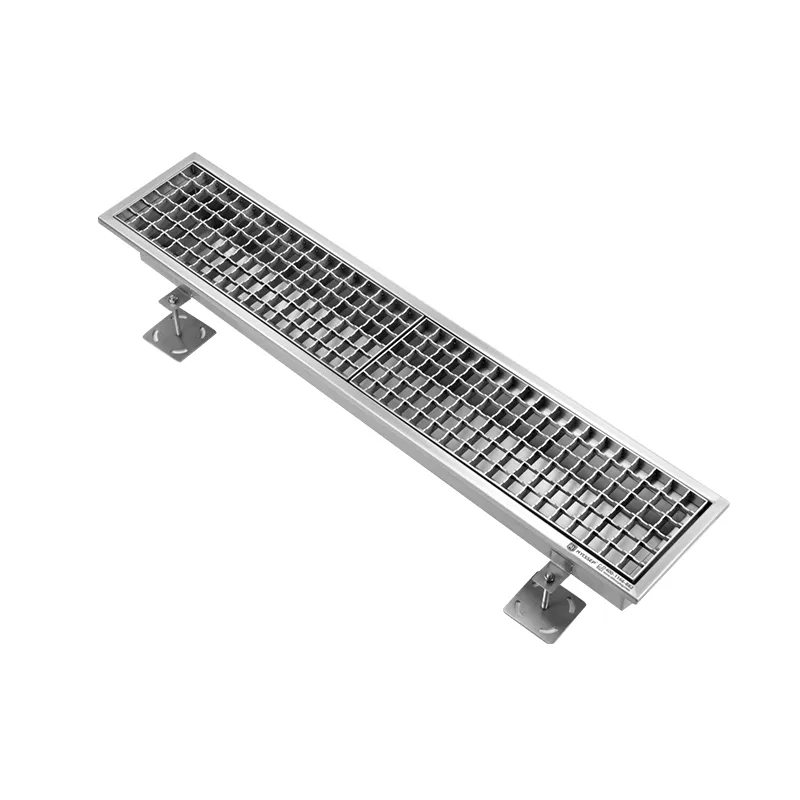

Linear Drains
Easy-to-clean
Anti-corrosion
