Outdoor Steel Structure Modular Clean Room with Double Layer

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
ph-80
Feature
Fireproof, ISO 6 Clean Grade
Clean Grade
ISO 6
Certification
CCC, ISO9001, CE, GMP
Material
Sandwich Panels (PU, EPS)
Panel Thickness
50mm
HVAC System
Temperature & Humidity Control
Auto-Control
PLC Controller
Floor
PVC Floor
Lighting
LED Light
Type
Modular Design
Origin
China
Modular Clean Room Structure

Product Description

A clean room is a controlled environment designed to minimize the concentration of airborne particles. Its construction and operation are engineered to reduce the inducement and generation of retained particles while precisely managing parameters such as temperature, humidity, and pressure. According to GMP standards, these facilities are essential for controlling microbial contamination.

Personnel are often the primary source of particulate risk, necessitating strict gowning procedures and staff limitations. These modular solutions are widely utilized in pharmaceutical manufacturing, medical device packaging, aseptic production, and electronic industries.

🏗️ Structure

Wall/Ceiling panels, windows, doors, and specialized flooring.

❄️ HVAC

AHU, ducting, chillers, and dehumidifiers for air quality.

Electric

Distribution cabinets, LED lighting, and sensor wiring.

💻 Auto-Control

PLC controllers for real-time monitoring of humidity and pressure.

Cleanliness Class Class 100 to Class 100000 (ISO 5 to ISO 8 / Class B to Class D)
Project Scope Wall/Ceiling Panels, HVAC Systems, Process Piping, Electrical & Lighting, Auto-control Systems
Industry Application Pharmaceutical Industry, Medical Devices, Food Processing, Micro-electronics
Qualification IQ, OQ, PQ, DQ Documentation Support
Design Services Professional Consultation, 2D/3D CAD Drawings, Installation Animation

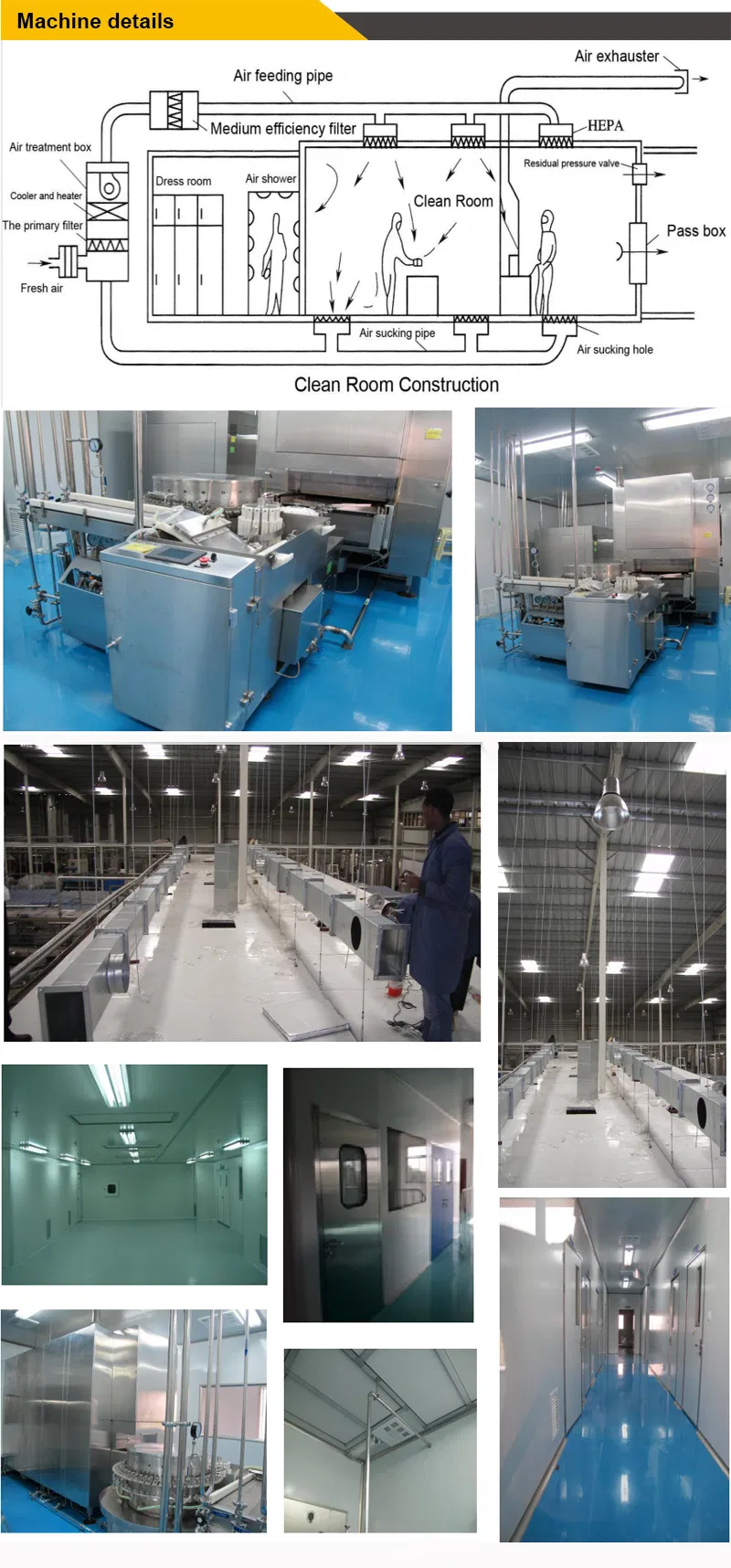

Clean Room Technical Layout
Clean Room Detailed Specifications

Frequently Asked Questions

Q1: What cleanliness levels can these modular cleanrooms achieve? A: Our systems support cleanliness levels from Class 100 to Class 100,000, which corresponds to ISO 5 through ISO 8 standards.
Q2: What materials are used for the wall and ceiling panels? A: We primarily use high-quality sandwich panels with PU (Polyurethane) or EPS (Expanded Polystyrene) cores, typically at 50mm thickness for optimal insulation and fireproofing.
Q3: Is the environmental control automated? A: Yes, the cleanroom uses a PLC controller linked to temperature and humidity sensors to maintain precise environmental conditions automatically.
Q4: Can the cleanroom design be customized for specific industry needs? A: Absolutely. We offer fully customized designs based on CAD software, including specific layouts for pharmaceutical plants, liquid filling lines, and medical packaging areas.
Q5: What technical documentation is provided with the project? A: We provide complete qualification documents, including IQ (Installation Qualification), OQ (Operational Qualification), PQ (Performance Qualification), and DQ (Design Qualification).
Q6: How are the cleanrooms transported? A: The modular components are designed for efficient logistics and are typically shipped in standard 20-foot or 40-foot containers.
