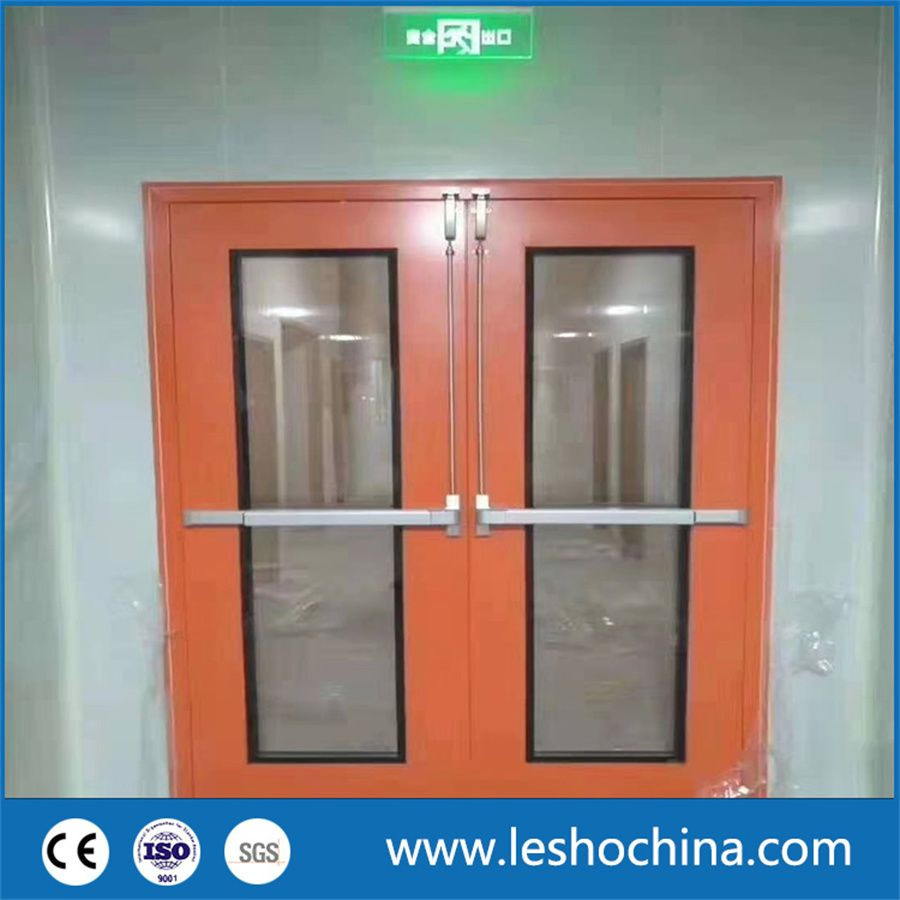

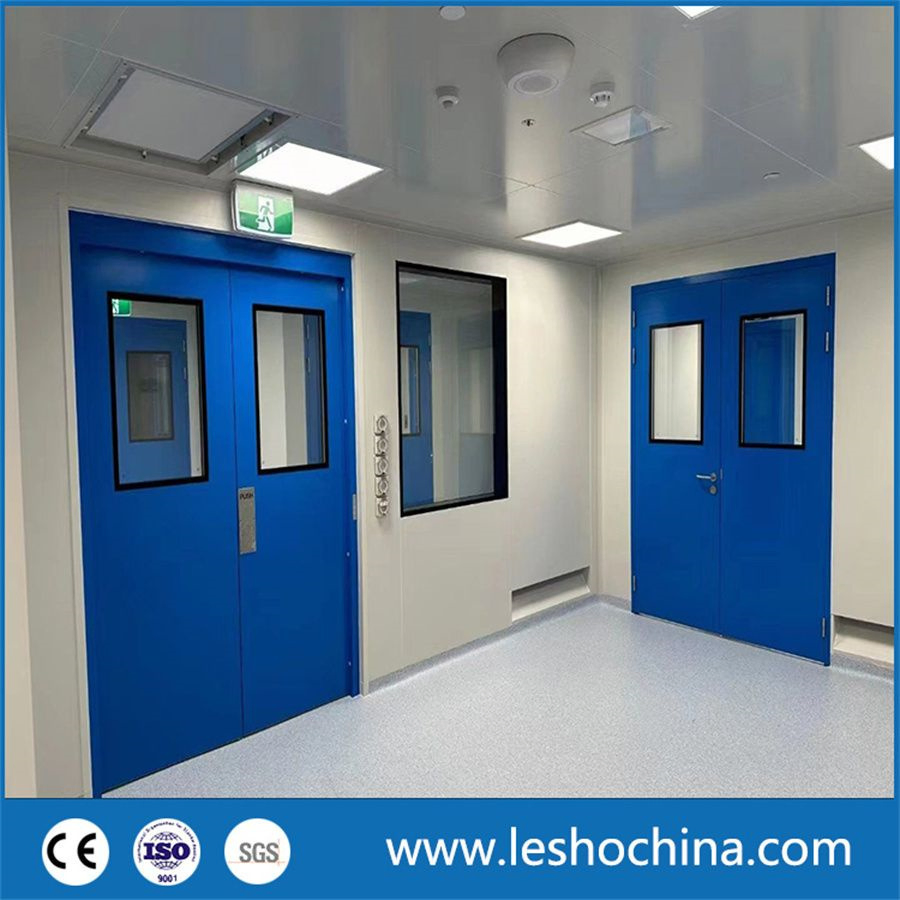

Automatic (Manual) Clean Room Steel Swing Door
| Door leaf | 1.0mm 304 stainless steel or galvanized steel sheet materials with high-quality powder coating finish. Inside is filled with high-density paper honeycomb or Aluminium honeycomb. |
| Door frame | 1.5mm galvanized steel or 1.0mm thick 304 stainless steel. |
| Vision window | Special clean room glass. Made from double layer tempered glass, surface is on the same plane with door leaf to avoid dust retention and realize easy cleaning. |
| Hinge | 304 stainless steel. |
| Lock | Stainless steel handle lock, beautiful and durable. |
| Seal structure | 3mm EPDM seal rubber is installed all-round the edge of the door frame. Automatic seal rubber is installed at the bottom of the door leaf, closing the gap with ground when closed. |
Clean room door and windows are widely used in food or drug factory workshops, pharmaceutical factories, laboratories, hospitals, and other environments with high cleanliness requirements.

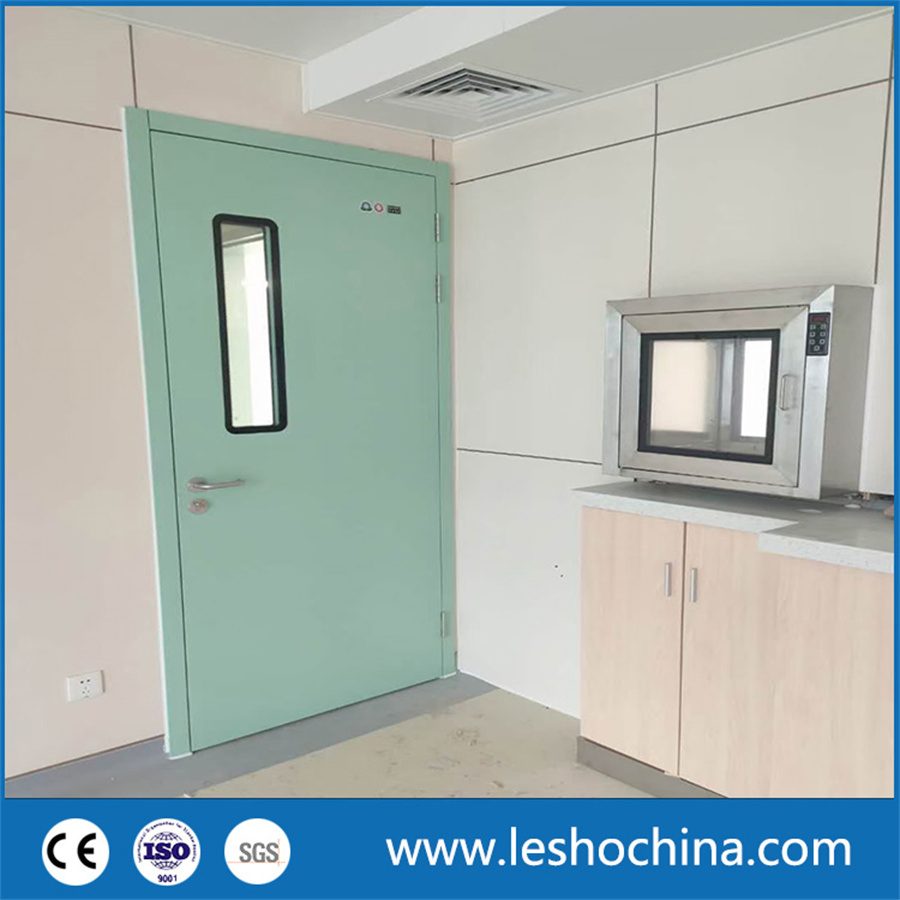

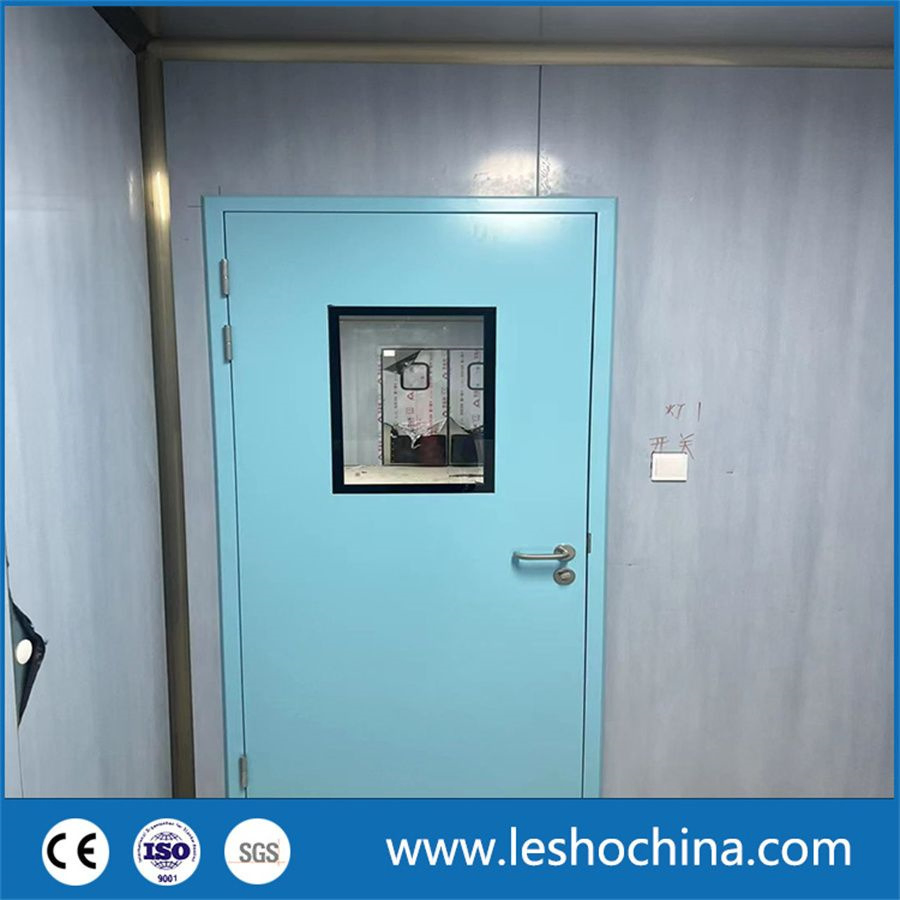

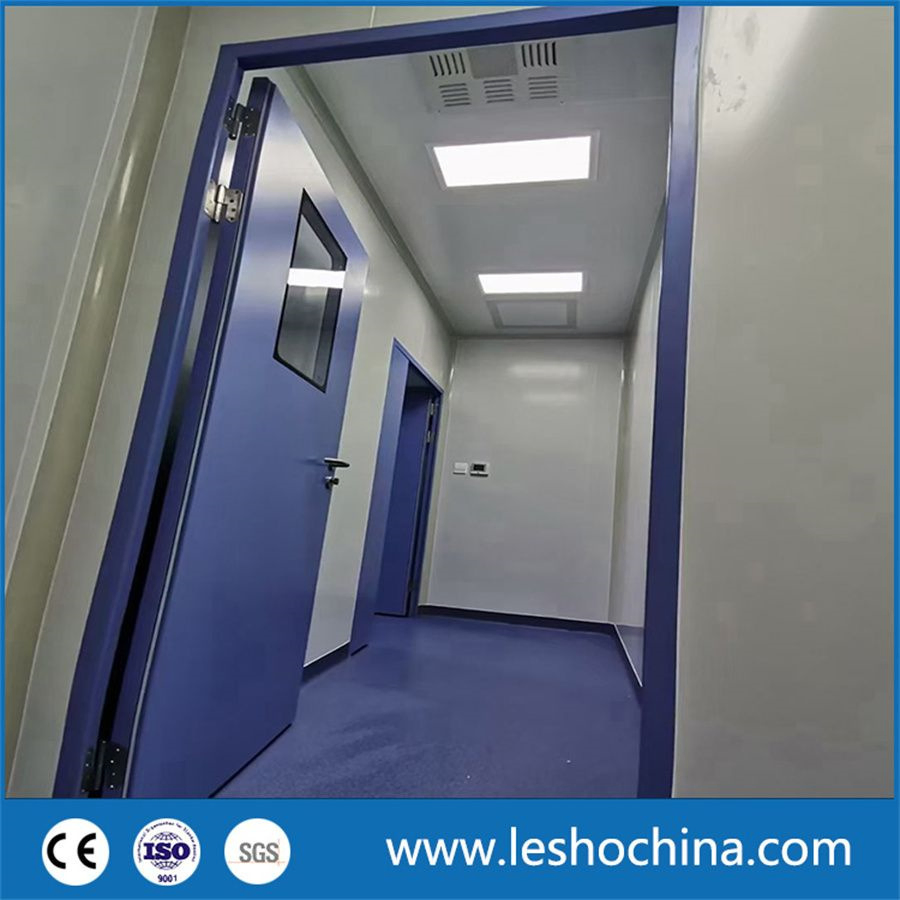

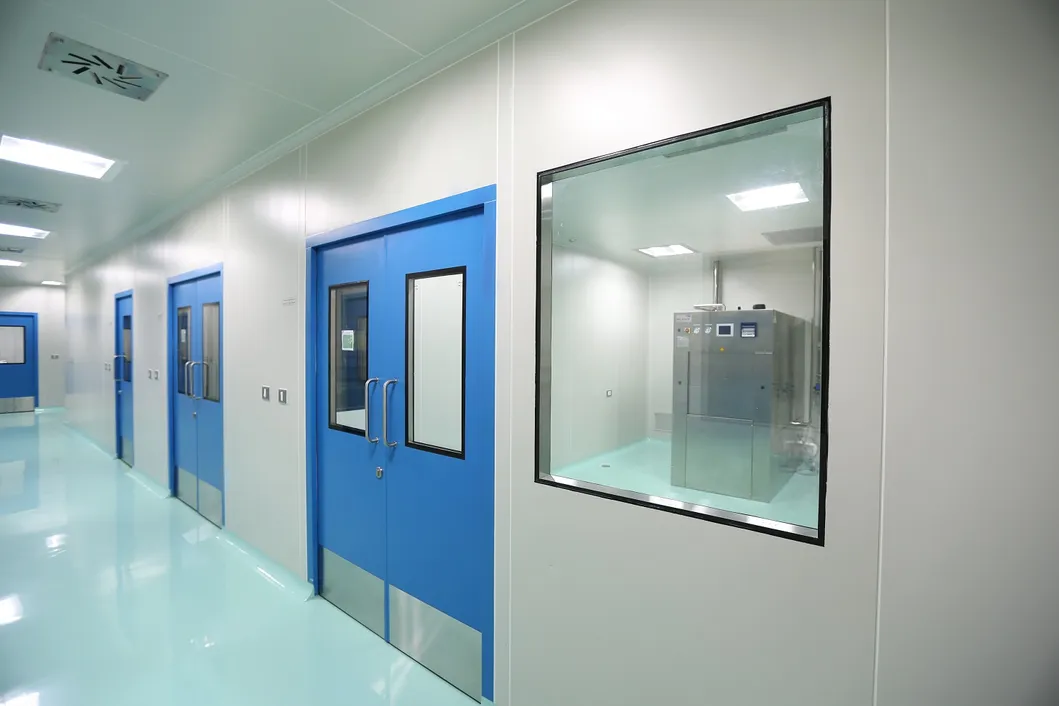

Manual Clean Room Steel Swing Door

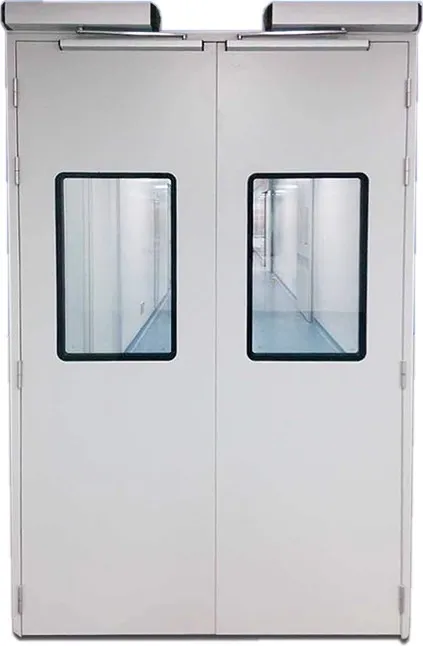

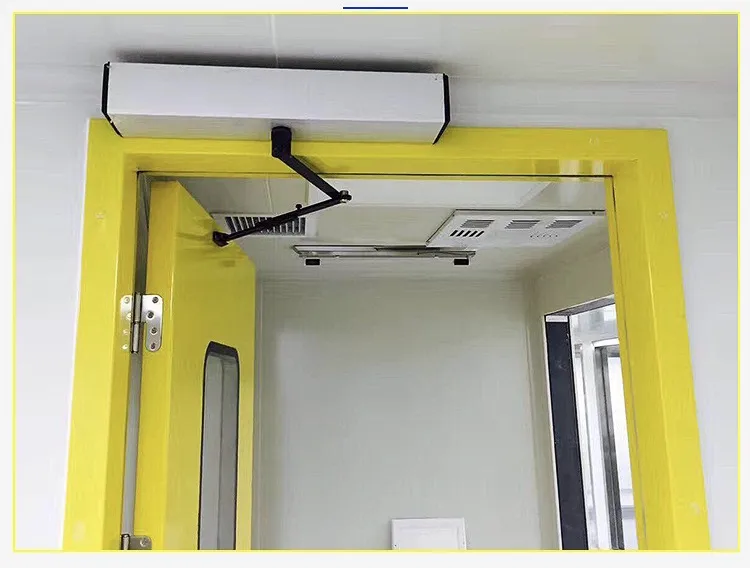

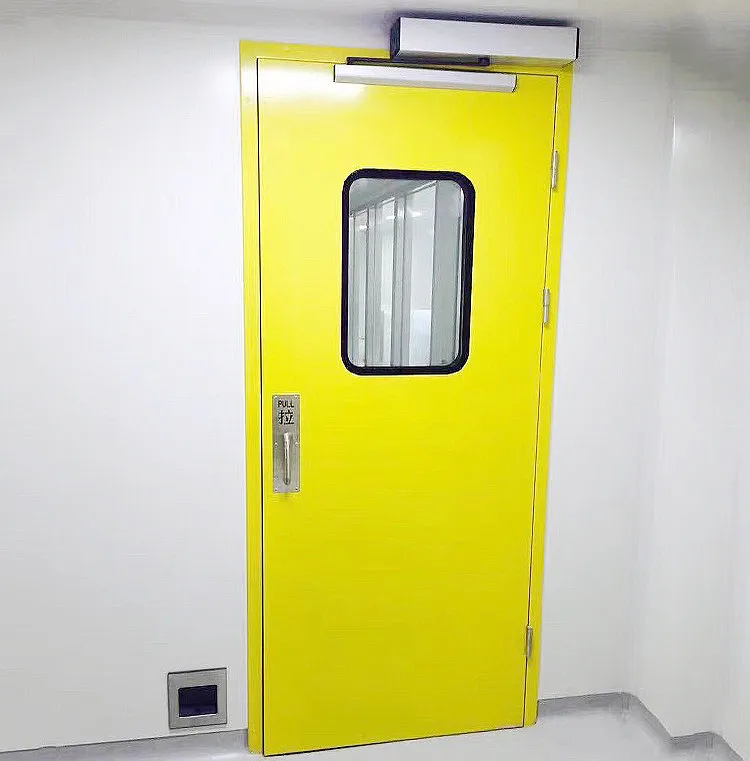

Automatic Clean Room Steel Swing Door

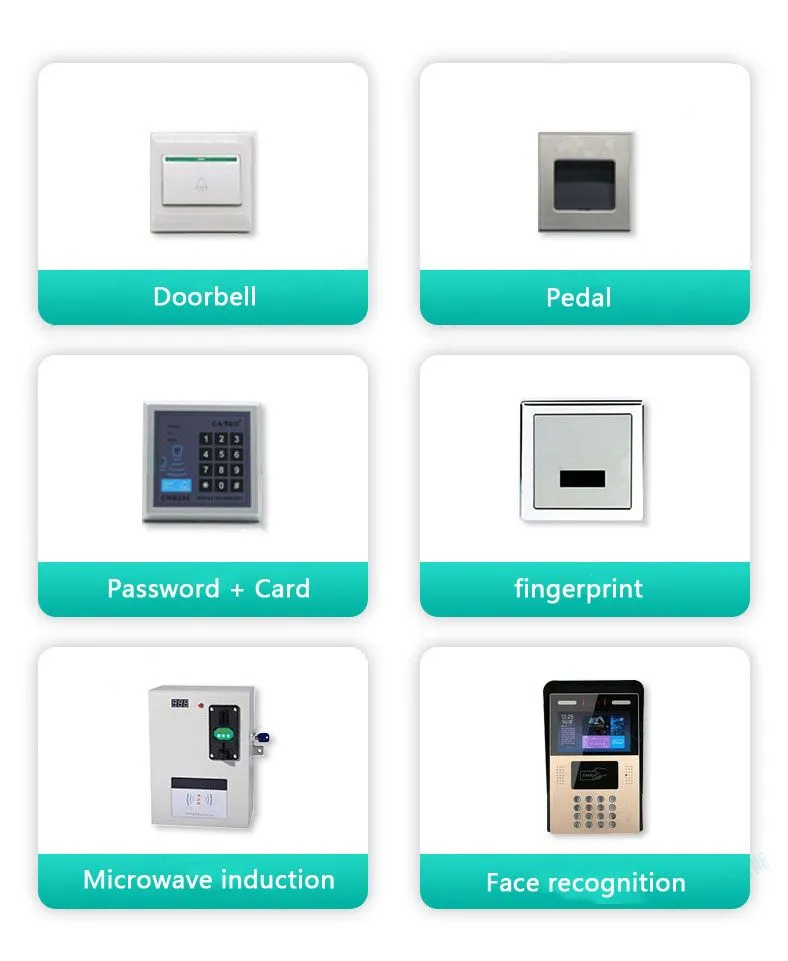

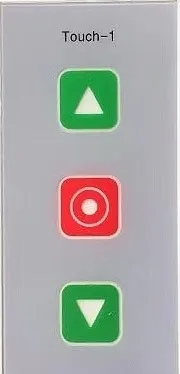

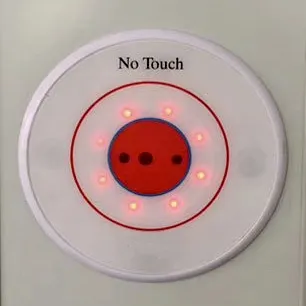

Operation & Control Options
1. Surface Treatment: Electrostatic resin powder coating (RAL Colors available) with a thickness of no less than 70um. Resistant to general disinfection.

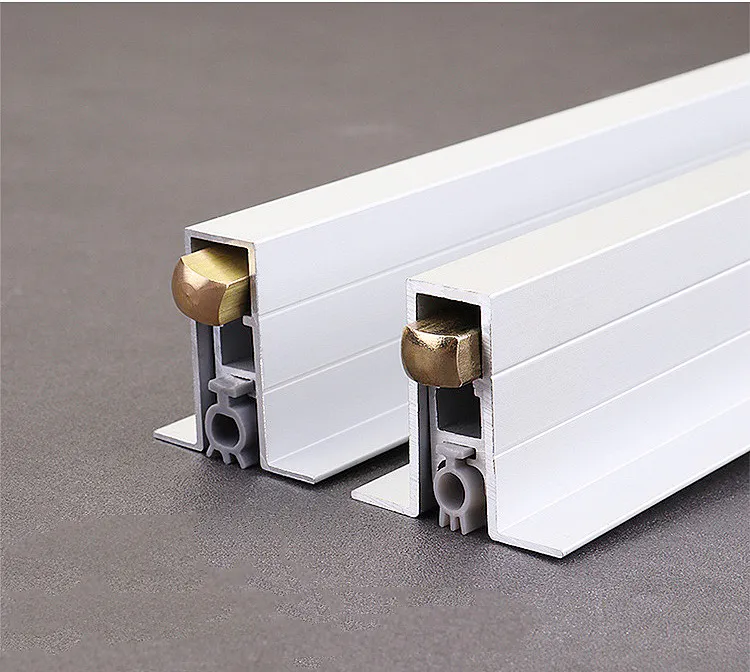

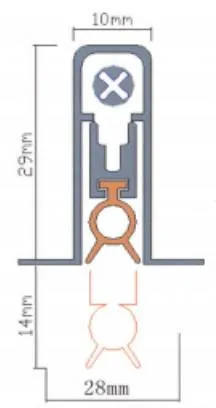

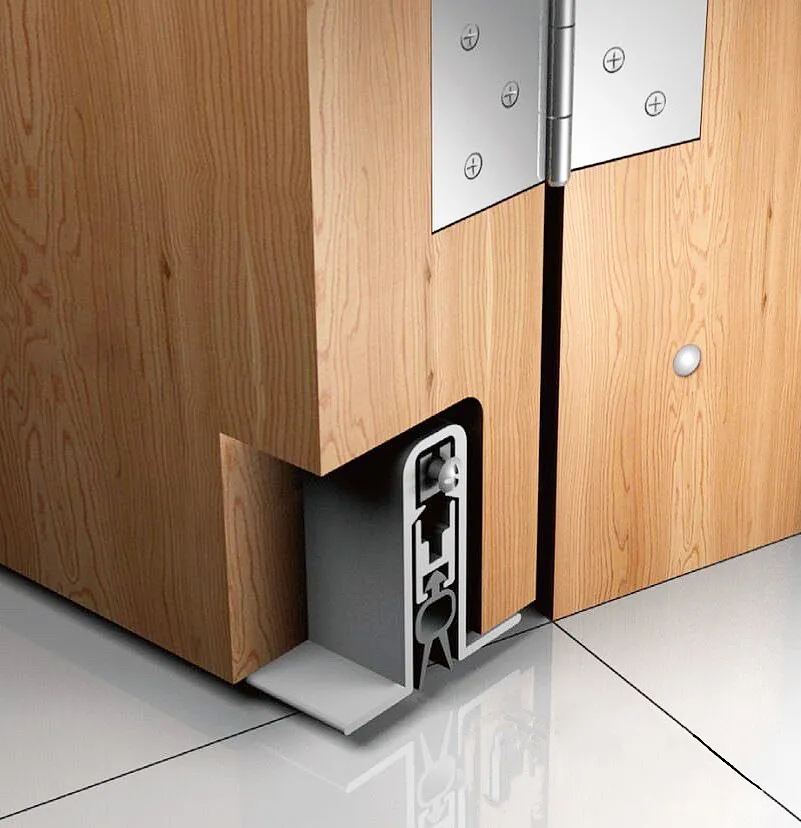

2. Sealing System: Food-grade silicone rubber seals. Automatic bottom strip closes the gap between the door leaf and ground upon closing.

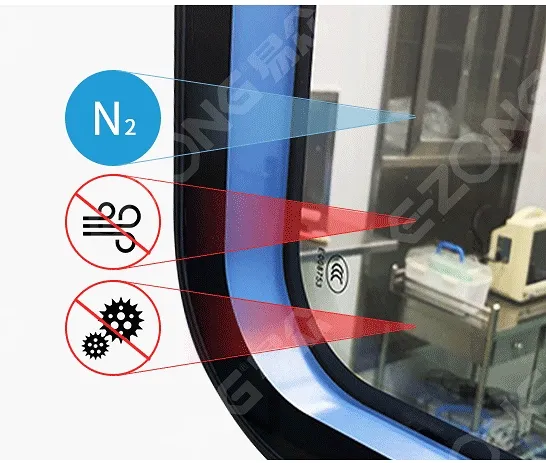

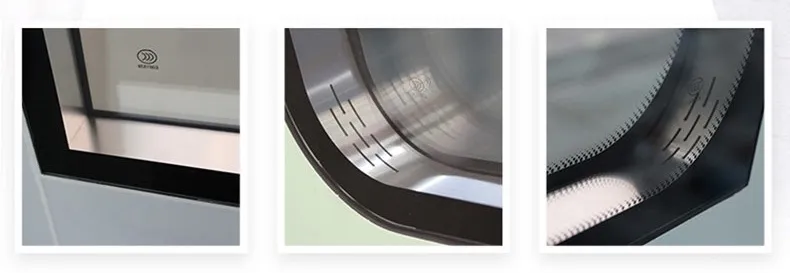

3. Vision Panel: Double-layer hollow tempered glass flush with the door leaf surface. Anti-fog and easy to clean.
