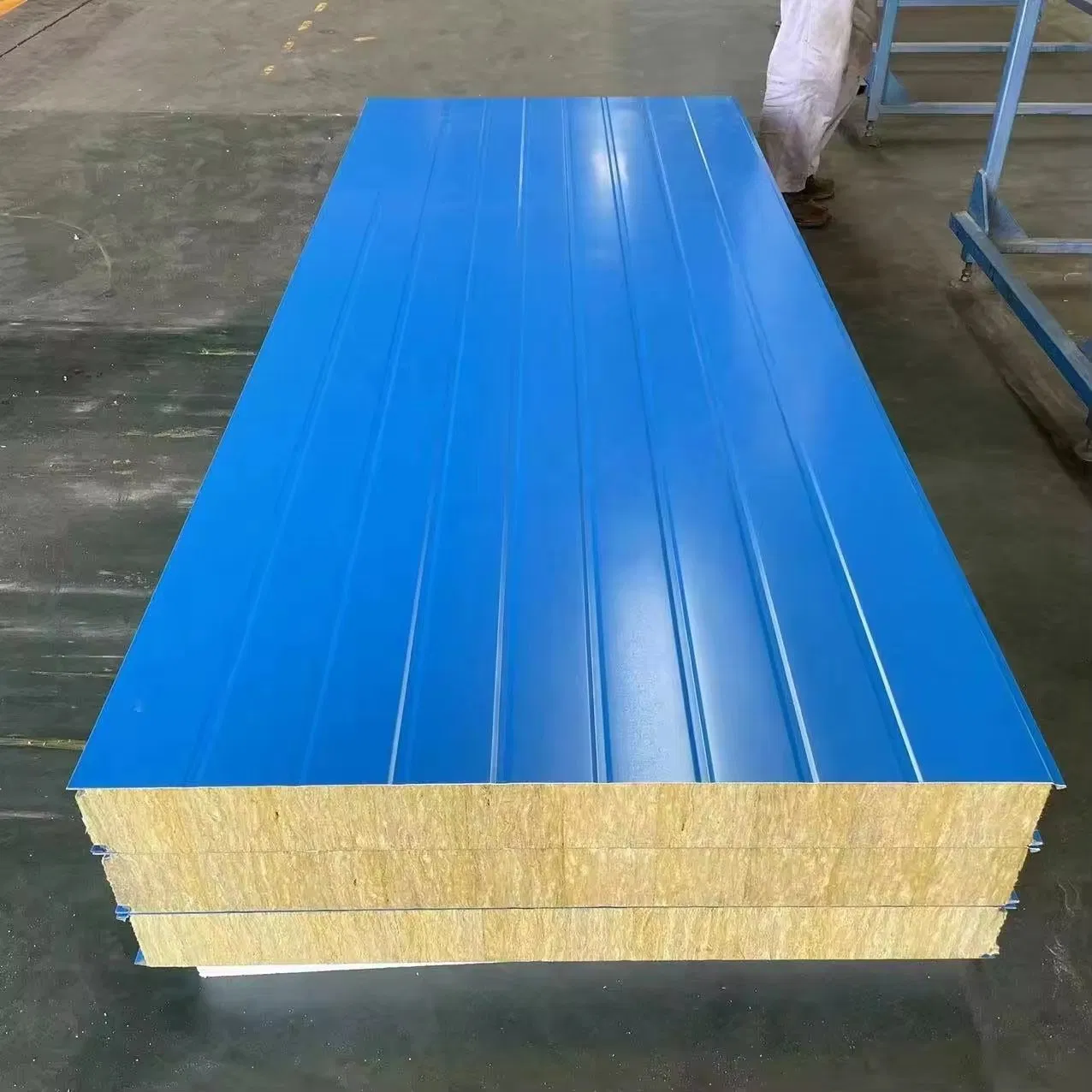

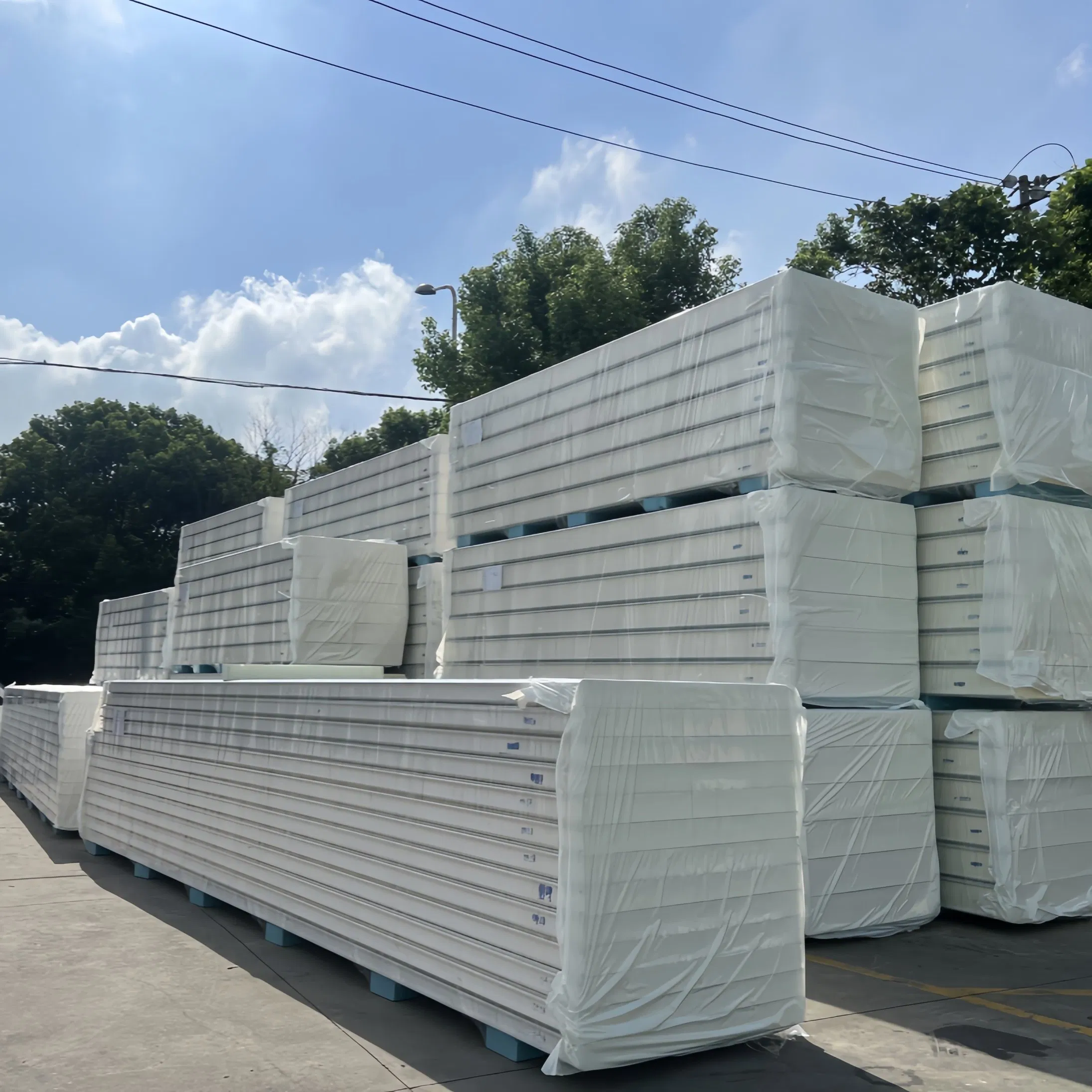

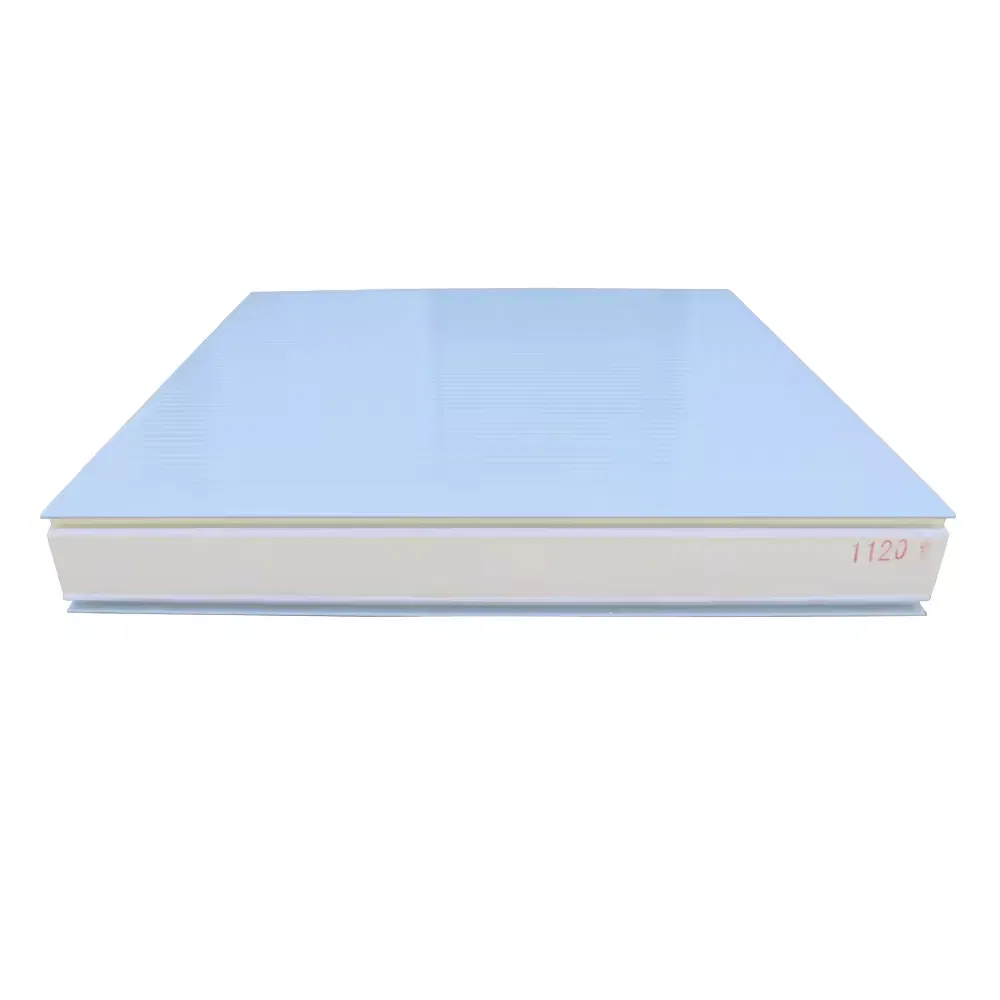

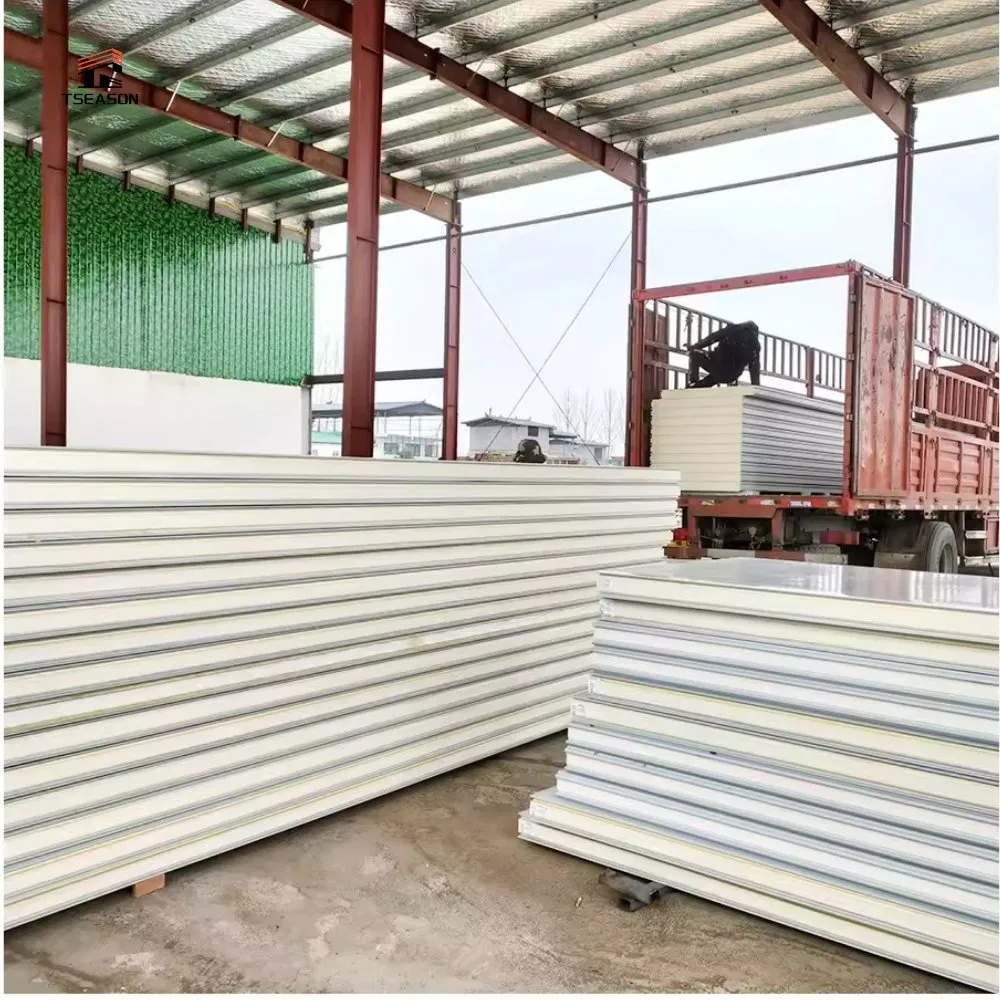

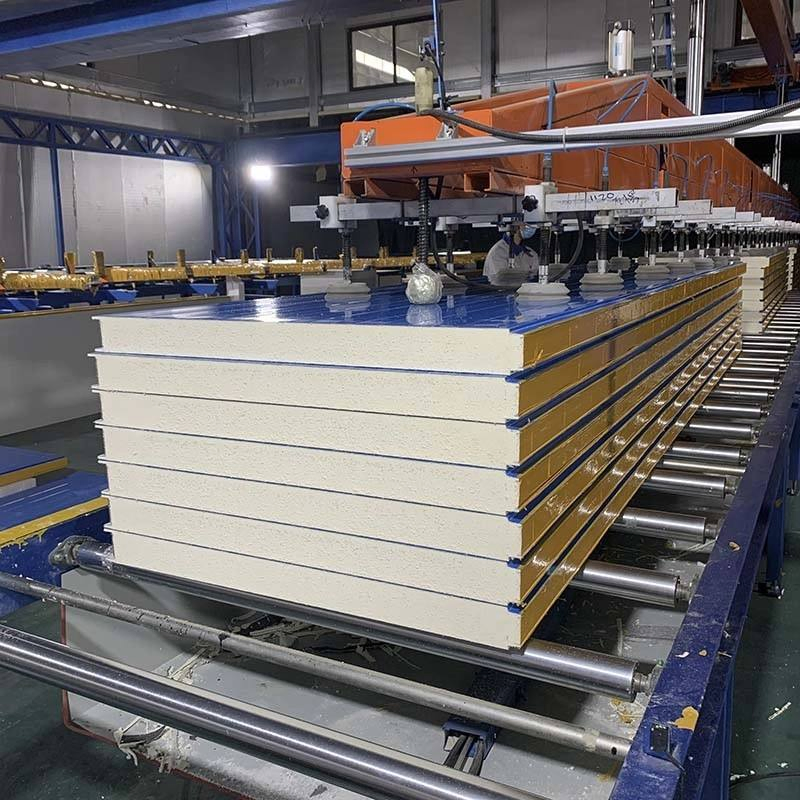

Soundproof Fire Resistant Eco-Friendly Cold Storage Sandwich Panel with 5+ Year Warranty-for Medical/Pharmaceutical Cold Rooms

Still deciding? Get samples of $ !
Order Sample

Product Description

Technical Specifications
Feature
Environmental, Fireproof, Metal Panel
Fire Rating
1 / Class A1
Certification
ISO9001, CE
Customized
Available
Width
500mm - 1000mm
Density
38kg/M³ - 150kg/M³
Core Thickness
50mm to 150mm
Application
Warehouse, Workshop, Clean Room, Cold Storage
Capacity
5,000,000 Sqm/Year
HS Code
73089000
Industrial Wall and Roof Panels

Sandwich Panels for Industrial Walls & Roofs

Providing high-performance solutions for Fire Safety, Insulation, and Economy across 100+ countries. Engineered joints reduce rework and speed up installation time for Cold Chain, Industrial Factories, and Clean Rooms.

🛡️Lower project risk: Fire-performance options with full spec documentation support.
⏱️Shorter site time: Engineered joints reduce rework and speed up installation.
🏗️Stable supply: 5,000,000 m²/year capacity for long-term large-scale procurement.
Choose the Right System

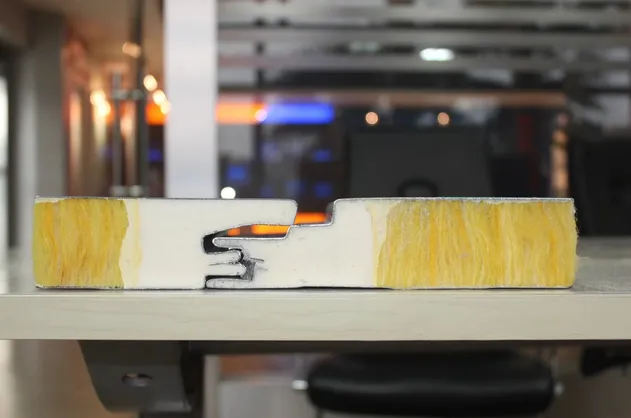

Rock Wool Panel

Rock Wool Panel

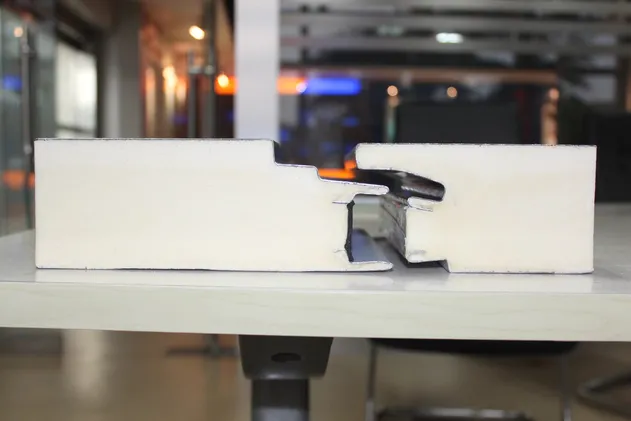

PU / PIR Panel

PU / PIR Panel

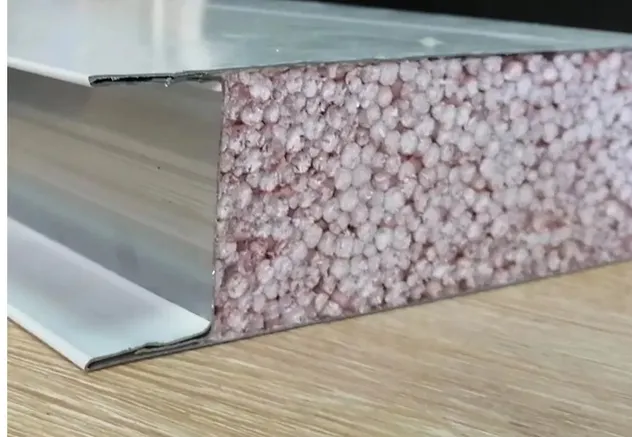

EPS Panel

EPS Panel

Fire Safety

Best for projects requiring Class A non-combustibility and sound absorption. Used in power plants and hazardous storage.

Max Insulation

λ ≤ 0.022 W/(m·k). Highest thermal performance for cold rooms and food processing centers.

Economic Choice

Ultra-light and cost-effective. Ideal for prefab houses and internal partitions.

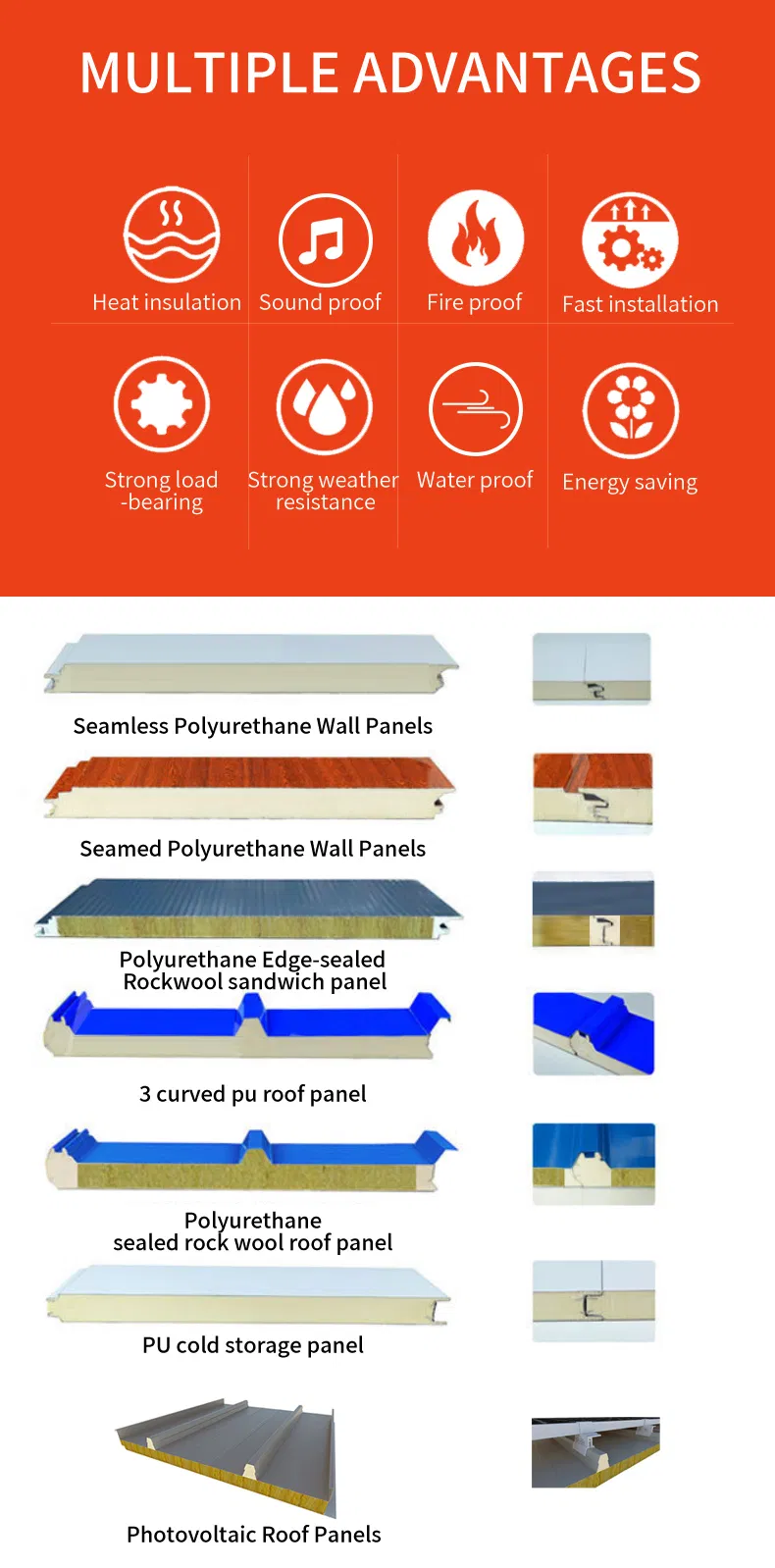

Panel Details

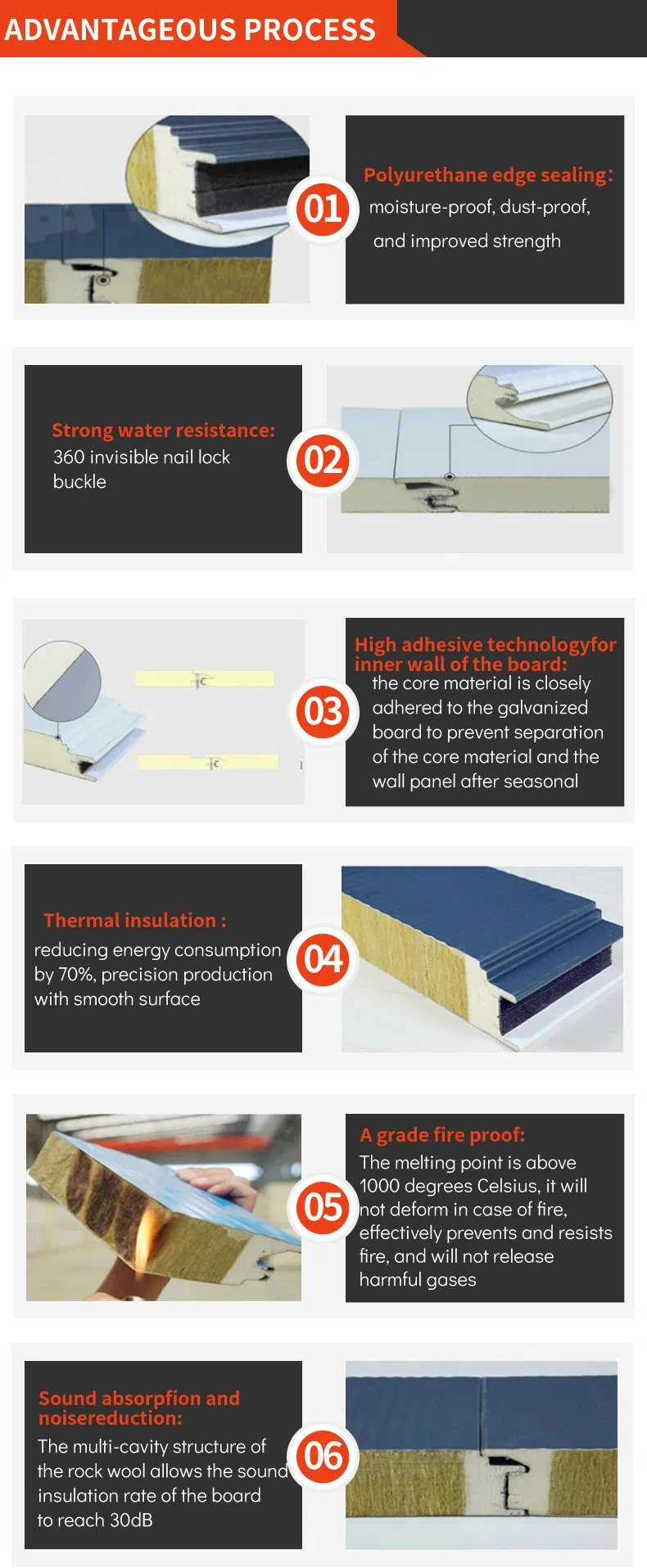

Core Insulation

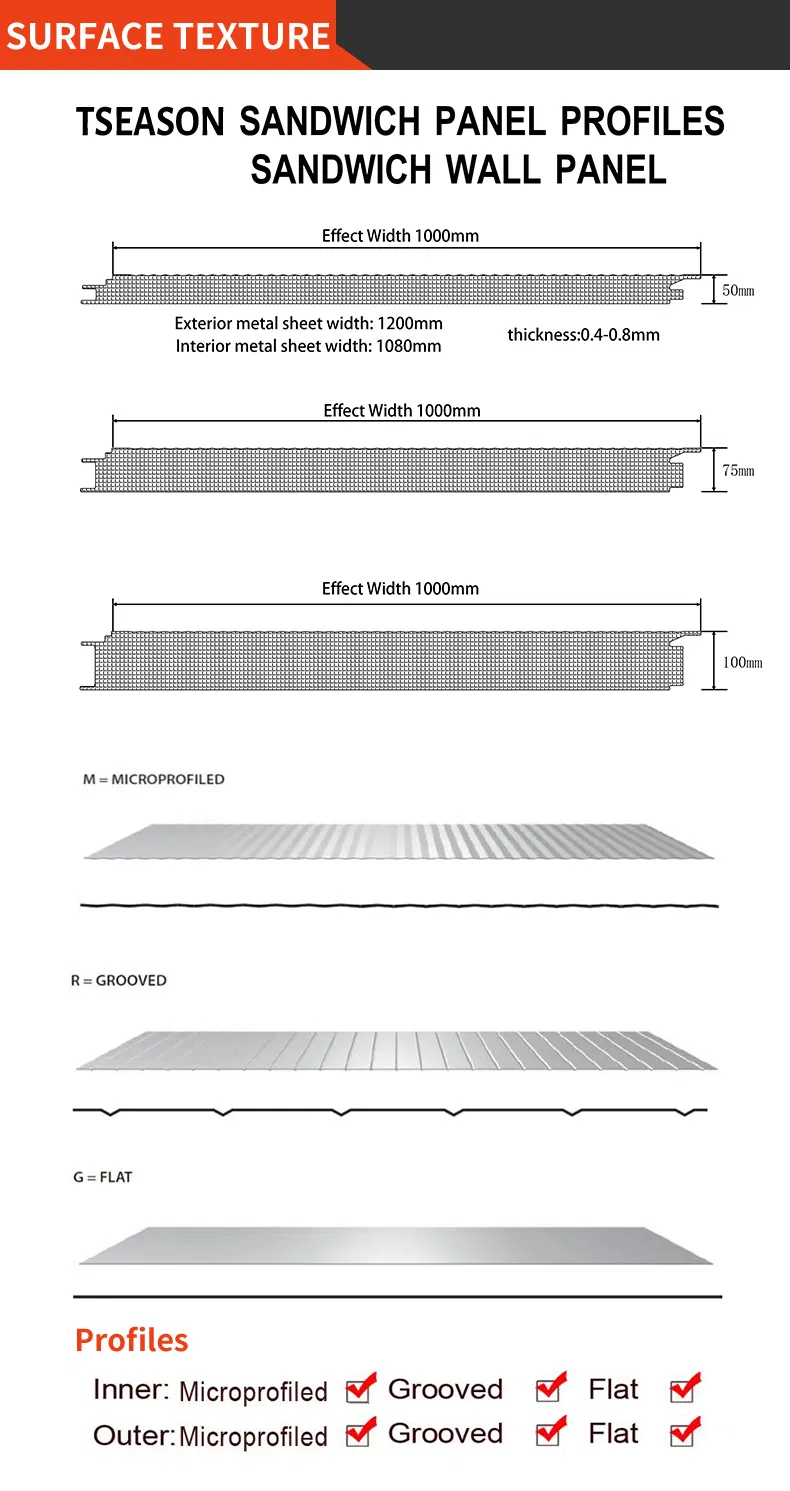

Installation Joints
Technical Specification Table
Parameter Rock Wool PU / PIR EPS
Fire RatingClass A1B2 (Retardant)/
Thermal (W/m·k)≤ 0.045≤ 0.022 (Best)≤ 0.041
Density (kg/m³)100 - 15040 ± 28 - 20
Steel Thickness0.4 - 0.8 mm0.4 - 0.8 mm0.3 - 0.6 mm
Temp ResistanceUp to 650°C-196°C to +120°C-50°C to +75°C
Manufacturing Excellence

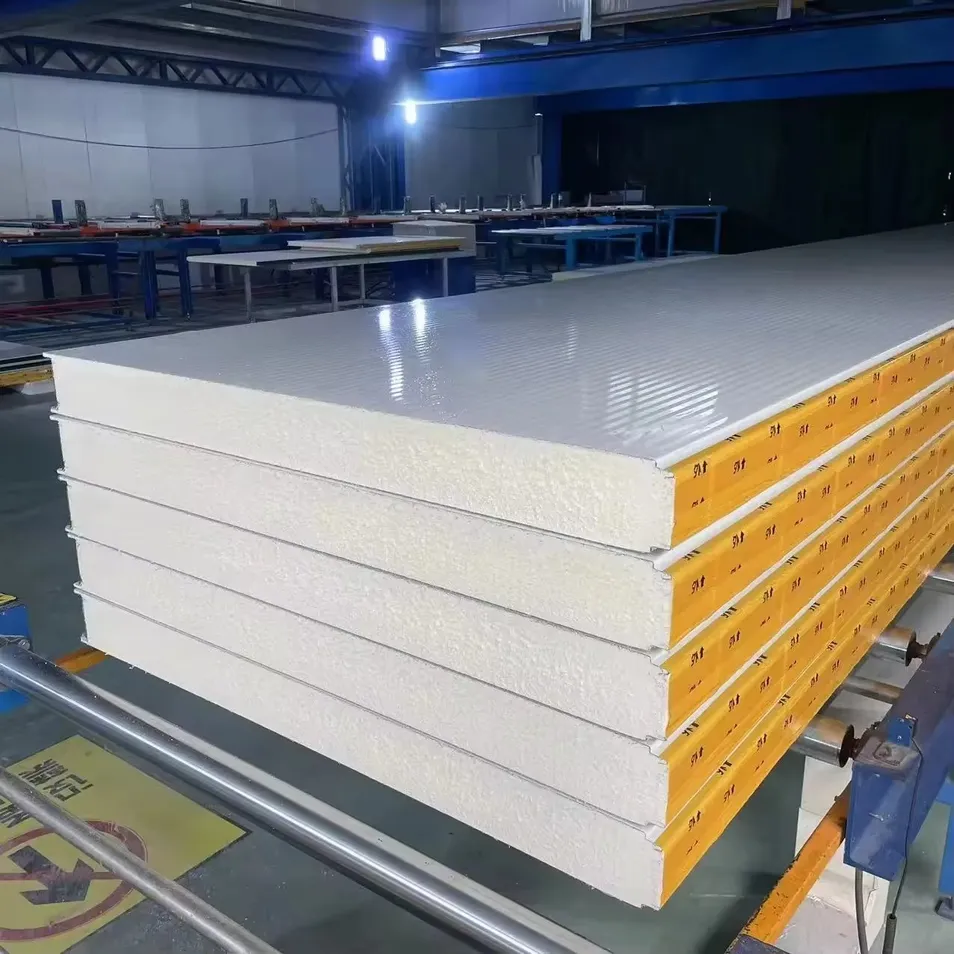

Panel Production

Advanced Automation

Utilizing Italian continuous production lines for precision. Annual capability of 5,000,000 m² ensures on-time delivery for large-scale infrastructure projects.

  • Precision Engineering
  • Rigorous QC Testing
  • ISO9001 & SGS Certified

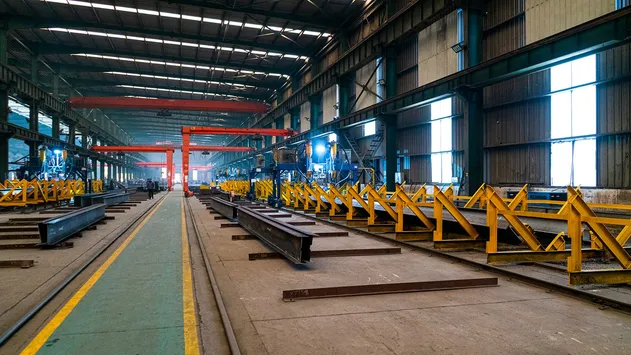

Factory 1

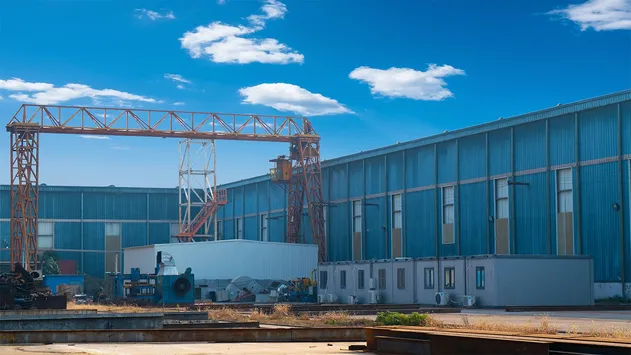

Factory 2

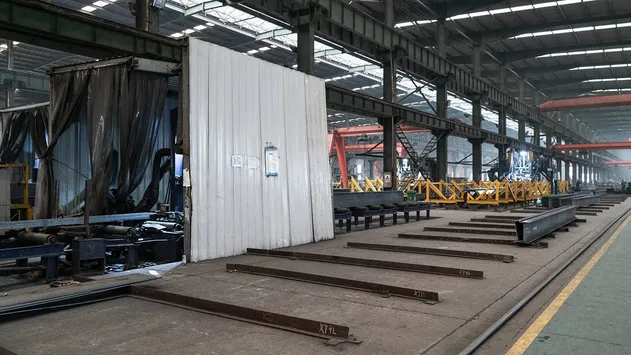

Factory 3
Quality Certifications
International Certifications
Global Project Showcase

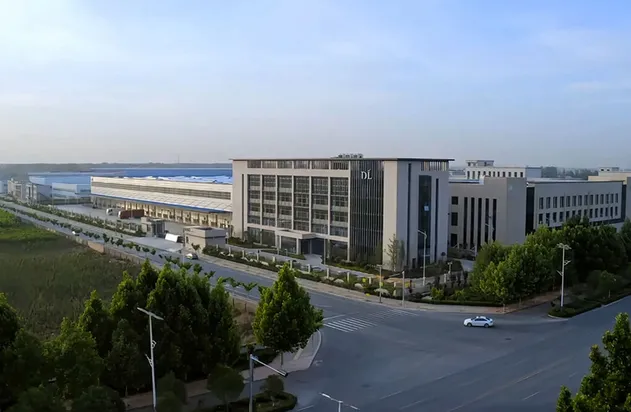

Logistics Center

Logistics Distribution Center
47,377 Sqm Wall Panels

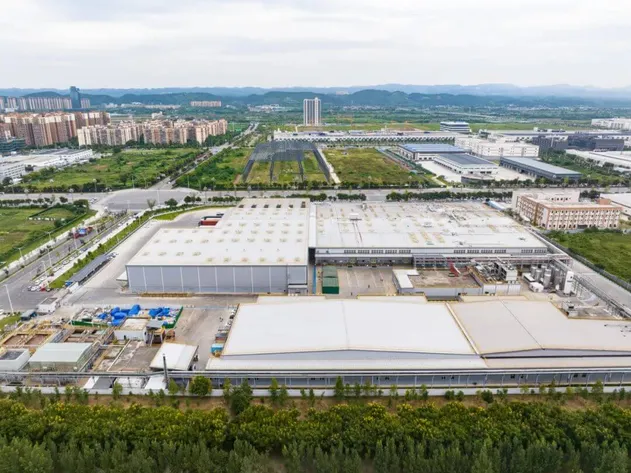

Food Plant

Food Industry Expansion
23,562 Sqm Roof & Wall Panels

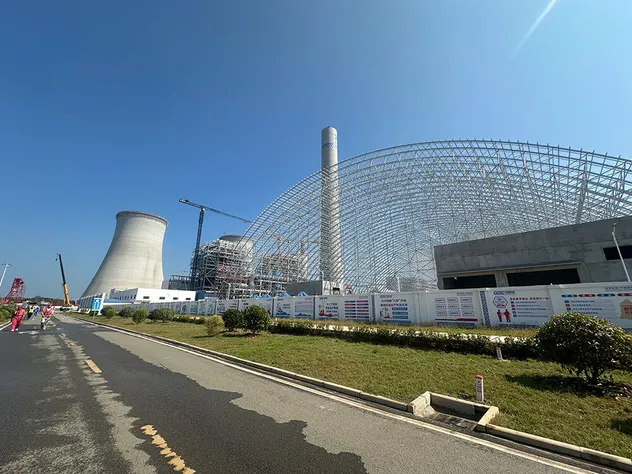

Power Plant

Power Plant Project
9,300 Sqm Glass Wool Panels

Frequently Asked Questions

1. What is your standard production lead time?
For standard specifications (EPS/PU/Rock Wool), automated production lines ensure a lead time of 7–14 days. Custom coatings or special core materials typically take 15–20 days.
2. Can you customize the panel length for container loading?
Yes. We recommend a maximum length of 11.8 meters to fit into 40HQ containers. Panels can be cut to any specific length required by your project drawings to minimize onsite waste.
3. Do you provide technical support or installation drawings?
Absolutely. Our engineering team can assist with CAD node design, calculation of wind load resistance, and provide detailed installation manuals to ensure your project runs smoothly.
4. How do you package panels to prevent damage during ocean freight?
We use seaworthy export packaging: panels are wrapped with PVC protective film, stacked on steel or wooden pallets, and secured with straps to prevent movement and surface scratches.
5. What international standards do your products meet?
Our panels are strictly manufactured according to CE, ISO9001, and ISO14001 standards. We can provide SGS or ASTM fire and thermal test reports upon request.
6. How is the Fire Rating verified?
Our core materials, specifically Rock Wool, meet Class A1 non-combustible standards. PIR panels are rated at B1/B2 fire retardant levels, verified through international laboratory testing.
