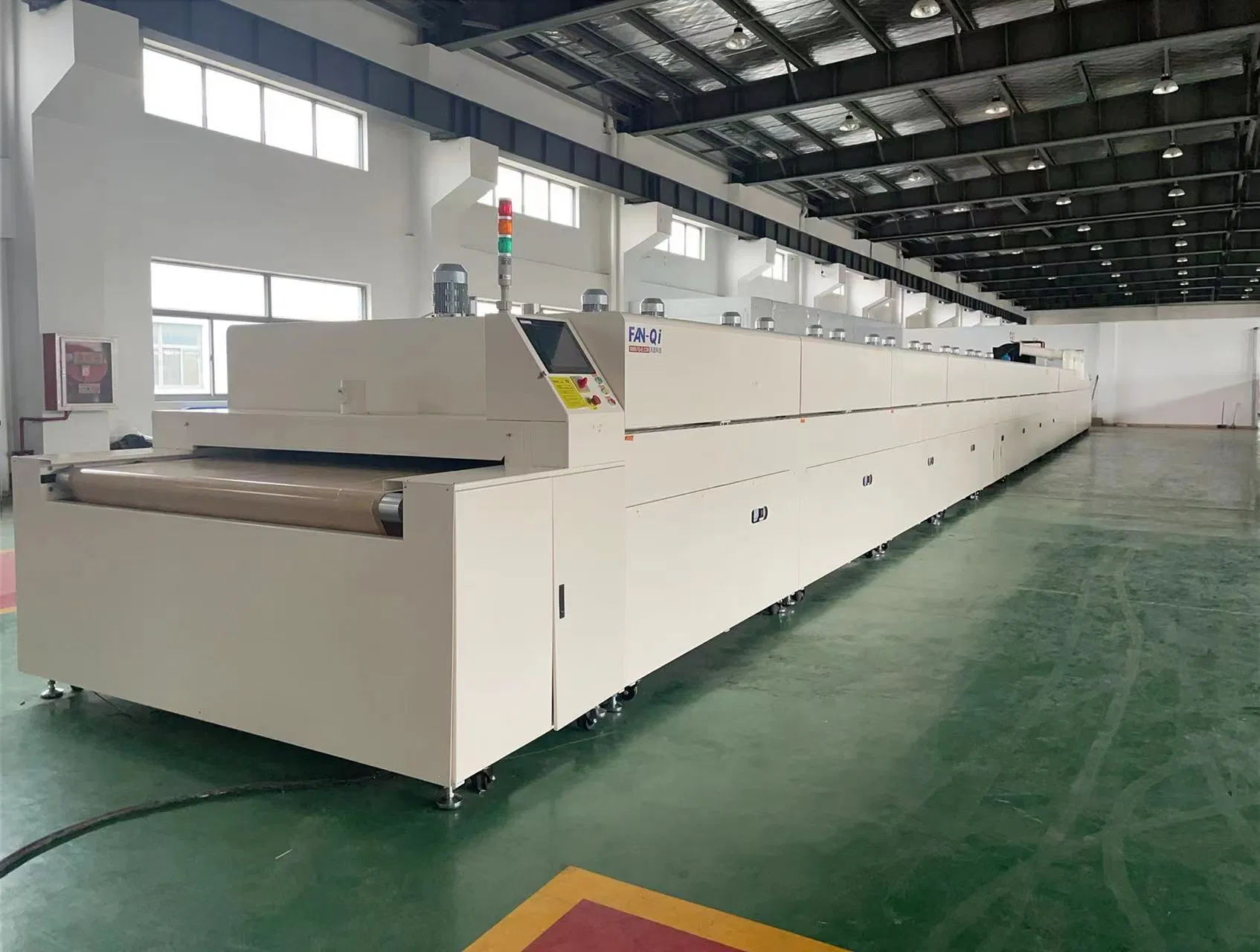

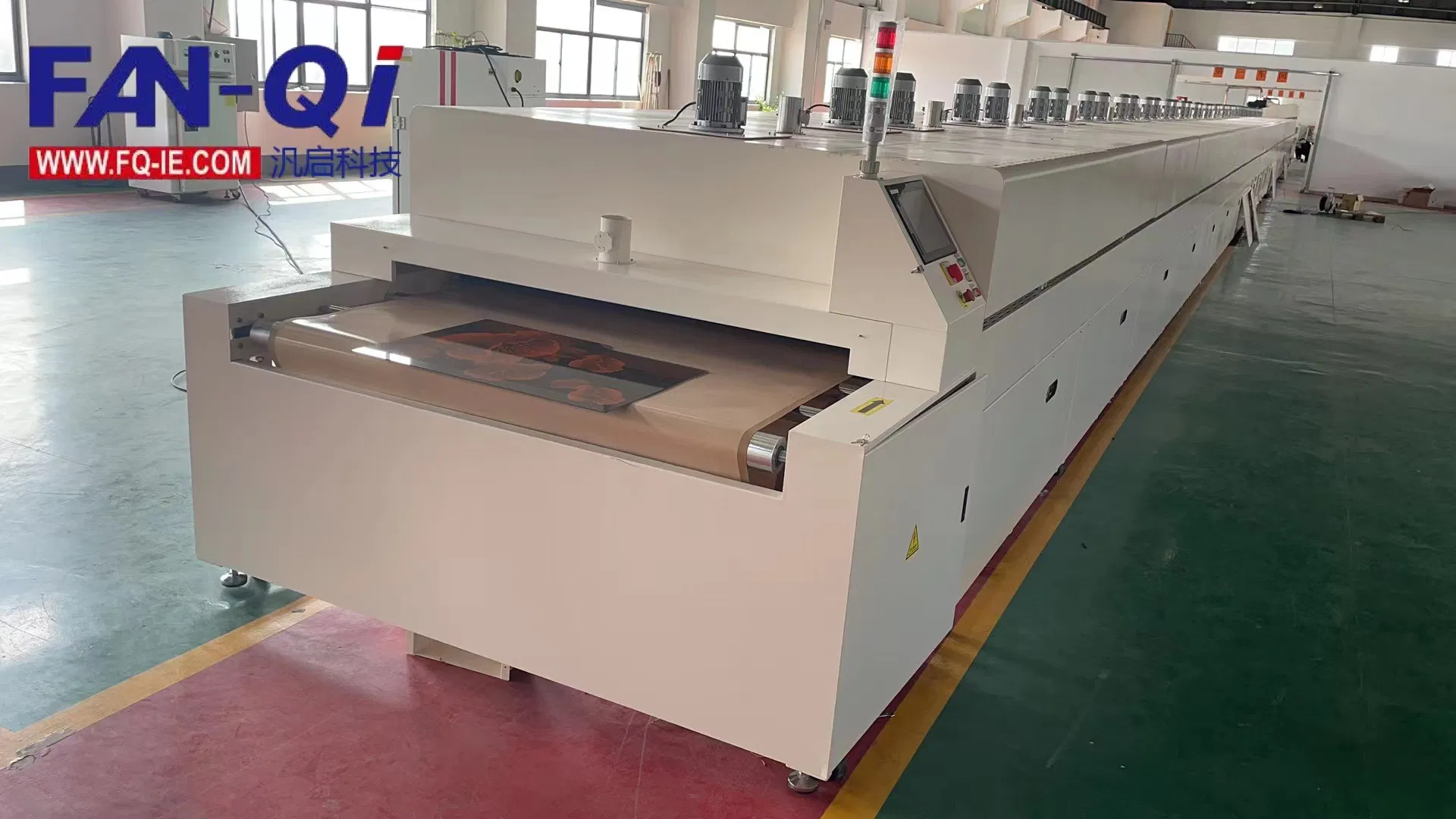

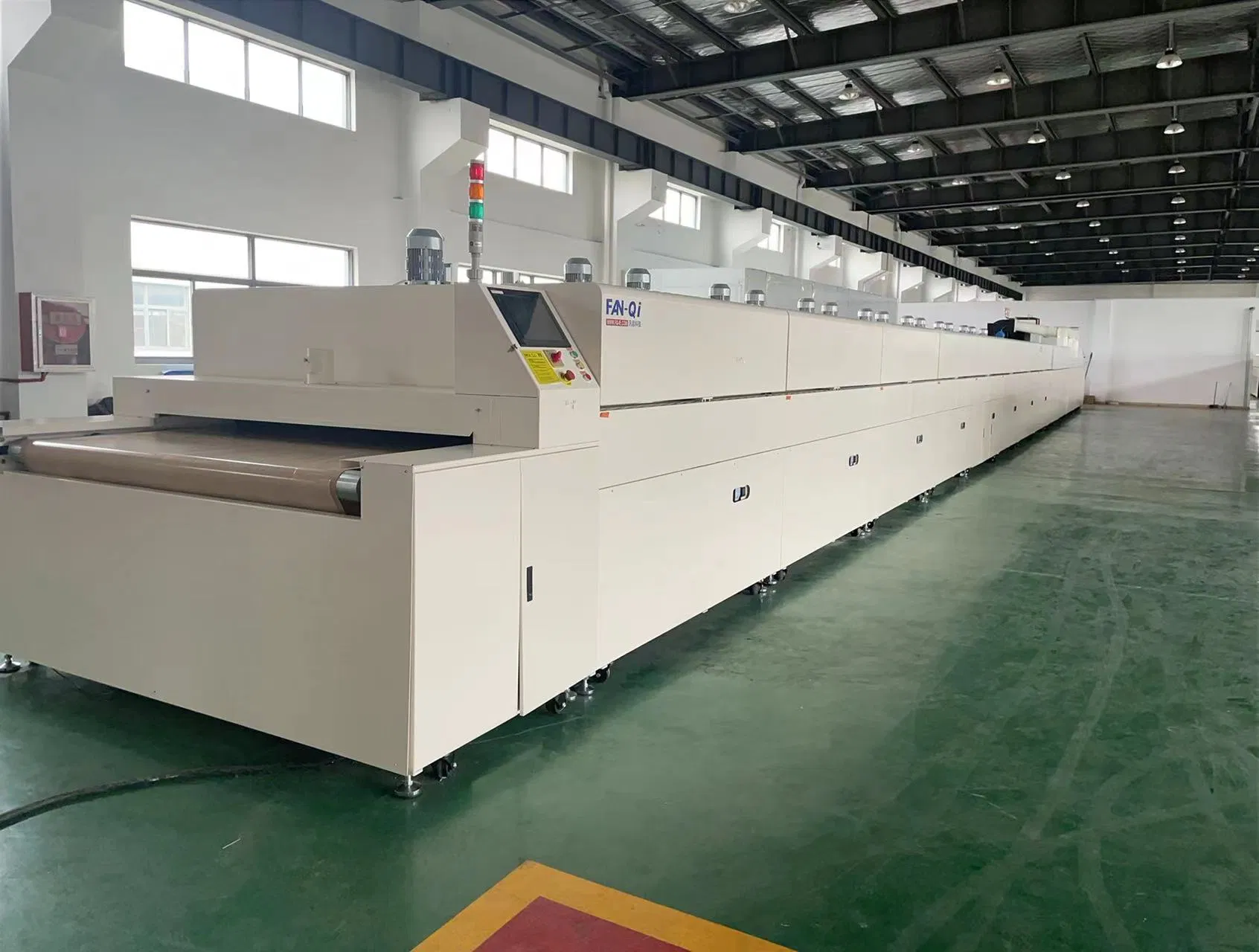

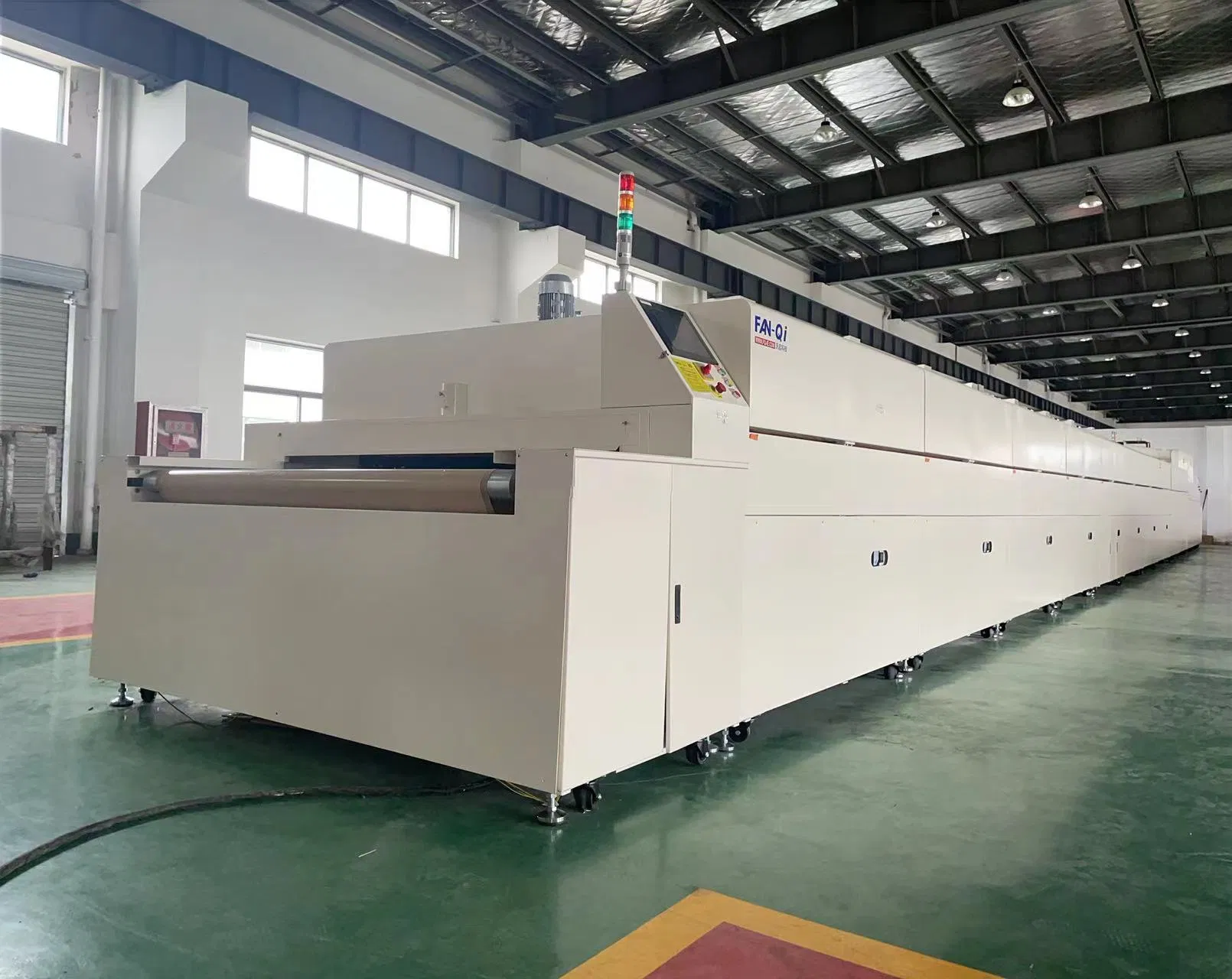

Premium Dust-Free Workshop Systems for Optimal Production Efficiency

Customization:	Available
After-sales Service:	After-Service Is Provided
Warranty:	12 Months

➲ Basic Specifications

Model NO.

FJCO-H20-201D

Movement Way

Combined

Heating Mode

Convective

Material Status

Strap

Drying Medium

Air

Pressure

Atmospheric Pressure

Type

Multistage

Temp. Constancy

+/- 1 Degree Celsius

Production Speed

0.3-4.0m/Min

Dust-Free Grade

Class100

Internal Material

SUS430# Stainless Steel

External Material

Baked Enamelled Steel Plate

Insulation

Fiberglass Wool

Temperature Range

+40~200℃

Temperature Uniformity

± 3 ℃

Production Capacity

100 Sets/Month

➲ Product Description

Detailed Technical Parameters
Conveyor System	The bottom surface touches the conveyor mesh during handling. There is no contamination and scratching of the material during the conveying process. The products are transported smoothly in the furnace without shaking and jamming.
Temperature Range	Max: 40 ºC -200 ºC, commonly used below 160 ºC.
Temperature Uniformity	Not more than ± 3 ºC (except near the feed/discharge port). Constant temperature stabilization via three-point furnace test.
Heating Device	Medium-wave quartz electric heaters for fast heating and firm drying.
Air Supply Mode	Hot air blowing from top to bottom with special air circuit structure design for uniform internal temperature.

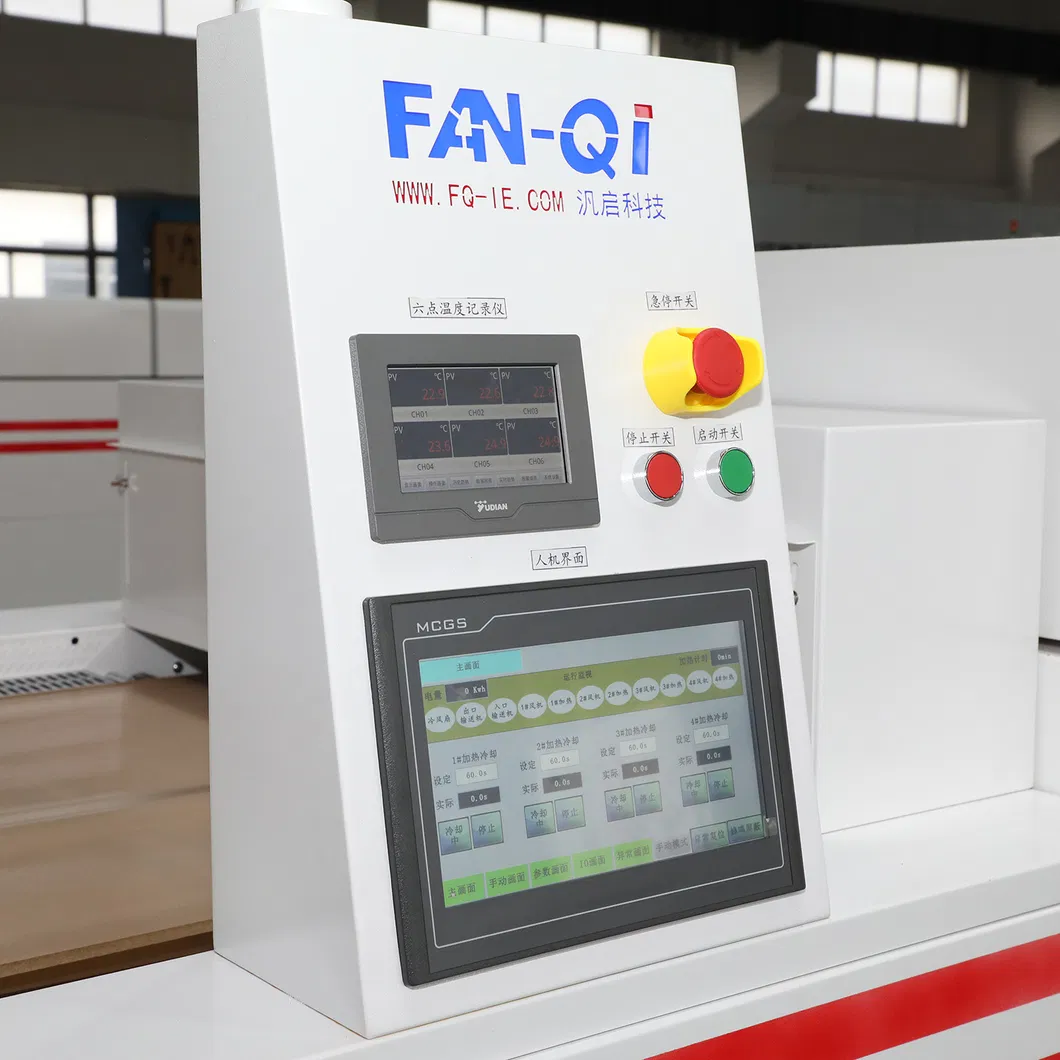

Control System	Siemens PLC system + Siemens touch screen, compatible with MES systems.
Power Supply	AC380V 3Φ 50Hz 200KVA
CDA	10L/min 5.0~7.5kgf/cm²

➲ Our Advantages

Efficient Exhaust: Centralized exhaust pipe diameter ∮ 100mm * 6PCS for neat installation; exhaust temperature managed under 150 ºC.
Premium Conveyor: PET-FILM & COVERLEN mesh belt (1000mm width) featuring special temperature and wear-resistant beige coating.
Material Protection: Zero contamination and scratching during handling; smooth transportation without shaking.
Advanced Insulation: 128K high-density aluminosilicate white ceramic cotton with high-temperature-resistant silicone door seals.
Safety Systems: Includes phase sequence error protection, overload protection, abnormal emergency stop, and over-temperature protection.
Support: One year free parts maintenance service included.

➲ Technical Profile

➲ Frequently Asked Questions

What is the maximum operating temperature of the machine?

The equipment supports a temperature range from 40 ºC to 200 ºC, though it is most commonly operated below 160 ºC for optimal performance.

What type of control system is integrated?

We use a high-end Siemens PLC system combined with a Siemens touch screen, which can be easily connected to your factory's MES system.

How does the machine ensure temperature uniformity?

Through a special air circuit design that blows hot air from top to bottom, we maintain a temperature uniformity of ± 3 ºC across the empty furnace.

Is the internal environment suitable for sensitive materials?

Yes, the system is designed for a Class 100 dust-free grade and uses SUS430 stainless steel for internal components to prevent contamination.

What safety protections are built into the system?

The machine is equipped with phase sequence error protection, overload protection, over-temperature protection, and an abnormal emergency stop function.

What is the production speed of the conveyor?

The conveyor speed is adjustable, ranging from 0.3 to 4.0 meters per minute to accommodate various production requirements.
