Anti-Slip Conductive PVC Tiles for Electronics Factories and Clean Rooms

1 / 5

Anti-Slip Conductive PVC Tiles for Electronics Factories and Clean Rooms

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

XYD series

Material

PVC

Size

600*600mm

Function

Anti-Fouling, Fireproof, Waterproof, Anti-static

Surface Treatment

Simple Color

Certification

CE, ISO, ASTM, Floorscore

Usage

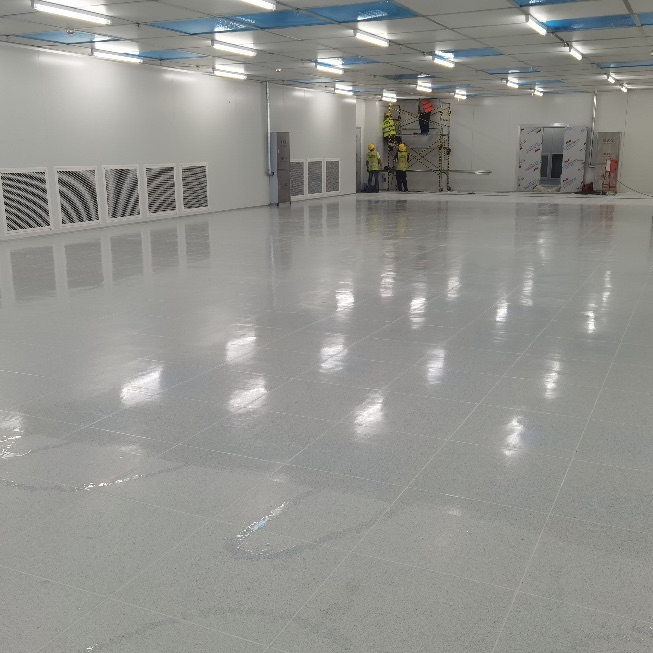

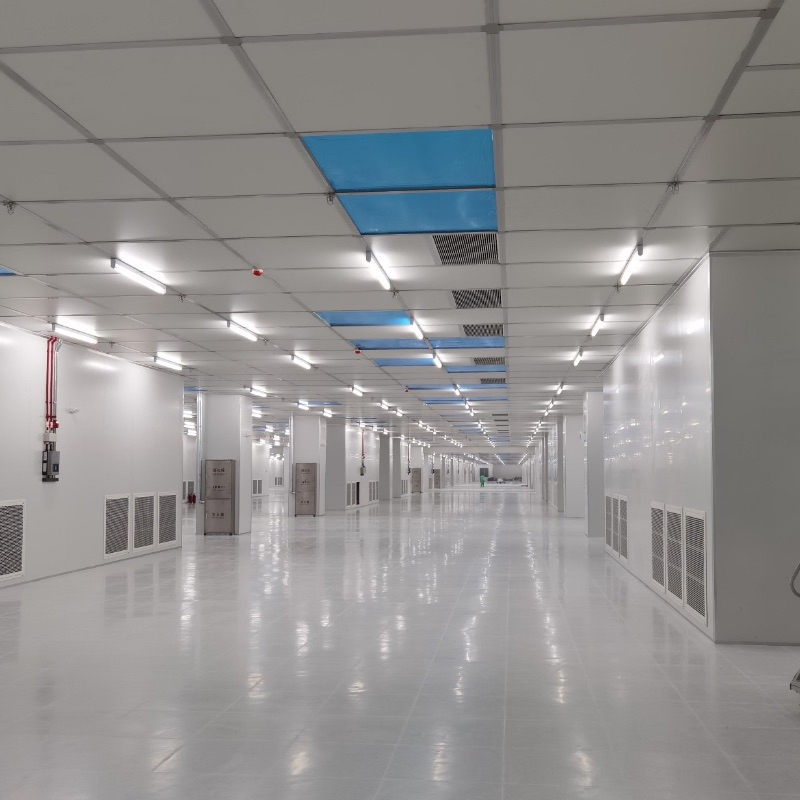

Electrical Factory, Computer Room, Clean Rooms

Electronic Resistance

10e6~10e9 Ohm or 10e4~10e6 Ohm

Specification

2.0-3.0mm Thickness

Capacity

200,000 SQM Per Month

⚡

Product Advantages

Electrostatic Dissipation Utilizes an electrostatically conductive network for permanent conductive properties, effectively preventing ESD damage to electronic components.

High-Quality Material Composition Made from PVC resin, conductive materials, and stabilizers to ensure a durable flooring solution capable of withstanding heavy foot traffic.

Aesthetic Decorative Effect Designed with a professional network pattern, making it ideal for laboratories, cleanrooms, and modern offices.

Safety & Protection Creates a safe working environment by eliminating static accumulation, critical for healthcare and electronics manufacturing.

Easy Installation & Maintenance Efficient to install and simple to clean, contributing to long-term cost-effectiveness across various industries.

📸

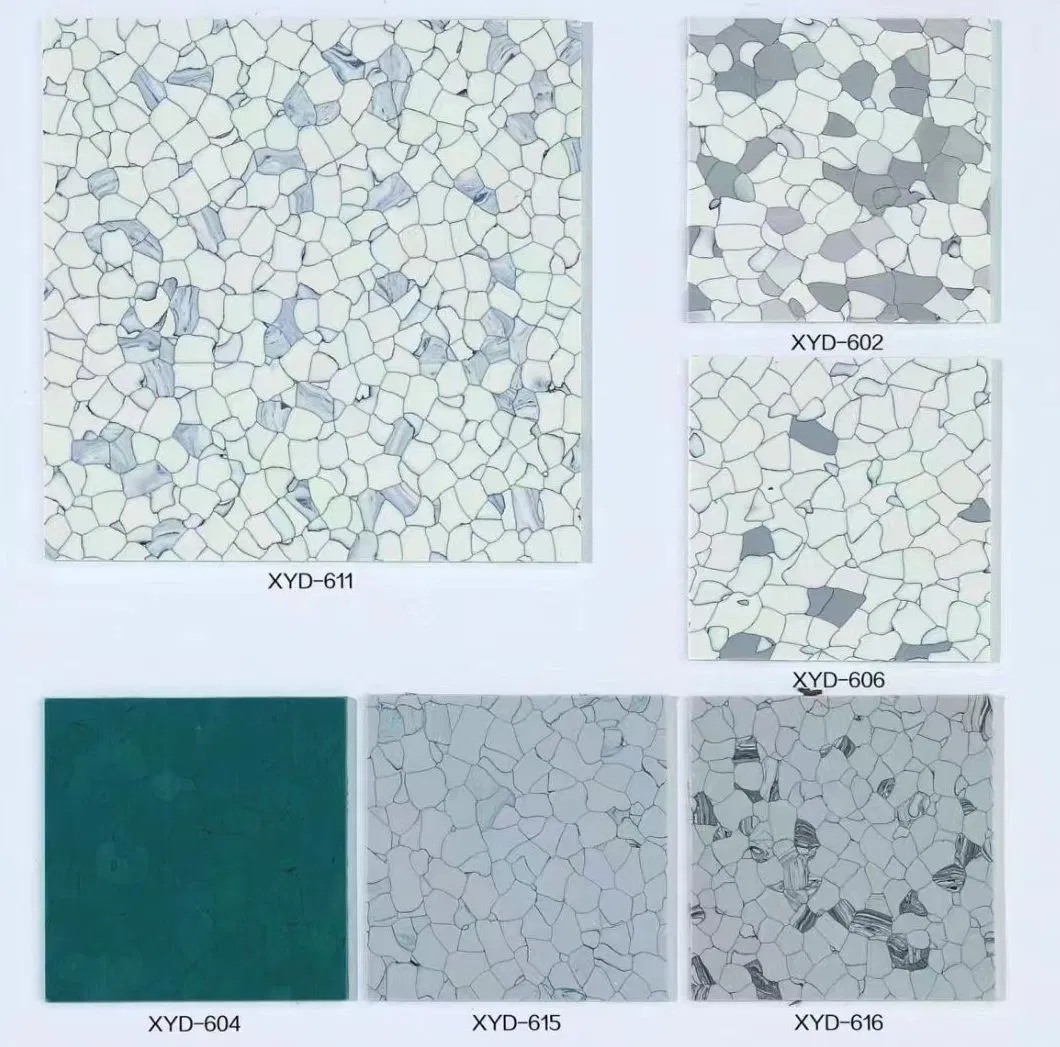

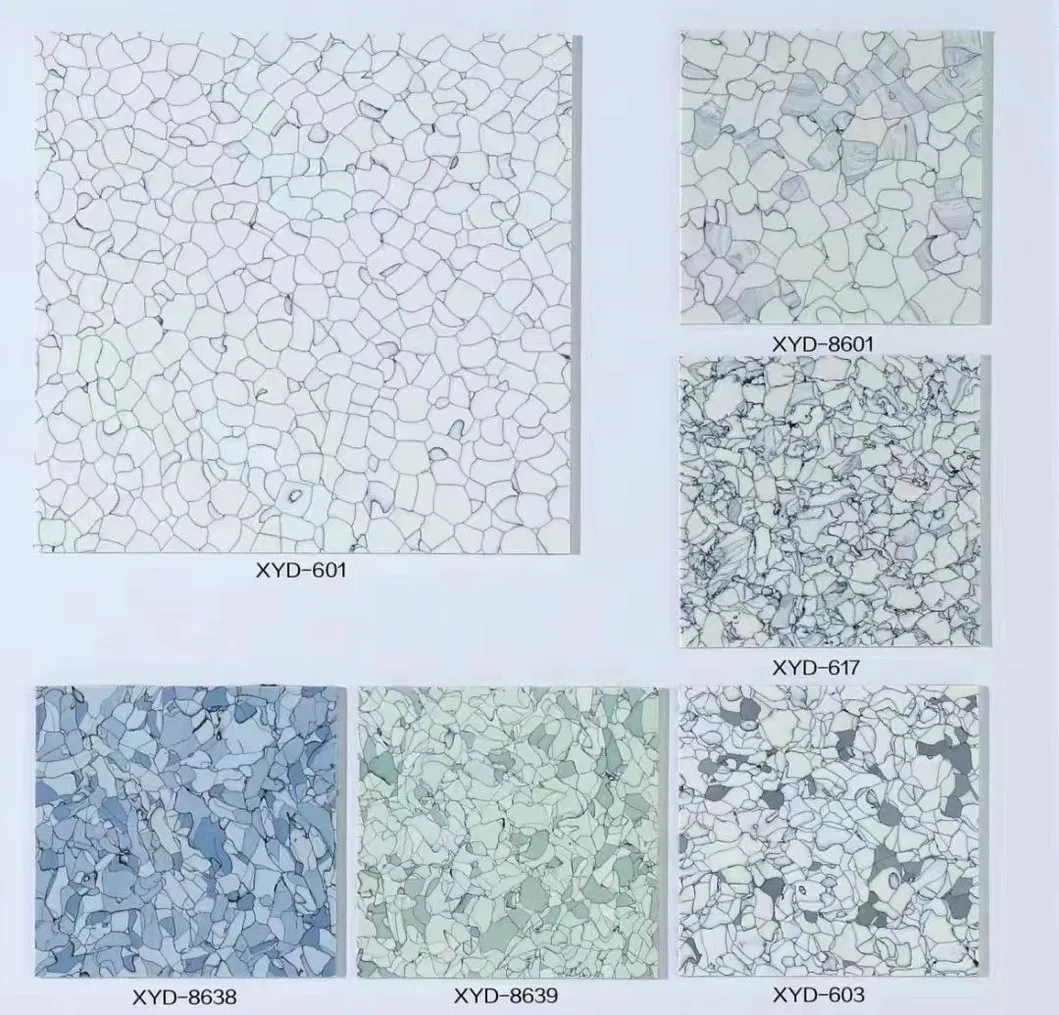

Product Showcase

📊

Technical Parameters

Property	Test Standard	Result
Thickness	ISO 24346	2.0, 2.5, 3.0mm
Electrical Resistance	EN 1081	10^4 - 10^9 Ω
Body Voltage	ANSI ESD STM97.2	< 100V
Static Decay	GJB3007A-2009	≤ 2 Sec
Fire Resistance	EN13501-1	Bf-S1
Slip Resistance	DIN 51130	R9
Residual Indentation	ISO 24343-1	0.01mm

🛠️

Advanced Production Technology

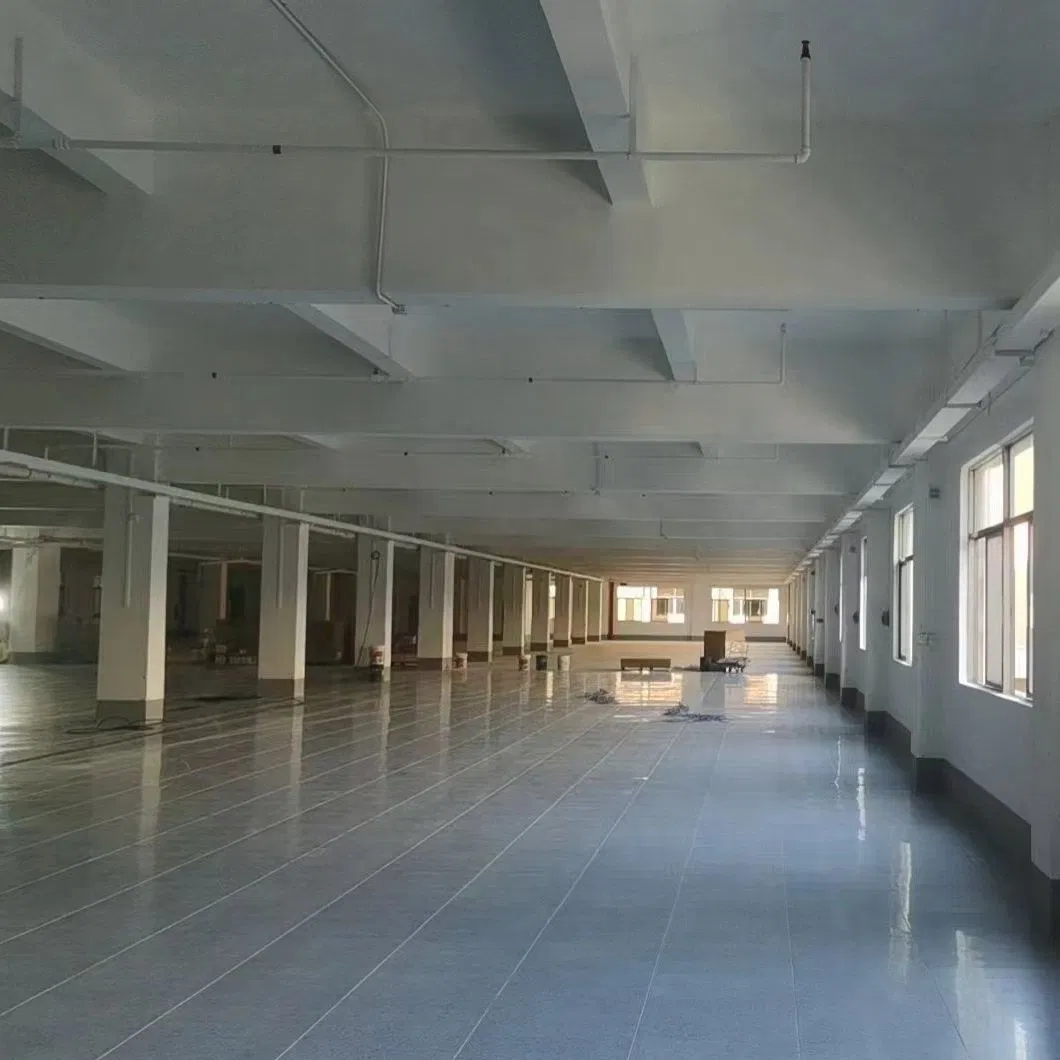

We utilize the "RHPP" technology: a physical method of rolling raw materials under high-pressure. This increases floor density and creates a stain-resistant film that closes pores, ensuring the carbon fiber remains intact for permanent conductive properties.

👷

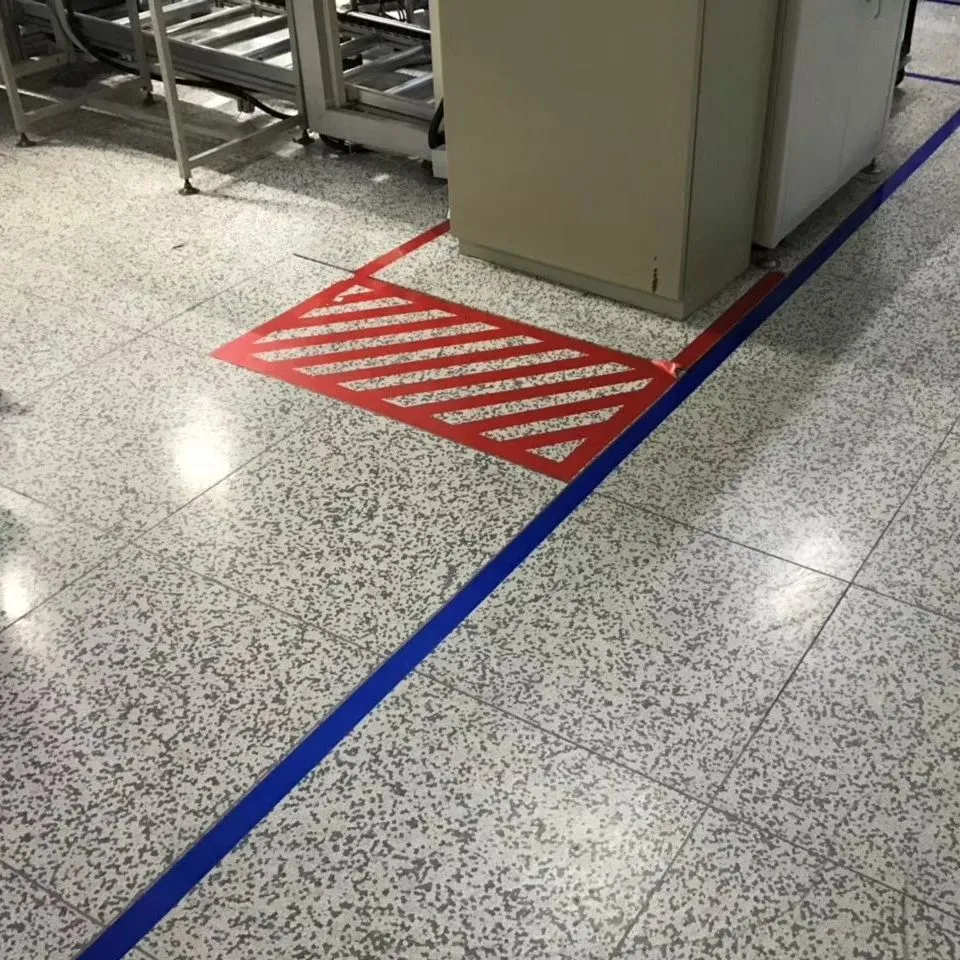

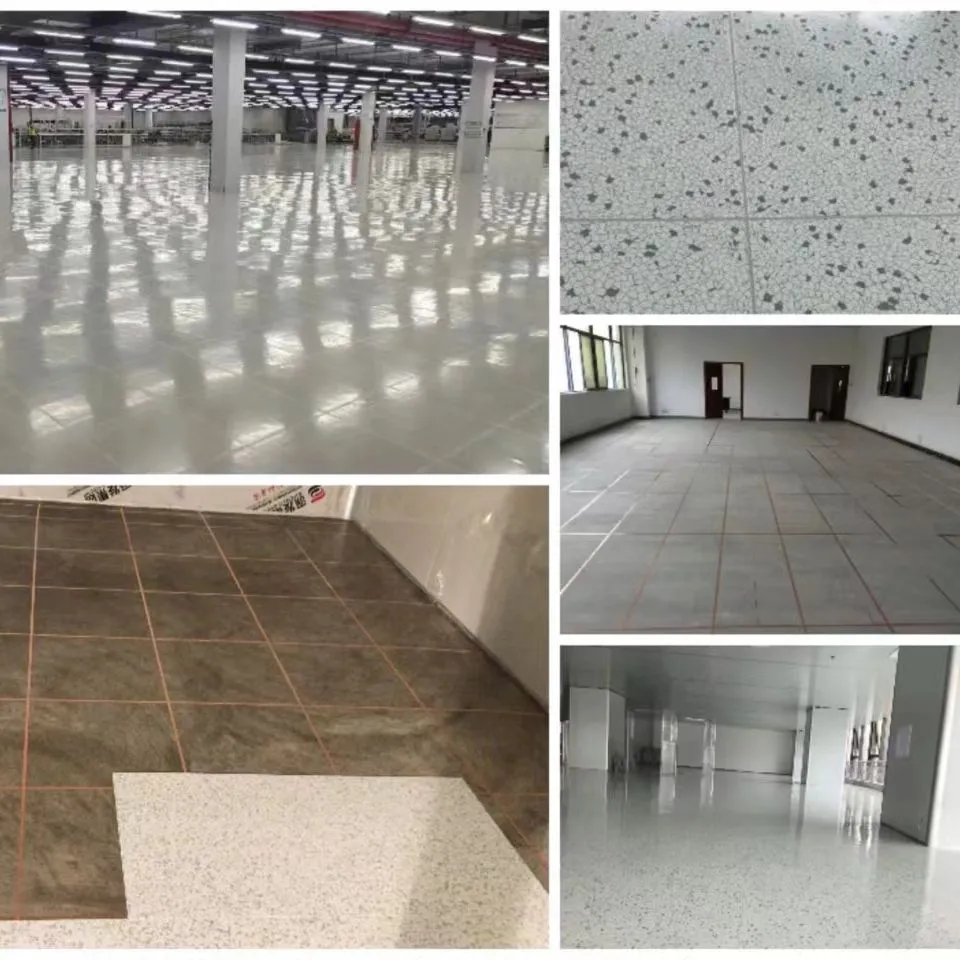

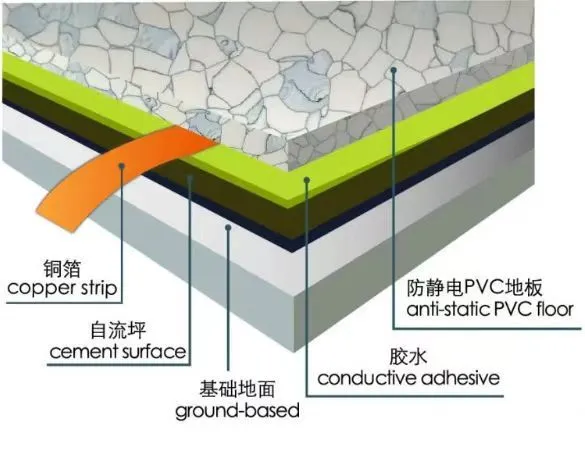

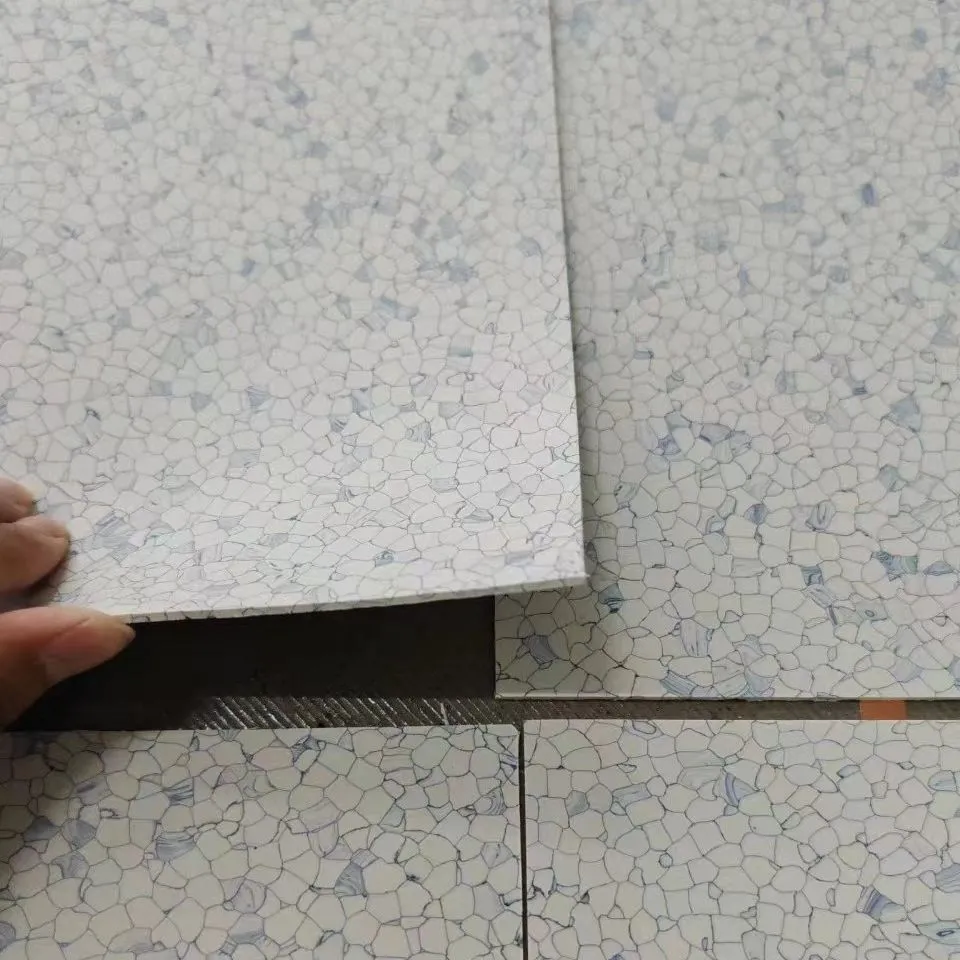

Installation Instructions

📜

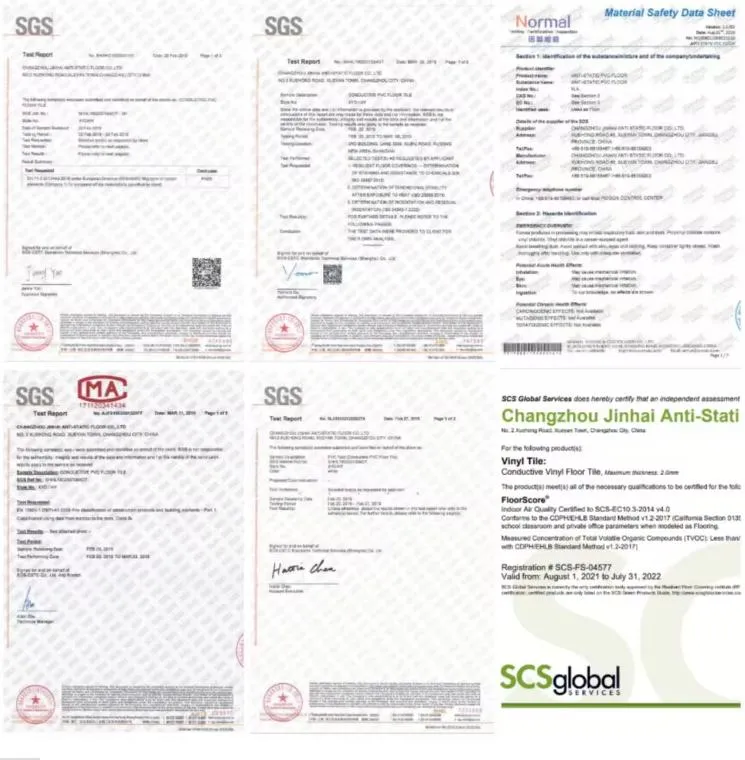

Certifications

Frequently Asked Questions

What are the available sizes and thicknesses for conductive tiles?

Sizes include 600mm x 600mm, 610mm x 610mm, 914.4mm x 914.4mm, and 305mm x 305mm. Available thicknesses are 2.0mm, 2.5mm, and 3.0mm.

What is the electrical resistance range of your flooring?

Conductive tiles range from 10^4 to 10^6 ohms, while anti-static tiles range from 10^6 to 10^9 ohms.

How are the tiles packed for international shipping?

For 600x600x2.0mm tiles: 25pcs/box, 40 boxes/pallet. A 20'GP container holds approximately 4,680 sqm (13 pallets).

What payment methods do you accept?

We accept T/T (Telegraphic Transfer), Letter of Credit (L/C), DDP, DA, and EXW terms.

What makes your PVC tiles better than standard ESD tiles?

We use a new generation of DOTP plasticizer which is safer and "RHPP" technology that ensures permanent conductivity and superior stain resistance by closing surface pores.

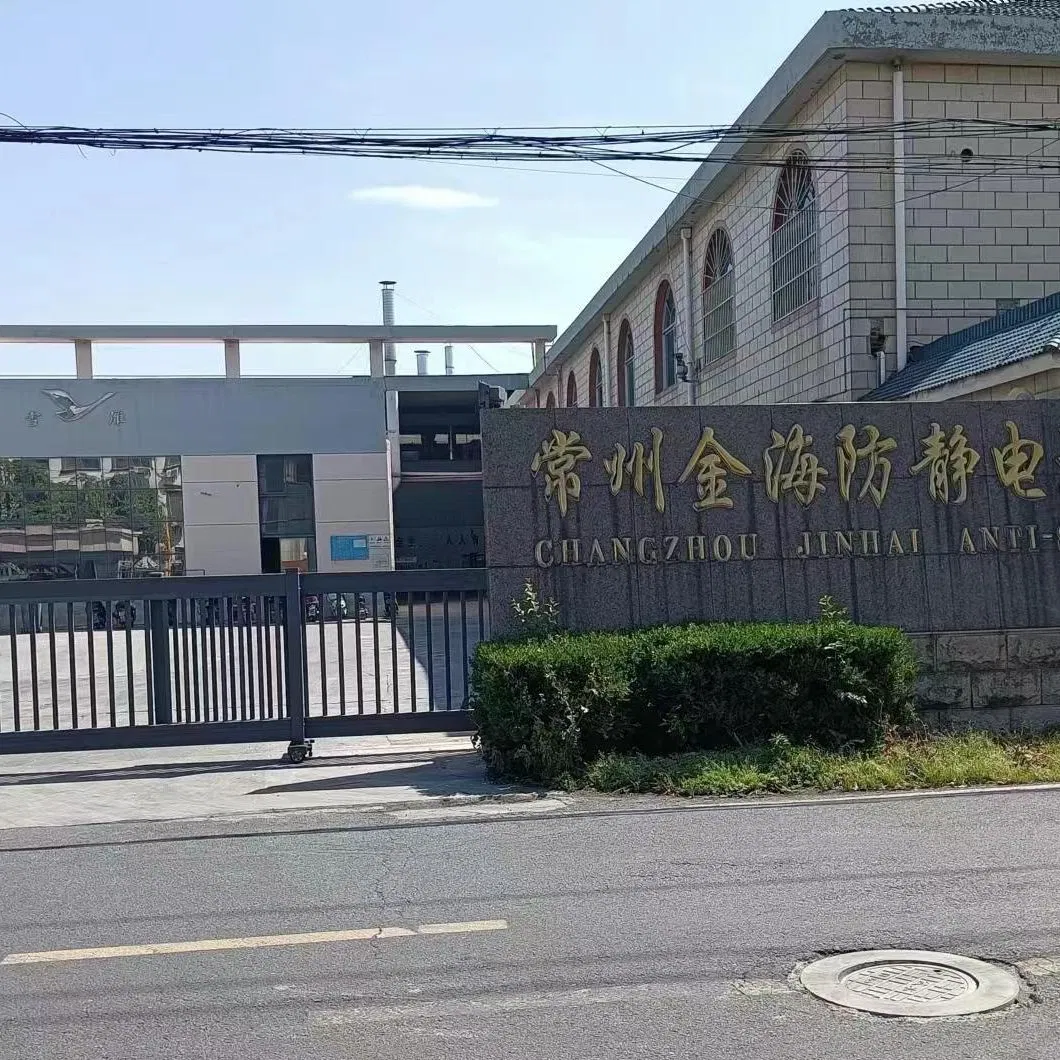

Where is your factory located?

Our manufacturing facility is located in Jiangsu Province, China.
