Green Manufacturing Facility ISO 14001 Certified

Customization: Available
Metal Coating: Copper
Mode of Production: SMT

Product Description

📋

Basic Information

Model NO. 001 Layers Multilayer
Base Material FR-4 Certification RoHS, CCC, ISO
Service PCB+Assembly+Components Product Name Industrial Equipment PCBA
Testing Service Electrical Testing, Flying Probe, Functional Test Precision ±0.03mm / ±0.01mm (Chip)
Origin China Condition New
🏭

Workshop Introduction

🛡️

Product Description

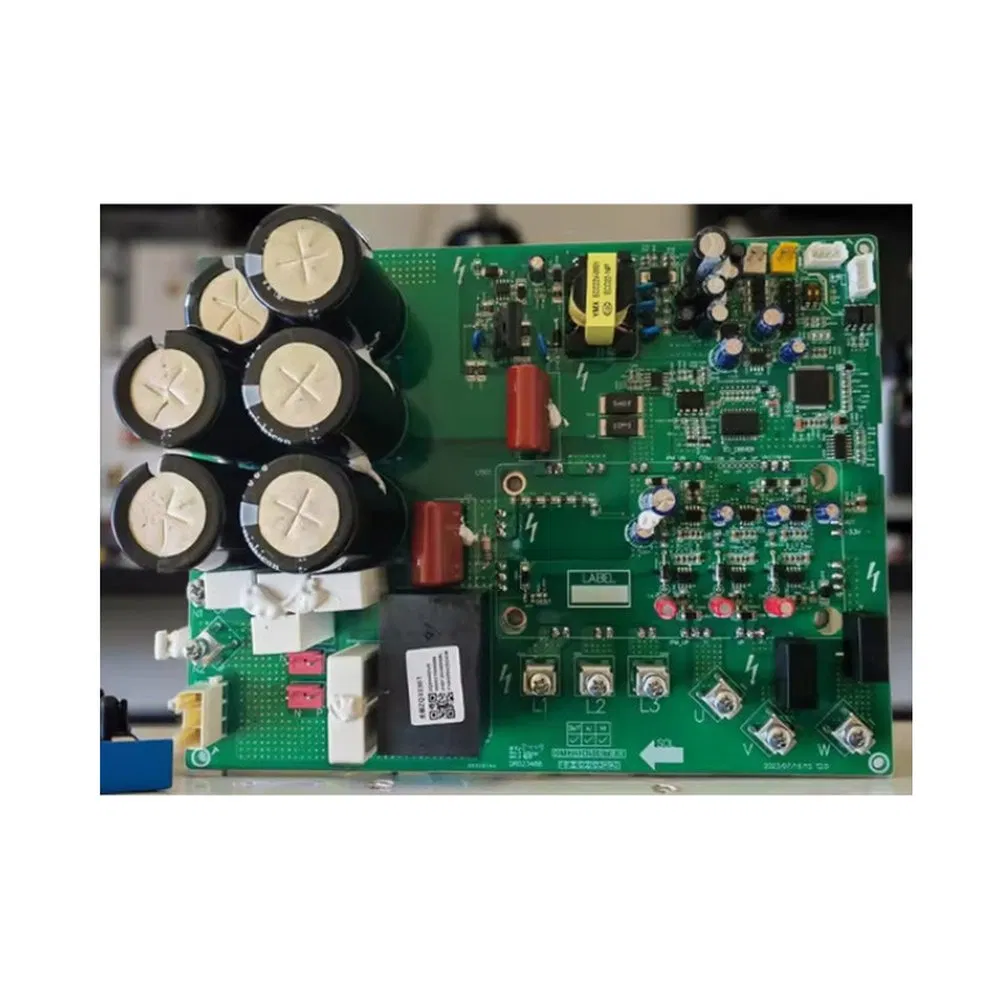

Industrial Equipment PCB Assembly (PCBA)

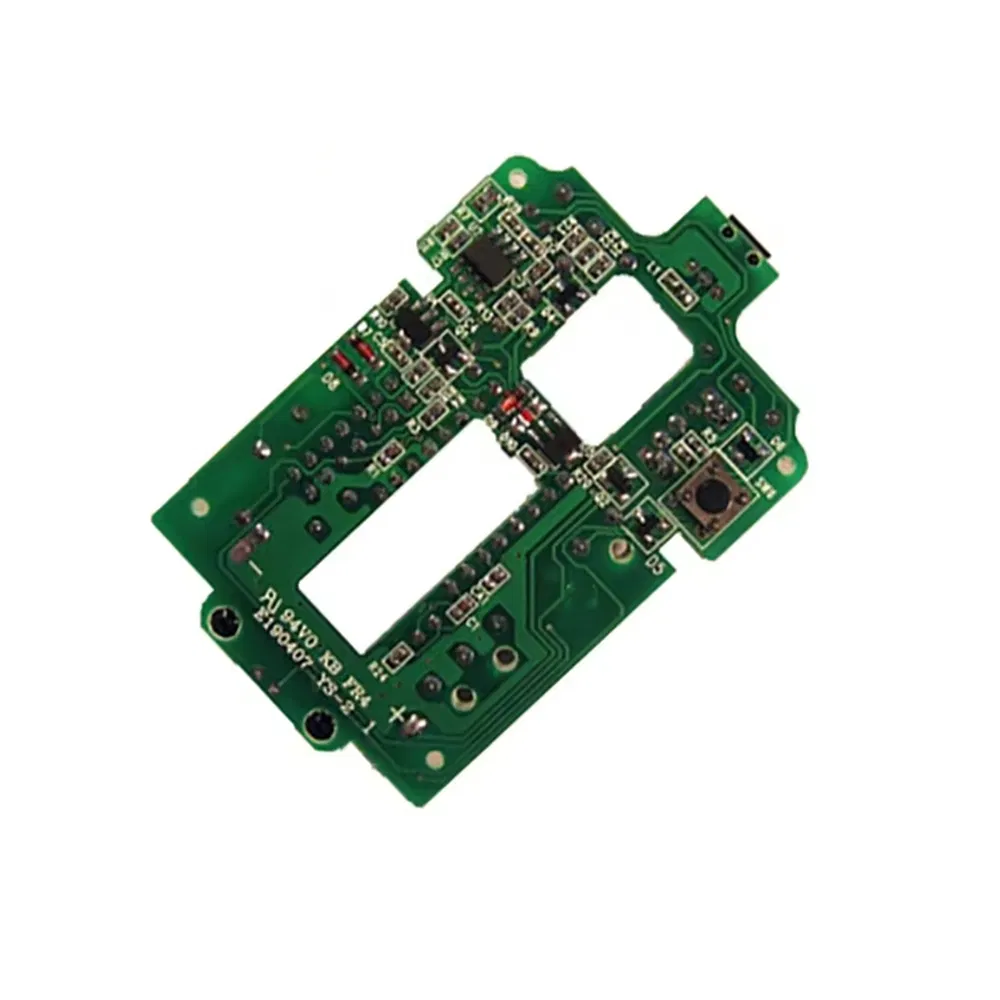

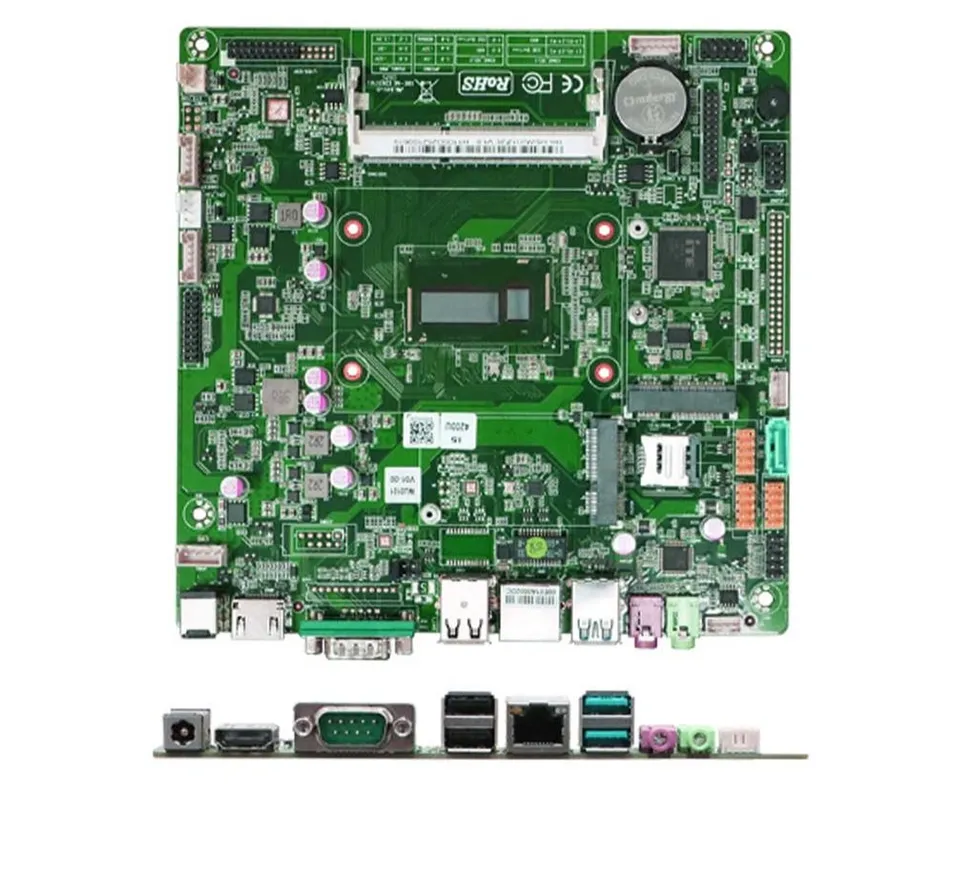

Industrial PCB Assembly

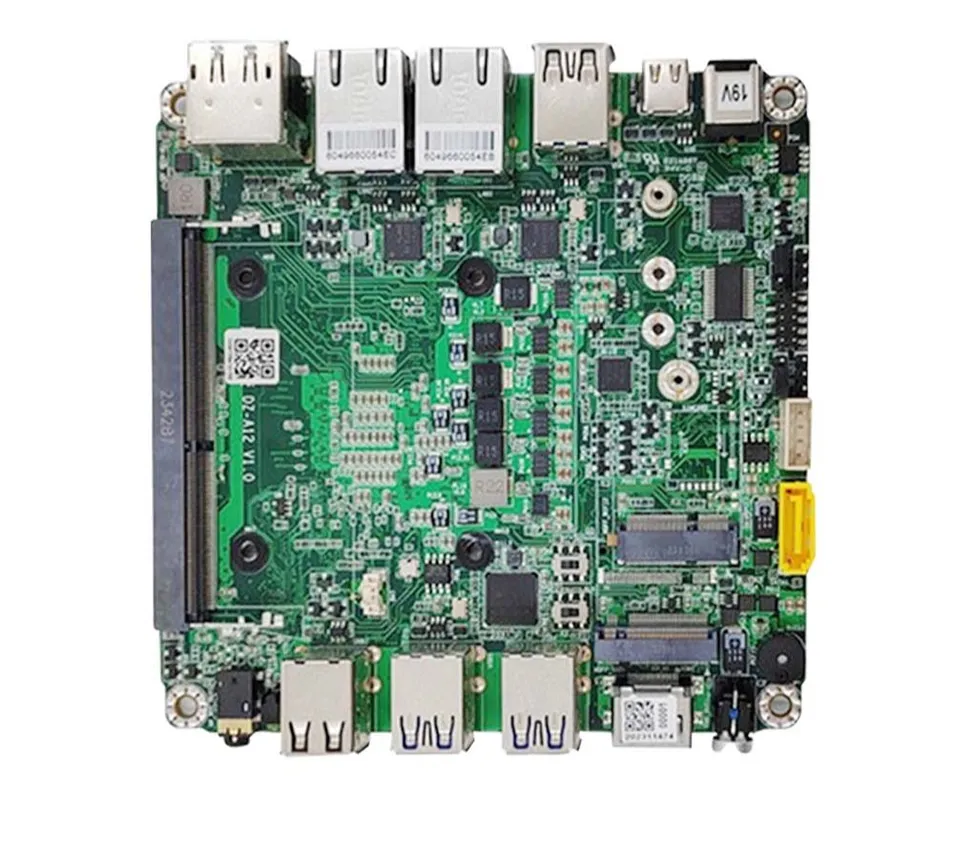

Precision PCBA Manufacturing
SMT Production Line
Quality Control Process

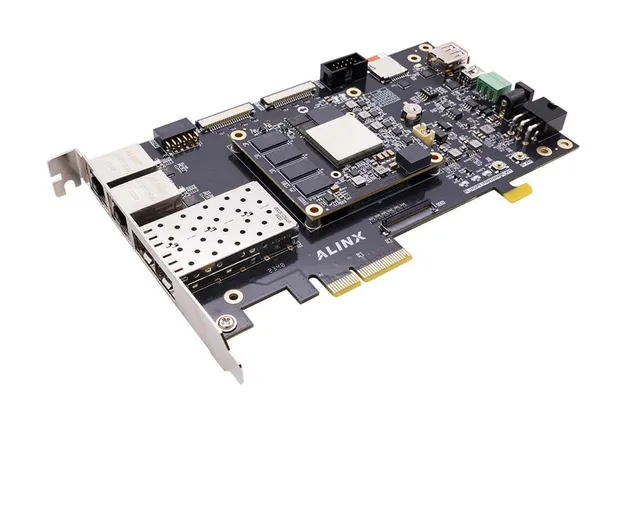

Advanced PCBA Components
⚙️

Technical Specification

Turnkey ServicePCB Design + PCB FAB + Component Sourcing + PCBA + Box Building
Assembly Details15 SMT Lines + 4 DIP Lines; Dust-free & Anti-static Workshop
Assembly CapacitySMT: 30 Million points/day; DIP: 100,000 pieces/day
Quality StandardsIPC-A-610 Class 2 / Class 3 (Medical Grade)
Inspection & Testing3D SPI + 3D AOI, X-ray, Flying Probe, ICT, FCT, Burn-in Test
Component SizePassive: 0201 (01005 support); Fine-pitch BGA, QFN, CSP, WLCSP
CertificationsISO 13485 (Medical), IATF 16949, ISO 9001, UL, CE, RoHS
Manufacturing Workflow
🔍

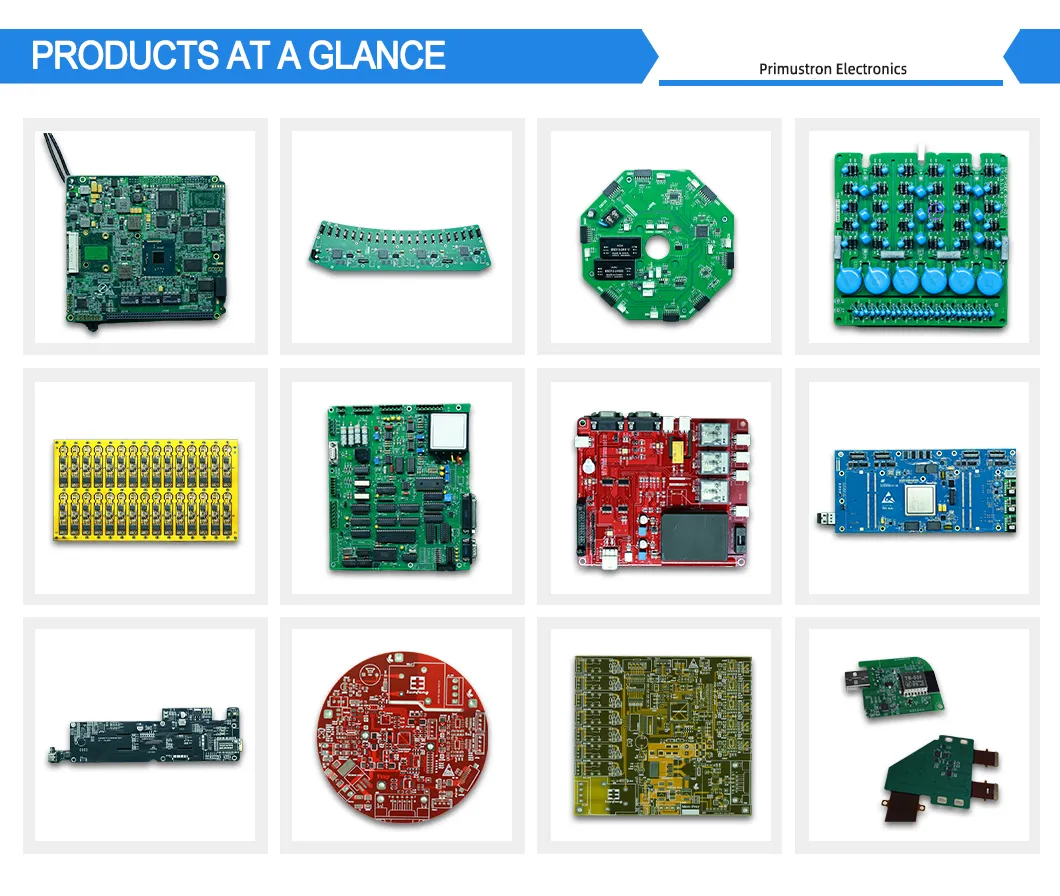

Products at a Glance

Product Gallery
🏢

Company Profile

For over 20 years, we have dedicated ourselves to serving industries including medical devices, automotive electronics, new energy, rail transit, and many others. We provide end-to-end turnkey services, encompassing BOM sourcing, product design solutions, SMT assembly, THT assembly, wire harness processing, conformal coating, box build assembly & testing, environmental stress screening, final packaging, and logistics delivery.

Factory Exterior

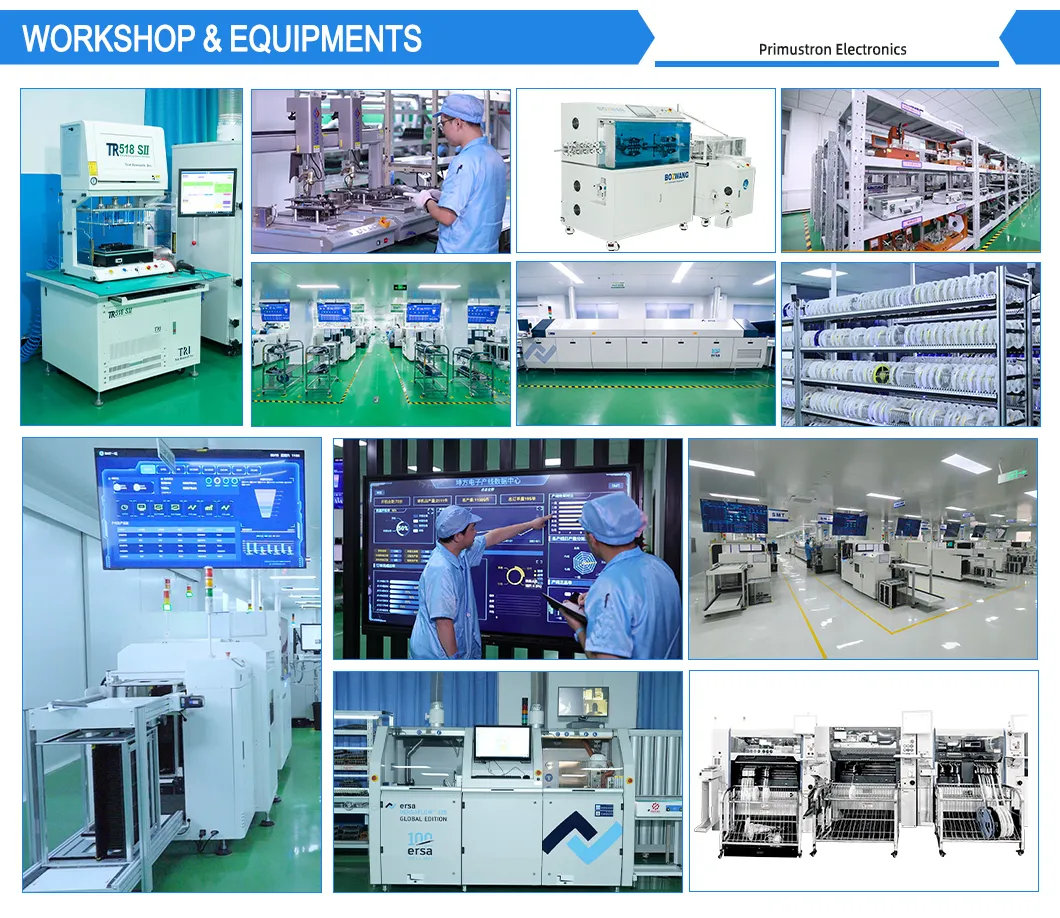

Production Facility

Our facilities include a Class 10,000 cleanroom, dedicated RoHS-compliant workshops, and specialized lines for small-batch trial production. Our production base features world-class hardware, including high-speed mounters and nitrogen reflow ovens. We take immense pride in being a vital link in the supply chain, with our PCBA products successfully deployed in mission-critical applications such as medical centers, high-speed rail, and aerospace systems.

📜

Certificates & Packaging

International Quality Certificates

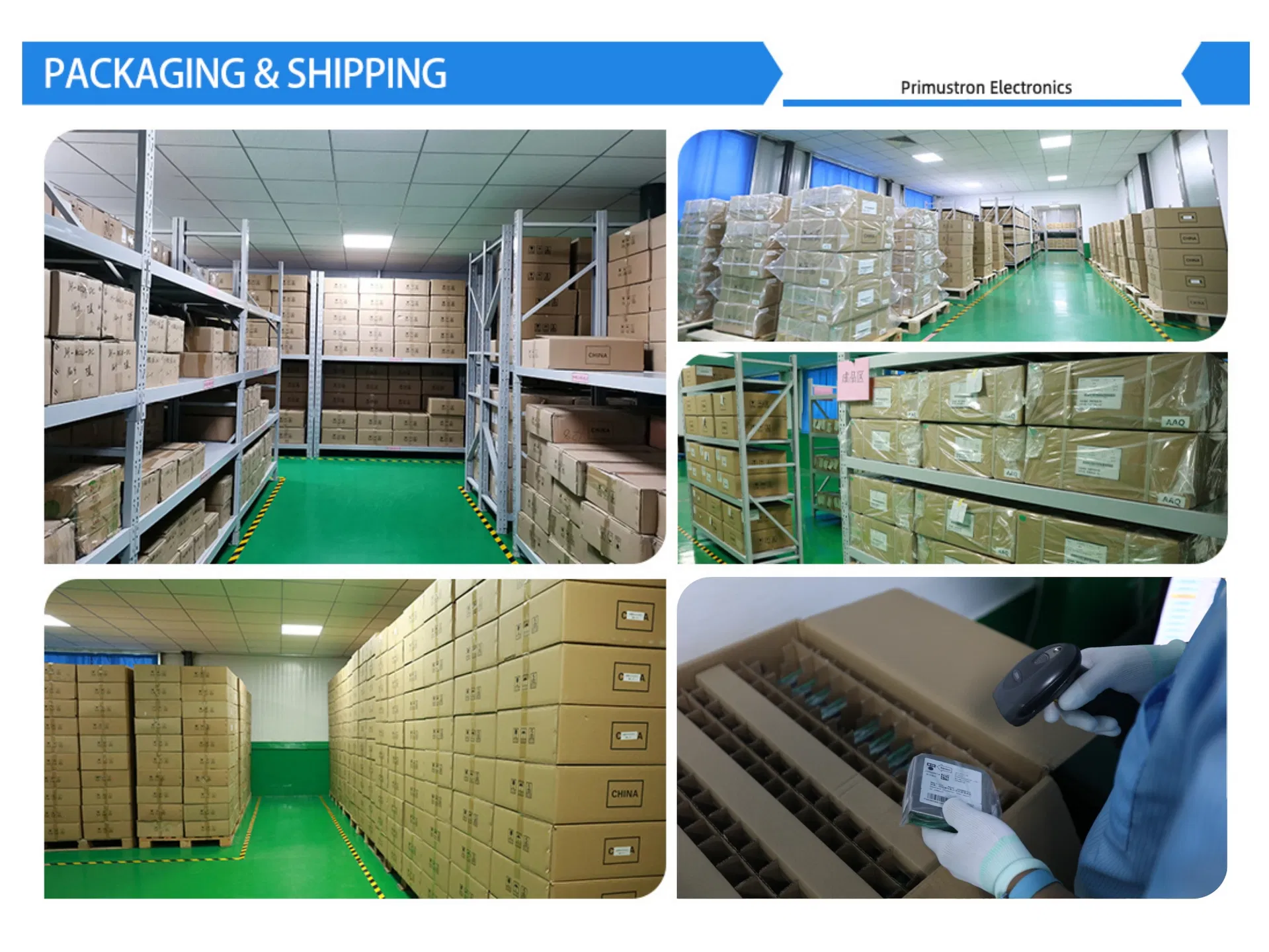

Professional Packaging

Frequently Asked Questions

Q1: What types of products are your PCBA services primarily targeted at?
A1: Our services focus on medical devices, automotive electronics, rail transit, industrial products, new energy, network communication, and instruments with high process complexity.
Q2: What information is required for a detailed PCBA quote?
A2: Please provide the Gerber files (PCB details), a complete Bill of Materials (BOM), and any specific testing documents or requirements.
Q3: What is your minimum order quantity (MOQ)?
A3: We have no MOQ restrictions. We fully support both rapid prototype development and high-volume mass production.
Q4: Do you ensure confidentiality for our design files?
A4: Absolutely. We are willing to sign a Non-Disclosure Agreement (NDA) and maintain strict internal protocols to protect all customer intellectual property.
Q5: What assembly methods and solder types do you support?
A5: We support SMT, THT, and Hybrid assembly, including single/double-sided and BGA reballing. Solder options include RoHS Lead-Free and No-Clean types.
Q6: What is the typical lead time for production?
A6: Prototype orders usually take 5-10 working days, while mass production typically ranges from 15-25 working days depending on complexity.
