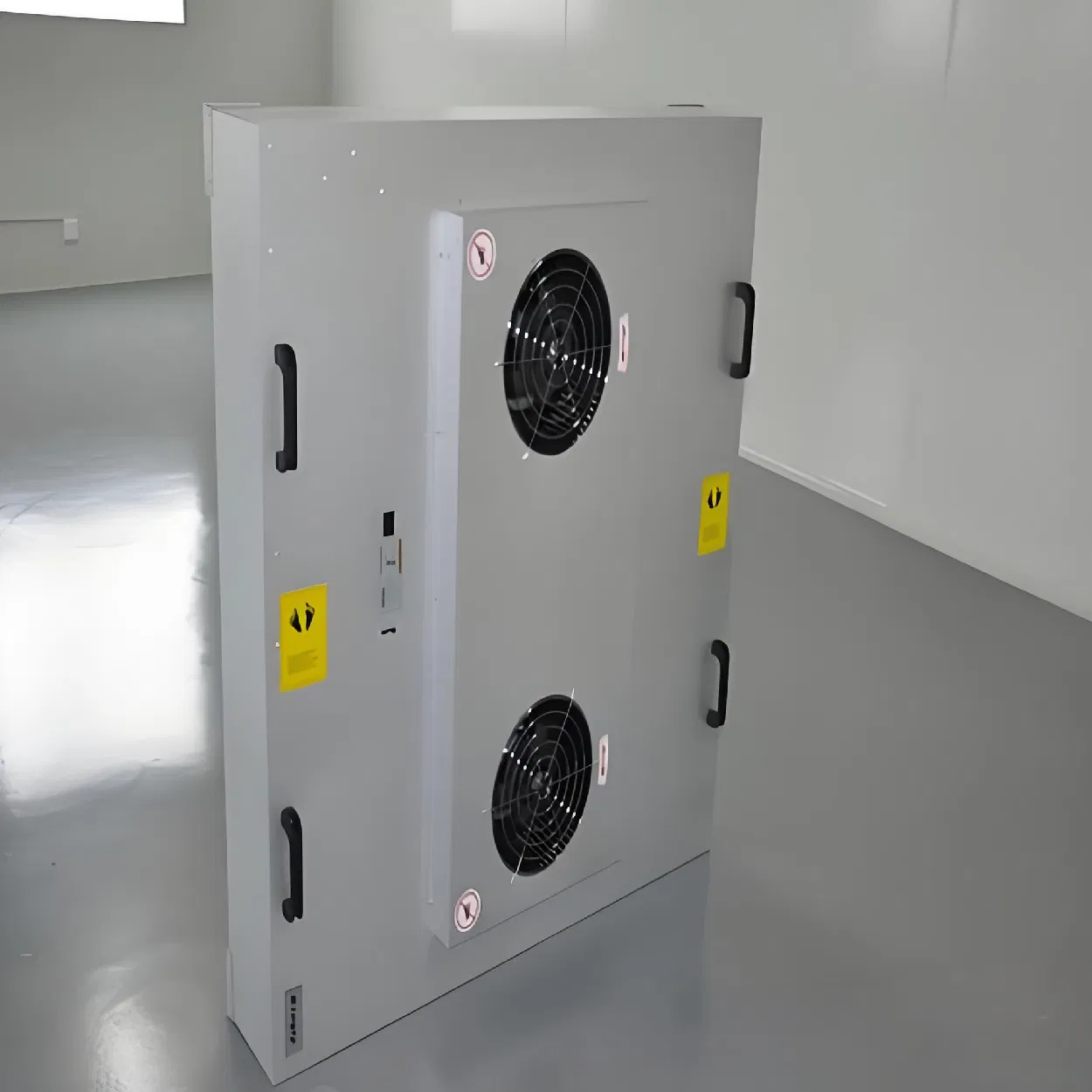

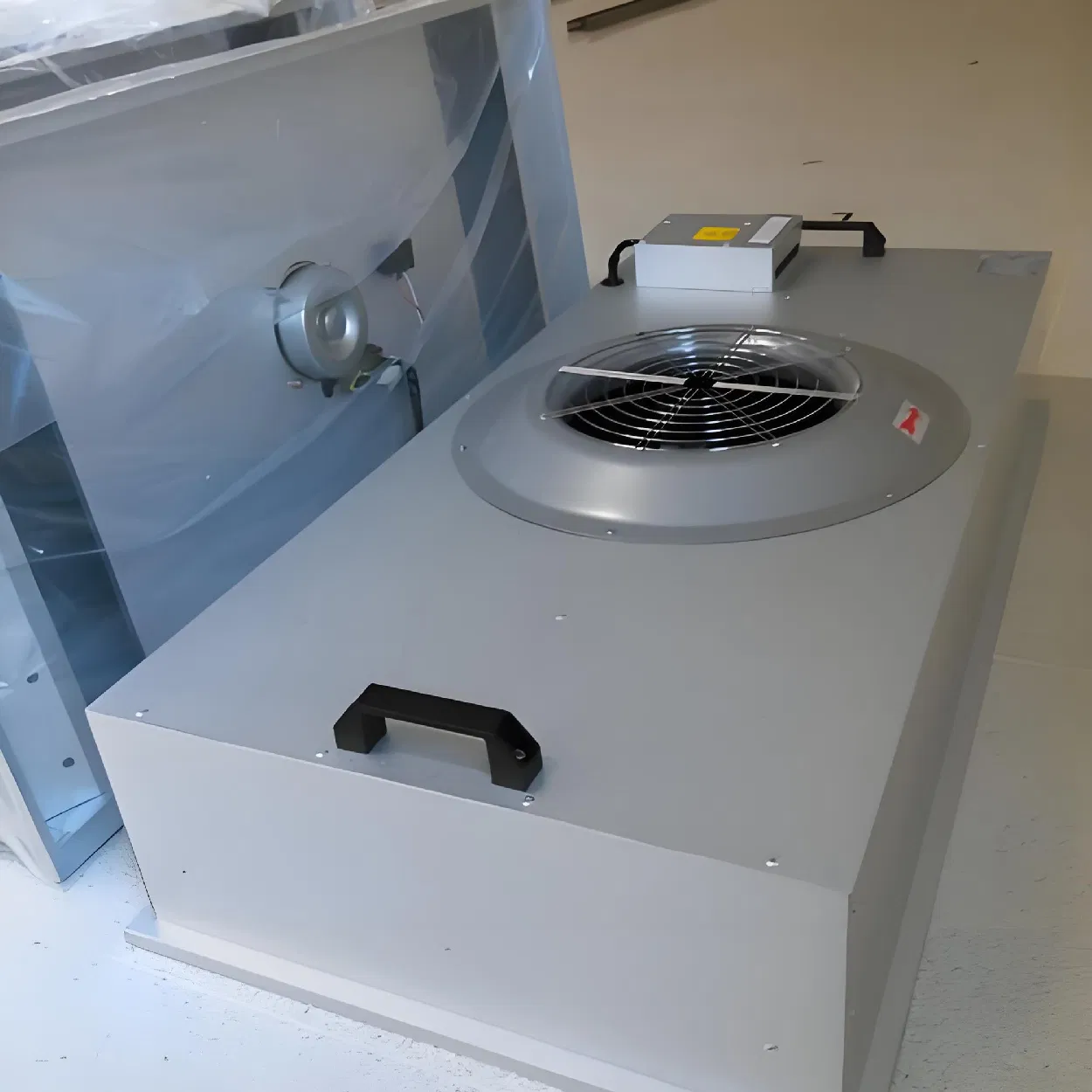

Control System: The self-developed AIX-I control system achieves large-scale networked centralized control, allowing accurate data reading and single FFU management.

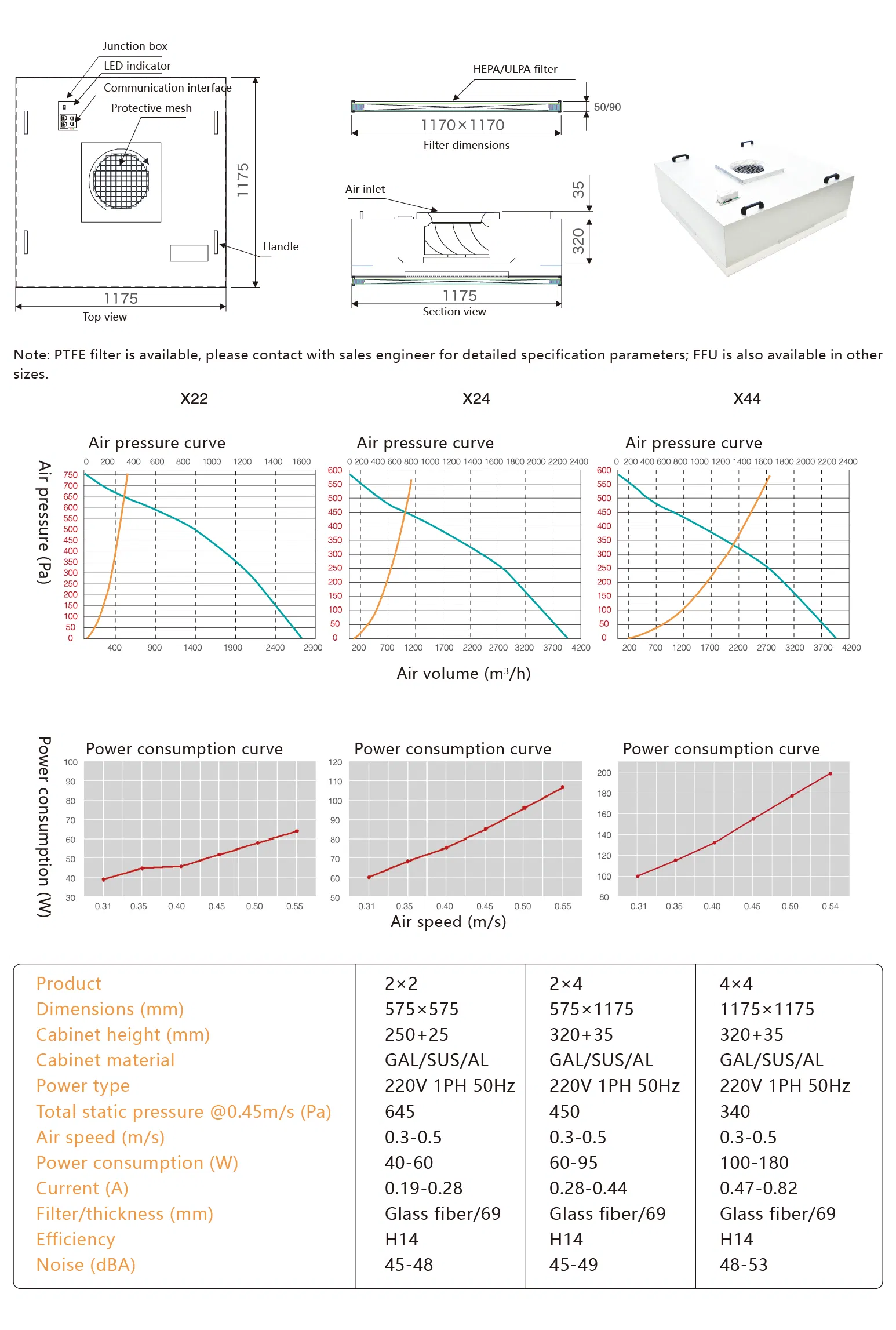

Total High Static Pressure: High-pressure integrated fans provide 50~150Pa external static pressure under rated airflow. This can be further optimized using low-resistance PTFE filters.

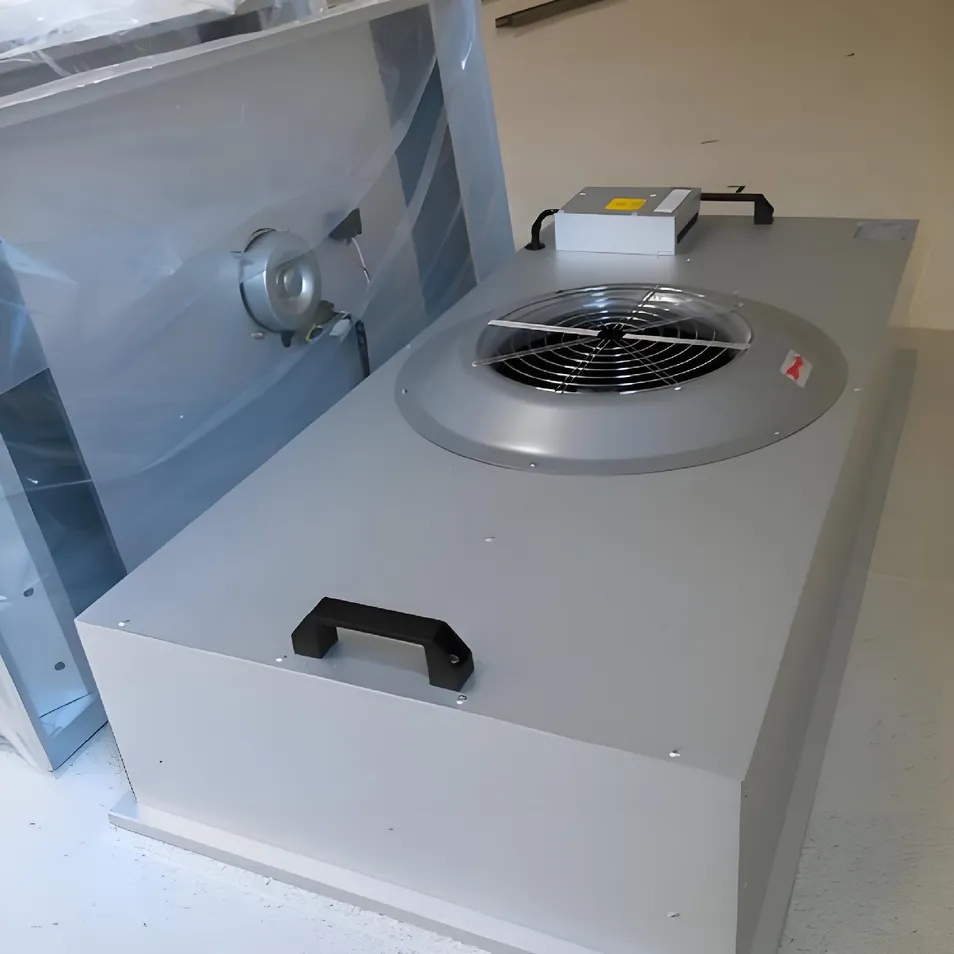

Low Energy Consumption: Brushless DC motors are significantly more energy-efficient than AC motors. Compared with conventional AC FFU units, EC FFU can reduce energy consumption by 30% - 40%.
Unique Structure Design: The unique air duct design improves air outlet uniformity by 5-8%, increases efficiency by 5%, and reduces noise by approximately 5DBA.

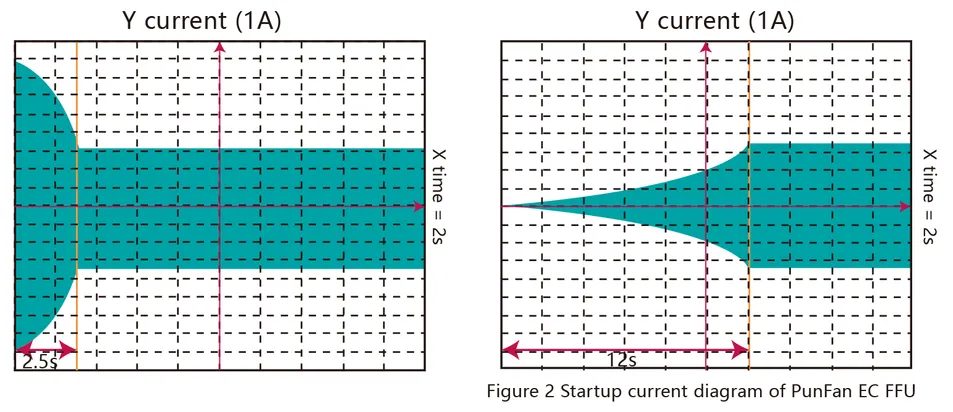

Standard AC FFUs generate large inrush currents (3.5x running current) during startup. Our EC FFU adopts high-quality DC motors with gradual current discharge. The current increases gradually over 12 seconds, protecting the power grid and switching systems.

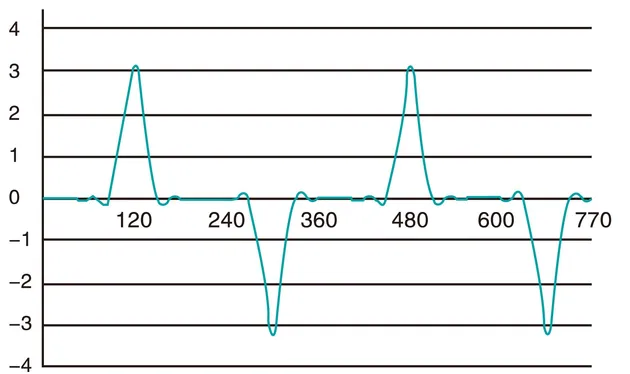

No Filtering System

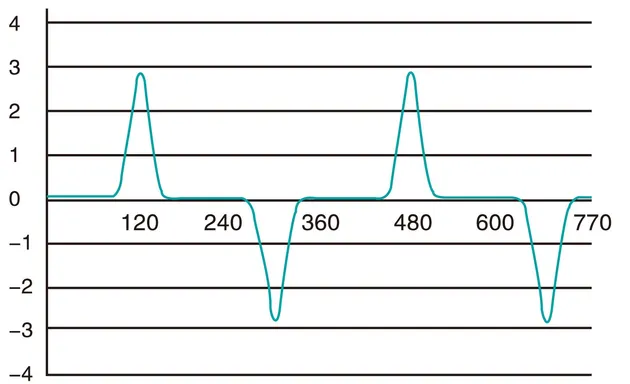

Common Passive System

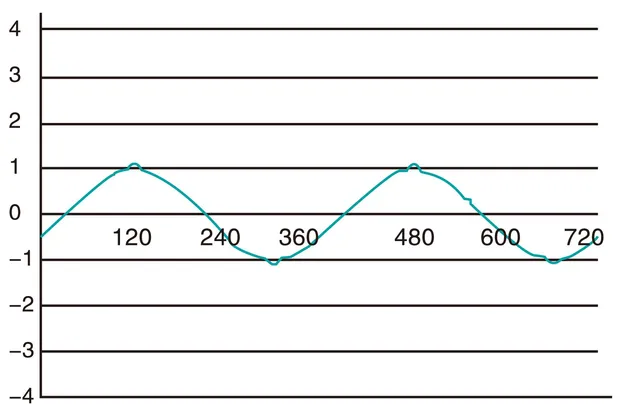

Active Filtering System
Suitable for multi-room or small clean workshops. Consists of a tablet, signal collector, and amplifier. Response time is less than 1 second.

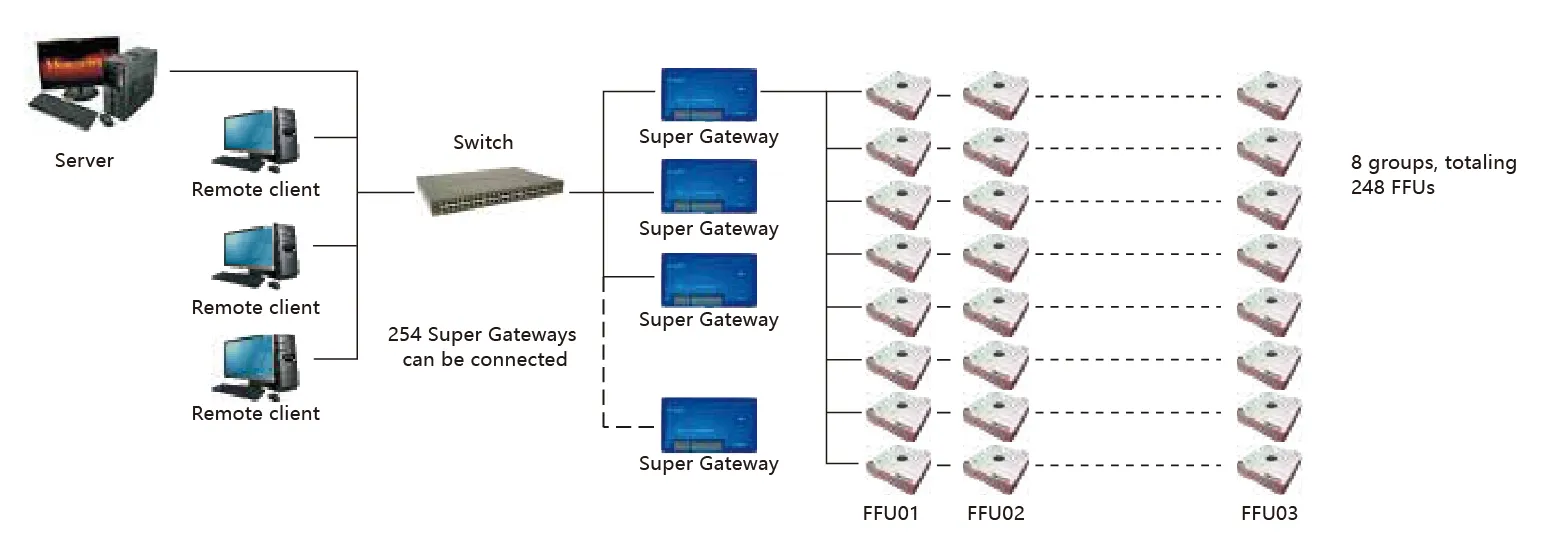

Each Gateway controls 8 groups (248 units). One PC can link 254 Super Gateways, controlling up to 62,992 FFUs via the switch system.

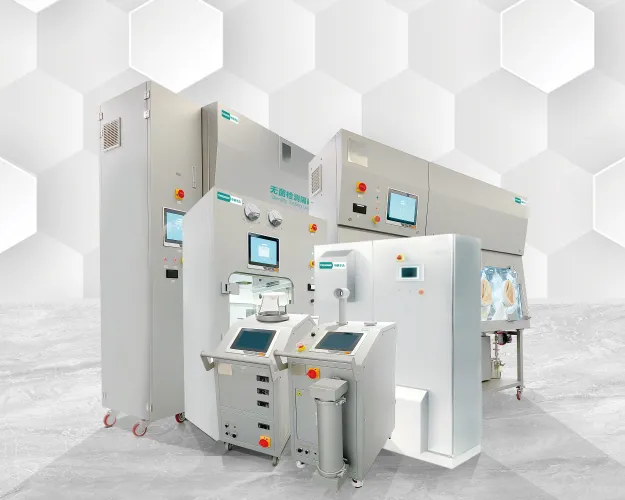

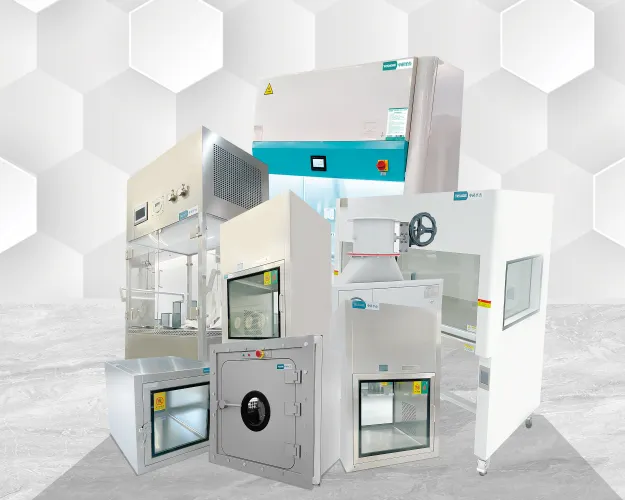

Life Science Sterilization
VHP Pass Boxes, Isolators, Laminar Flow Carts.
Biopharmaceutical Equipment
Weighing Rooms, Clean Benches, Biosafety Cabinets.

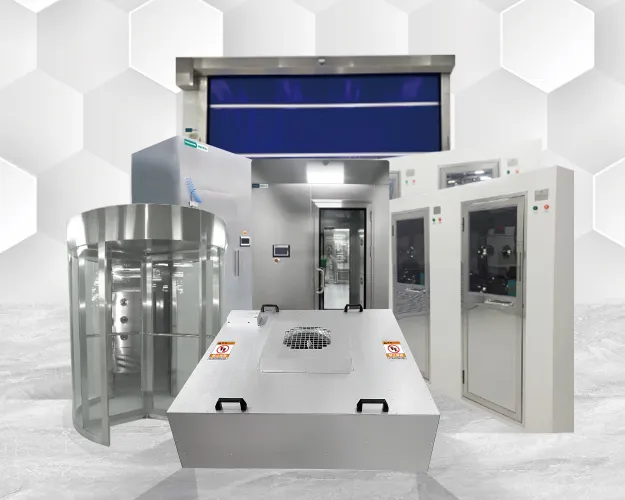

Electronics Contamination Control
Air Showers, Clean Wardrobes, Hand Dryers.

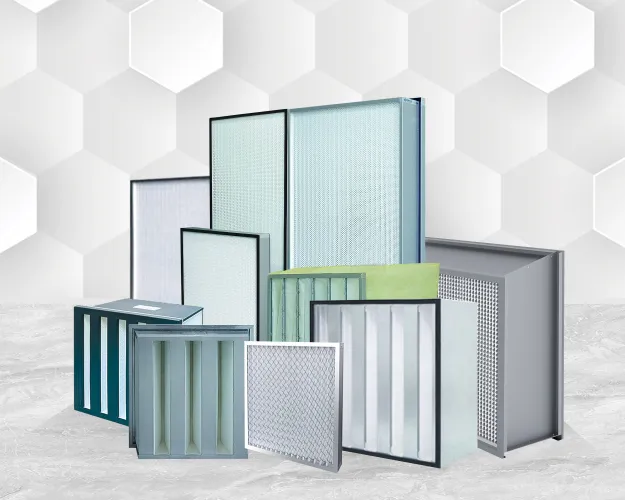

Air Filtration Systems
HEPA Filters, Bag Filters, V-Bank Filters.
