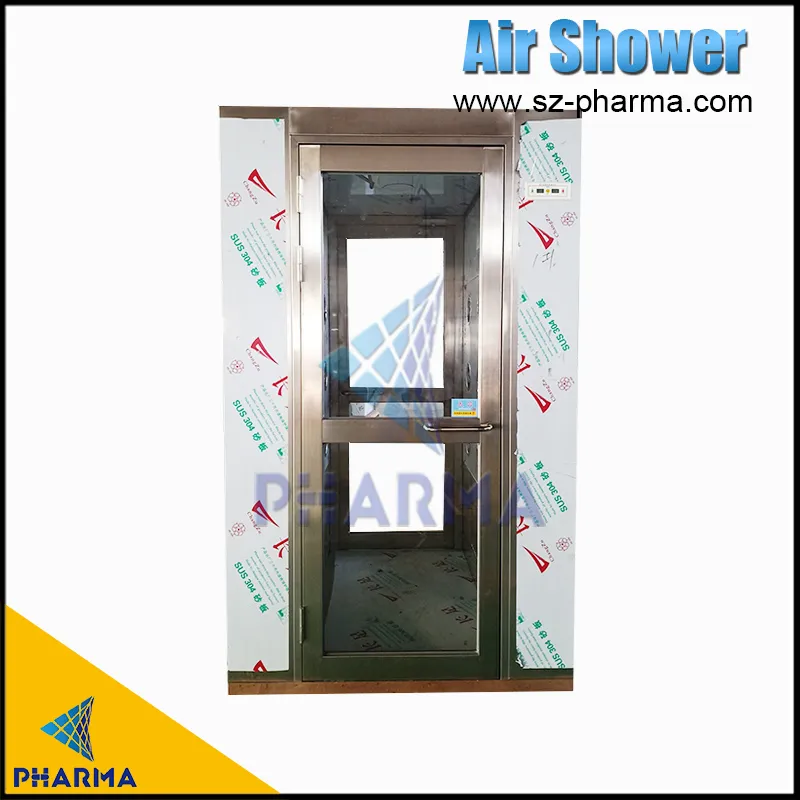

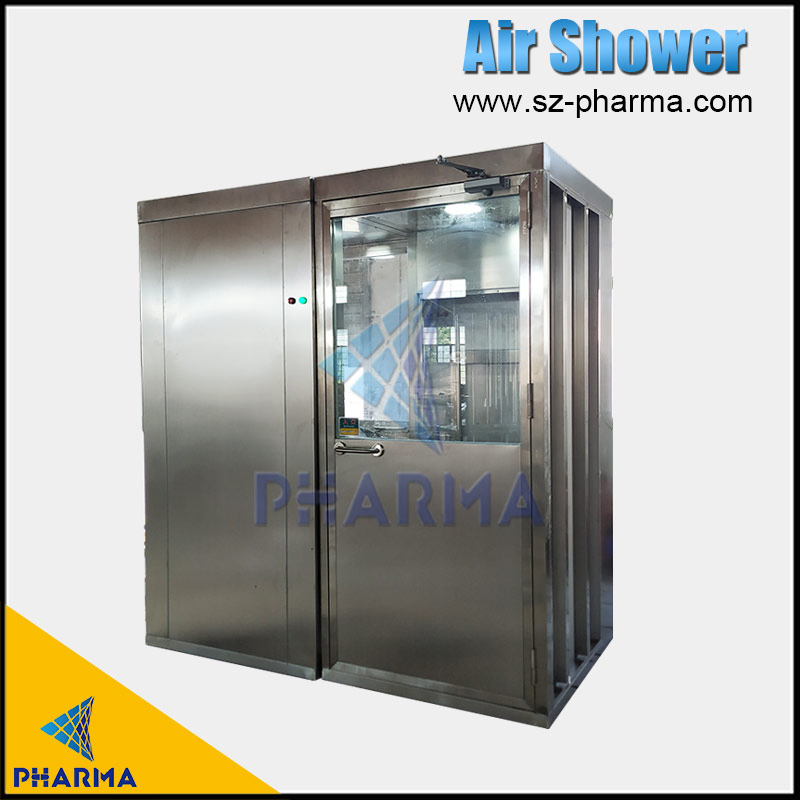

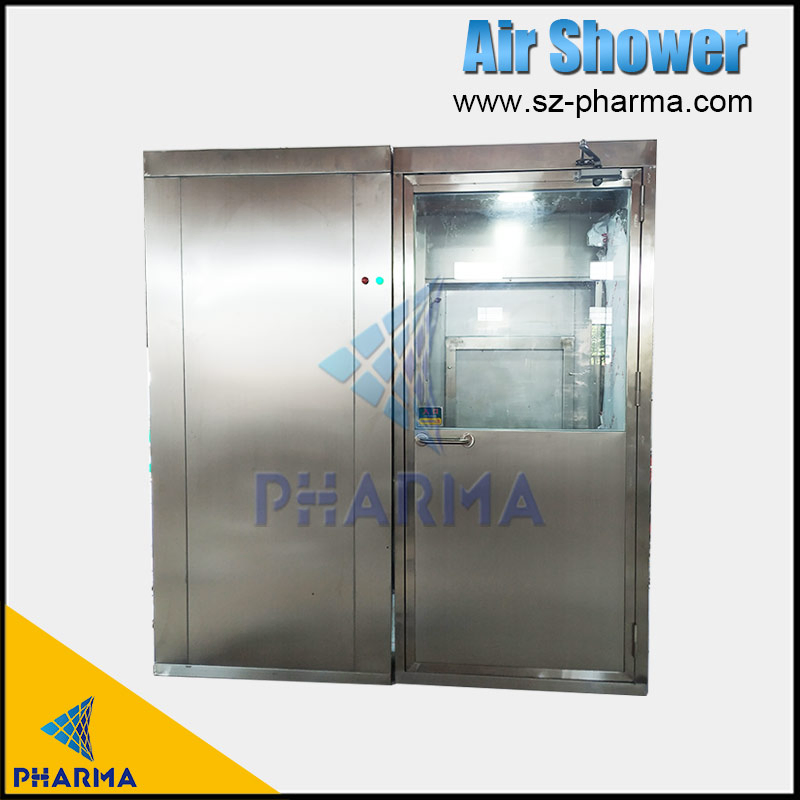

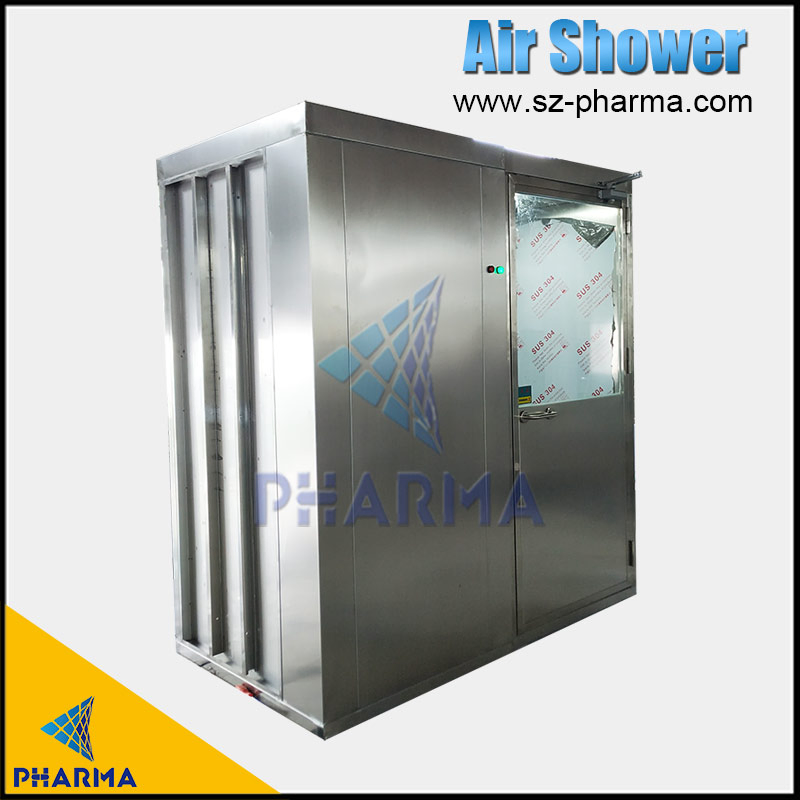

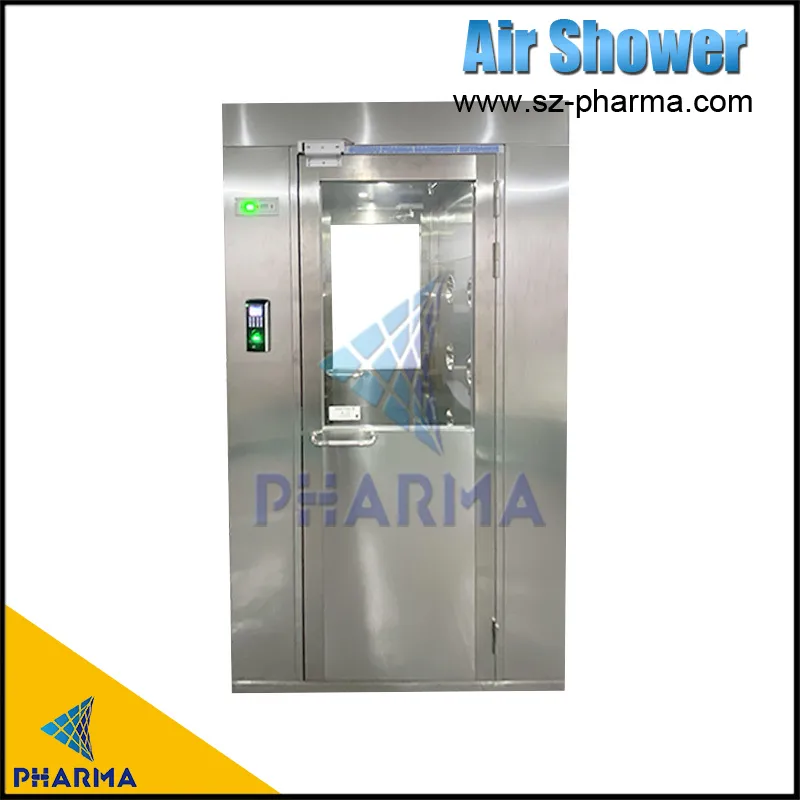

Product Overview
An air shower is a crucial device in cleanroom environments, designed to maintain the highest levels of cleanliness and particle control. It plays a vital role in preventing contaminants from entering controlled areas, thereby ensuring the integrity of sensitive processes and products.
Key Features and Functions
- High-Efficiency Filtration System: Equipped with advanced HEPA filters, removing particles as small as 0.3 microns.
- Powerful Blower Unit: Generates high-velocity air jets to dislodge loose particles from surfaces.
- Interlocking Door System: Prevents cross-contamination by ensuring one door remains locked during the cycle.
- User-Friendly Control Panel: Intuitive settings for cycle time, air velocity, and real-time status monitoring.
- Stainless Steel Construction: Offers excellent durability, corrosion resistance, and ease of cleaning.
Technical Specifications
| Parameter/Model |
As-800-1/1 |
AS-800-2/1 |
AS-800-3/I |
| Filter Efficiency |
≥99.99%@0.3μm |
| Spraying Wind Speed |
≥25 m/s |
| Shower Time |
0-99s Adjustable |
| Number of Nozzles |
12 pieces |
16 pieces |
18 pieces |
| Shower Area (mm) |
800x900x2000 |
800x1200x2000 |
800x1900x2000 |
| Power Supply |
AC, 3N, 380V ±10%, 50Hz |
| Weight (kg) |
500 |
700 |
1000 |
This is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Shower ways include: single-side shower, double-side shower, three-side shower, and top shower.
Installation and Maintenance
- Designed for easy installation and can be integrated into existing cleanroom layouts with minimal disruption.
- Regular maintenance involves replacing HEPA filters, cleaning surfaces, and checking the blower and control system for peak performance.
Frequently Asked Questions
What is the primary function of an air shower in a cleanroom?
The primary function is to remove dust, lint, and other contaminants from personnel or objects before they enter a cleanroom environment to prevent cross-contamination.
Can the air shower cycle time be adjusted?
Yes, the showering time is fully adjustable, typically ranging from 0 to 99 seconds, depending on your specific protocol requirements.
What materials are used for the construction of the chamber?
The chamber is constructed from high-quality stainless steel, ensuring durability, corrosion resistance, and easy sterilization.
How effective is the air shower's filtration system?
The system utilizes high-efficiency HEPA filters that can remove 99.99% of particles as small as 0.3 microns.
Is professional installation required for the air shower system?
While designed for easy integration, professional setup is recommended to ensure proper alignment and seal with existing cleanroom partitions.
How does the interlocking door system improve safety?
It ensures that both doors cannot be opened simultaneously, creating an airlock that prevents unfiltered external air from entering the clean area.
