📋 Basic Information
| Model NO. | Class a Laminar Flow Hood |
Standard | Standard |
| Material | Stainless Steel |
Power Supply | 220V/50Hz |
| Exhaust | Interface DN50 Stainless Steel Pipe, φ64mm Fla |
Certificate | ISO9001 |
| Product Application | Hospital/Laboratory |
Cleanliness Class | A |
| Air Speed (M/S) | 0.45±20% |
Noise (Db) | 65 |
| Specification | 1200*600*600 |
Origin | China |

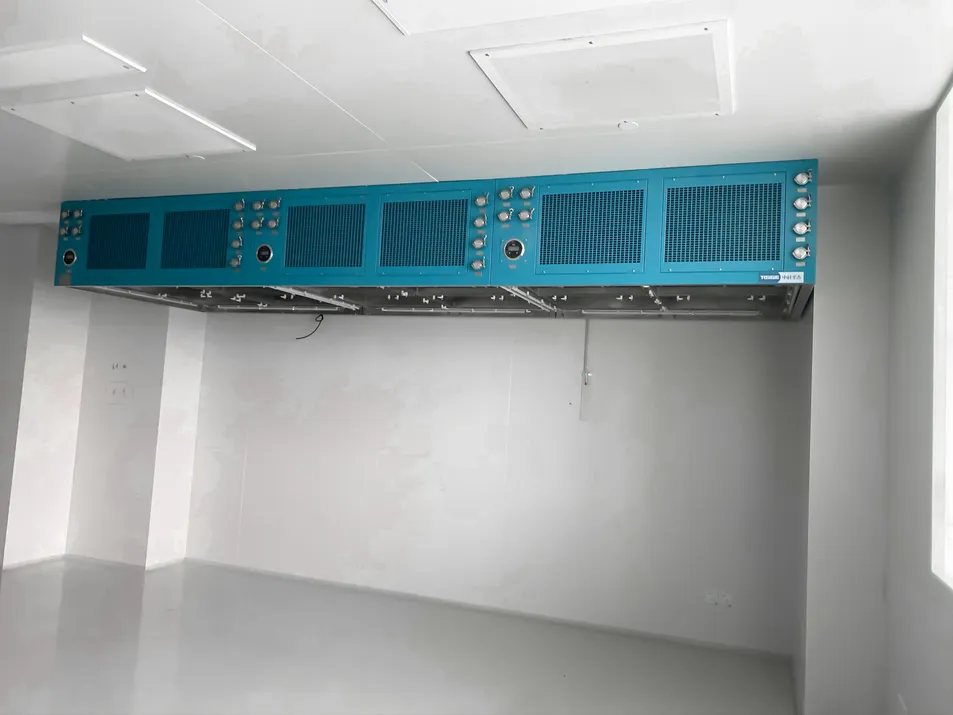

🔬 Product Overview

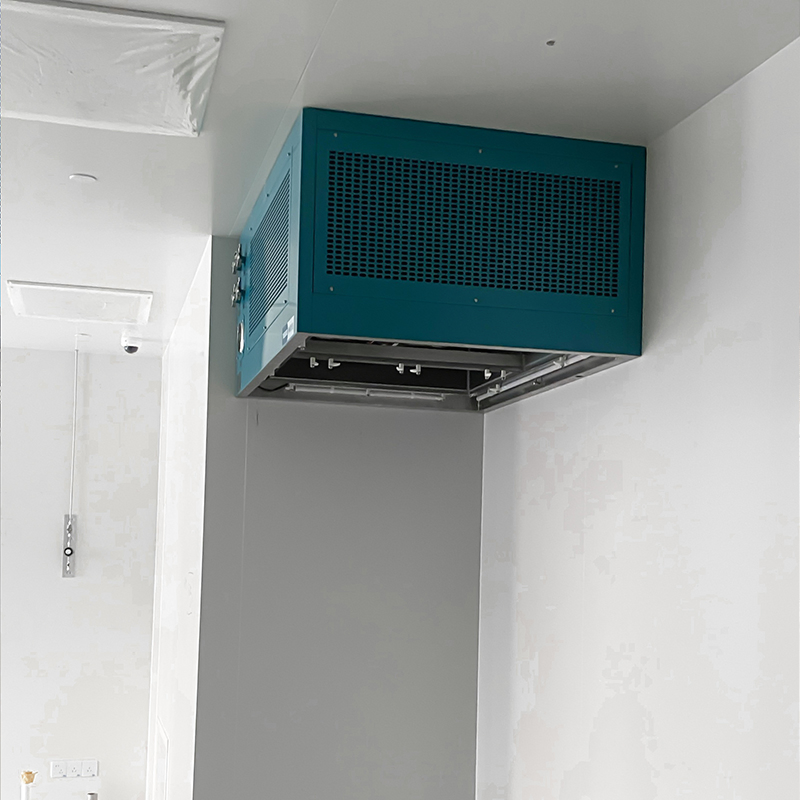

Class A Laminar Flow Hood is a specialized air purification equipment designed to provide localized high-cleanliness environments. It is essential for processes requiring sterile conditions.

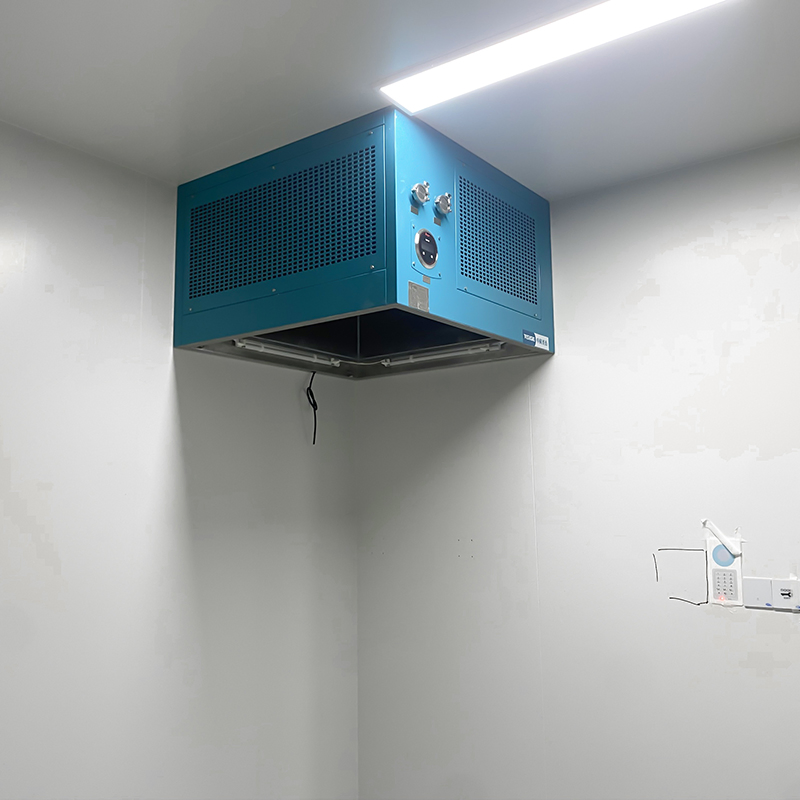

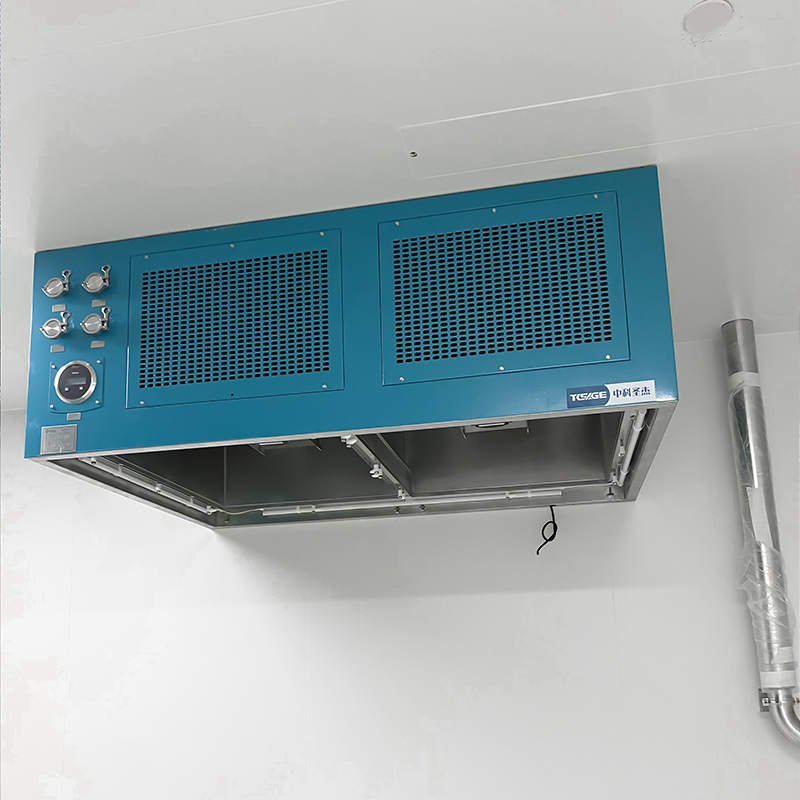

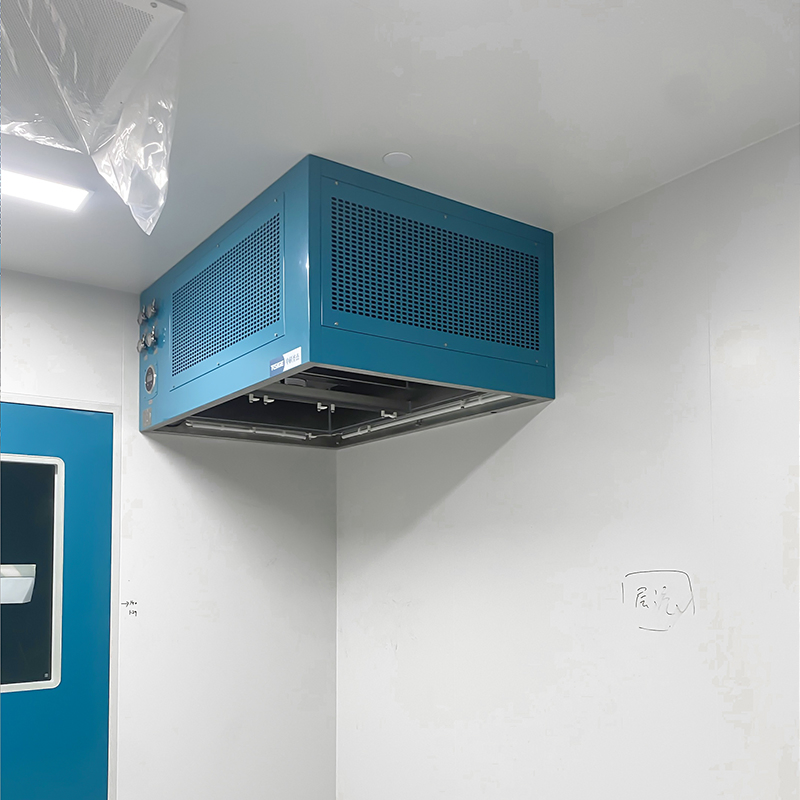

Components include: Cabinet, fan, primary-efficiency filter, high-efficiency filter, lamps, homogeneous flow film, and control systems. The unit can be hung or floor-mounted, featuring a compact structure for easy integration into existing workspaces.
Material & Build: The cabinet is constructed from high-quality Stainless Steel SUS304, formed through a single-bend sheet metal process. This ensures a beautiful, clean appearance that is easy to disinfect and maintain.
✅ Key Advantages
🔹 Long life span, low noise, and low fan vibration.
🔹 Double-layer negative pressure structure to prevent leakage.
🔹 Excellent uniform air distribution performance.
🔹 Automatic constant or step adjustment of air speed.
🔹 Gel seal quality for guaranteed high cleanliness.
🔹 Seamless design without dead ends for easy cleaning.

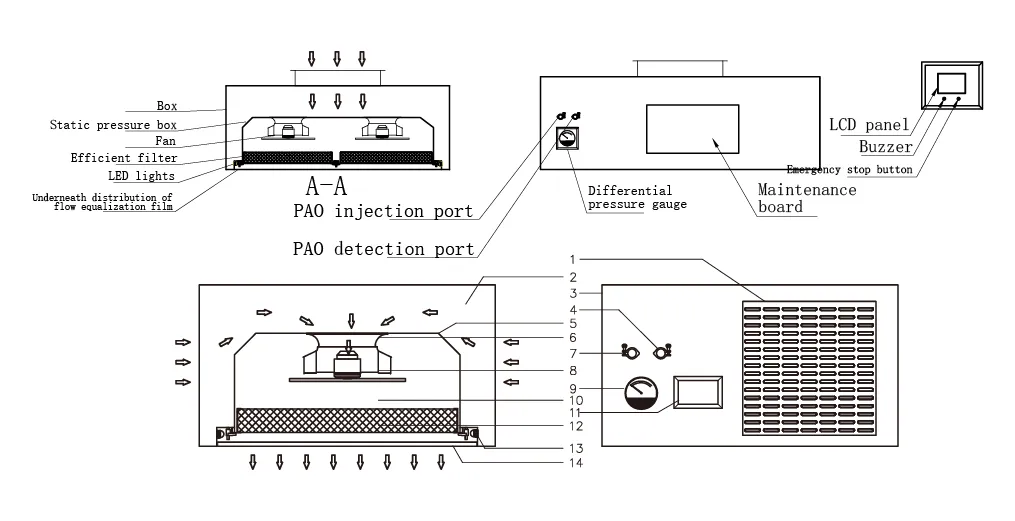

⚙️ Technical Description
- 1. Return air mesh plate
- 2. Negative pressure area
- 3. Cabinet
- 4. PAO injection port
- 5. Plenum chamber
- 6. Fan guide ring
- 7. DOP test port
- 8. Fan
- 9. Differential pressure gauge
- 10. Positive pressure area
- 11. Control panel
- 12. Gel seal HEPA filter
- 13. Lighting fixture
- 14. Homogeneous flow film
📊 Technical Specifications
| Model |
Overall dimensions (mm) |
Rated air volume (m³/h) |
Power (KW) |
| ZKSJ-AJCLZ1100 | 800X600X600 | 600~800 | 0.5 |
| ZKSJ-AJCLZ1200 | 1200X600X600 | 800~1000 | 0.3 |
| ZKSJ-AJCLZ1201 | 1200X900X600 | 1500~1800 | 0.6 |
| ZKSJ-AJCLZ1500 | 1500X1000X600 | 2400~2600 | 0.6 |
| ZKSJ-AJCLZ2000 | 2000X1000X600 | 3200~3500 | 1.0 |
| ZKSJ-AJCLZ2001 | 2000X1500X600 | 5200~5500 | 1.3 |
🏭 Manufacturing Excellence

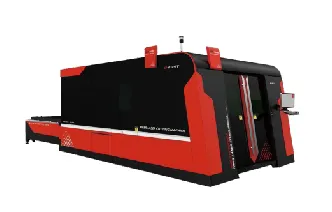

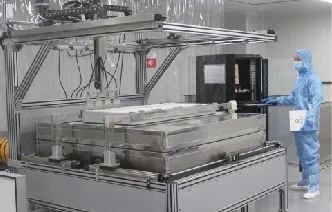

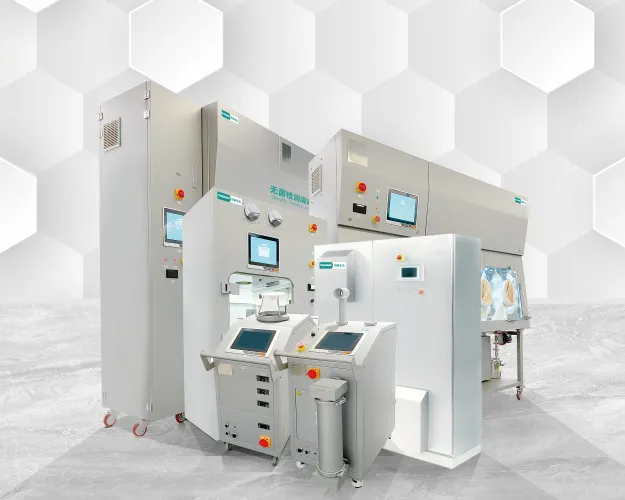

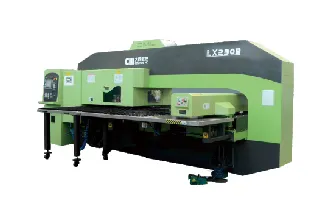

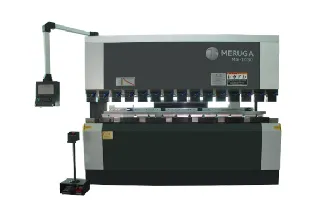

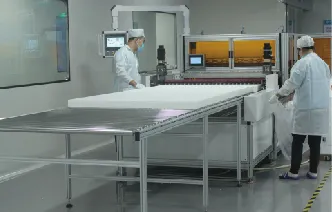

Utilizing advanced CNC equipment, laser cutting, and fully automatic welding for precision manufacturing. Key products range from gel seal HEPA boxes to VHP sterilization systems and sterile isolators.
🏆 Certifications & Honors
- 🛡️ ISO9001:2015 Quality Management
- 🛡️ CE / UL / 3C Certified
- 🛡️ National High-Tech Enterprise
- 🛡️ Member of China Contamination Control Society

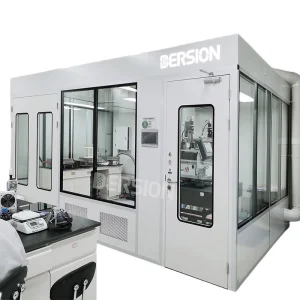

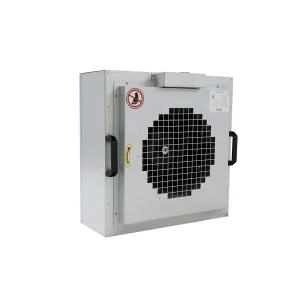

📦 Product Categories
❓ Frequently Asked Questions
Q1: What is a Class A Laminar Flow Hood?
A: It is an air purification device that creates a localized high-cleanliness (Class A) environment by utilizing HEPA filters and a controlled airflow pattern to protect sensitive processes from contamination.
Q2: What material is used for the construction of the hood?
A: The cabinet is made of high-grade Stainless Steel SUS304, which provides excellent durability and resistance to cleaning agents and disinfectants.
Q3: How does the "Gel Seal" design benefit the user?
A: The gel seal ensures a leak-proof connection between the filter and the frame, providing higher reliability and cleanliness compared to traditional gasket seals.
Q4: Can the air speed be adjusted?
A: Yes, the unit features an inverter or LCD control system that allows for automatic constant or step adjustment of the air speed (standard 0.45m/s ± 20%).
Q5: What are the typical applications for this equipment?
A: It is widely used in hospital pharmacies, biological laboratories, pharmaceutical assembly lines, and electronics cleanrooms.
Q6: Is it possible to connect multiple units together?

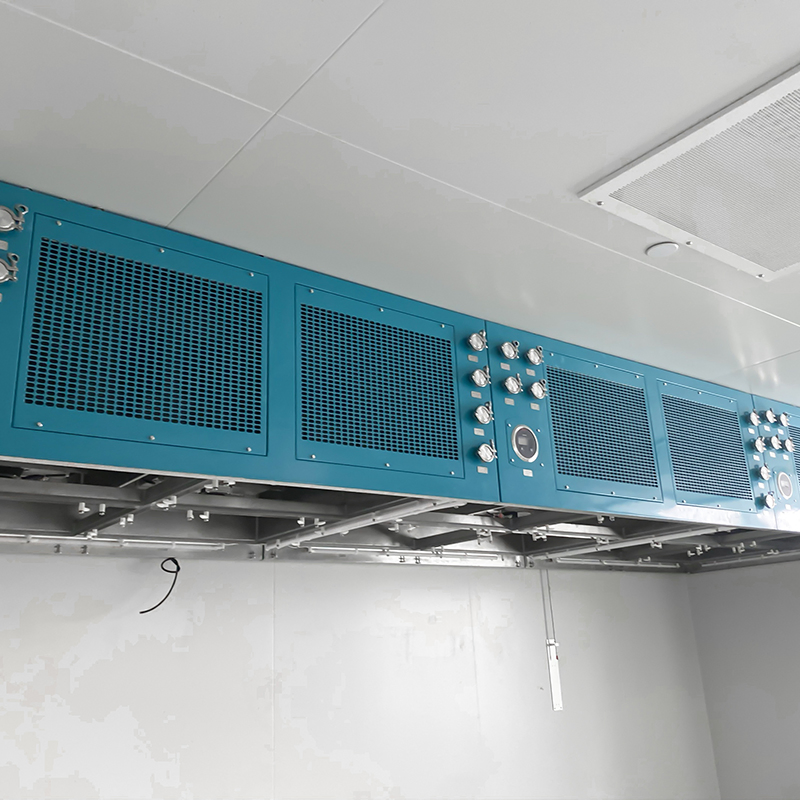

A: Yes, the Class A laminar flow hoods can be used individually or connected to form a larger, belt-shaped clean area depending on the project requirements.
