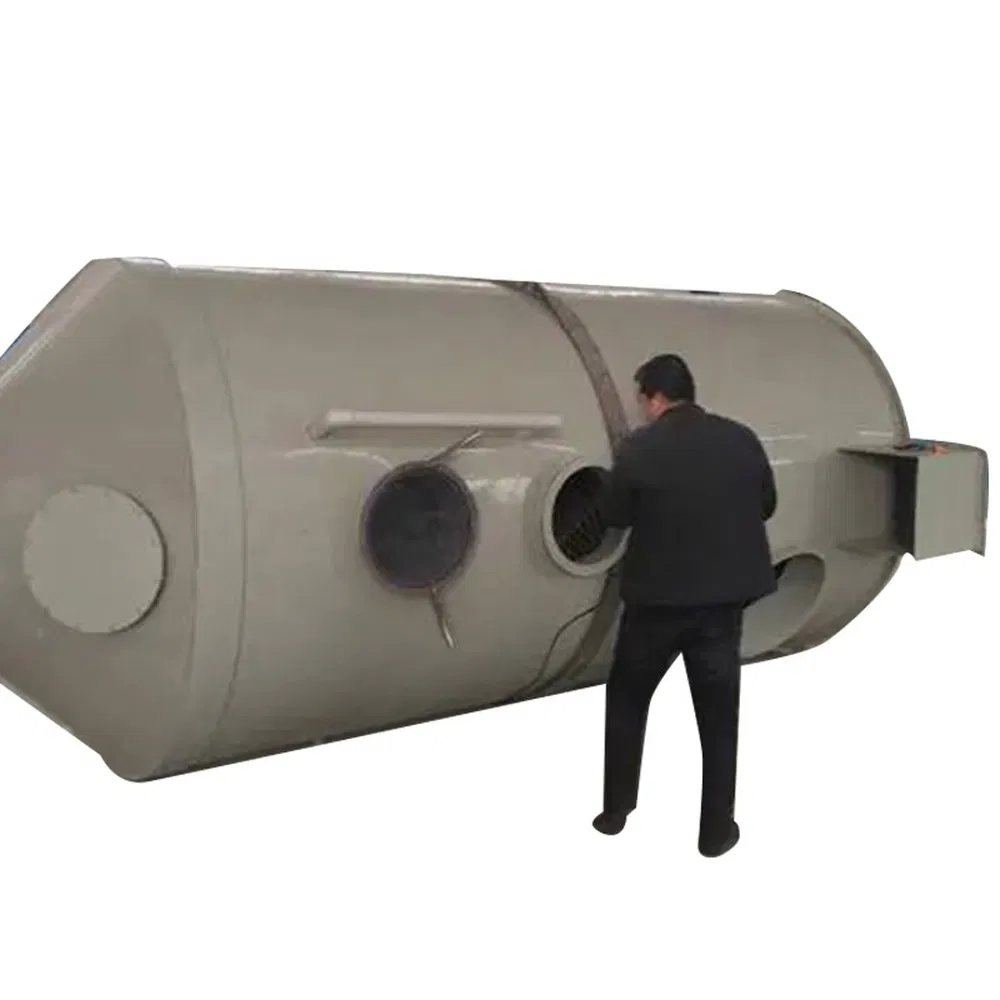

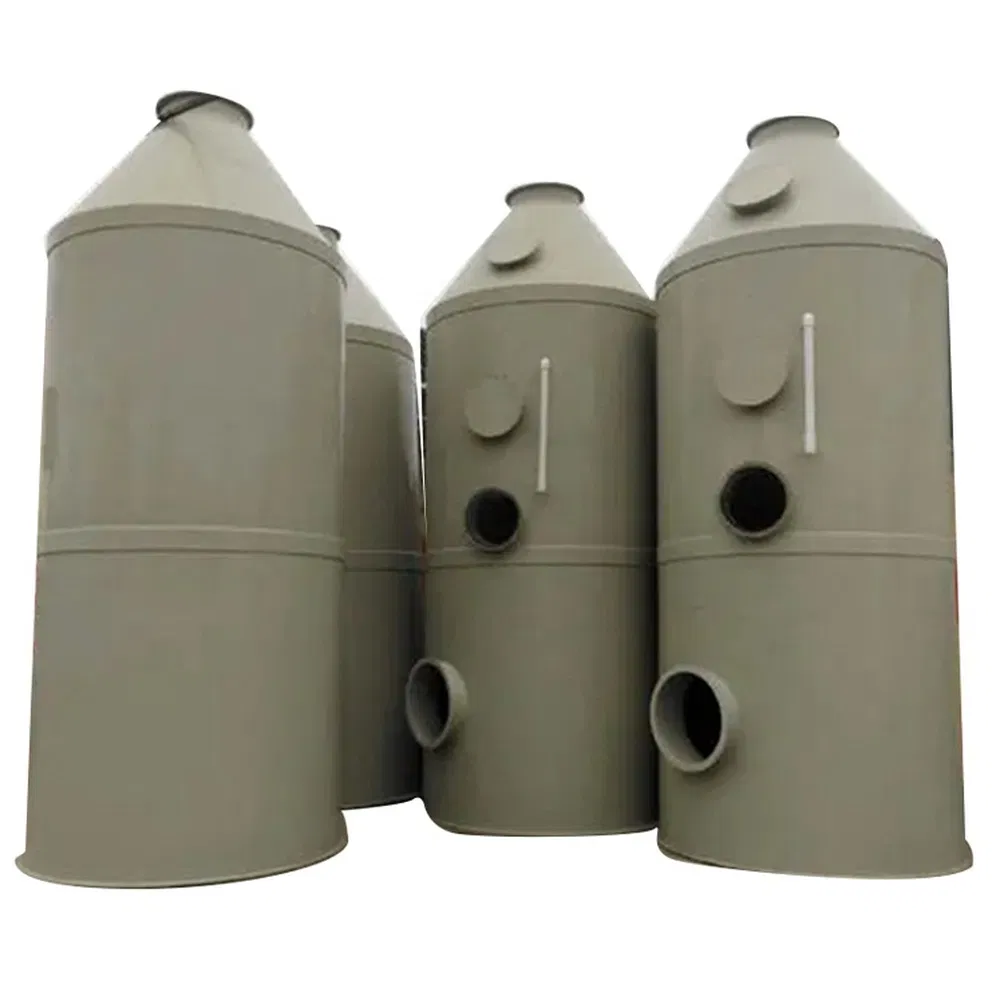

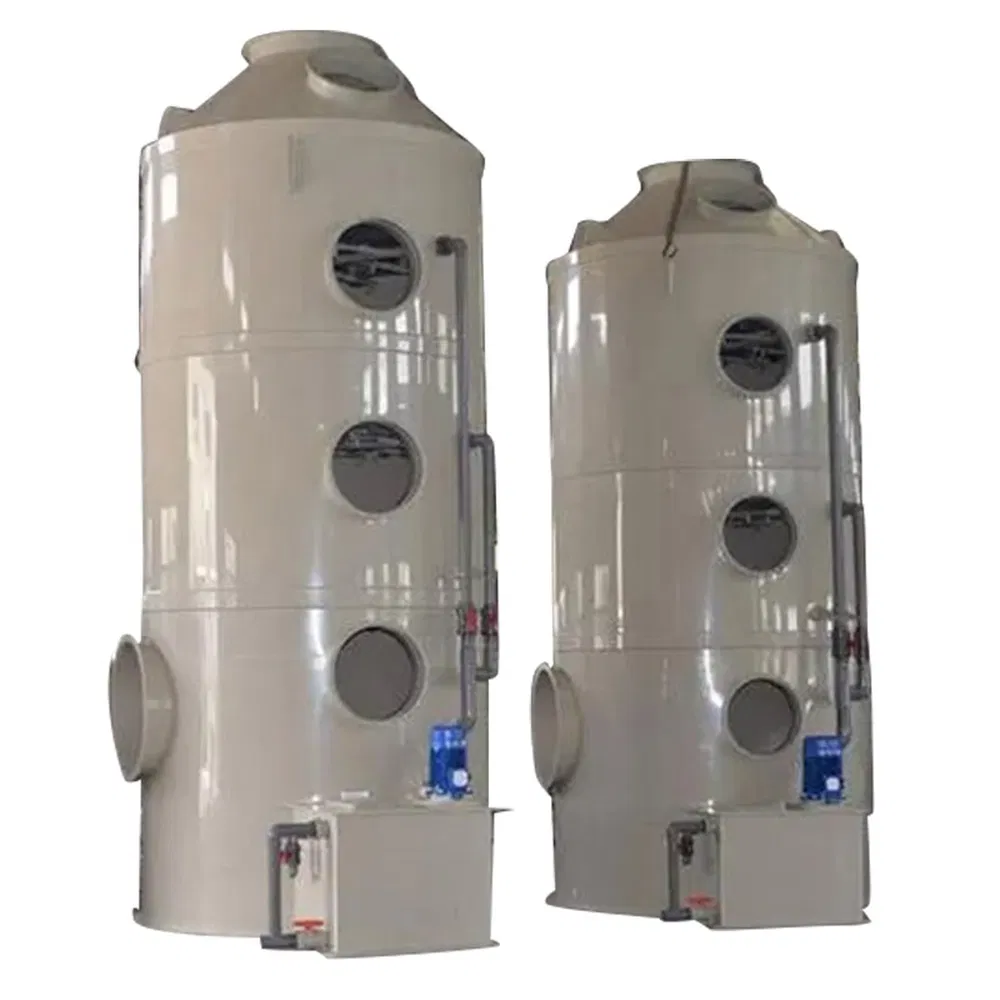

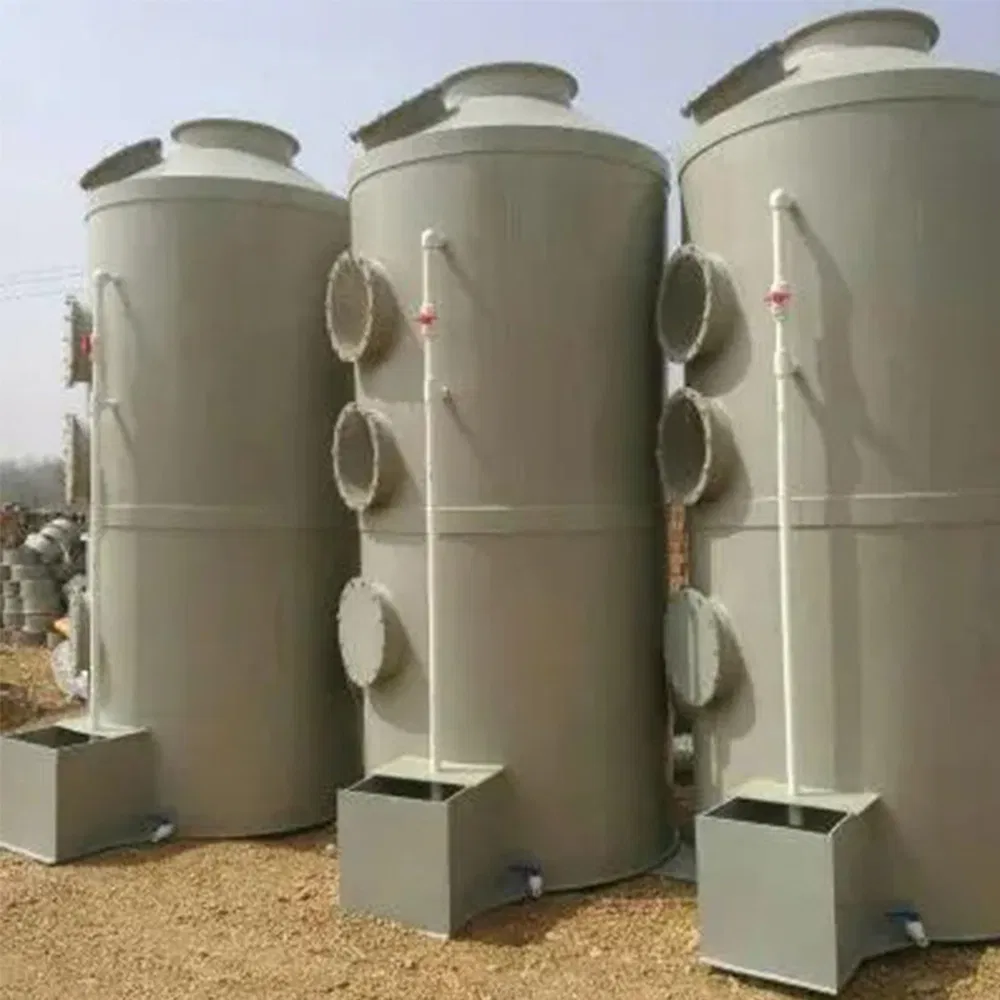

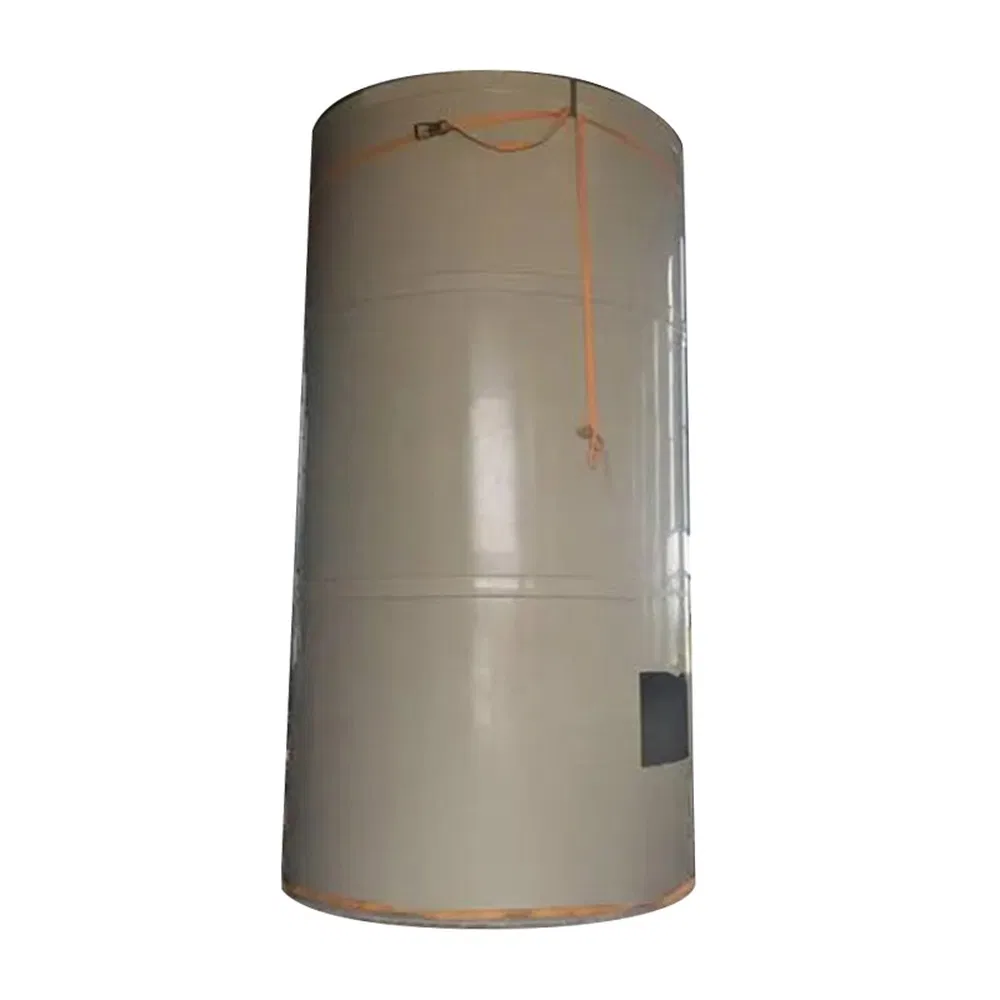

Stainless Steel Wet Scrubber Tower for Electronics Manufacturing Cleanroom

Customization:	Available
Condition:	New
Certification:	ISO, CE

Basic Information

Model NO.

LYPL-5000

Automation

Automatic

Treatment

Chemical Treatment

Product Name

Spray Tower

Air Volume

5000m³/H

Power

2.2kw

Efficiency

99%

Production Capacity

50000pieces/Year

Product Description

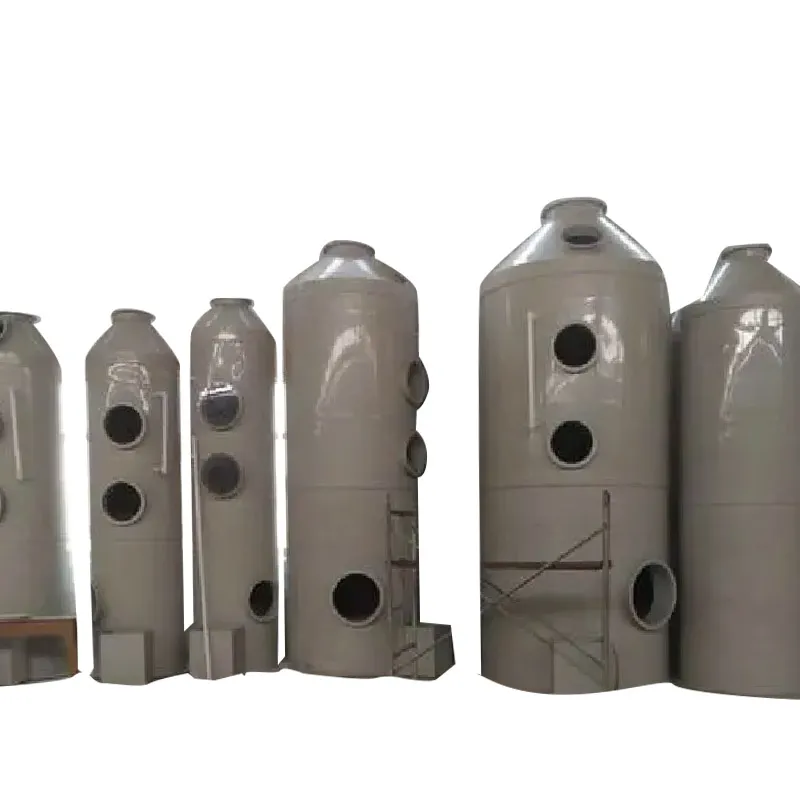

SPRAY TOWER SYSTEM

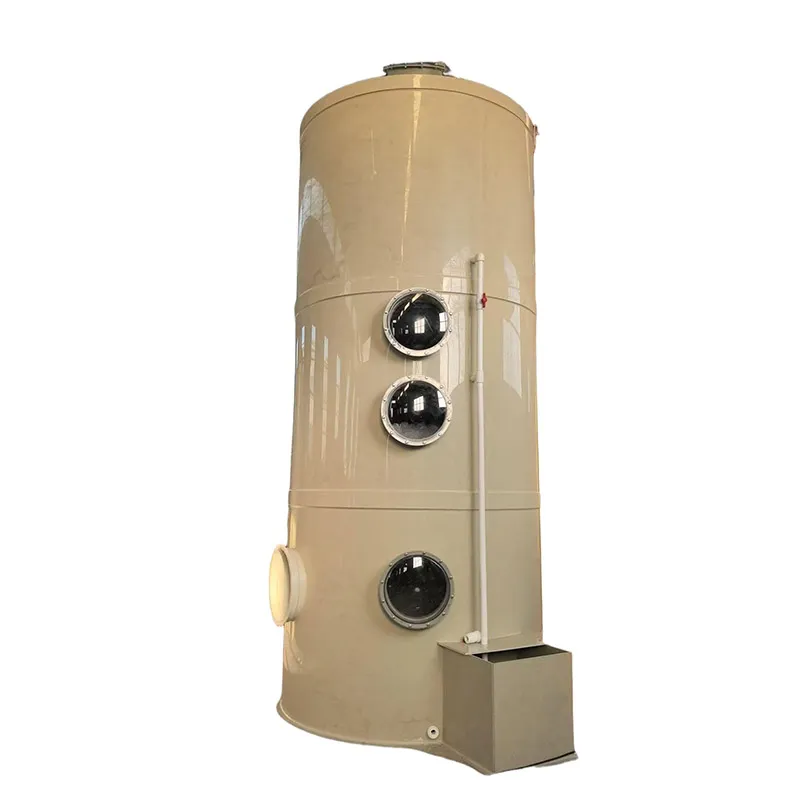

A spray tower is a vertical chamber that facilitates mass transfer between a gas stream and a liquid spray for pollution abatement. Its operation is based on direct impingement scrubbing. Key features include adjustable liquid flow rates, low-pressure drop design, and easy maintenance access for reliable long-term operation. Perfect for chemical processing plants, power generation facilities, and manufacturing operations requiring effective air pollution control solutions.

Process Breakdown

Gas Inlet: Contaminated gas is introduced near the bottom. A quench section saturates and cools the gas to improve removal efficiency.

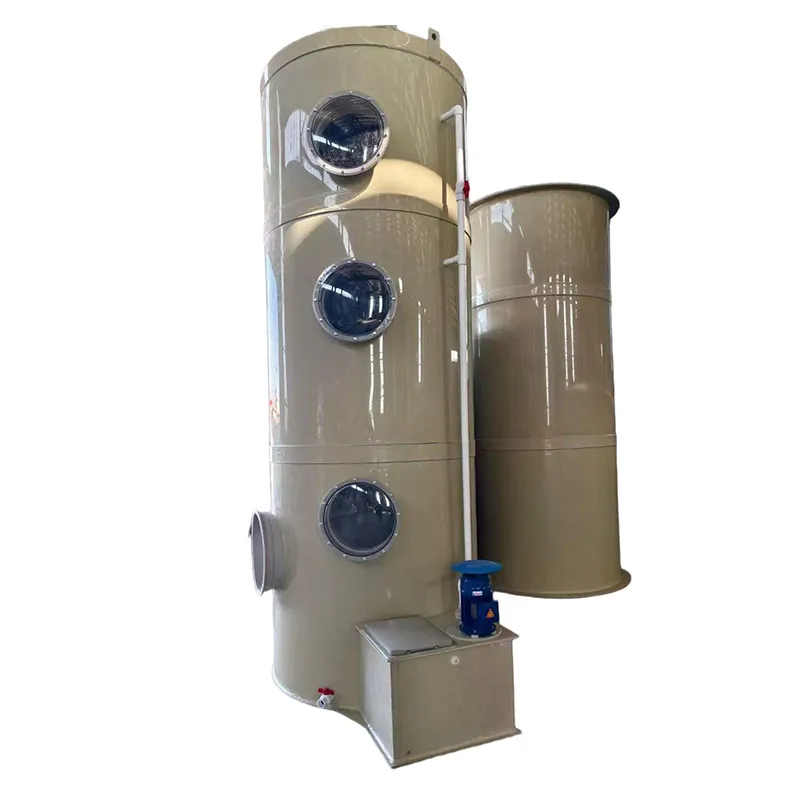

Liquid Spray System: Multiple levels of atomizing nozzles create a high-density mist for maximum gas-liquid contact.
Counter-Current Flow: Upward gas flow against downward spray maximizes the concentration gradient for superior absorption.
Pollutant Removal: Handles particulates via inertial impaction and gases through chemical absorption (SO2, HCL, etc.).
Demister Section: Chevron blades or mesh pads remove entrained droplets before clean gas is exhausted.

Technical Parameters

Model	Specifications	Air Volume	Power	Efficiency
LYPL-5000	φ1200*3500mm	5000m³/h	2.2kw	99%
LYPL-10000	φ1500*3500mm	10000m³/h	2.2kw	99%
LYPL-15000	φ1800*4500mm	15000m³/h	3kw	99%
LYPL-20000	φ2000*5000mm	20000m³/h	4kw	99%
LYPL-30000	φ2500*6000mm	30000m³/h	5.5kw	99%
LYPL-50000	φ2800*7500mm	50000m³/h	7.5kw	99%

Detailed Features

Frequently Asked Questions

Q1: How do I request a quote for this system? Please provide product model, specifications, processing air volume, and dust characteristics. Our team will issue a formal Proforma Invoice based on these configuration requirements.

Q2: What are the standard payment terms? We primarily support Telegraphic Transfer (T/T). Typically, a 30% deposit is required after contract signing, with the 70% balance due before shipment.

Q3: How long is the production and shipment timeline? For standard products, shipment is arranged within 5-7 business days after payment. Customized systems require a confirmed production cycle shared during the quoting process.

Q4: How is the equipment protected during international transport? Large equipment uses external stretch film and internal foam padding. Accessories are secured in wooden cases, and container reinforcement is performed using wire ropes or straps to ensure safe long-distance transit.

Q5: What technical support is available after installation? We provide remote diagnostic support via video/phone, rapid spare parts dispatch, and detailed English operational manuals/video guides for your maintenance team.

Q6: What is the warranty period for the spray tower? The main unit comes with a 12-month warranty against manufacturing defects. Consumable parts like sealing strips are negotiated separately based on usage conditions.
